Engine Controls - Diagnostics
>>
Terminals Of ECM
Terminals Of ECM

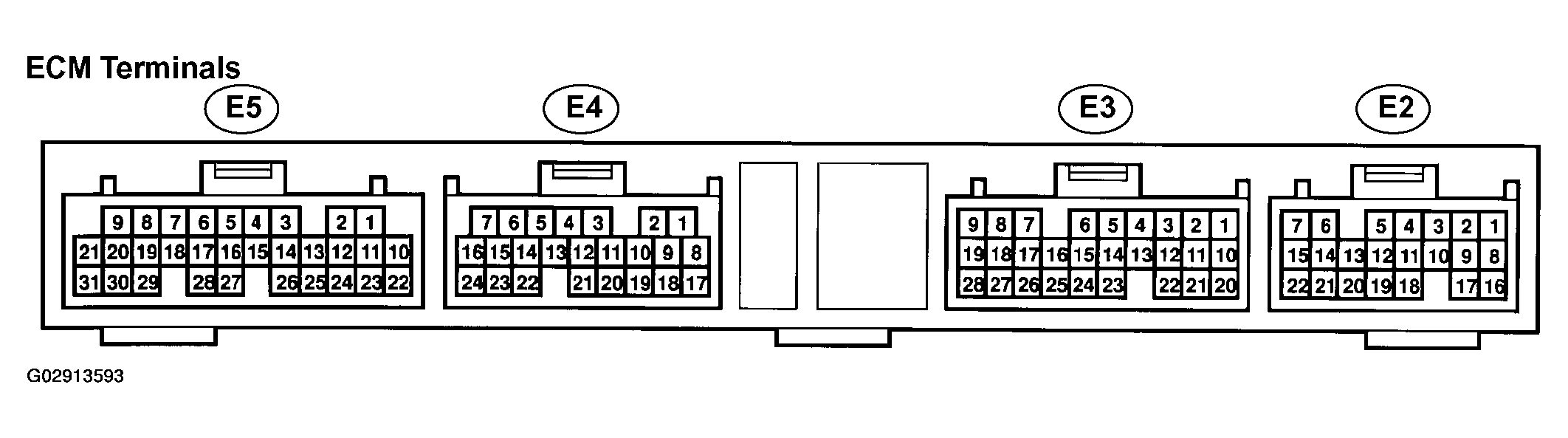

Fig 1: Locating ECM Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

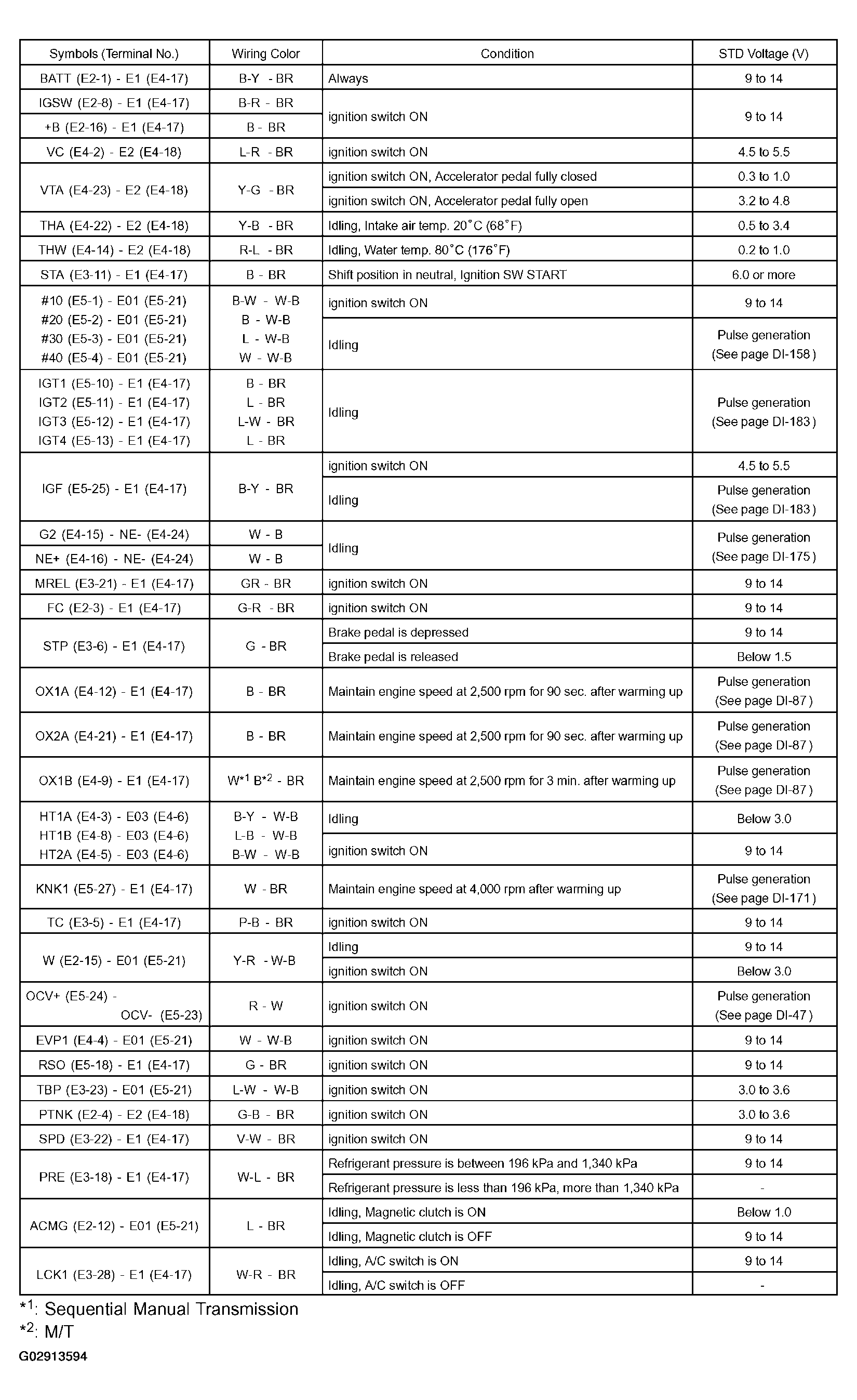

Fig 2: ECM Pin Voltage Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
