Vehicle Lift And Support Locations

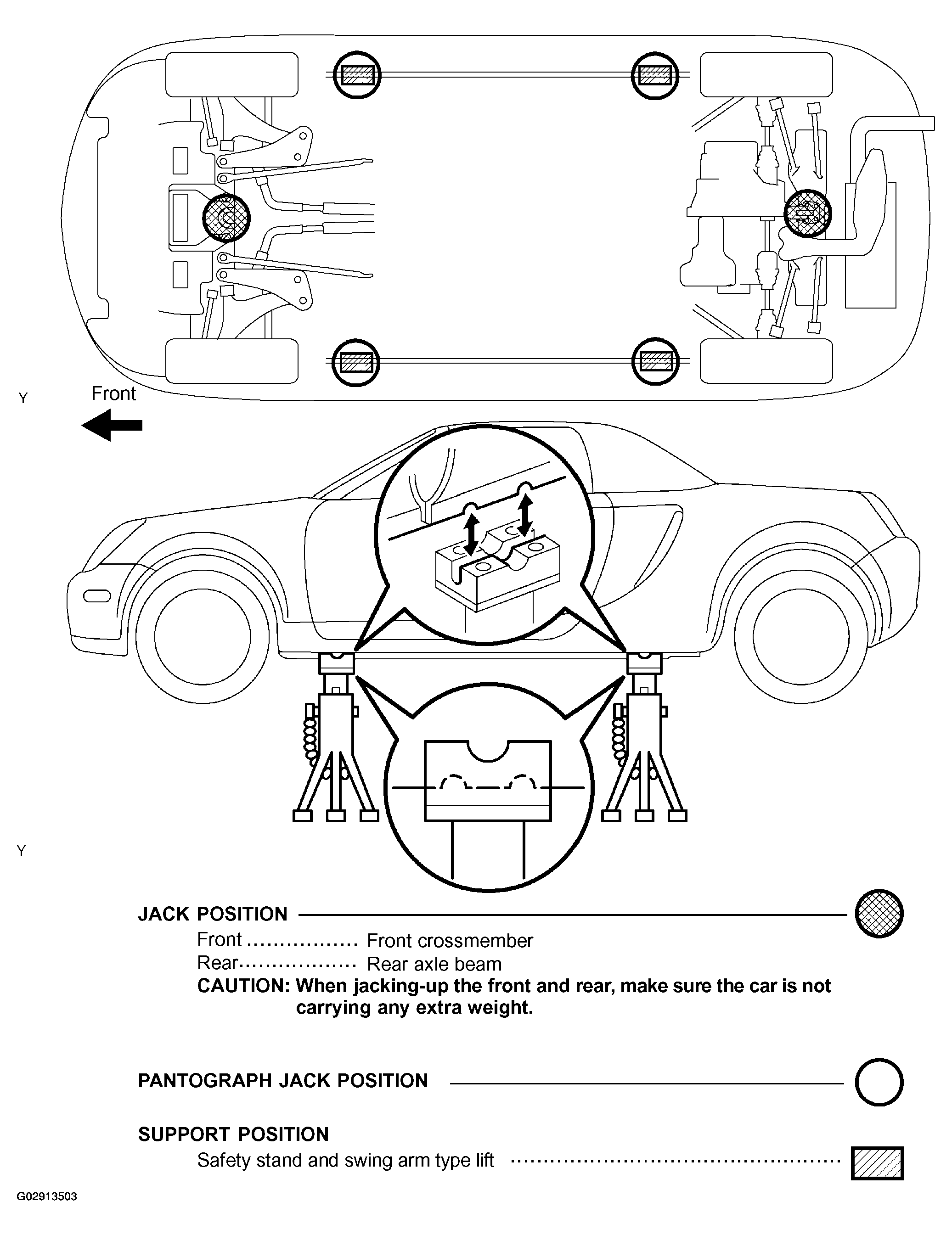

Fig 1: Identifying Vehicle Lift & Support Locations (1 Of 2)
G02913503Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

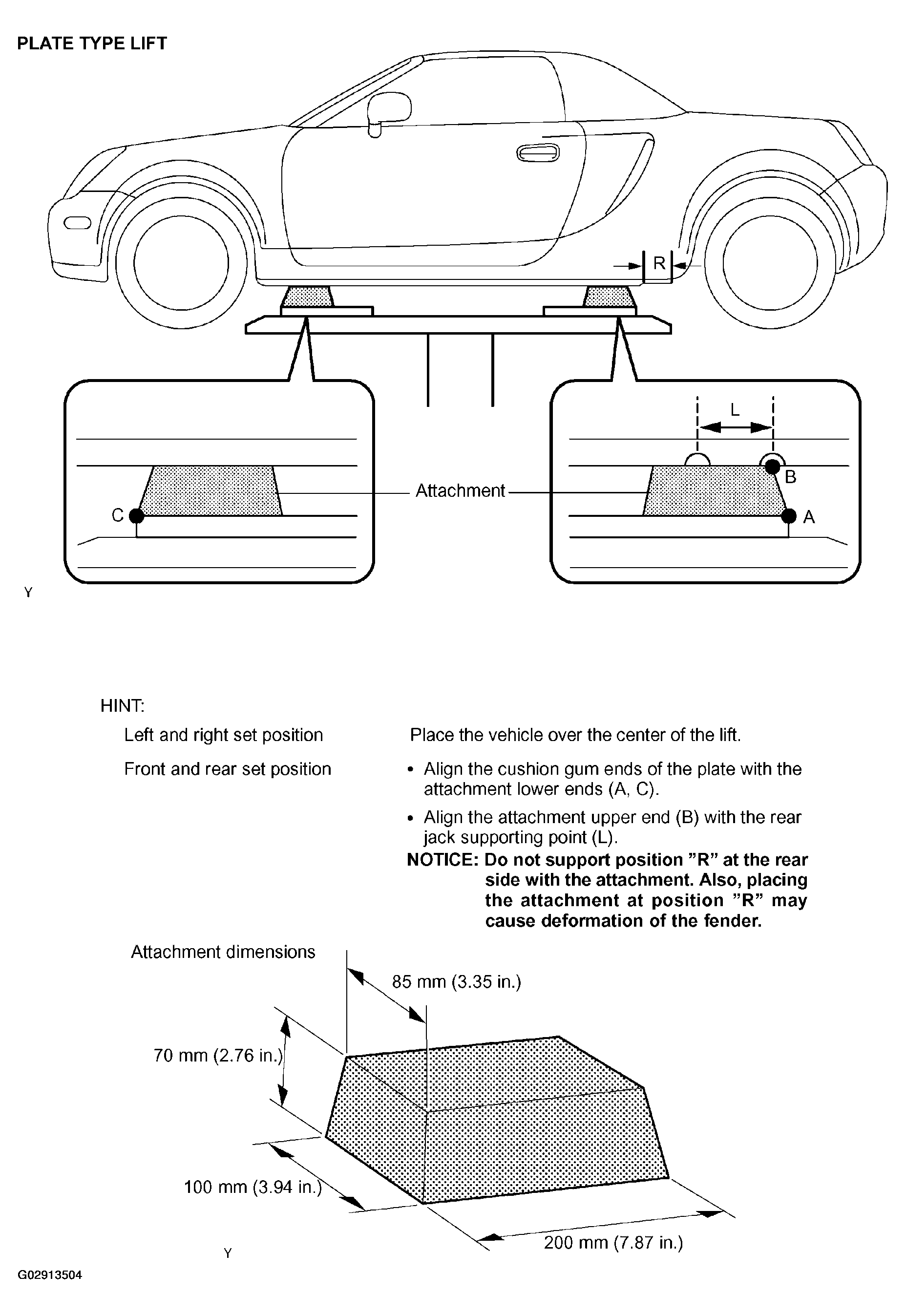

Fig 2: Identifying Vehicle Lift & Support Locations ( 2 Of 2)
G02913504Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
