Home >> Toyota >> 2004 >> MR2 C65M >> Repair and Diagnosis >> Transmission >> Manual Trans >> Manual Trans Sequential >> Hydraulic Power Unit >> Components

Hydraulic Power Unit: Components

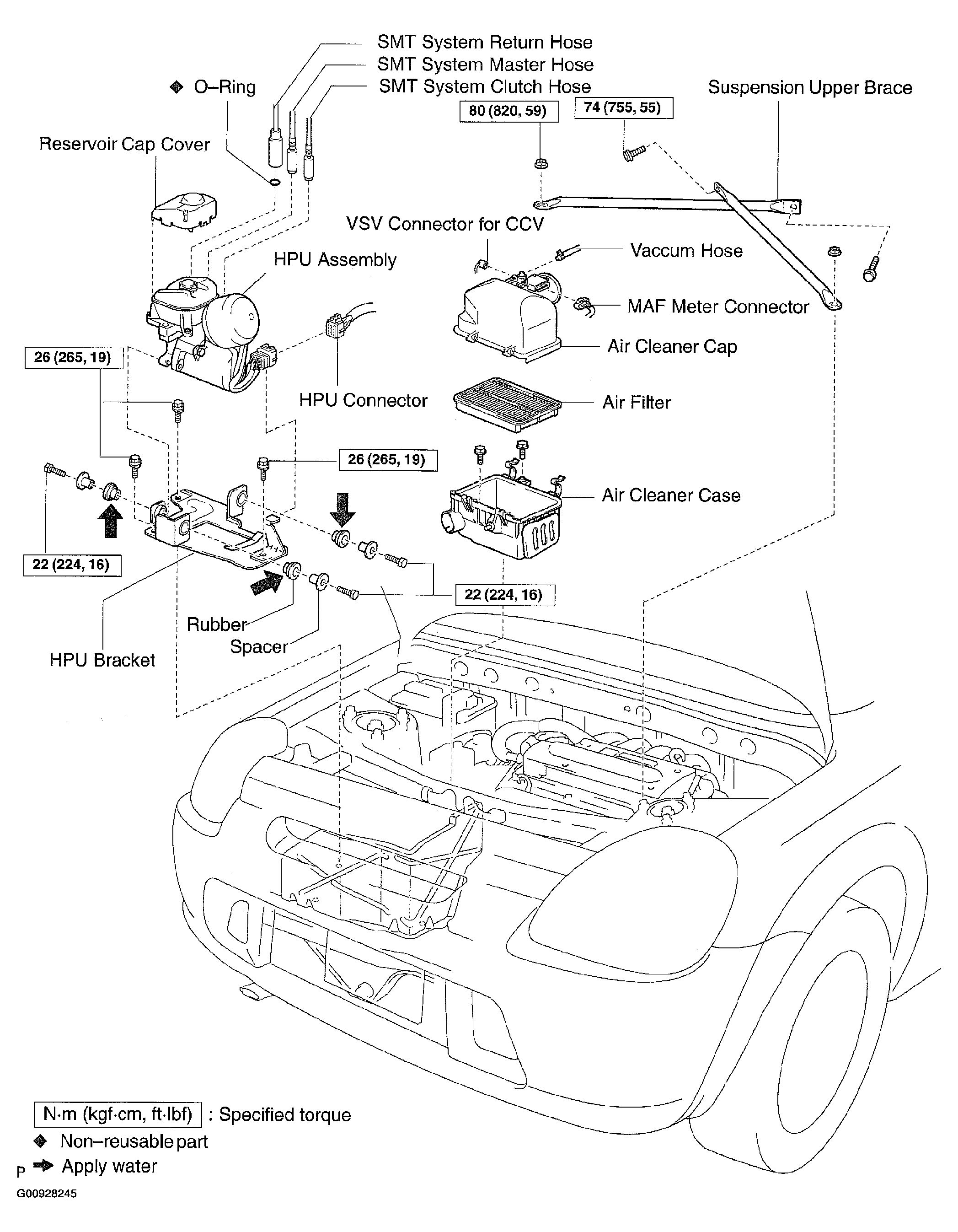

Fig 1: Identifying Hydraulic Power Components (1 Of 2)
G00928245Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

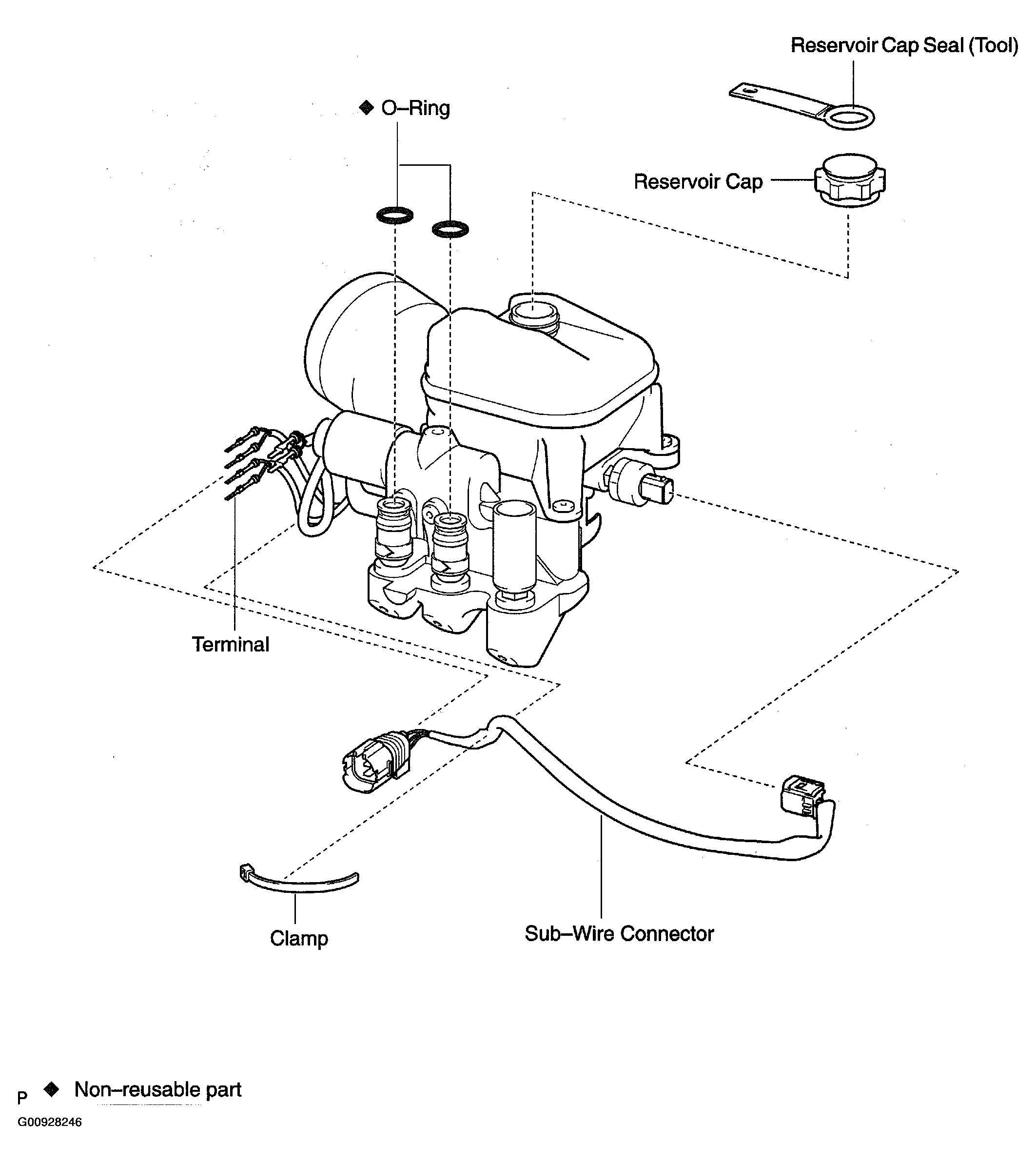

Fig 2: Identifying Hydraulic Power Components (2 Of 2)
G00928246Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
