Home >> Toyota >> 2004 >> MR2 C65M >> Repair and Diagnosis >> Transmission >> Manual Trans >> Manual Trans Sequential >> Shift Lever >> Components

Shift Lever: Components

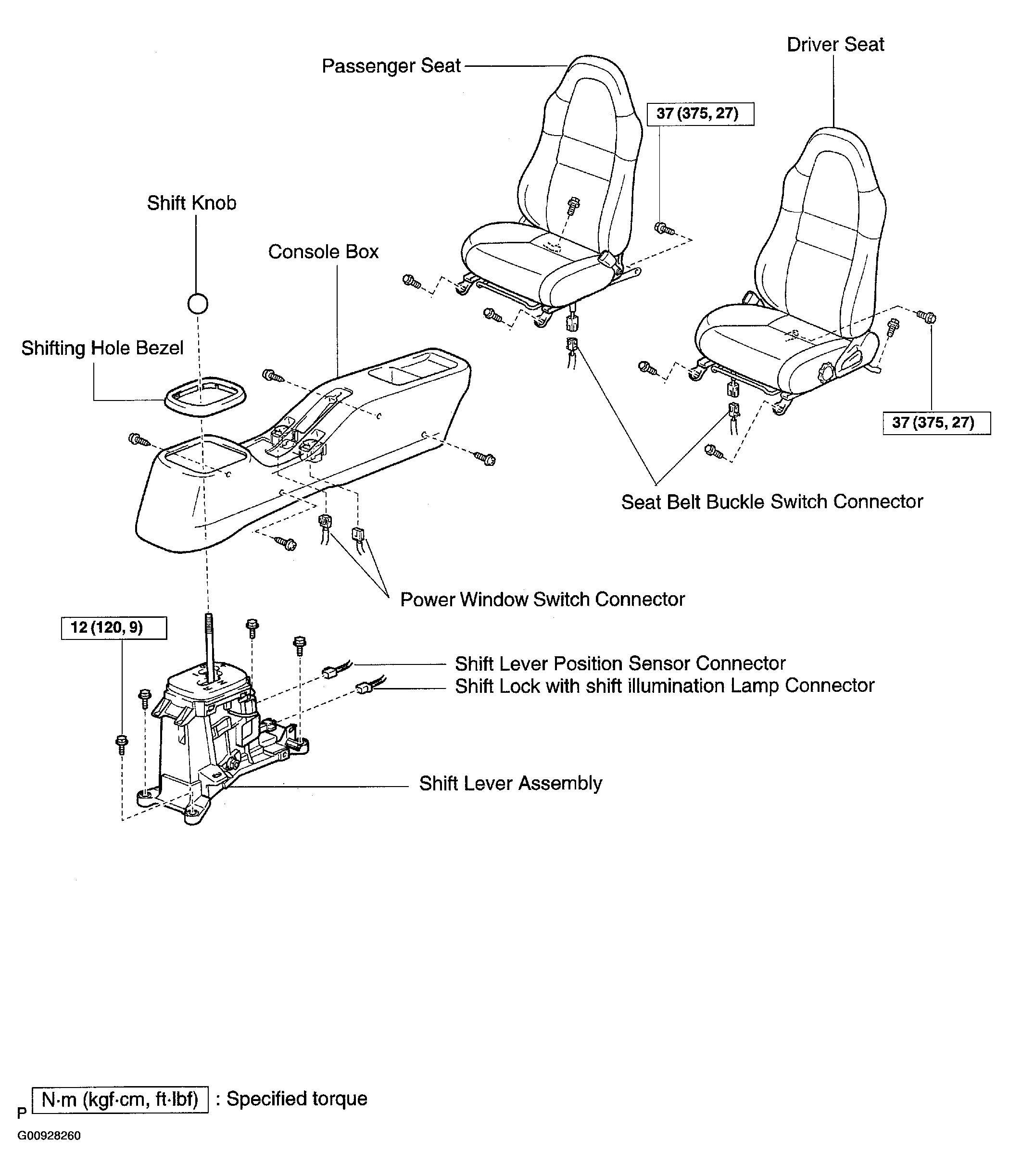

Fig 1: Identifying Shift Lever Components (1 Of 2)
G00928260Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

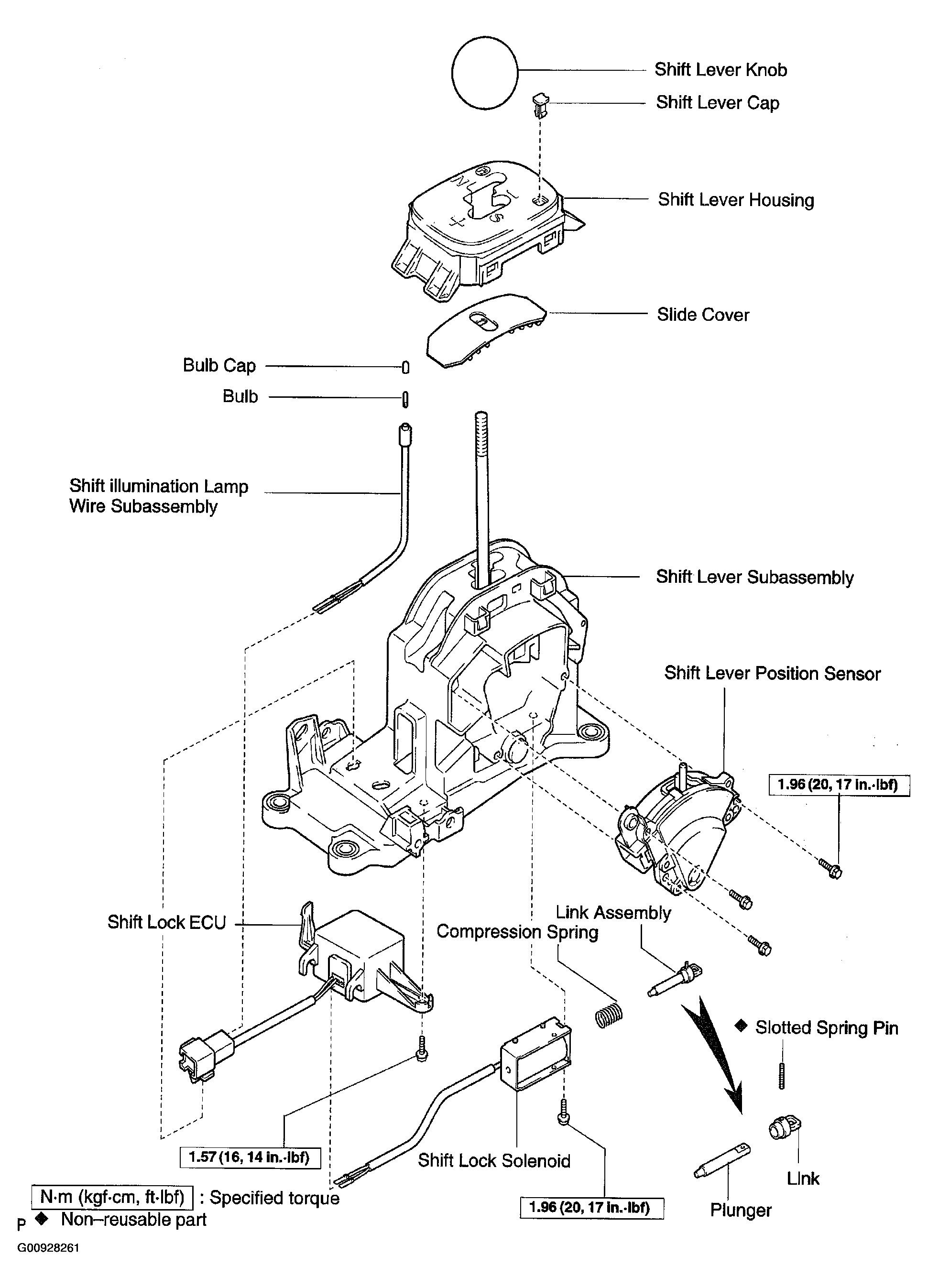

Fig 2: Identifying Shift Lever Components (2 Of 2)
G00928261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
