Problem Symptoms Table
Problem Symptoms Table

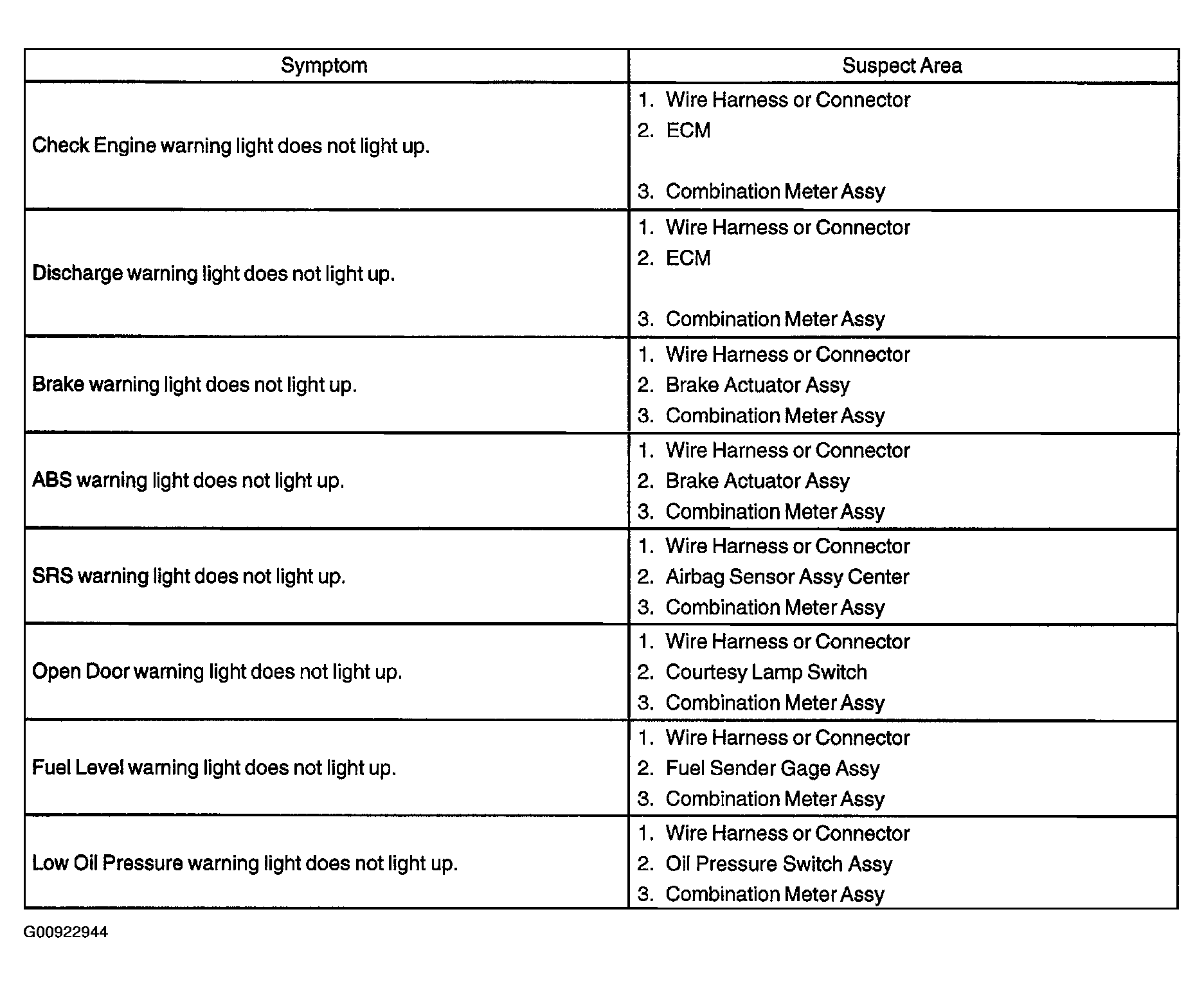

Fig 1: Problem Symptoms Table - Warning Lights
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

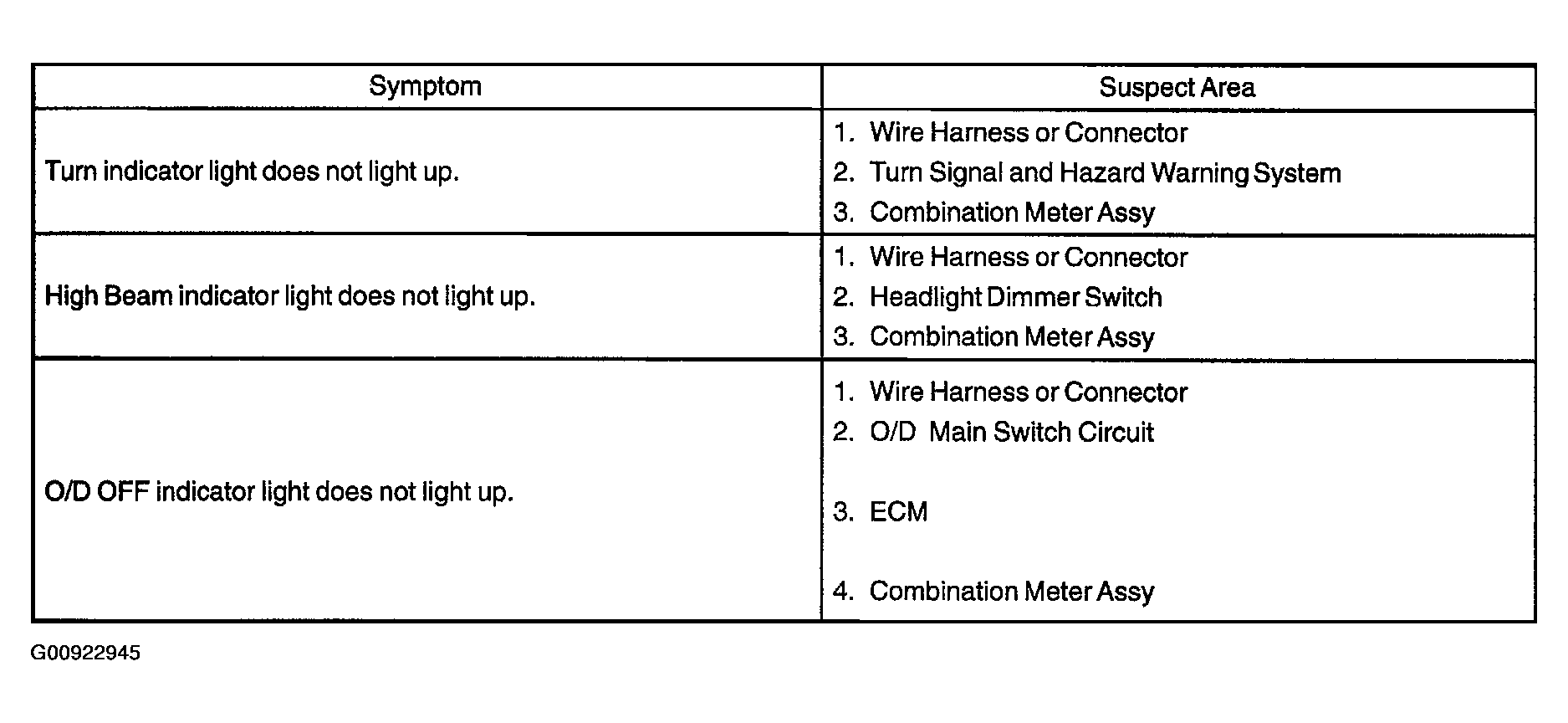

Fig 2: Problem Symptoms Table - Indicator Lights:
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
