Section 587 (Instrument Panel): Components

WARNING: This page is about a different car, the 2003 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

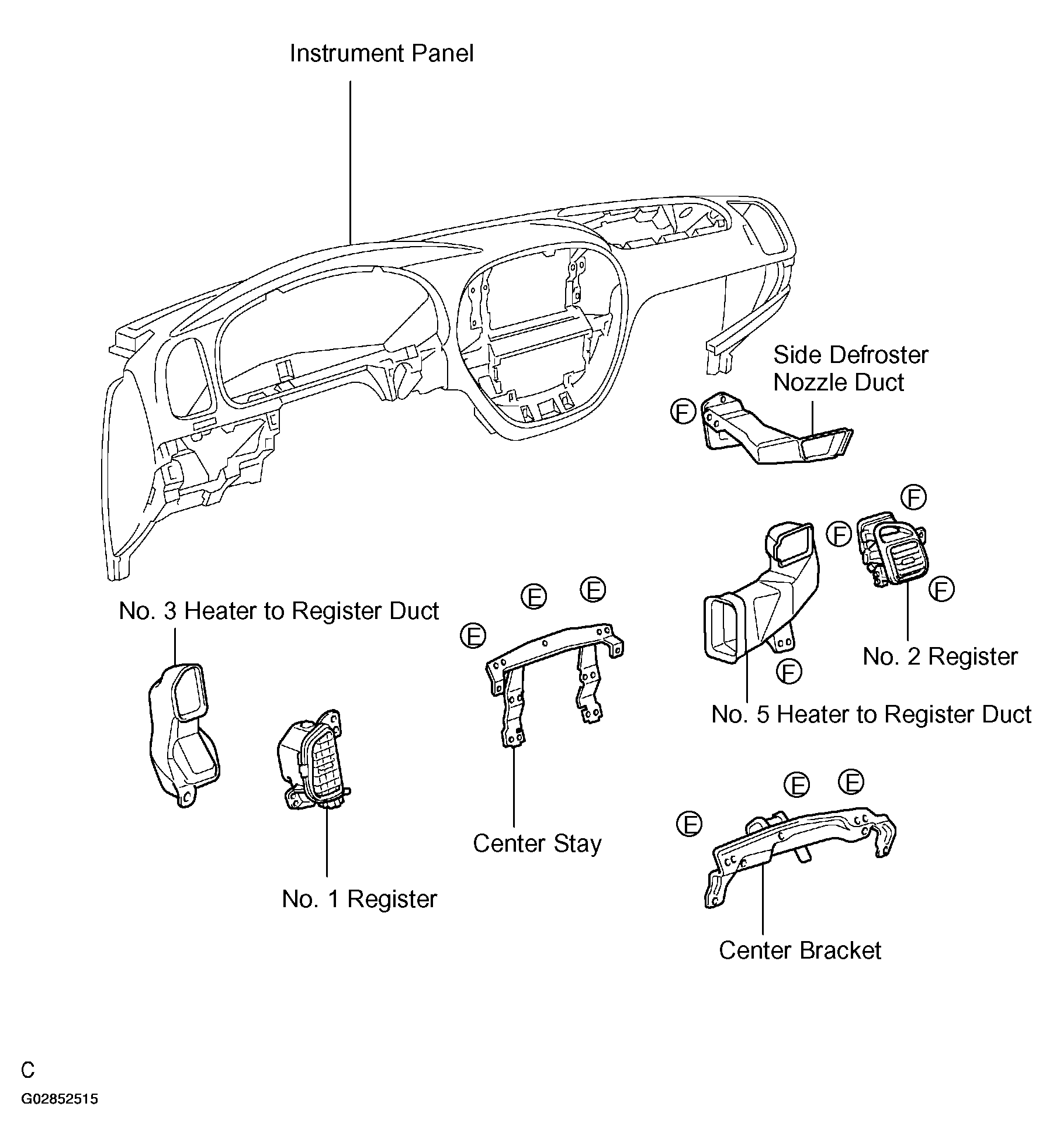

Fig 1: Identifying Instrument Panel Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

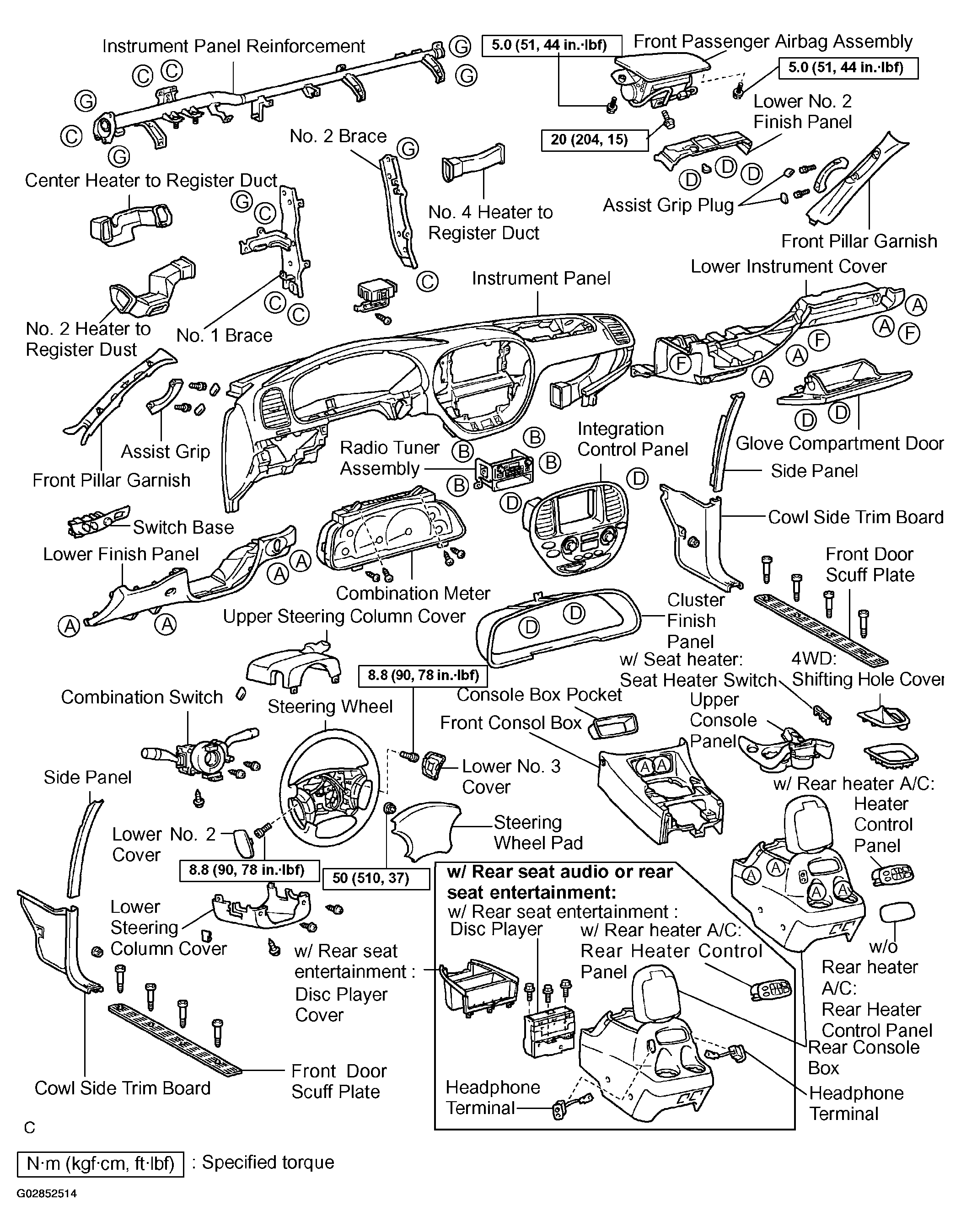

Fig 2: Identifying Instrument Panel Components (2 Of 2)

NOTE: Screw shapes and size are indicated in the table below. The codes ("A" - "H") correspond to those indicated in the previous figures. See Fig 1 and Fig 2 .

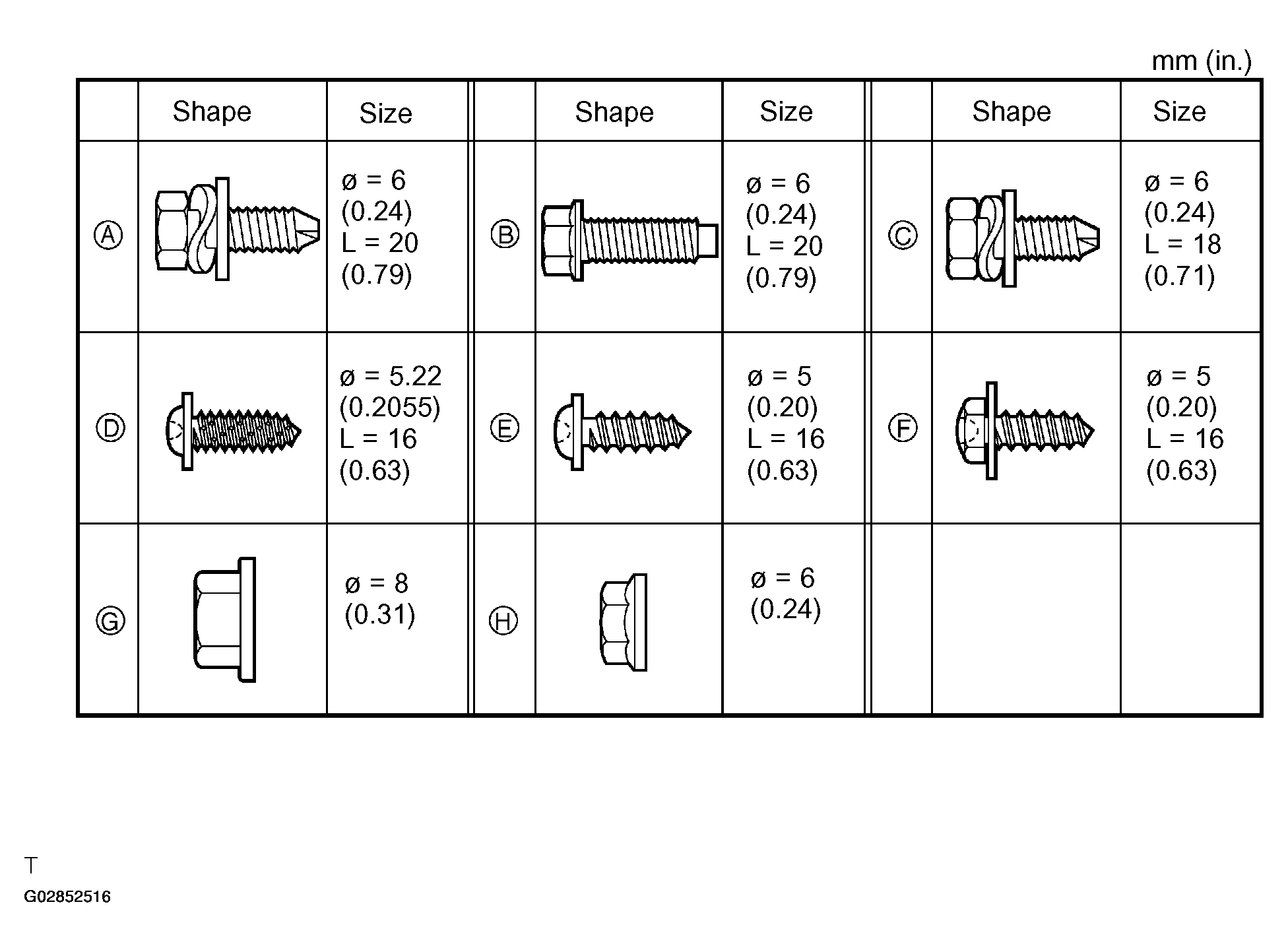

Fig 3: Screws Shapes & Size Reference Chart
