Inner Rear View Mirror Assembly: Replacement

NOTE:

Installation is in the reverse order of the removal.

  1. INNER REAR VIEW MIRROR ASSY
    1. Remove the screw.
    2. w/ Electric chromic mirror:

      Disconnect the connector.

    3. Remove the rear view inner mirror assembly.

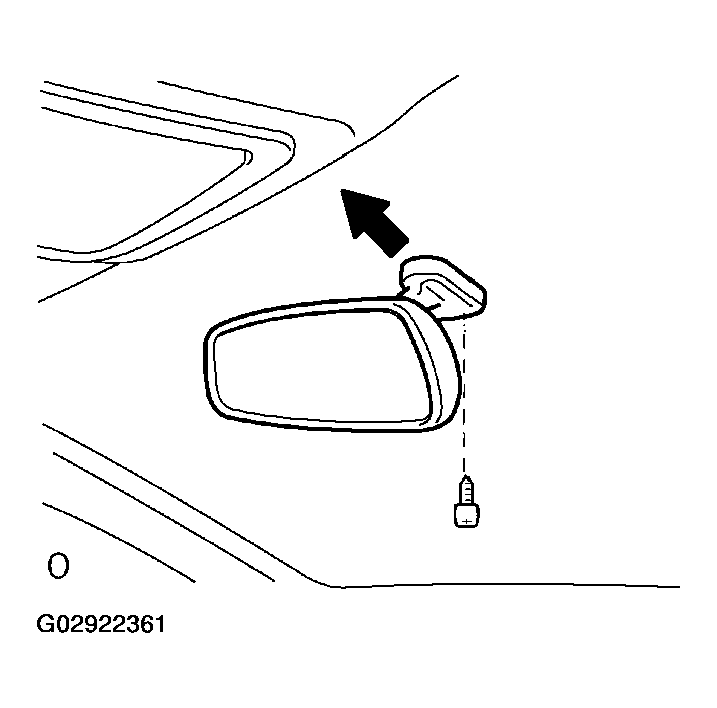

      Fig 1: Removing Inner Rear View Mirror Assy Screw
      G02922361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
