Power Window Control System - Diagnosis
>>
Problem Symptoms Table
Problem Symptoms Table

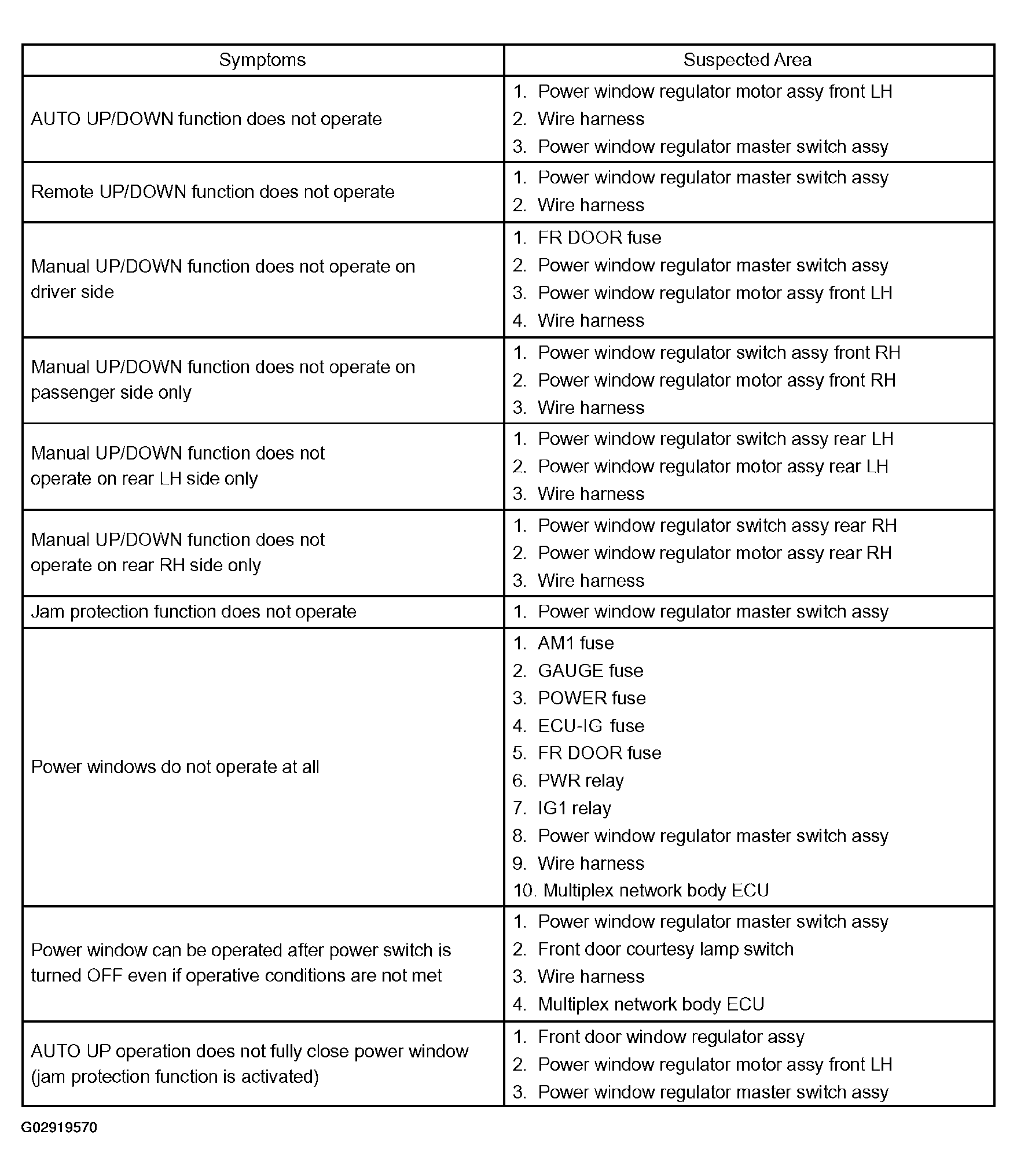

Fig 1: Power Window Control System Problem Symptom Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
