Engine Oil Pump Assembly: Components

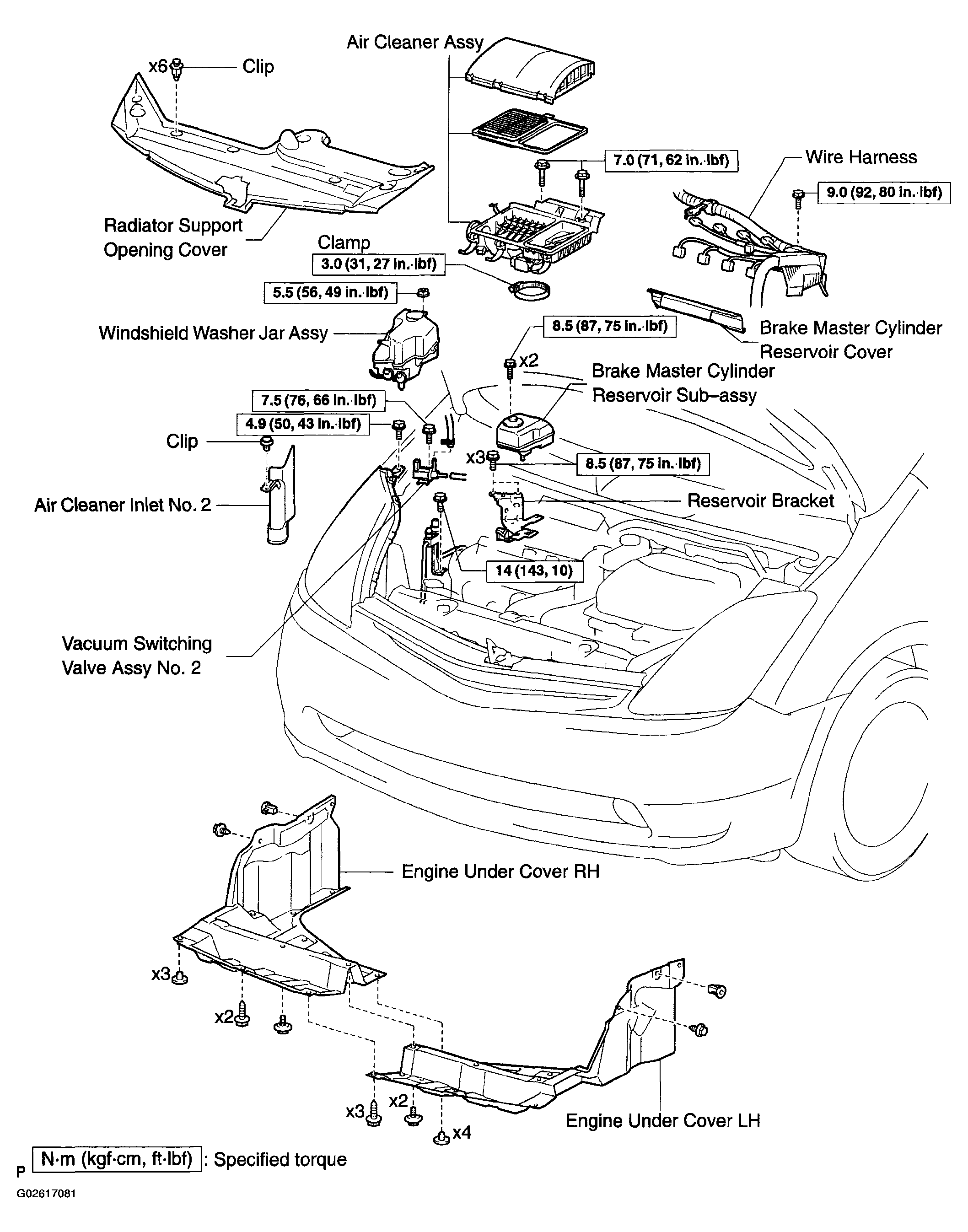

Fig 1: Underhood Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

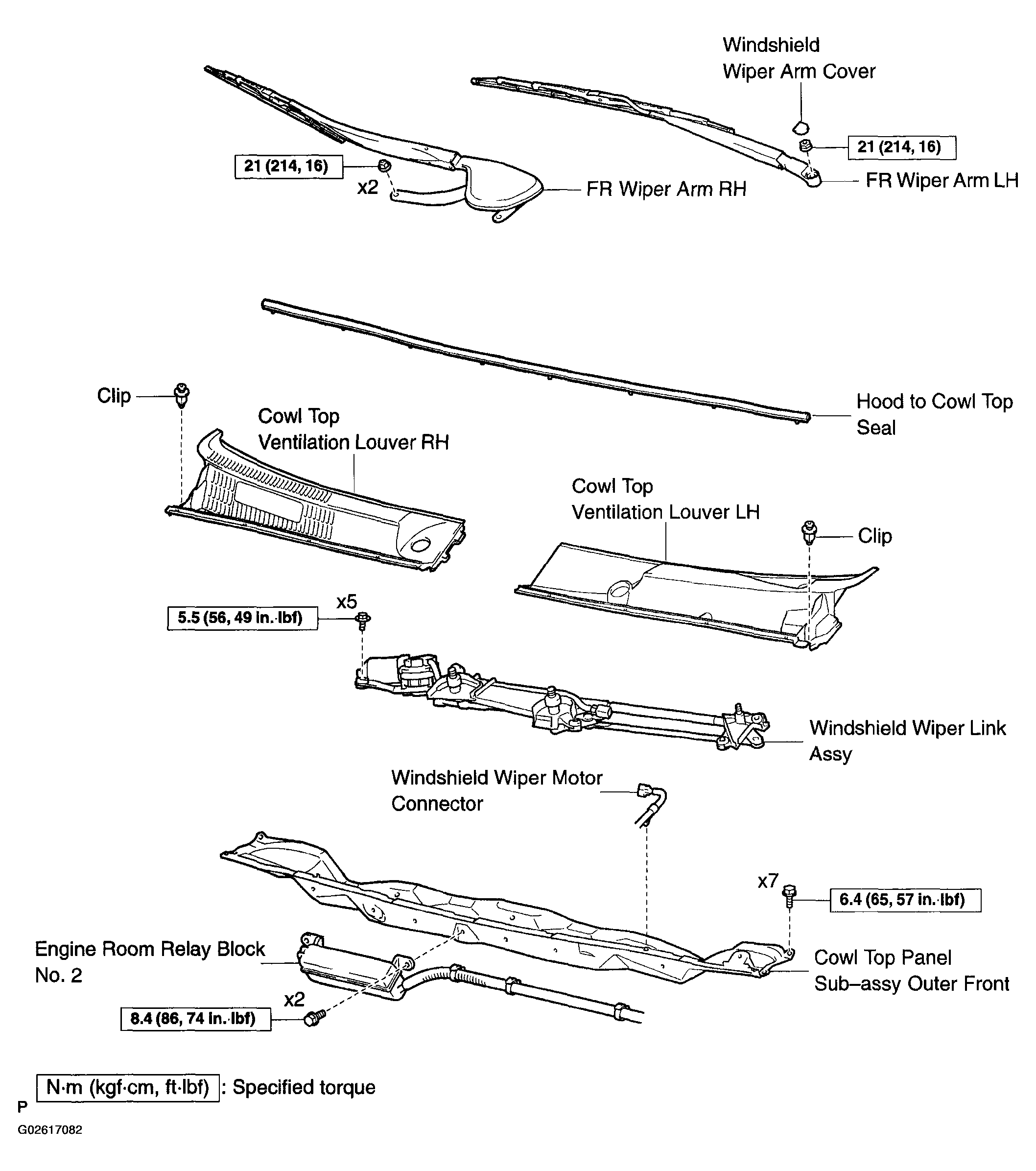

Fig 2: Windshield Wiper Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

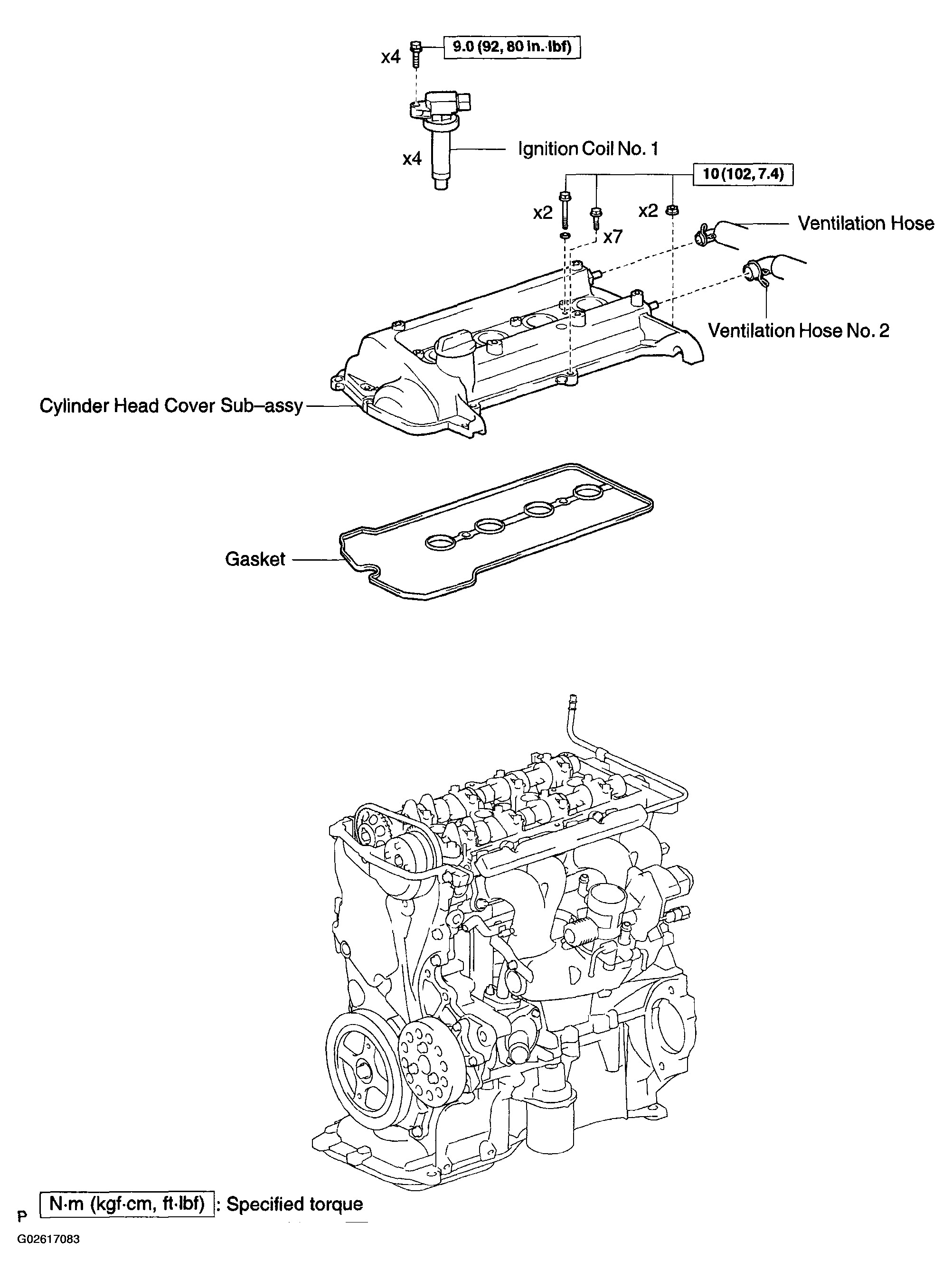

Fig 3: Cylinder Head Cover Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

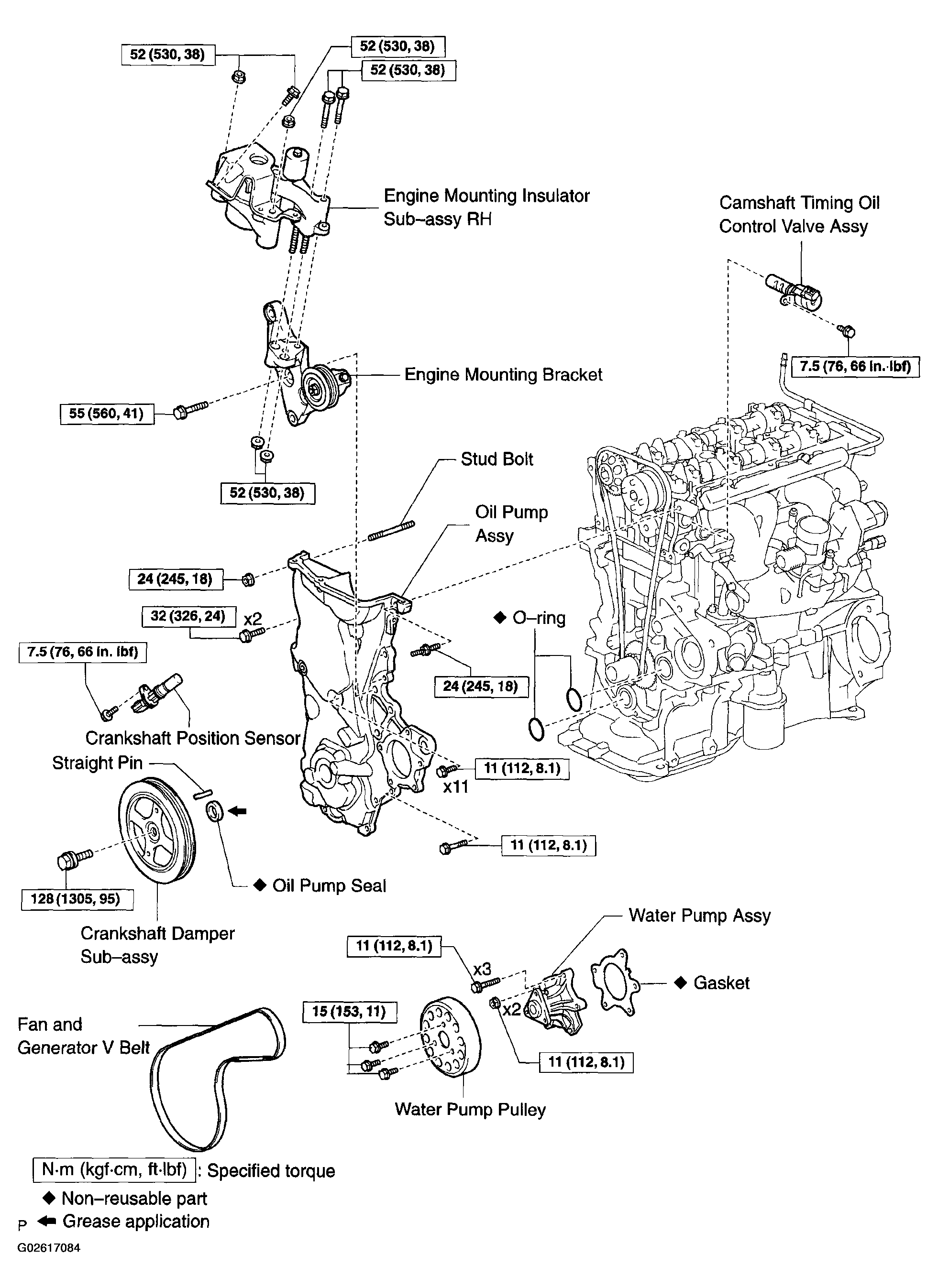

Fig 4: Engine Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
