Partial Engine: Components

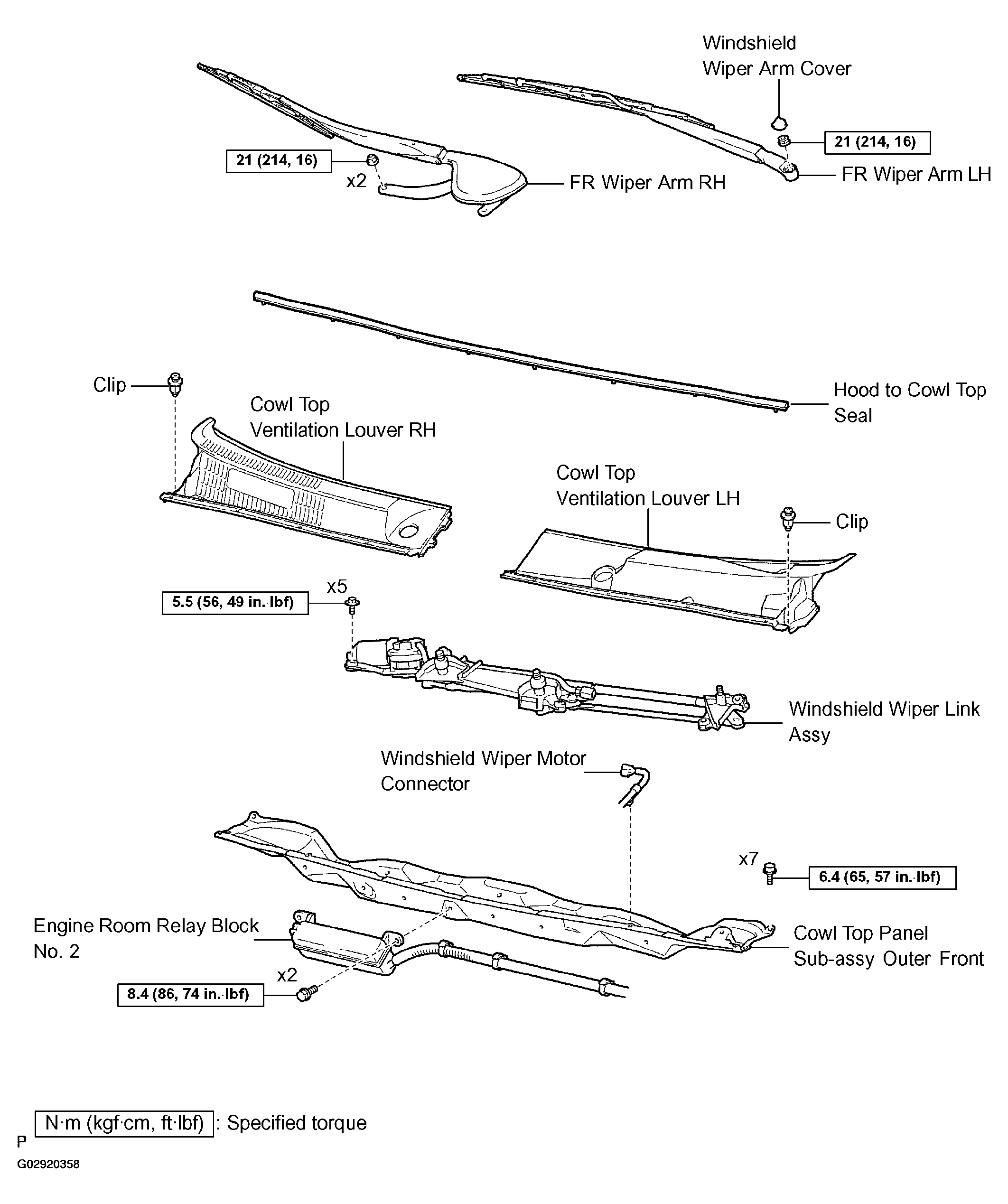

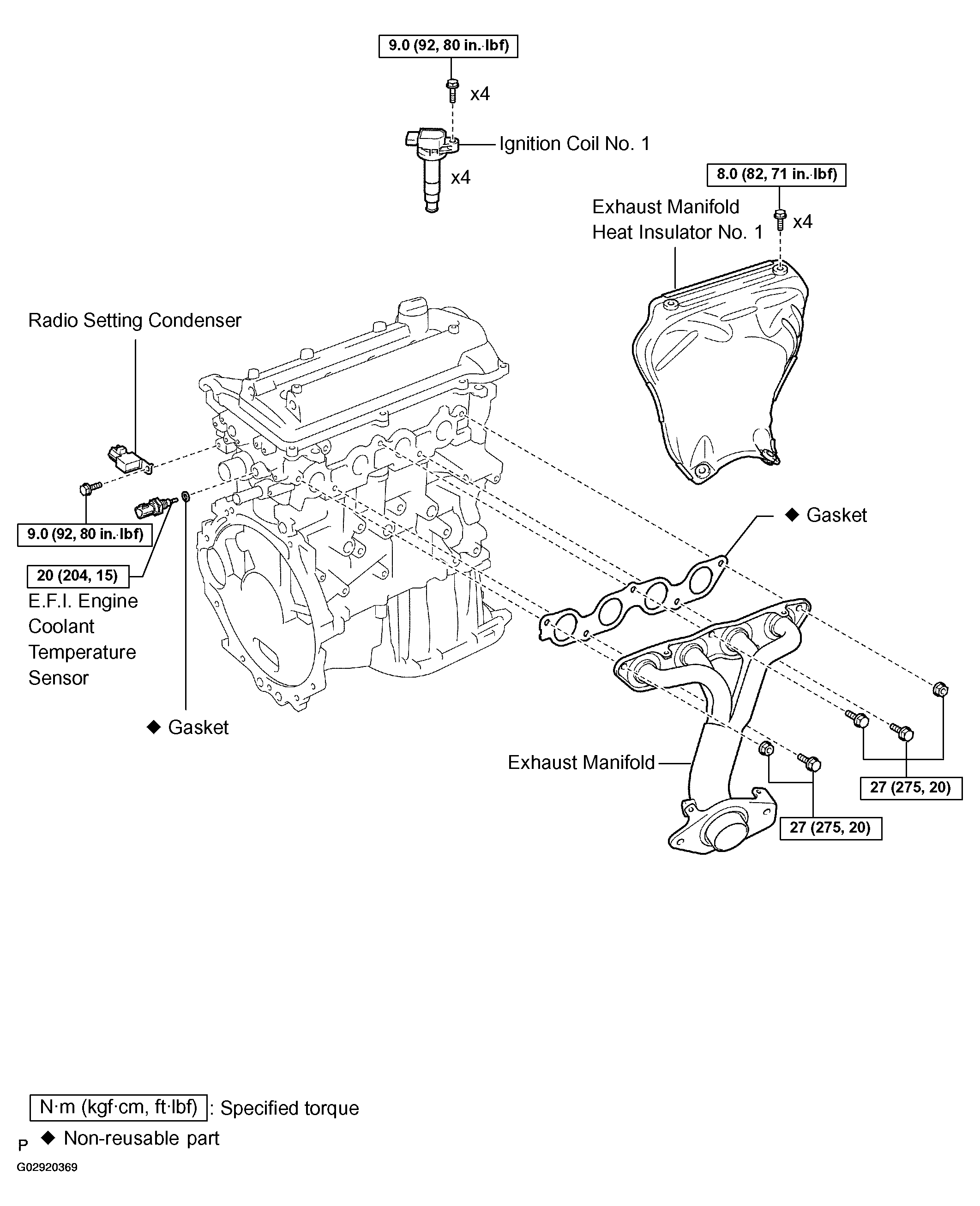

Fig 1: Partial Engine Assy (1NZ-FXE) Components Location (1 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

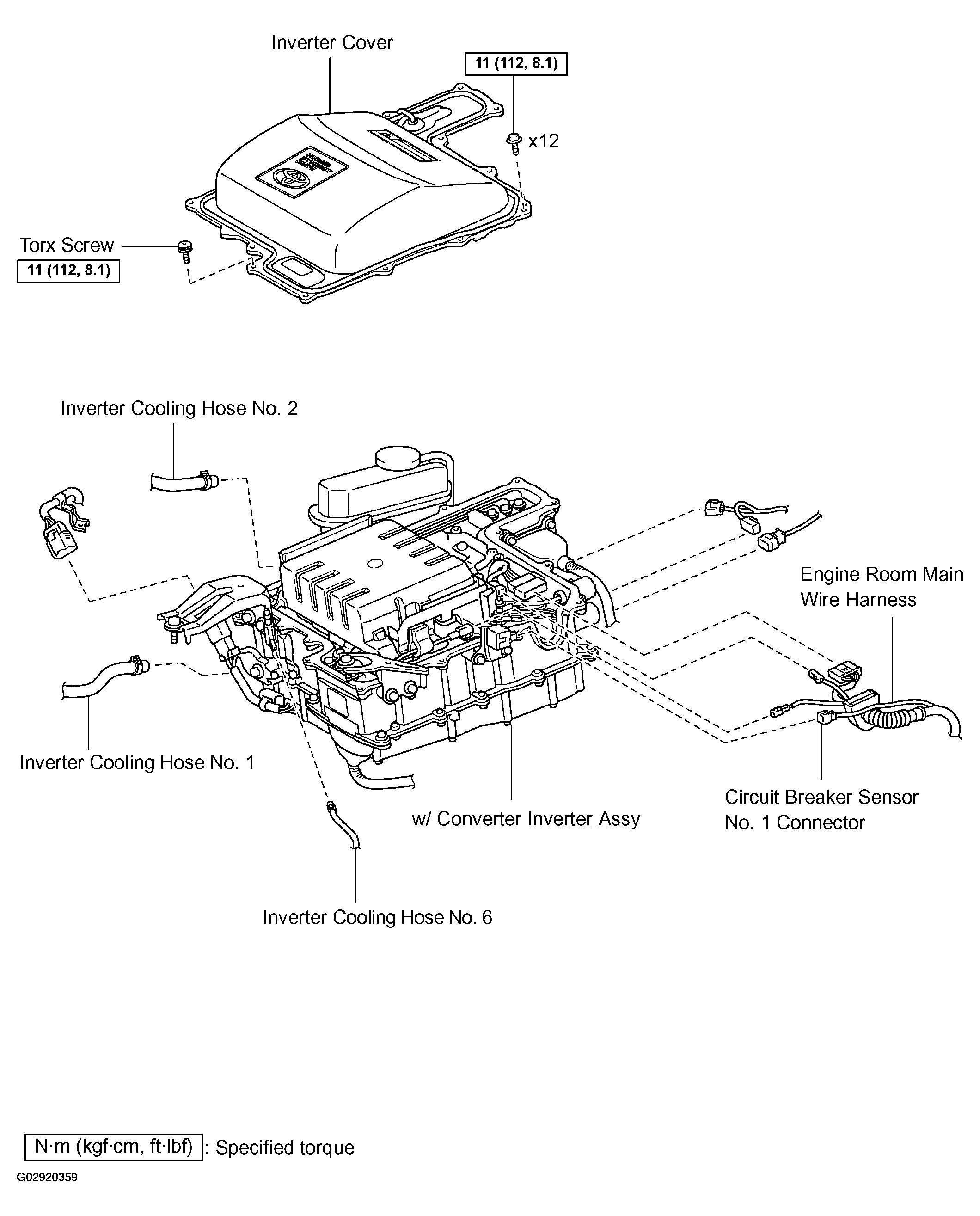

Fig 2: Partial Engine Assy (1NZ-FXE) Components Location (2 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

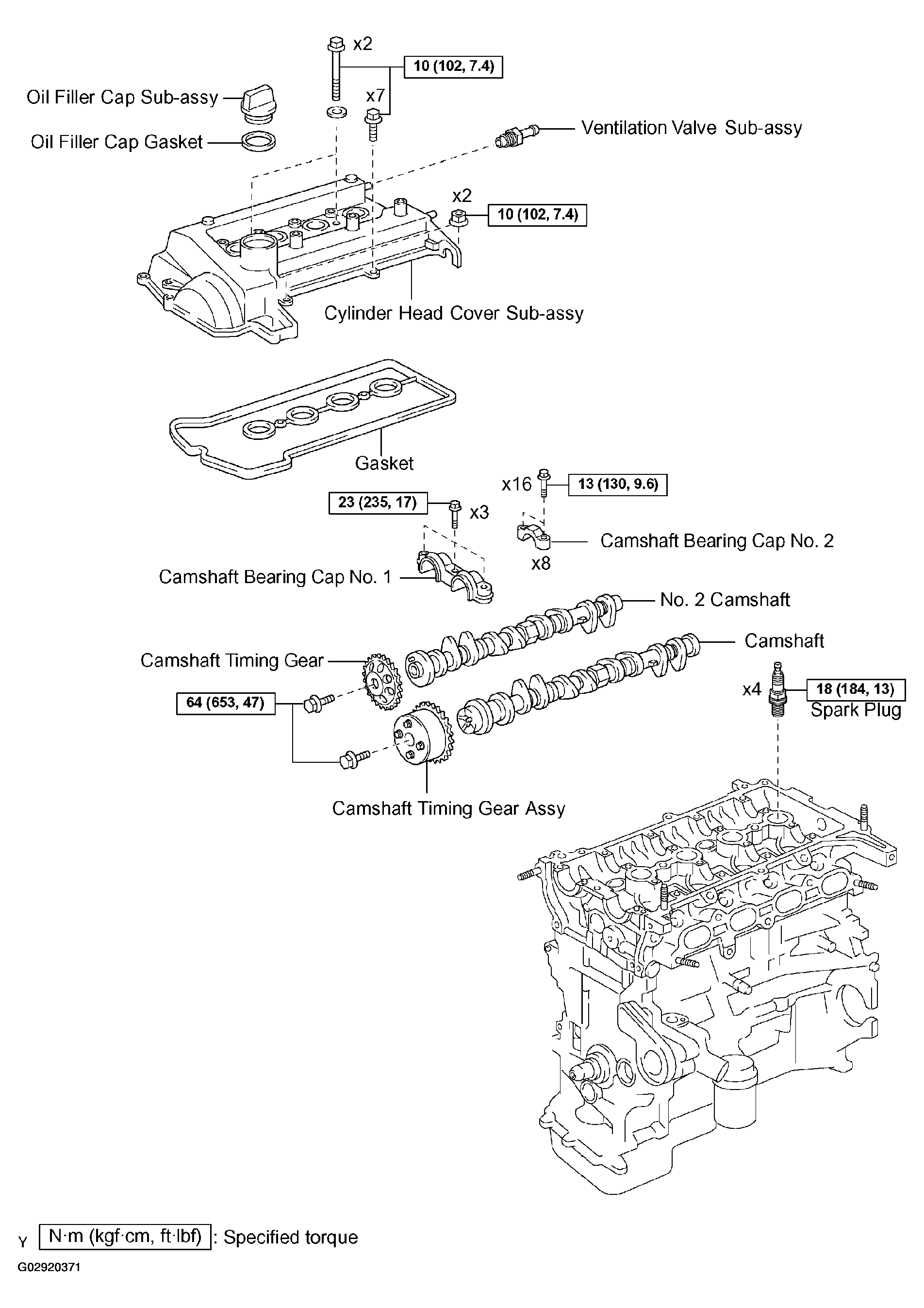

Fig 3: Partial Engine Assy (1NZ-FXE) Components Location (3 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

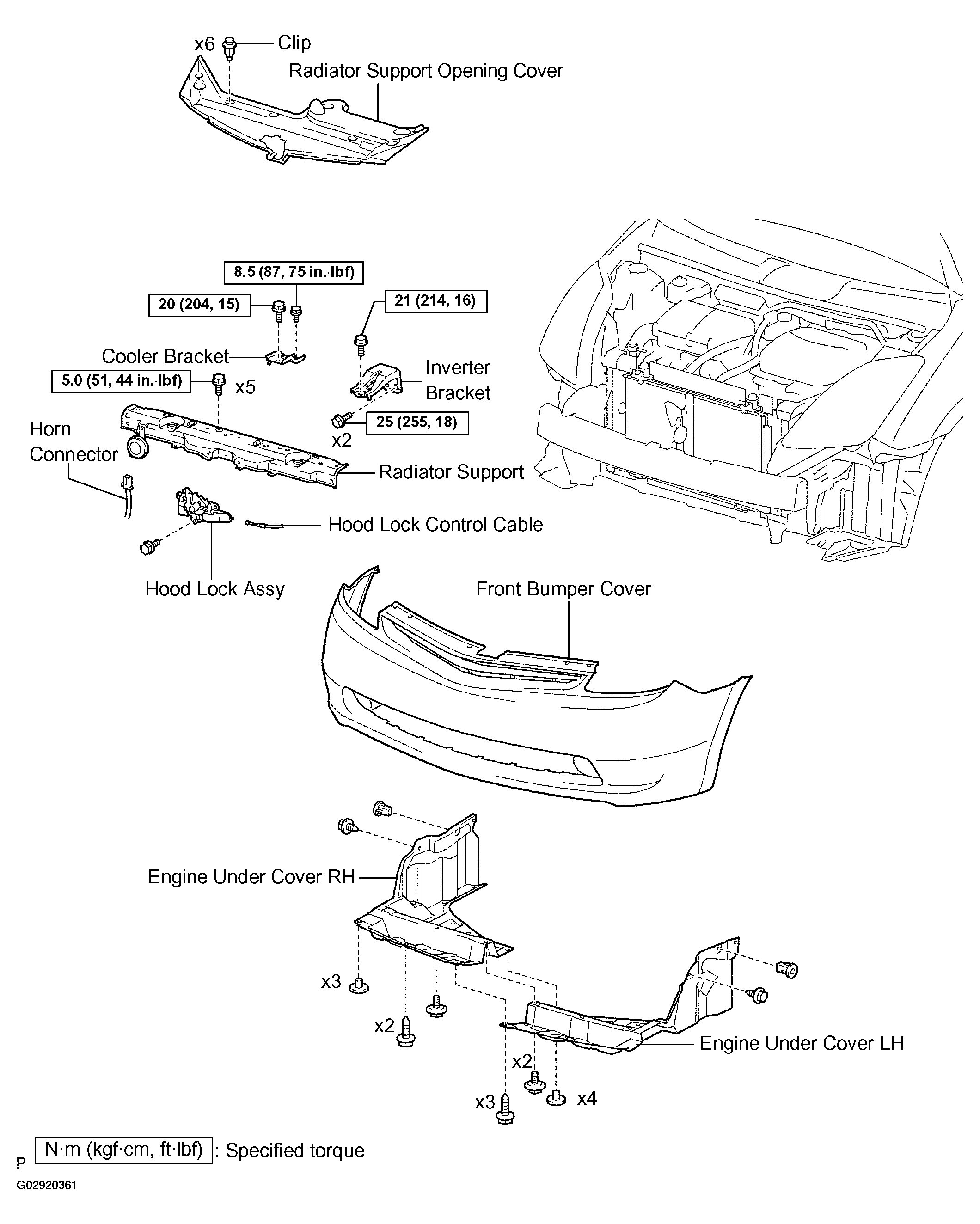

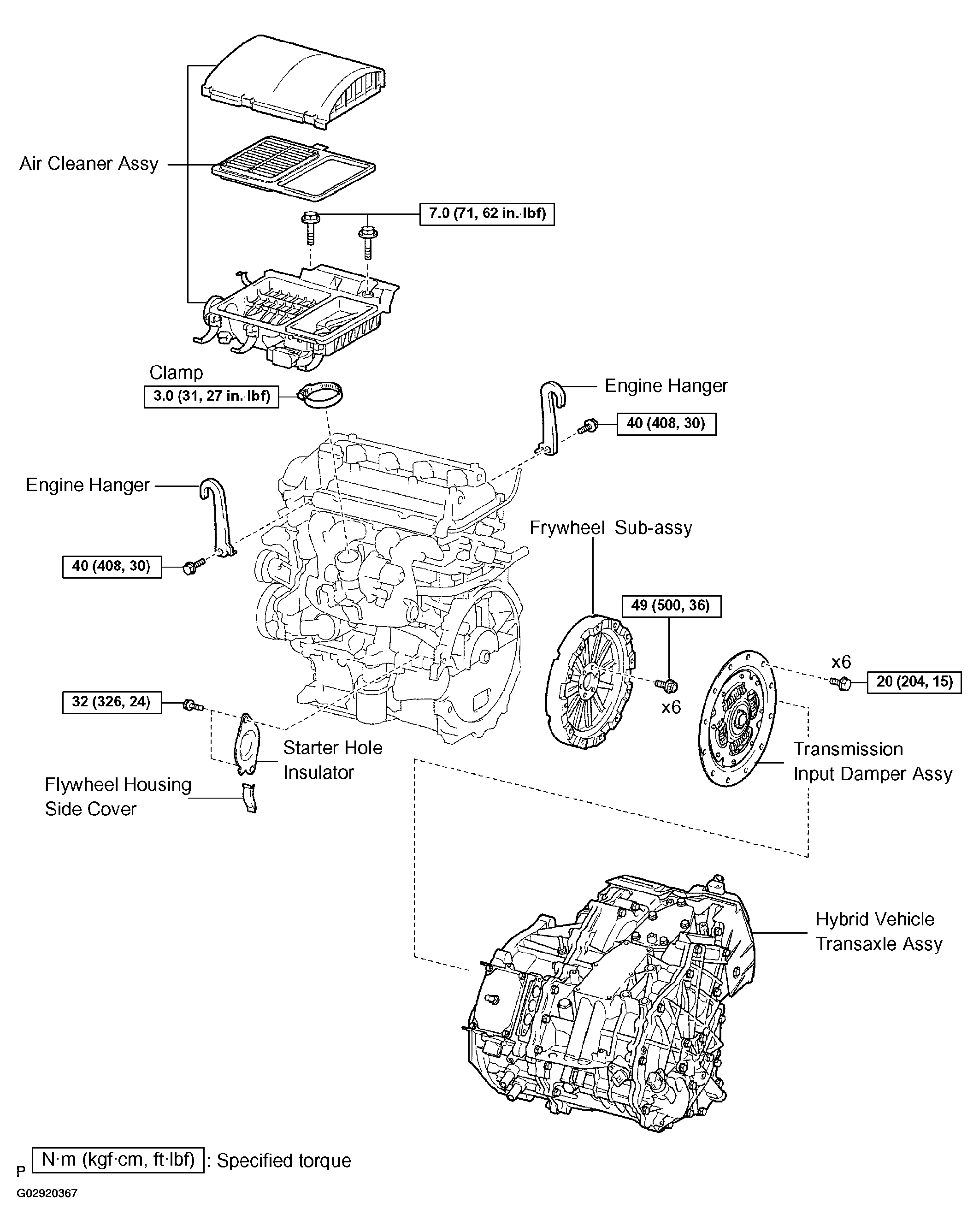

Fig 4: Partial Engine Assy (1NZ-FXE) Components Location (4 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

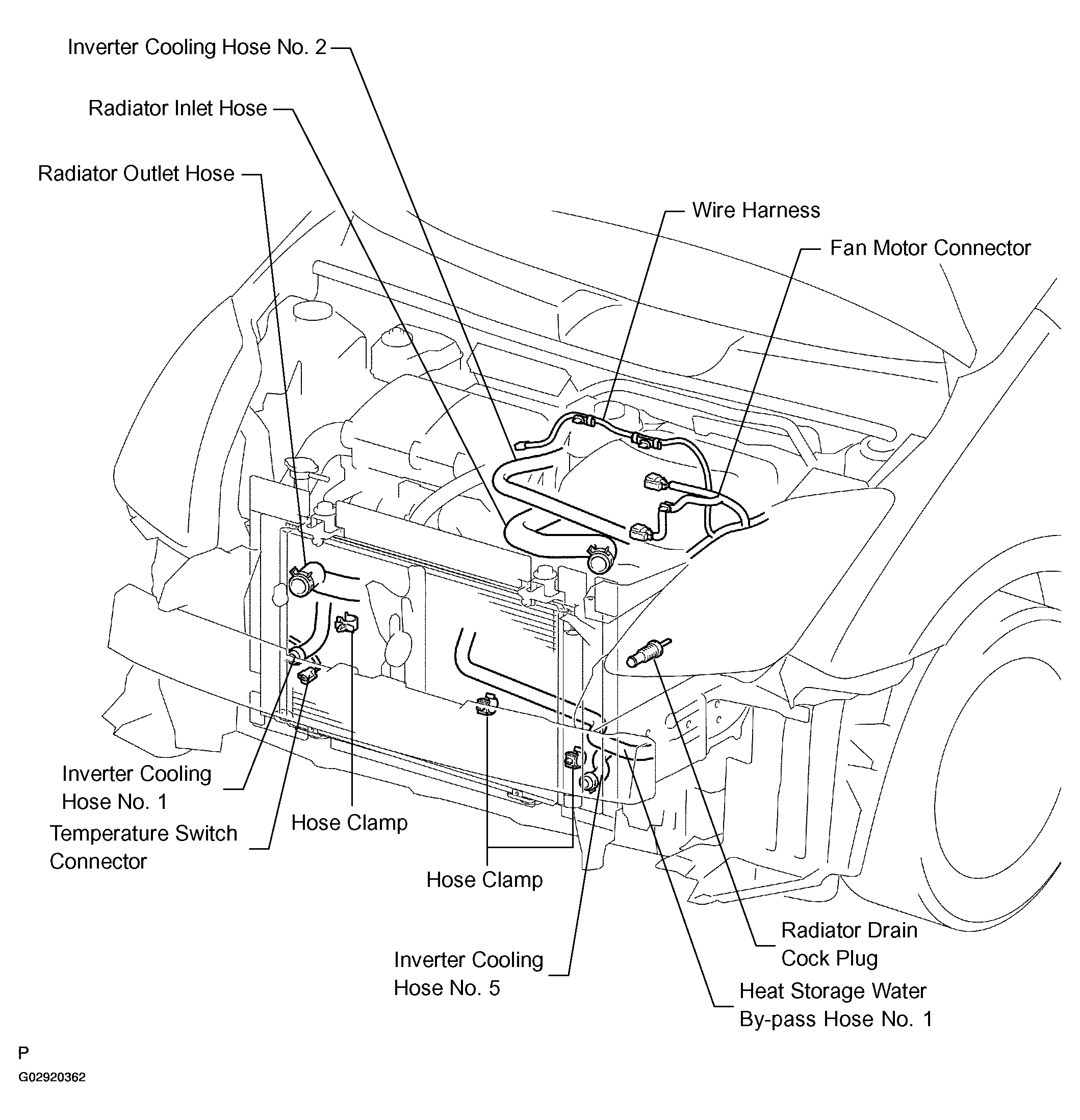

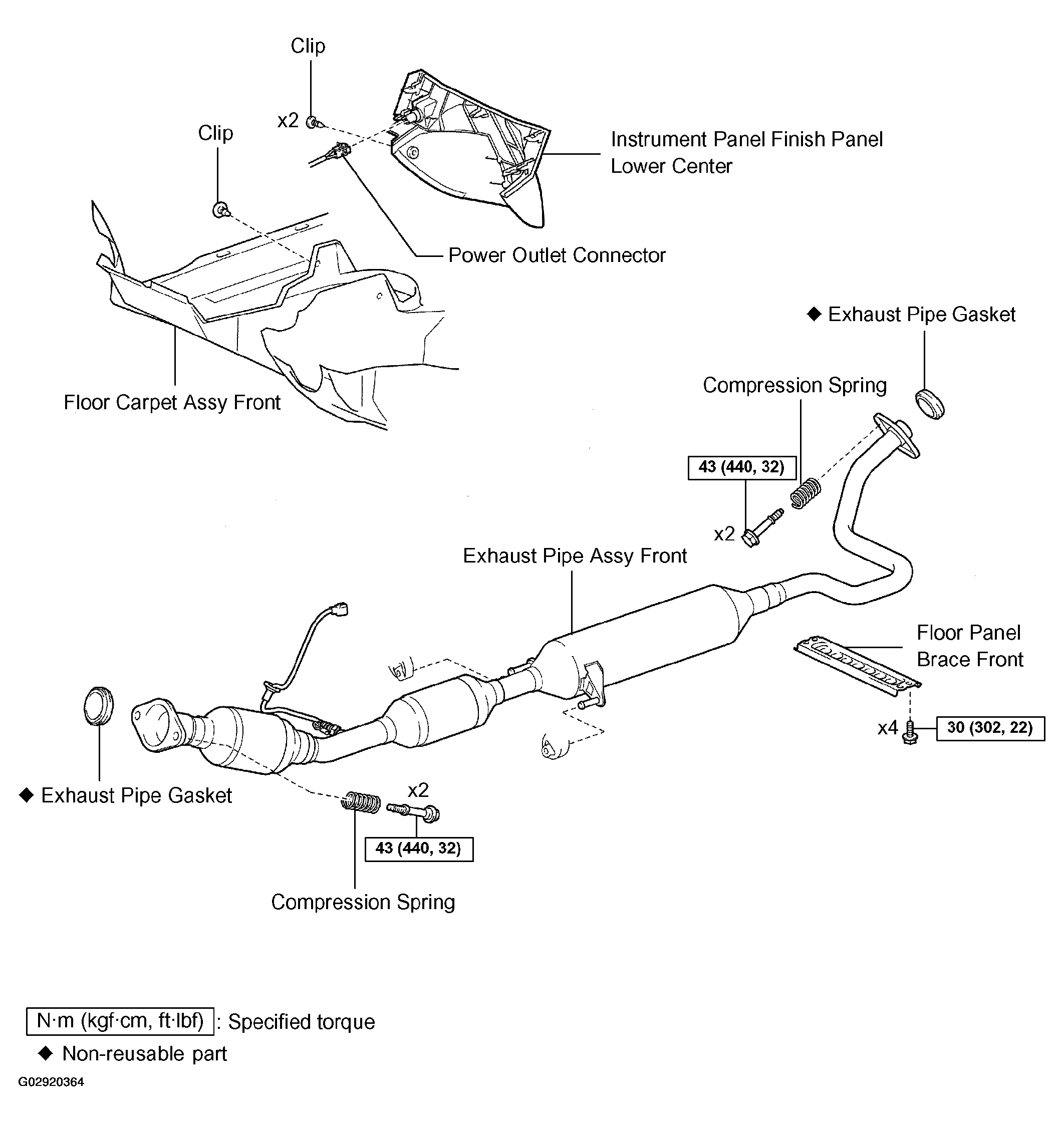

Fig 5: Partial Engine Assy (1NZ-FXE) Components Location (5 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

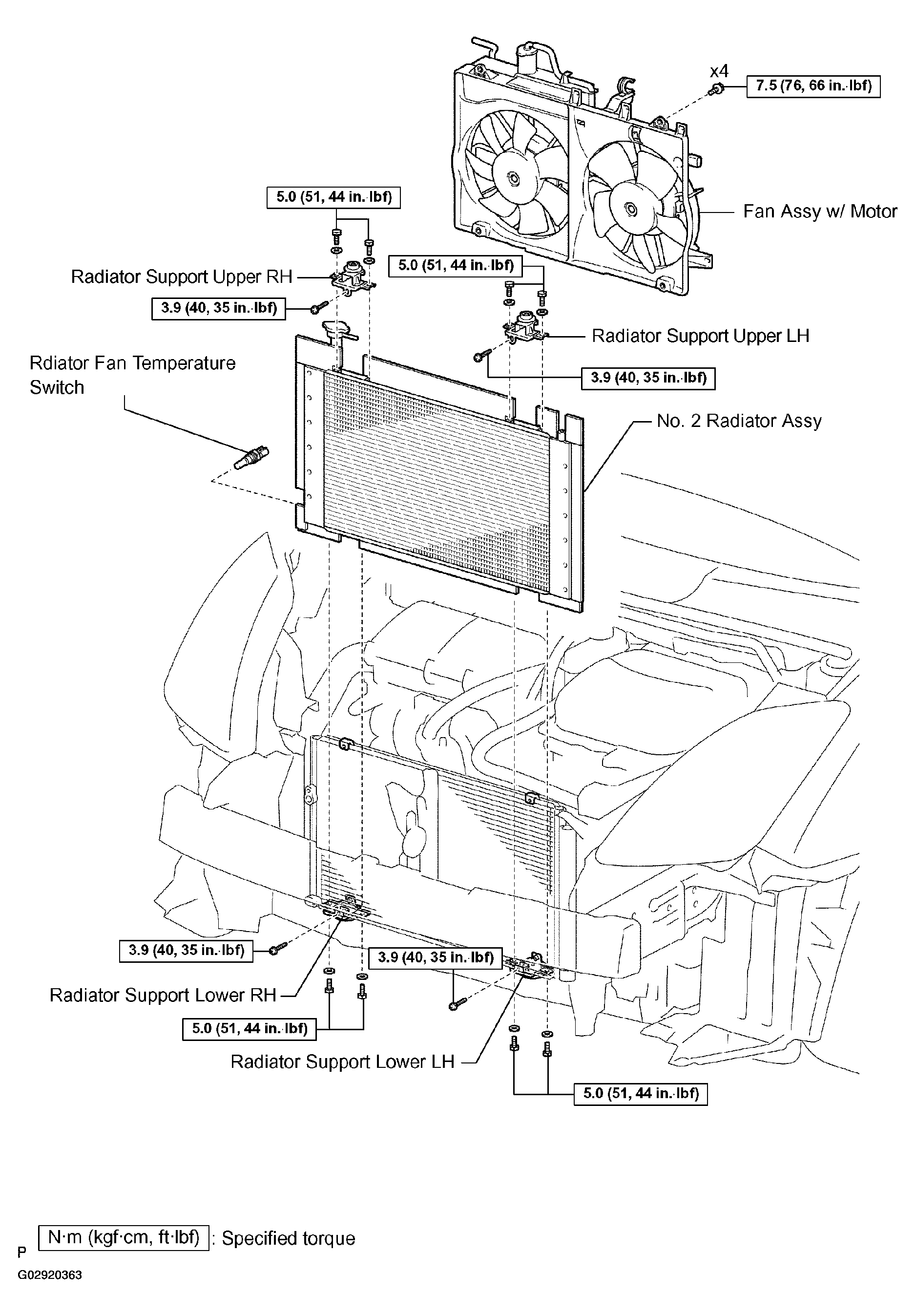

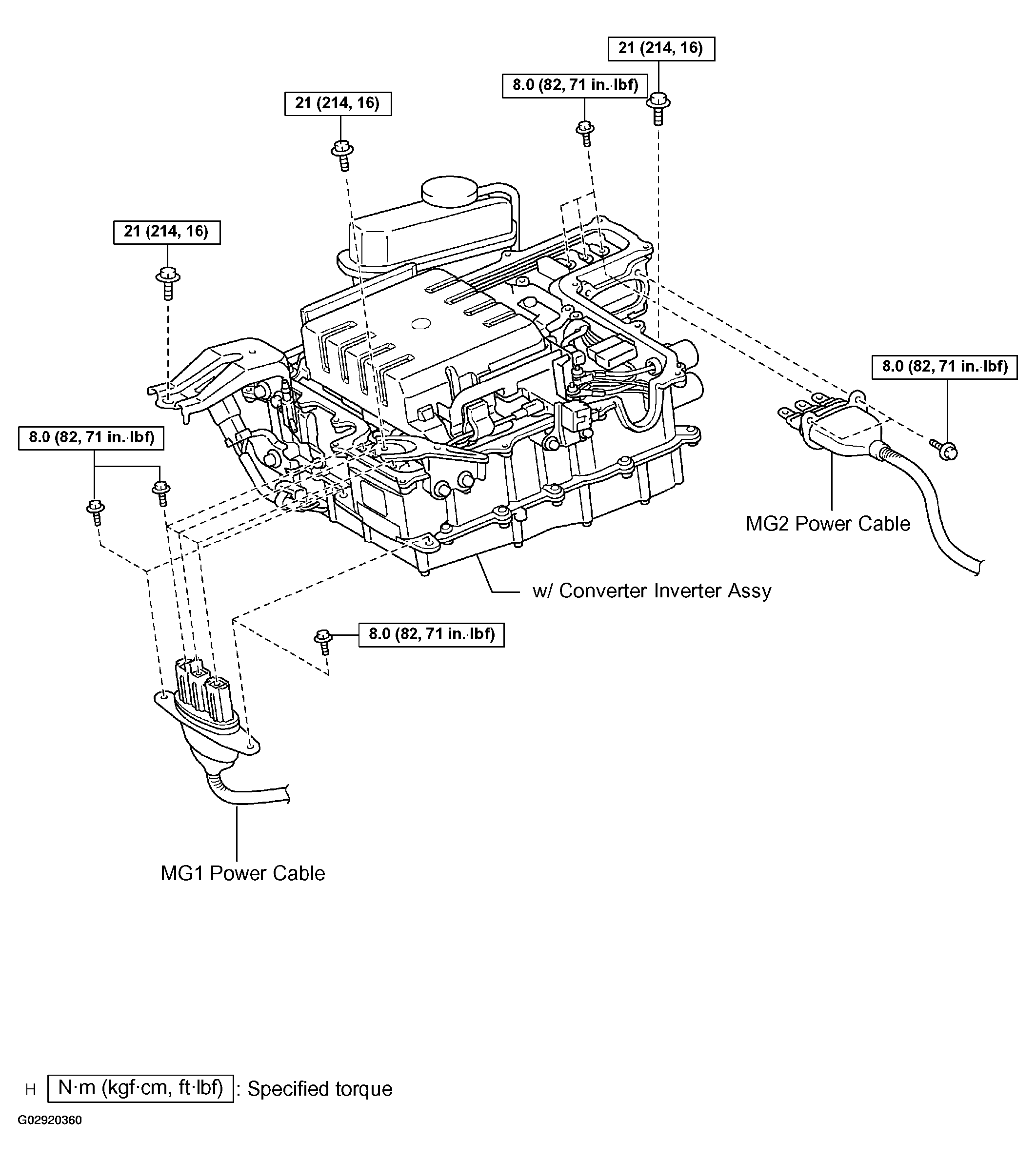

Fig 6: Partial Engine Assy (1NZ-FXE) Components Location (6 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Partial Engine Assy (1NZ-FXE) Components Location (7 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

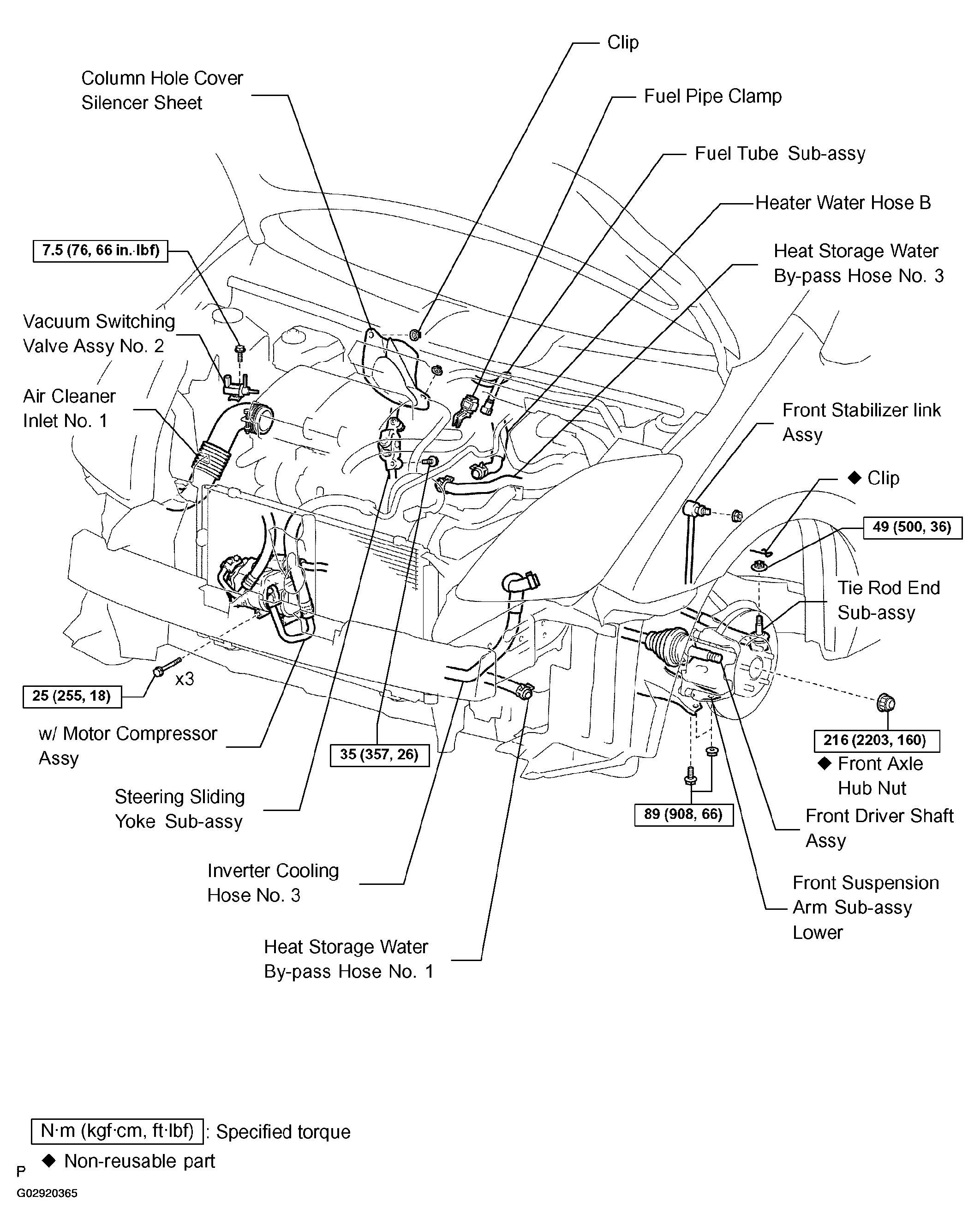

Fig 8: Partial Engine Assy (1NZ-FXE) Components Location (8 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

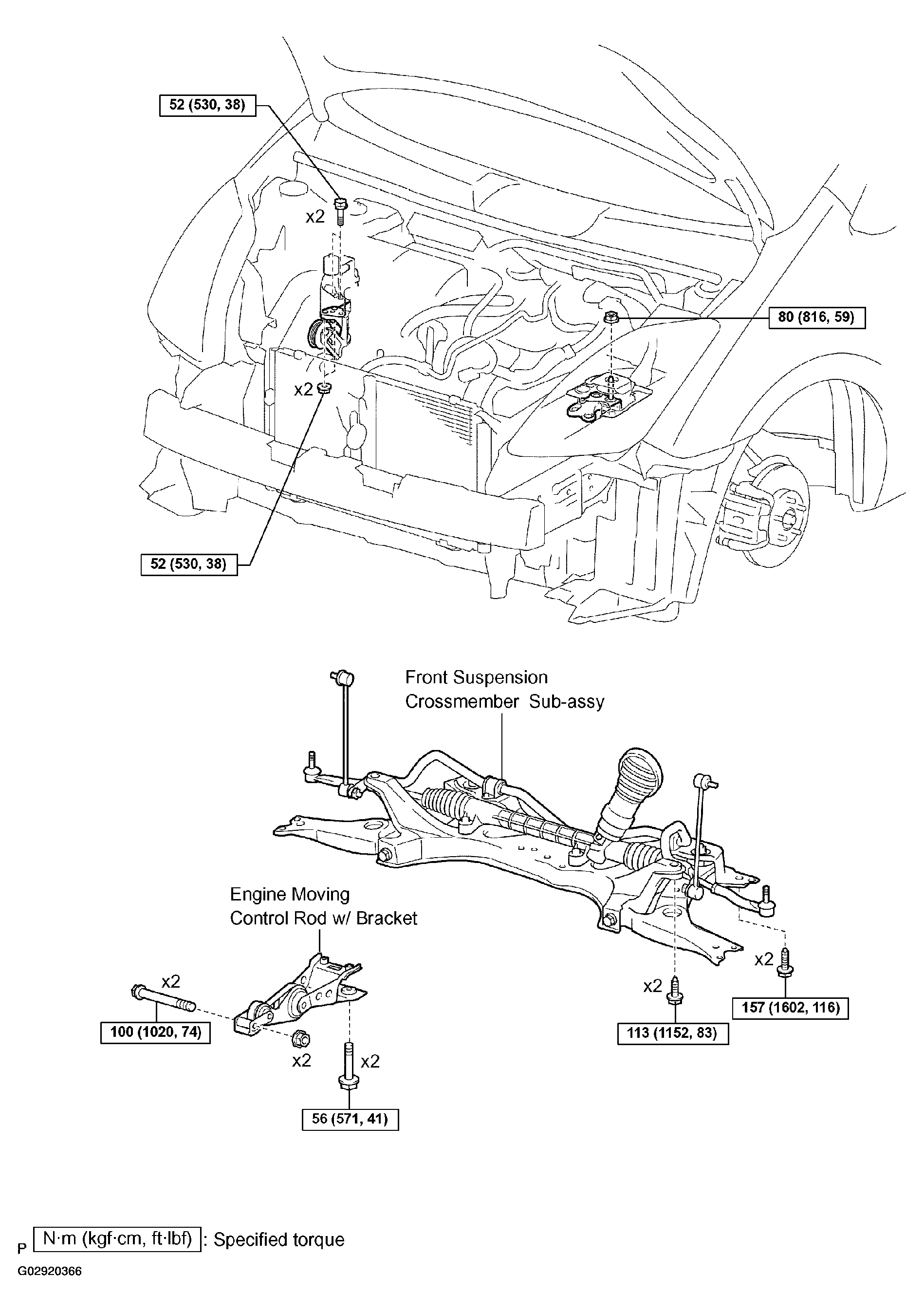

Fig 9: Partial Engine Assy (1NZ-FXE) Components Location (9 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Partial Engine Assy (1NZ-FXE) Components Location (10 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

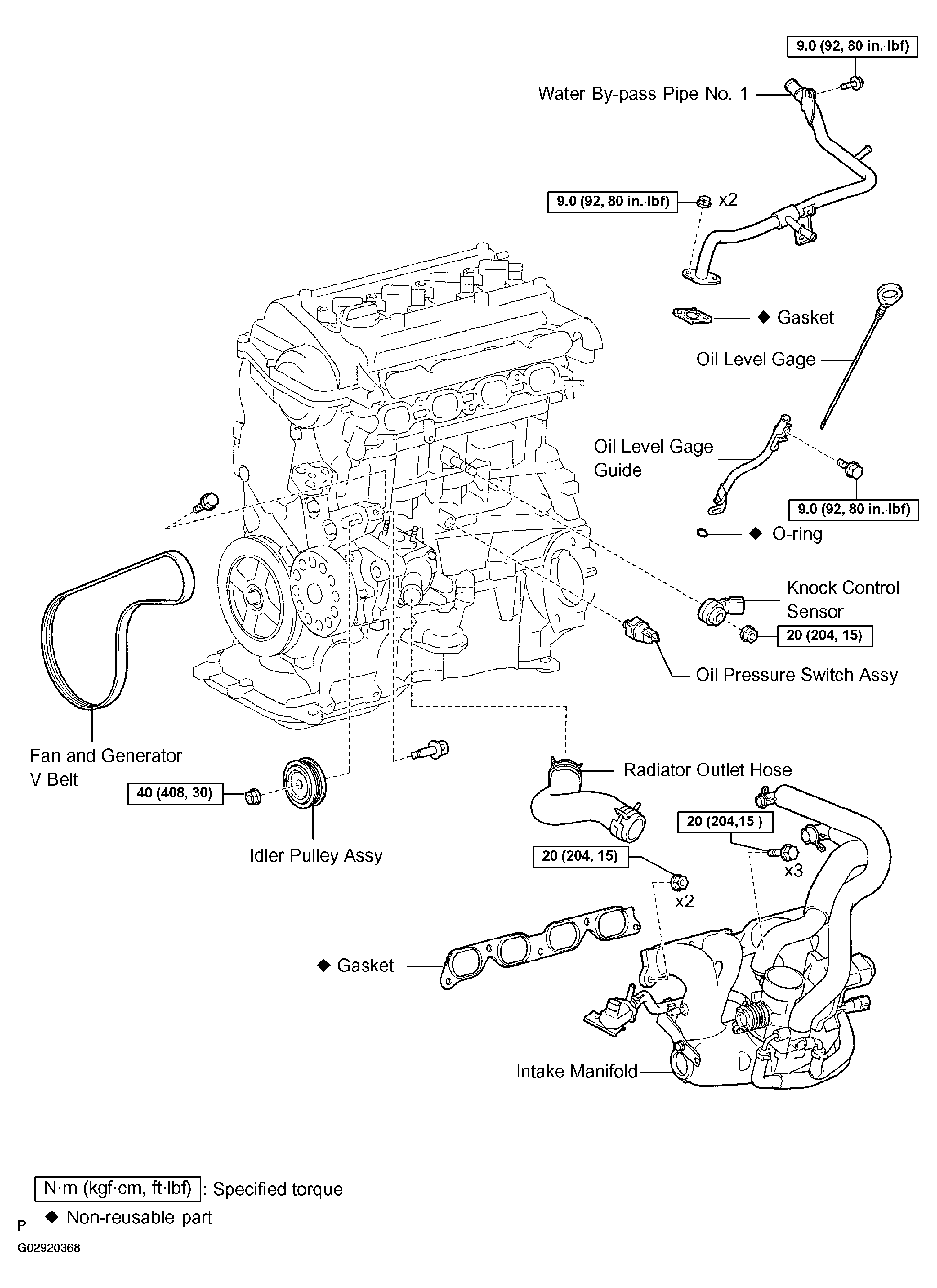

Fig 11: Partial Engine Assy (1NZ-FXE) Components Location (11 Of 15)

Fig 12: Partial Engine Assy (1NZ-FXE) Components Location (12 Of 15)

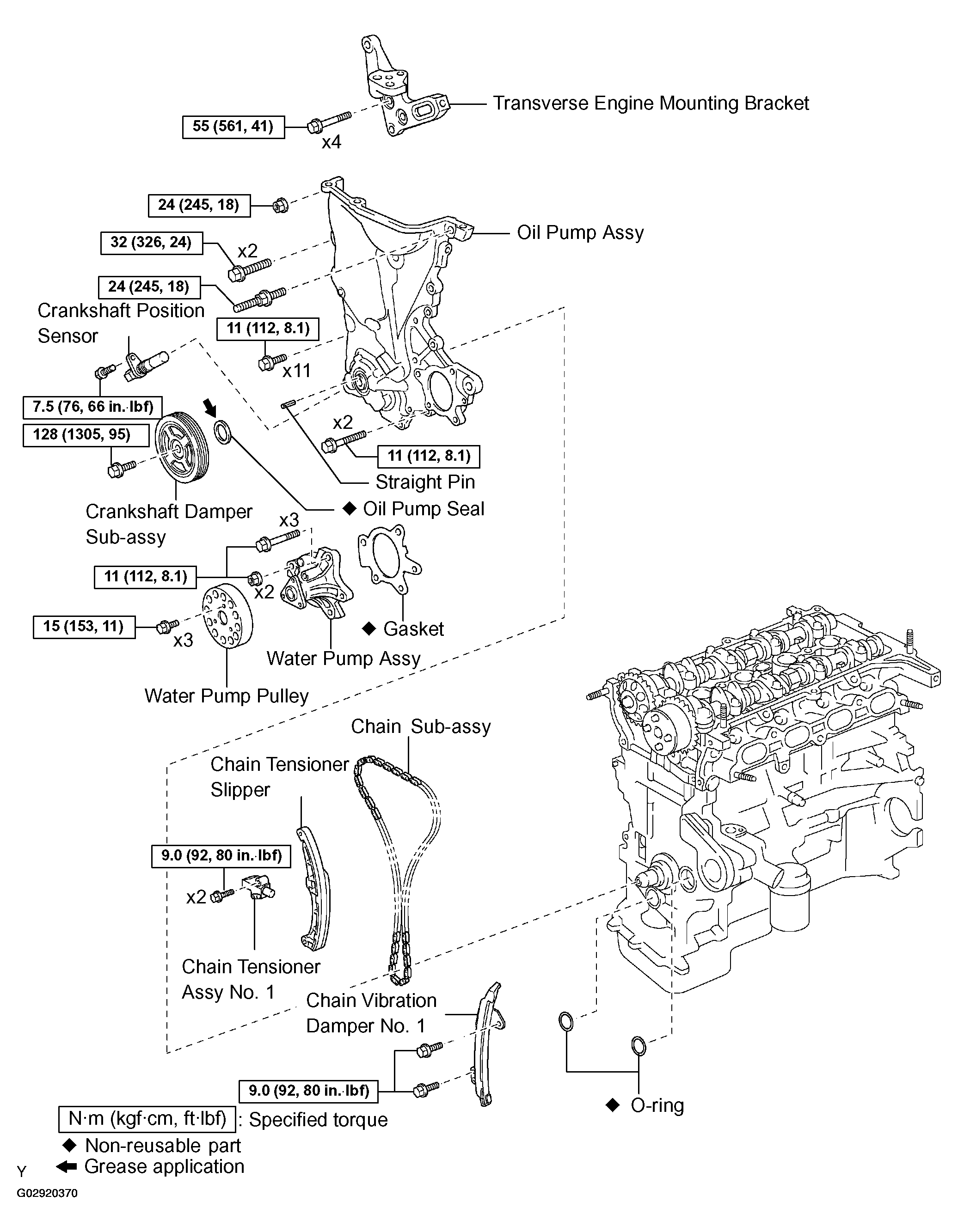

Fig 13: Partial Engine Assy (1NZ-FXE) Components Location (13 Of 15)

Fig 14: Partial Engine Assy (1NZ-FXE) Components Location (14 Of 15)

Fig 15: Partial Engine Assy (1NZ-FXE) Components Location (15 Of 15)
