Fail-Safe Chart
If any of the following codes are recorded, the ECM enters fail-safe mode.

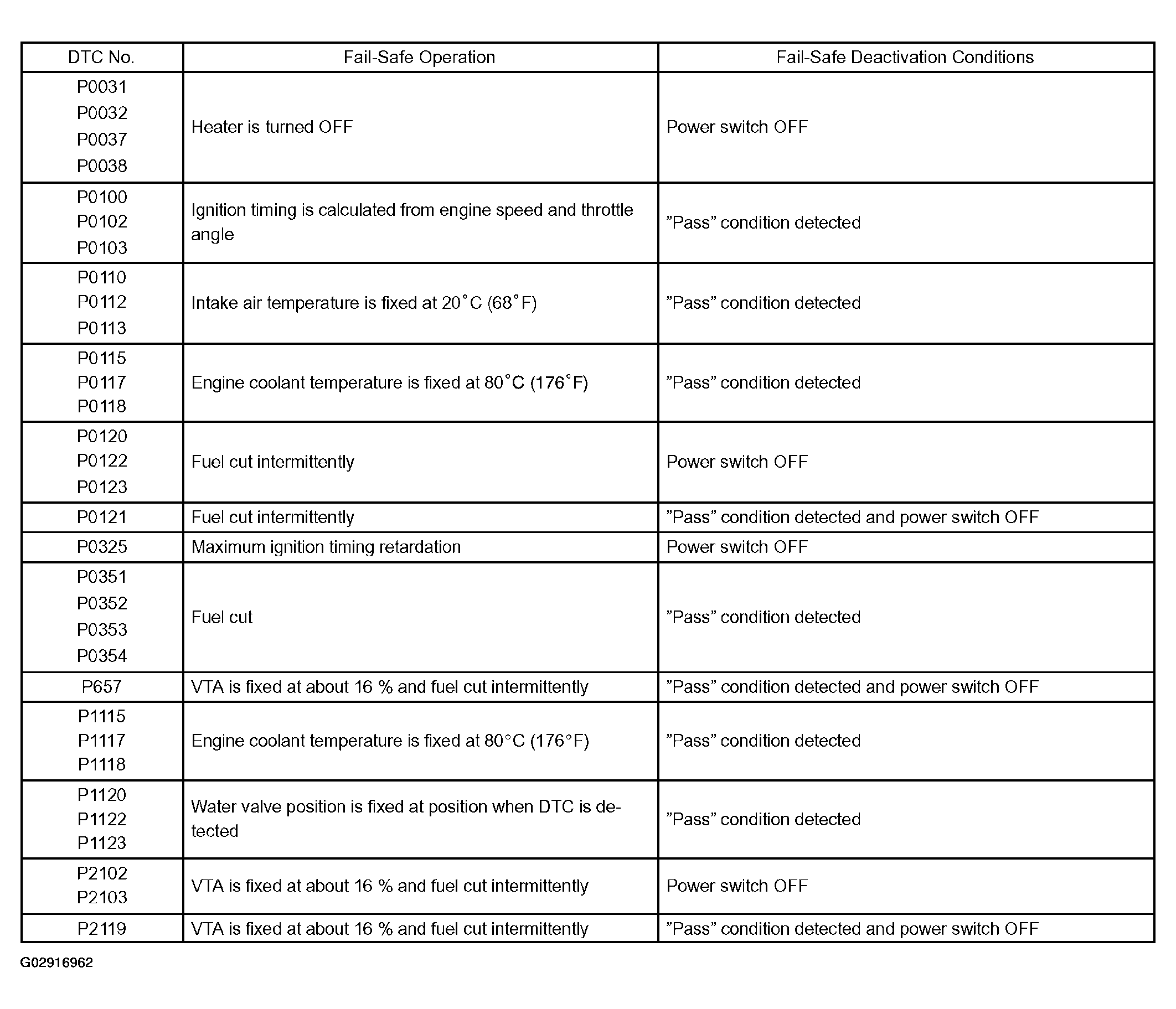

Fig 1: SFI System Fail Safe Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
