Home >> Toyota >> 2004 >> RAV4 Base, AWD, Automatic >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Window Control System >> Location

Power Window Control System: Location

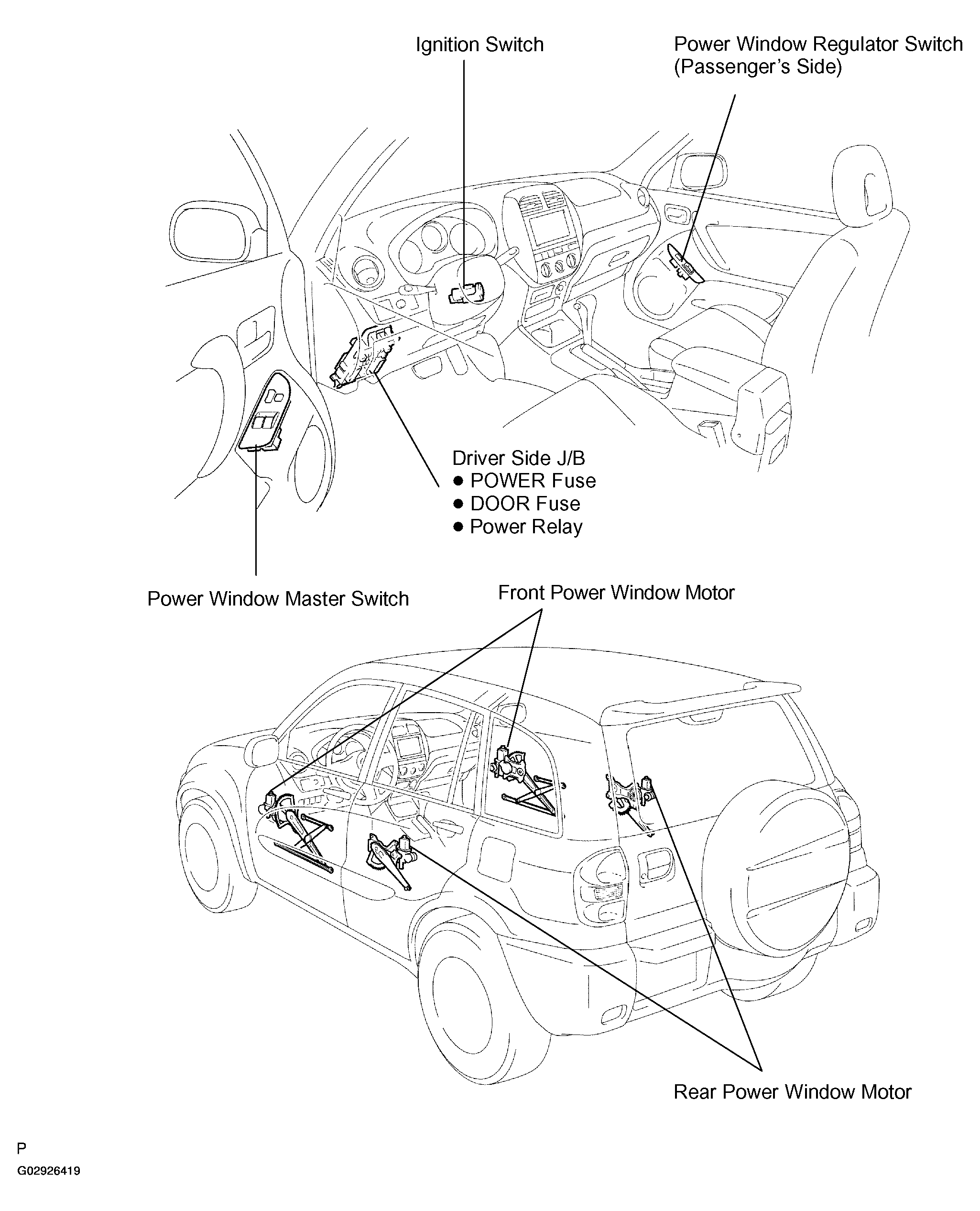

Fig 1: Locating Power Window Control System Components

G02926419

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
