Back Door: Disassembly

HINT:

A bolt without a torque specification is shown in the standard bolt chart, (see SPECIFIED TORQUE FOR STANDARD BOLTS )

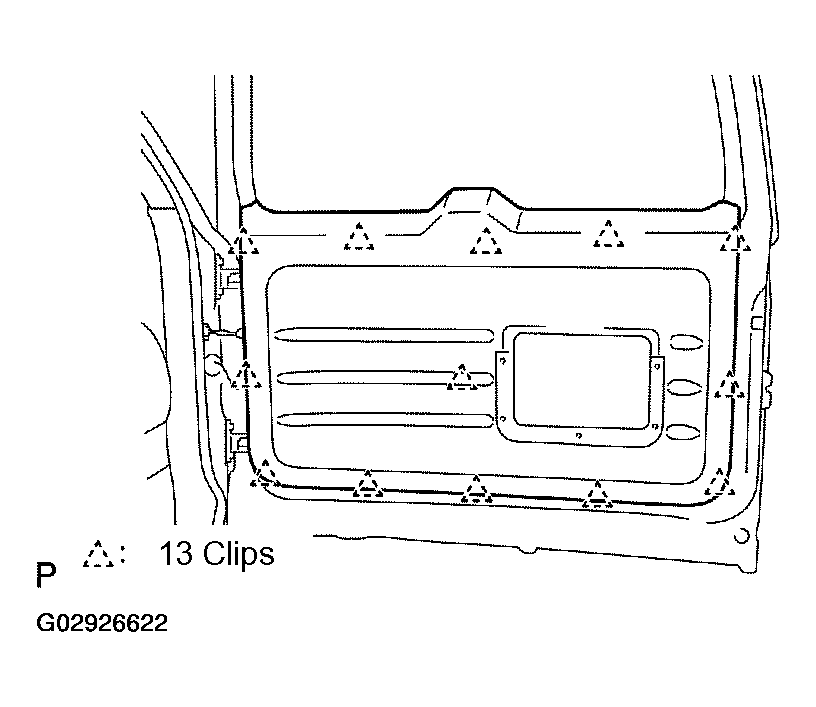

1. REMOVE BACK DOOR TRIM BOARD

   Using a screwdriver, remove the back door trim board.

   Fig 1: Removing Back Door Trim

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   Tape the screwdriver tip before use.

2. REMOVE SERVICE HOLE COVER
3. REMOVE BACK SPARE TIRE BRACKET

   Remove the 4 bolts and back spare tire bracket.

4. REMOVE REAR WIPER ARM
5. REMOVE REAR WIPER MOTOR
   1. Remove the grommet.
   2. Disconnect the connector, then unfasten the 3 bolts.
   3. Remove the rear wiper motor.

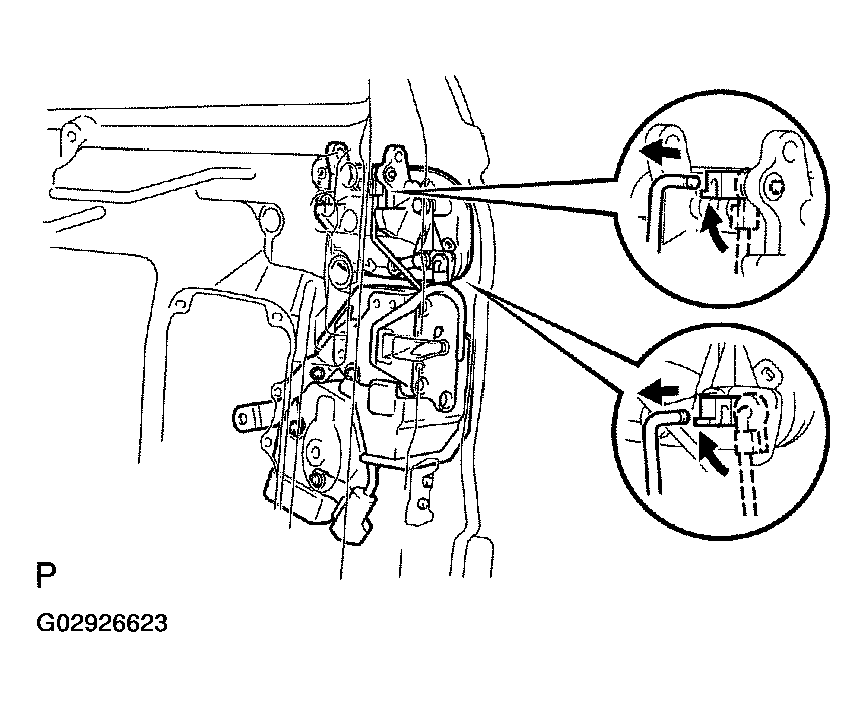

6. REMOVE DOOR LOCK
   1. Remove the 3 screws and bolt.
   2. Disconnect the connector.
   3. Disconnect the 2 links then remove the door lock.
      Fig 2: Removing Door Lock, Screws & Bolt

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

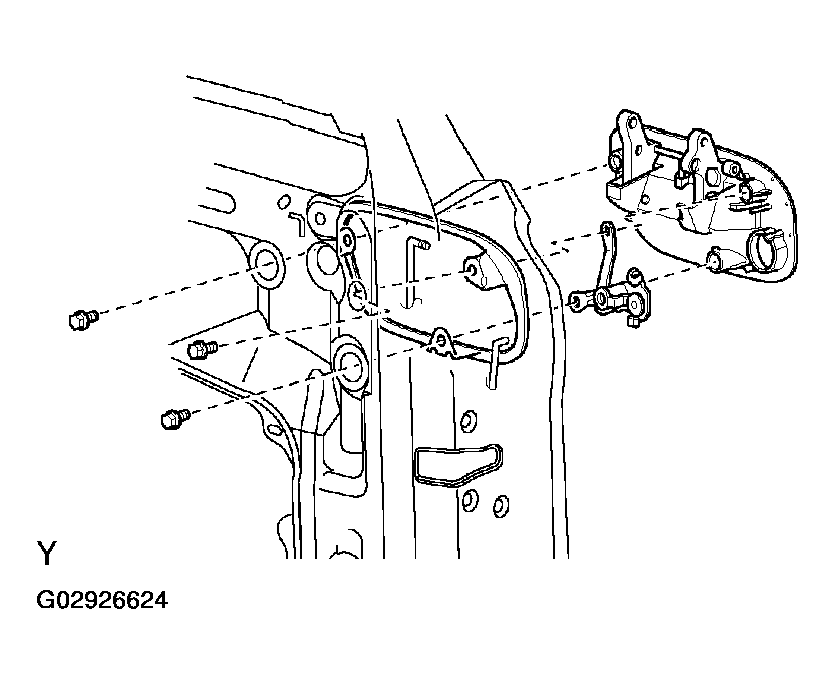

7. REMOVE BACK DOOR OUTSIDE HANDLE
   1. Remove the 3 plug hole covers.
   2. Remove the 3 bolts and back door outside handle.
      Fig 3: Removing Back Door Outside Handle, Bolts & Plug Hole Covers

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. REMOVE BACK DOOR OUTSIDE GARNISH
   1. Remove the 3 clips.
   2. Insert a screwdriver between the door outside garnish and back door to remove the door outside garnish.
      Fig 4: Removing Back Door Outside Garnish & Clips

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Tape the screwdriver tip before use.

   3. Disconnect the license plate light connector.
9. REMOVE STOP LIGHT COVER

   Using a screwdriver, remove the stop light cover.

   HINT:

   Tape the screwdriver tip before use.

   Fig 5: Removing Stop Light Cover

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

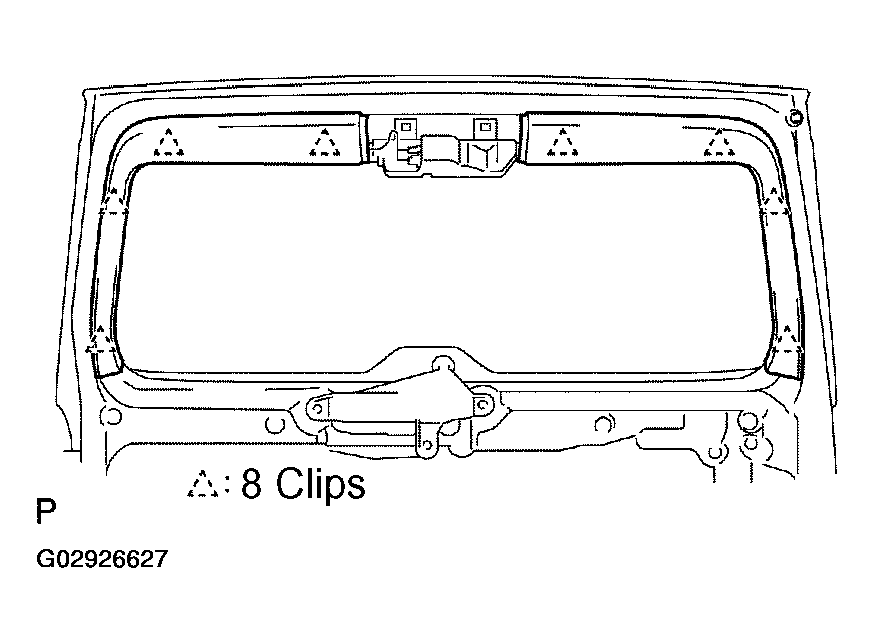

10. REMOVE UPPER SIDE GARNISHES

    Using a screwdriver, remove the upper side garnishes.

    Fig 6: Removing Upper Side Garnishes

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    Tape the screwdriver tip before use.

11. REMOVE STOP LIGHT
    1. Remove the connector.
    2. Remove the 2 screws and stop light.
12. REMOVE REAR SPOILER

    Remove the 2 bolts, 2 nuts and rear spoiler.
