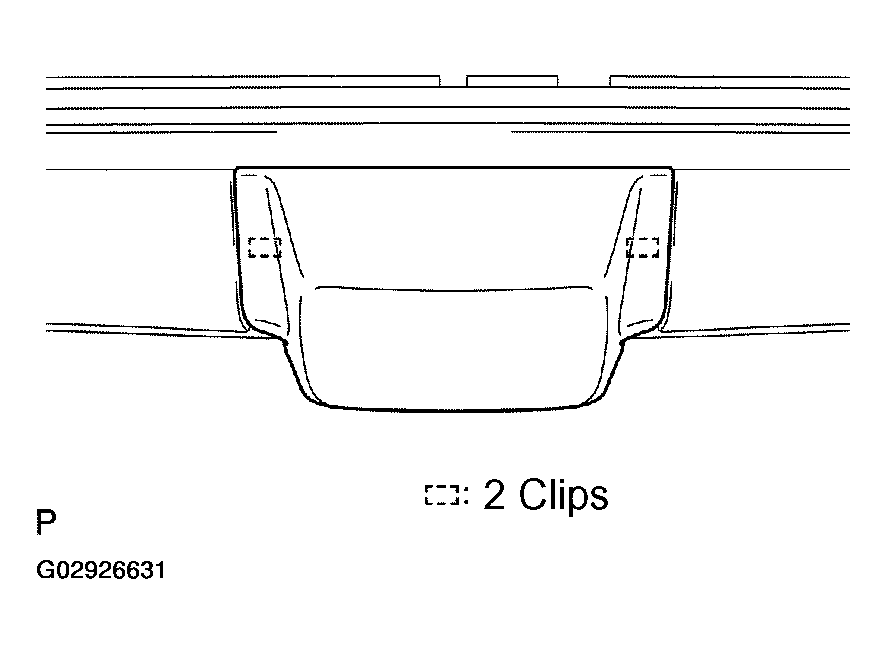

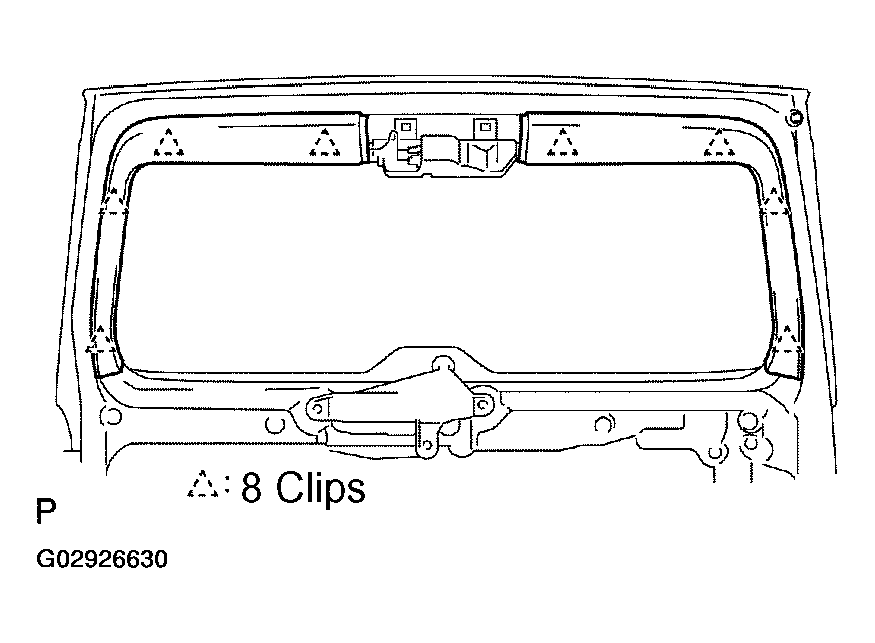

Back Door: Reassembly

Install the rear spoiler with the 2 bolts and 2 nuts.

1. Connect the connector.
2. install the stop light with the 2 screws.

1. Connect the licence plate light connector.

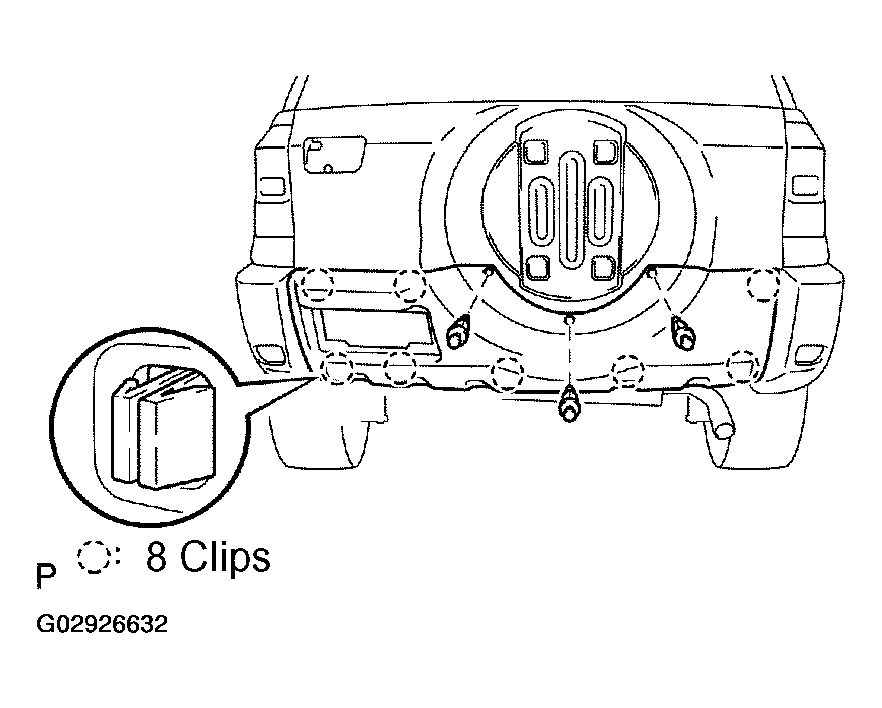

2. Install the door outside garnish to the back door.
3. Install the 3 clips.
Fig 3: Installing Back Door Outside Garnish & Clips
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

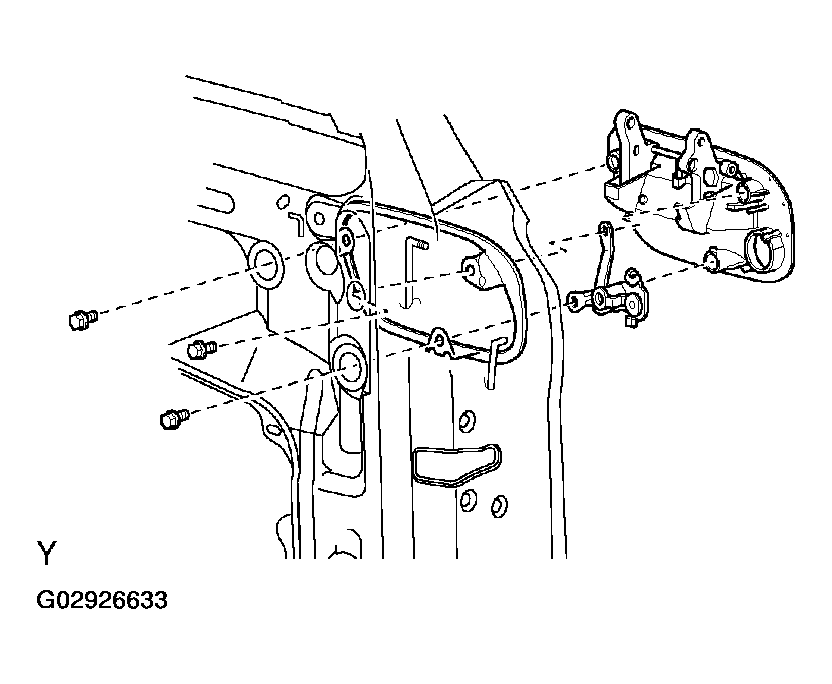

1. Install the door lock cylinder to the back door outside handle.
2. Install the back door outside handle with the 3 bolts.
3. Install the 3 plug hole covers.
Fig 4: Installing Back Door Outside Handle, Bolts & Plug Hole Covers
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

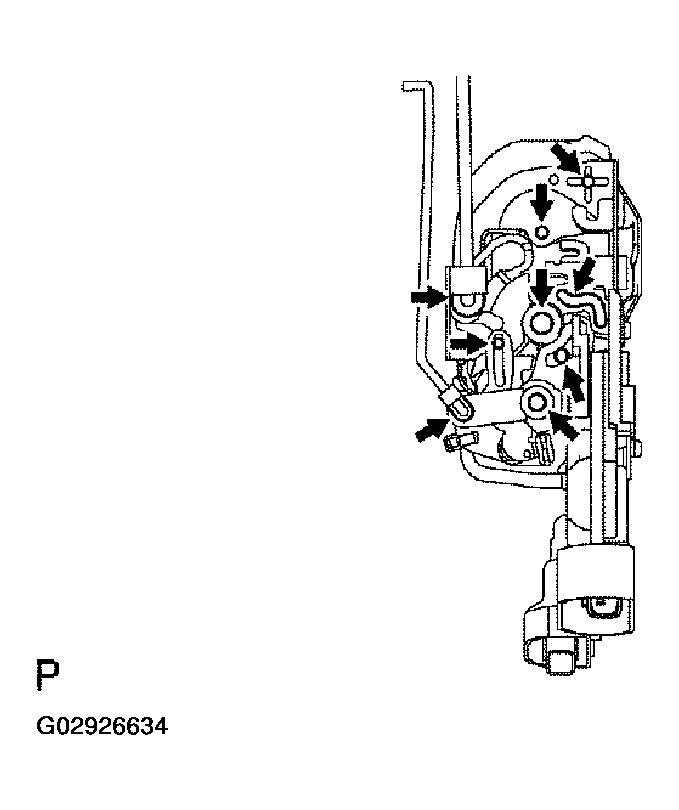

HINT:

Apply MP grease to the sliding surface of the door lock control.

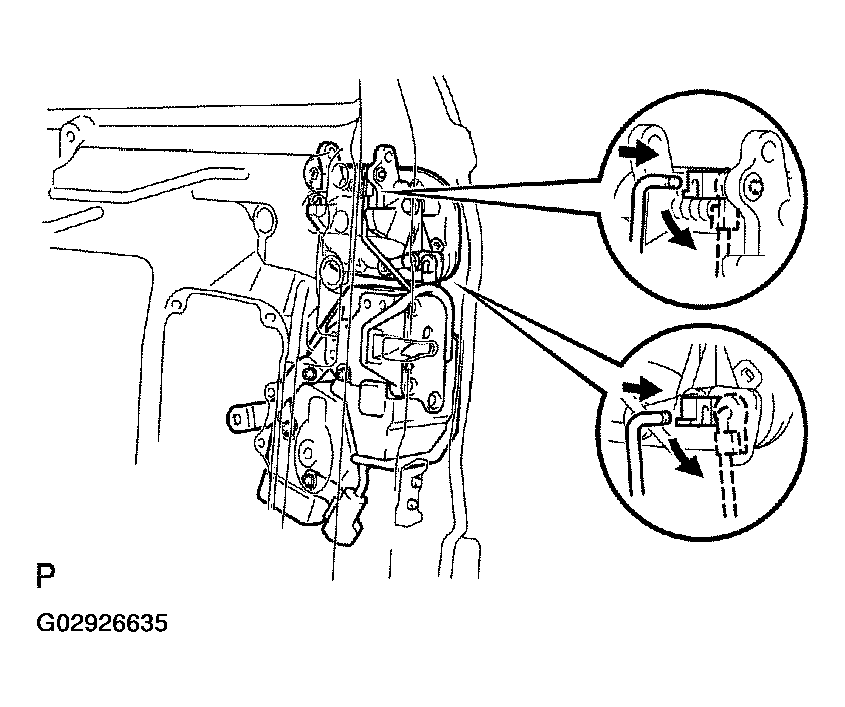

1. Connect the 2 links.
2. Install the door lock assembly through the service hole.
Fig 5: Installing Door Lock Assembly Through Service Holes
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the 2 links.
4. Connect the connector.
5. Install the door lock assembly with the 3 screws and bolt.

   Torque: 5.0 N.m (50 kgf.cm, 44 in.lbf)

Fig 6: Installing Door Lock Assembly With Screws & Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Apply adhesive to the 3 screws.

Part No. 08833-00070, THREE BOND 1324 or equivalent

Install the back spare tire bracket with the 4 bolts.

Torque: 28 N.m (285 kgf.cm, 21 ft.lbf)

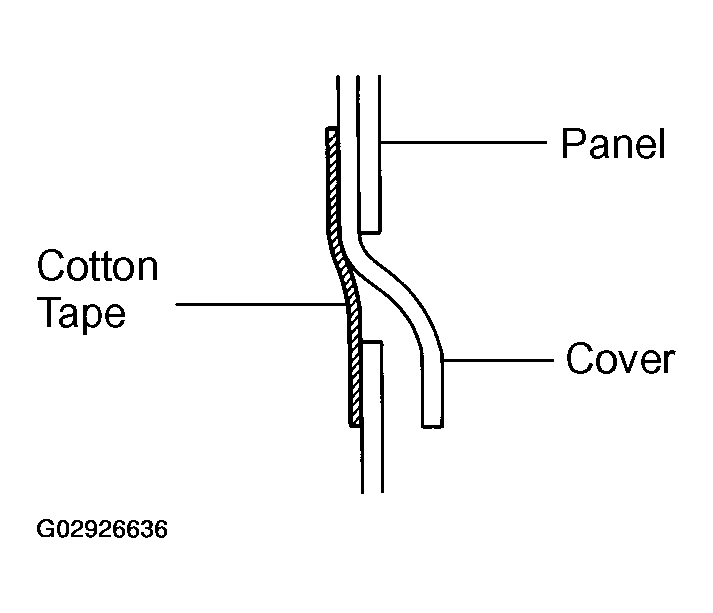

HINT:

Pull out the links through the service hole cover.

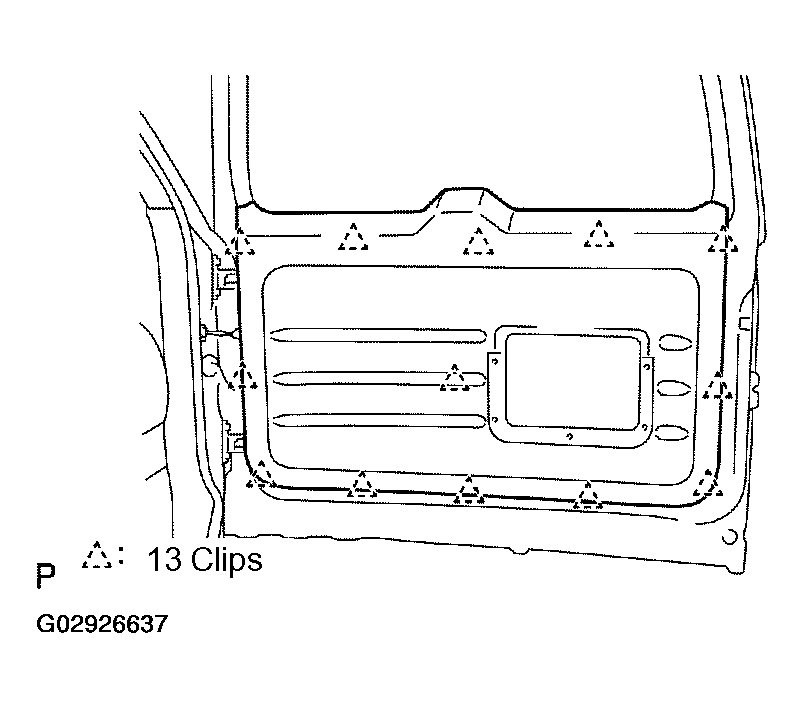

Fig 7: Installing Service Hole Cover

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
