Quarter Window Glass: Installation

1. Using a knife, cut away any rough areas on the body.

   HINT:

   Leave the adhesive on the body as much as possible.

2. Clean the cut surface of the adhesive with a shop rag saturated in cleaner.

   HINT:

   Even if all the adhesive has been removed, clean the body.

Using a cleaner, clean the contact surface which is black-colored area around the entire glass rim.

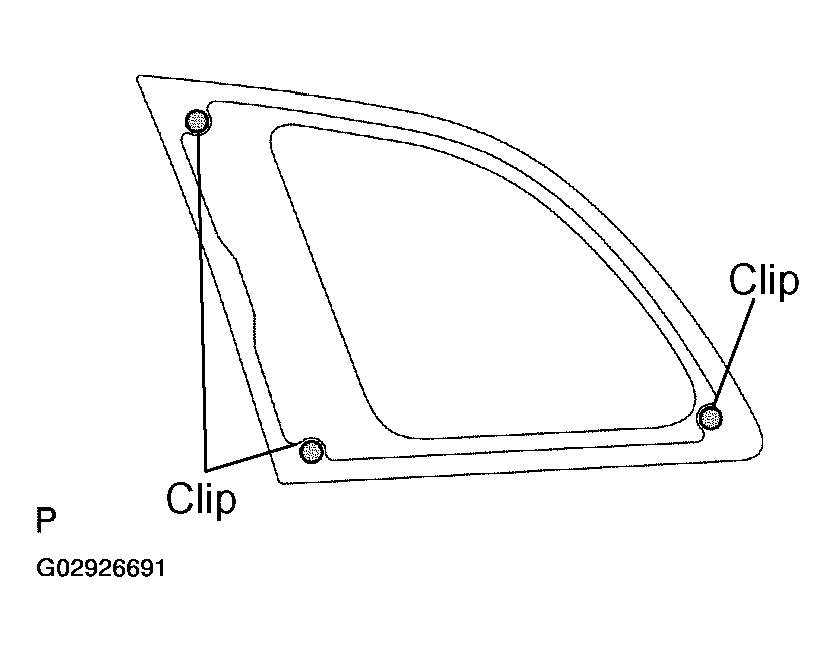

Install 3 new clips to the quarter window glass as shown in Fig 1.

Fig 1: Installing Clips To Quarter Window Glass

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

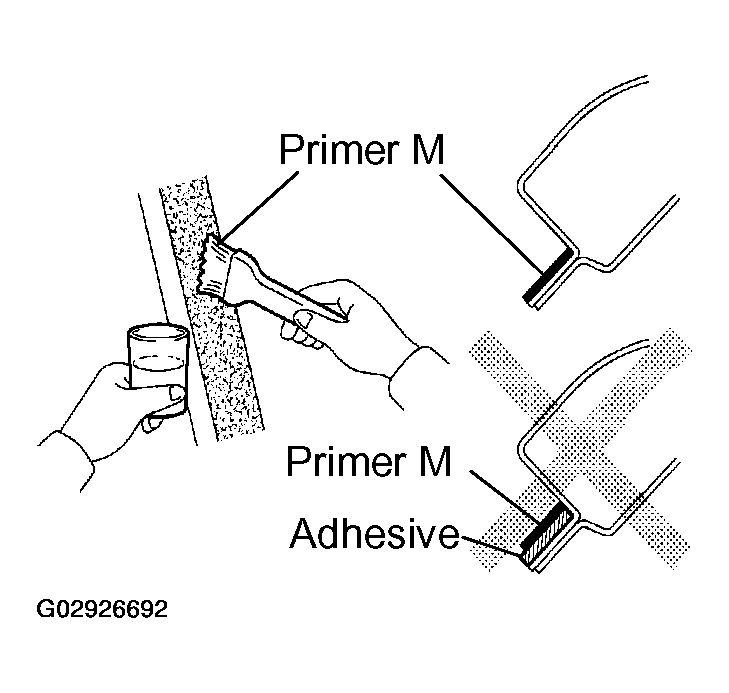

Using a brush, coat Primer M to the exposed part of body on the vehicle side.

Fig 2: Coating Contact Surface Of Body With Primer 'M'

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

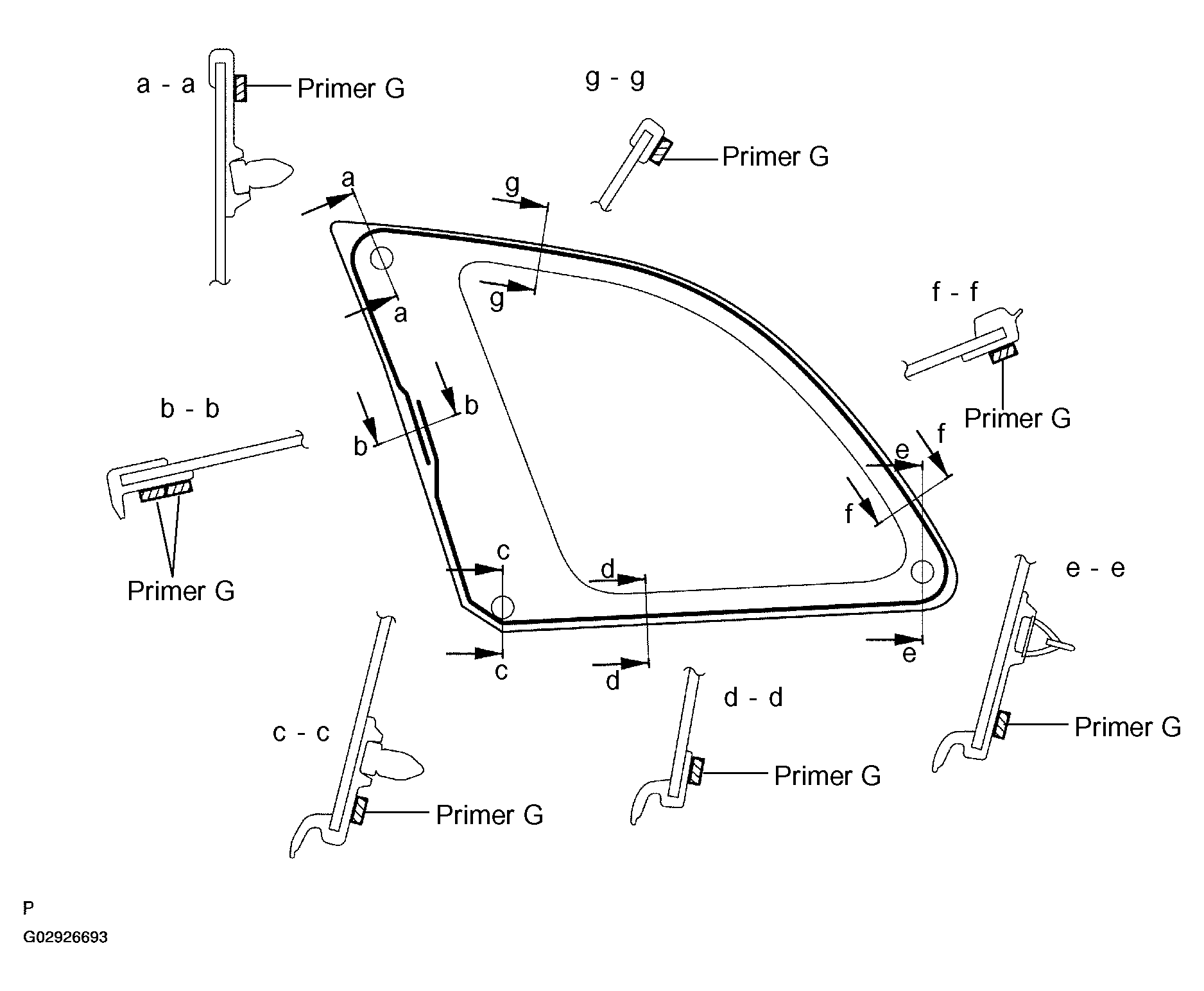

1. Using a brush or sponge, coat the edge of the glass and the contact surface with Primer G as shown in Fig 3.
2. When the primer is coated wrongly to the area other than the specified, wipe it off with a clean shop rag before the primer dries.

Fig 3: Coating Contact Surface Of New Glass With Primer 'G'

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Cut off the tip of the cartridge nozzle.

   Part No. 08850-00801 or equivalent.

   HINT:

   After cutting off the tip, use all adhesive within the time described in ADHESIVE TEMPERATURE & TACKFREE TIME .

   ADHESIVE TEMPERATURE & TACKFREE TIME



   Temperature	Tackfree time
   35°C (95°F)	15 minutes
   20°C (68°F)	100 minutes
   5°C (41°F)	8 hours

2. Load the cartridge into the sealer gun.

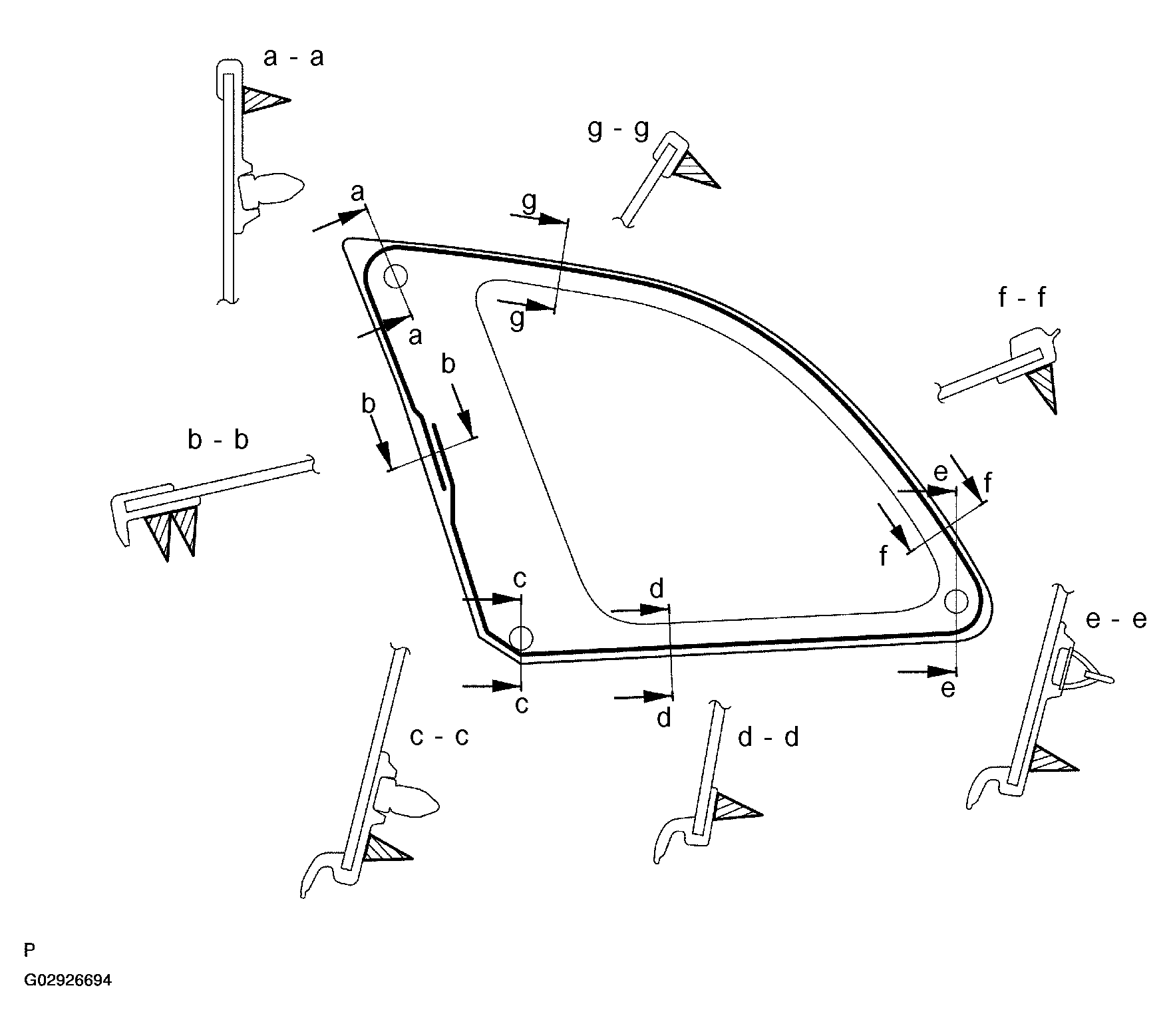

3. Coat the new glass with adhesive as shown in Fig 4.

   Adhesive height: 12.0 mm (0.472 in.)

   Adhesive width: 8.0 mm (0.315 in.)

   Fig 4: Applying Adhesive

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install new glass to the body.
2. Hold the glass in place securely with a protective tape or equivalent until the adhesive hardens.
   NOTE: Take care not to drive the vehicle during the time described in ADHESIVE TEMPERATURE & MINIMUM TIME PRIOR TO DRIVING .
   ADHESIVE TEMPERATURE & MINIMUM TIME PRIOR TO DRIVING



   Temperature	Minimum time prior to driving the vehicle
   35°C (95°F)	1.5 hours
   20°C (68°F)	5 hours
   5°C (41°F)	24 hours

1. Conduct a leak test after the hardening time has elapsed.
2. Seal any leak with sealant.

   Part No. 08833-00030 or equivalent.

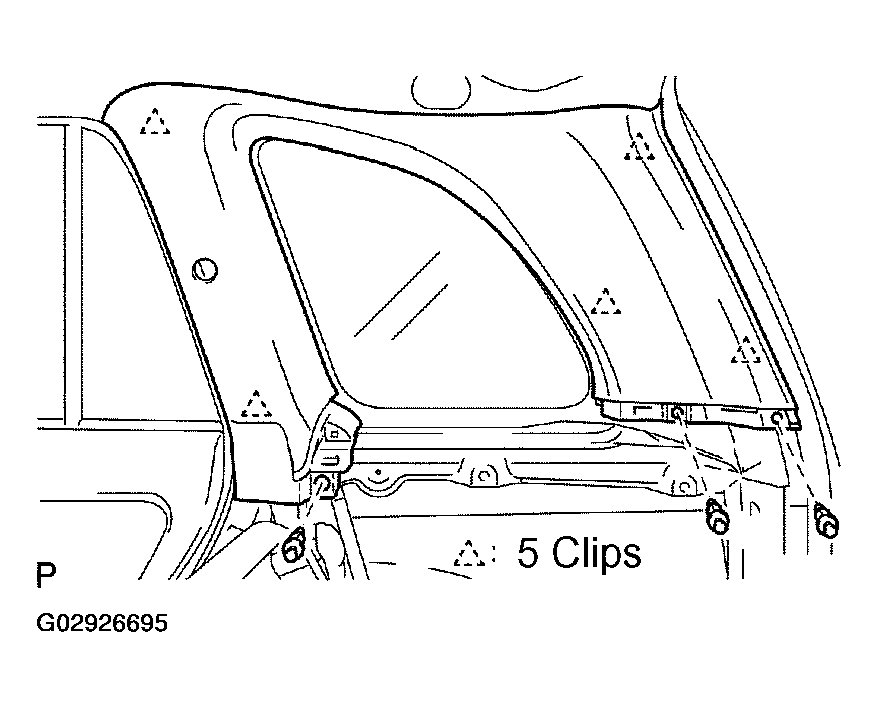

1. Install the roof side inner garnish with the 3 clips.
Fig 5: Installing Roof Side Inner Garnish With Clips
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the rear seat outer belt shoulder anchor with the bolt.

   Torque: 43 N.m (440 kgf.cm, 32 ft.lbf)

1. LH side:

   Connect the connector.

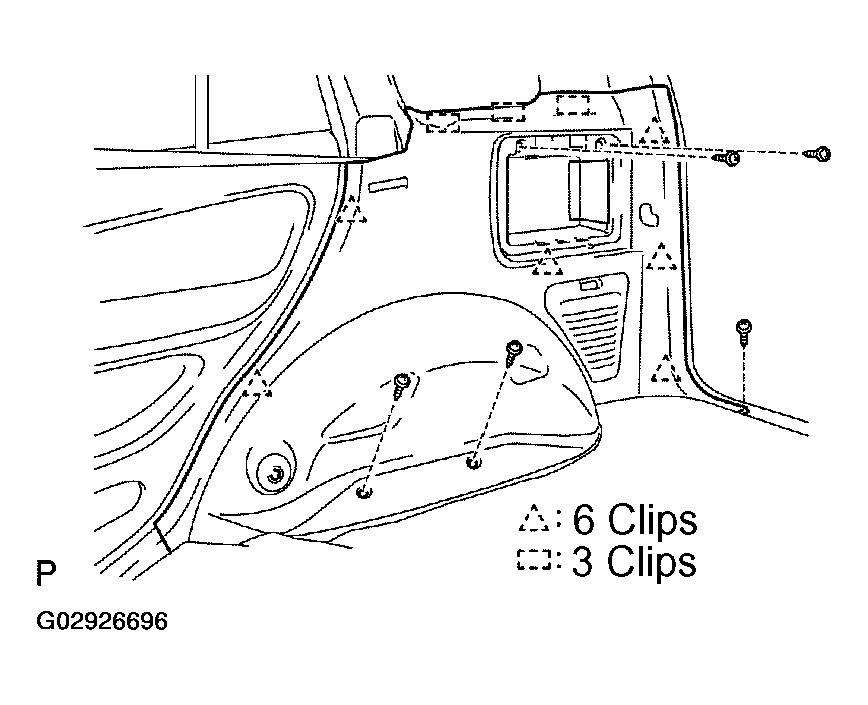

2. Install the deck side trim with the 5 screws.
Fig 6: Installing Deck Side Trim With 5 Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the rear seat outer belt floor anchor with the bolt.

   Torque: 43 N.m (440 kgf.cm, 32 ft.lbf)
