Home >> Toyota >> 2004 >> RAV4 Base, FWD, Automatic >> Repair and Diagnosis >> Brakes >> Traction Control >> Abs Actuator >> Components

Abs Actuator: Components

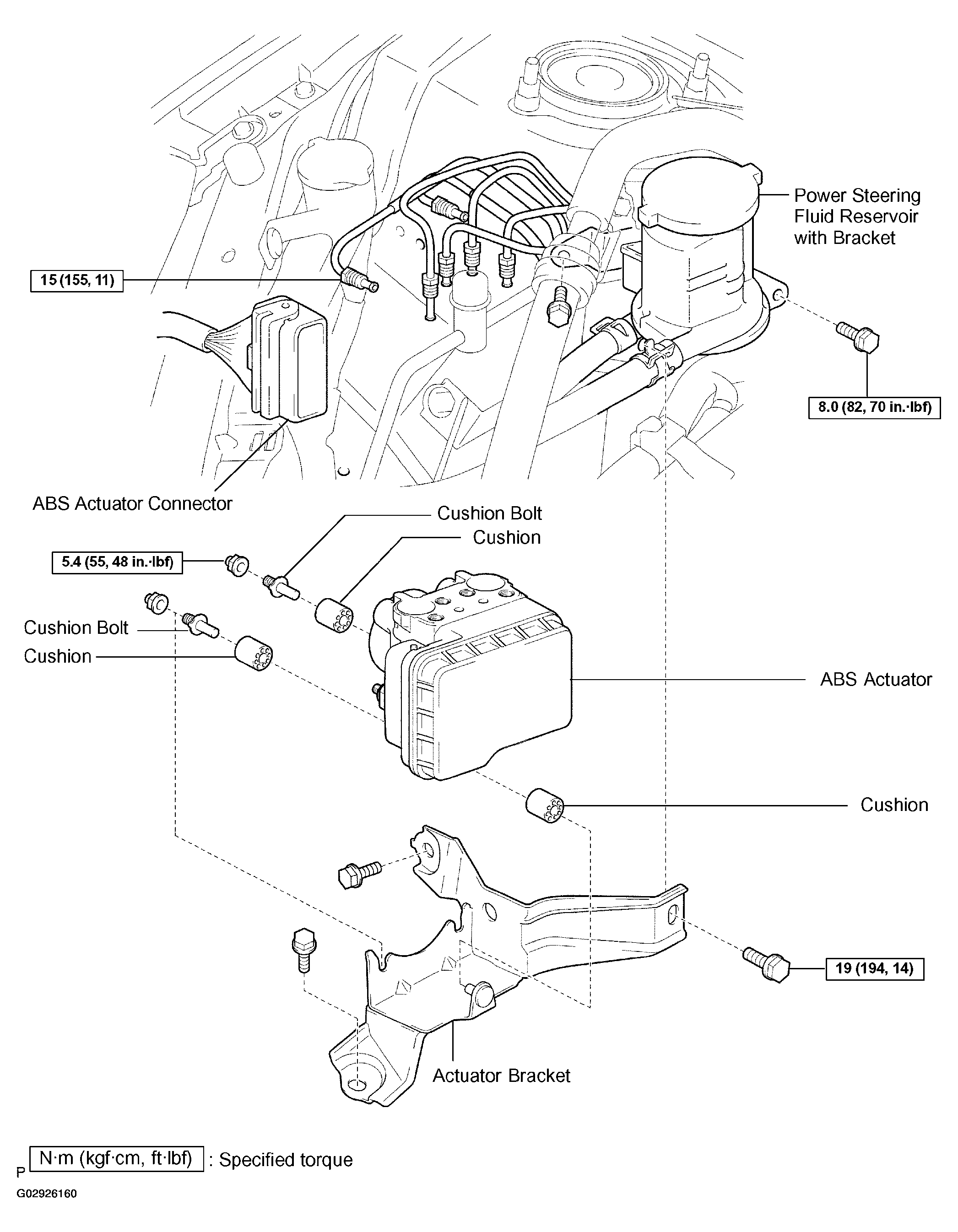

Fig 1: Locating ABS Actuator Components
G02926160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
