Home >> Toyota >> 2004 >> RAV4 Base, FWD, Automatic >> Repair and Diagnosis >> Brakes >> Traction Control >> Front Brake Speed Sensor >> Components

Front Brake Speed Sensor: Components

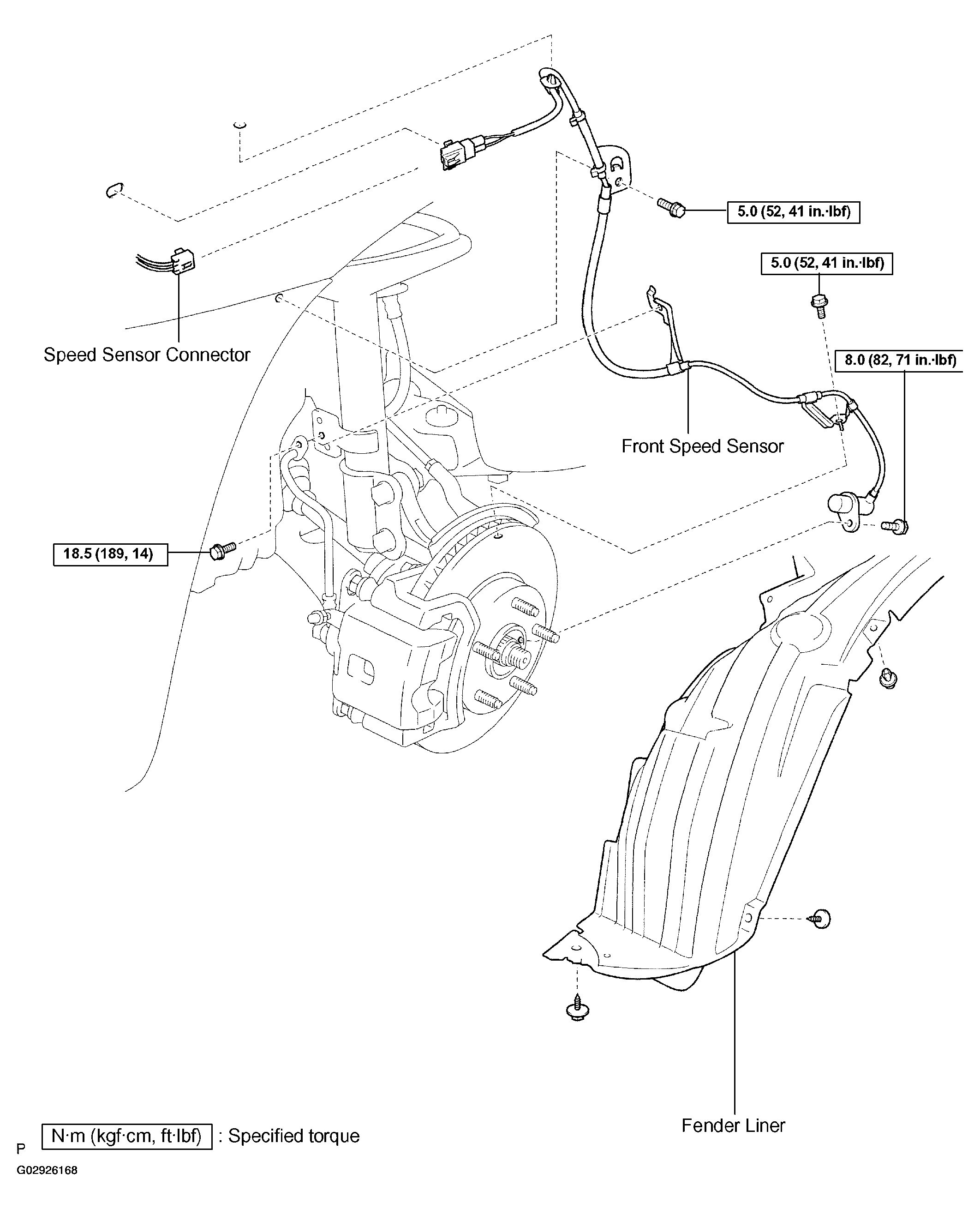

Fig 1: Locating Front Brake Speed Sensor Components
G02926168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
