Rear Brake Speed Sensor: Disassembly

2WD:

REMOVE ABS SPEED SENSOR

1. Using a pin punch and hammer, drive out the 2 pins, and remove the 2 attachments from SST.

   SST 09520-00031 (09520-00040, 09521-00020)

2. Mount the axle hub assembly in a soft jaw vise.
   NOTE: Replace the axle hub assembly if it is dropped or a strong shock is given to it.
3. Using SST and 2 bolts (Diameter: 12 mm, Pitch: 1.5 mm), remove the ABS speed sensor.

   SST 09520-00031 (09520-00040, 09521-00020), 09950-00020

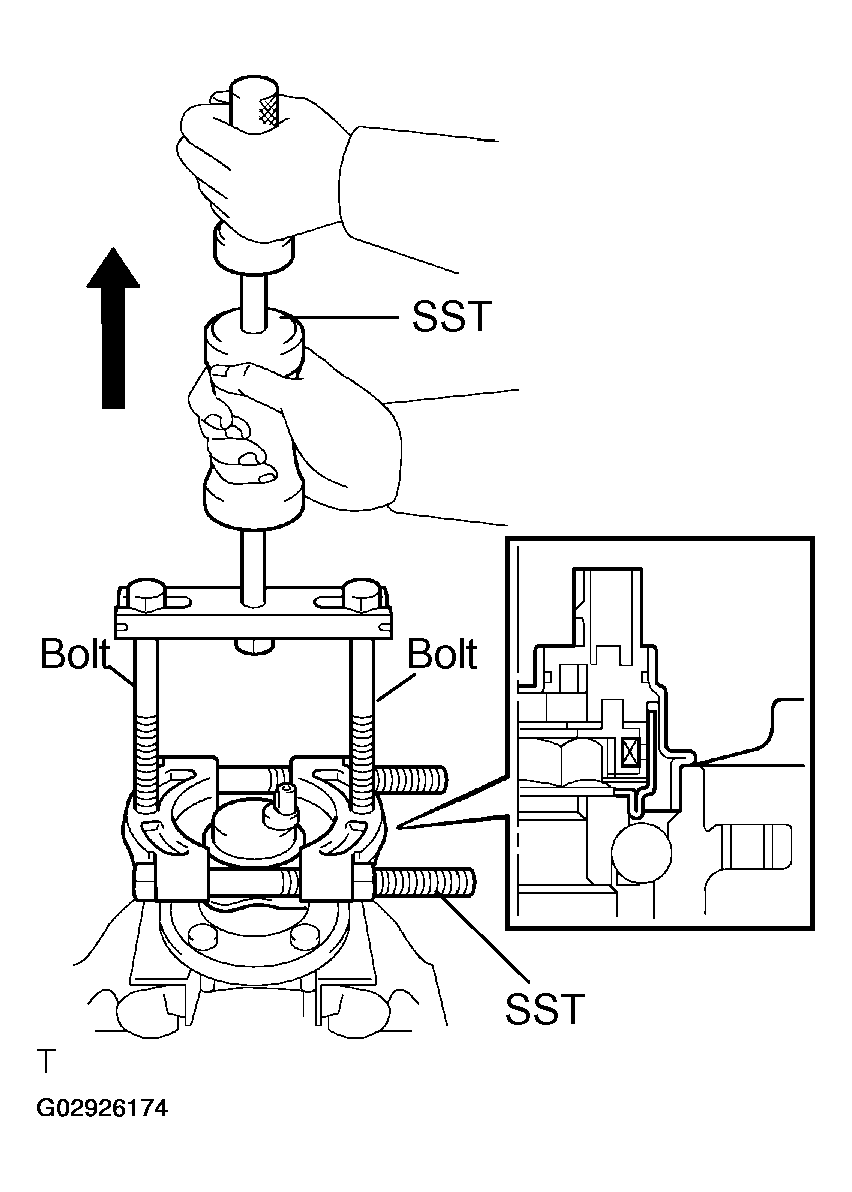

   Fig 1: Removing ABS Speed Sensor From Axle Hub

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE:

   • Do not allow any foreign matter to stick to the sensor rotor.
   • Pull out the ABS speed sensor straightly not to damage the sensor rotor.
   • If the sensor rotor is damaged, replace the axle hub assembly.
   • Do not scratch the contacting surface of the axle hub and speed sensor.
