Rear Brake Speed Sensor: Reassembly

2WD:

INSTALL NEW SPEED SENSOR

1. Clean the contacting surface of the axle hub and a new speed sensor.
   NOTE: Do not allow any foreign matter to stick to the sensor rotor.
2. Place the speed sensor on the axle hub so that the connector is set at the bottom under the on-vehicle condition.
3. Using SST and a press, install a new ABS speed sensor to the axle hub.

   SST 09527-10011, 09710-04101, 09950-60020 (09951-00680)

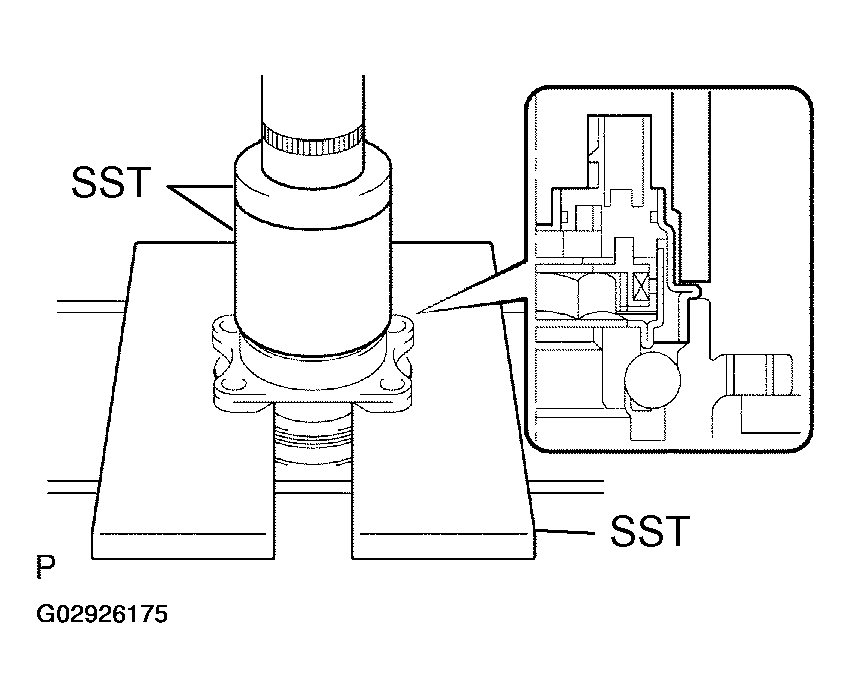

   Fig 1: Installing ABS Speed Sensor To Axle Hub

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE:

   • Do not tap the speed sensor with a hammer directly.
   • Check that there should be no foreign matter on the speed sensor detection portion.
   • Press in the speed sensor straightly and slowly.
