Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

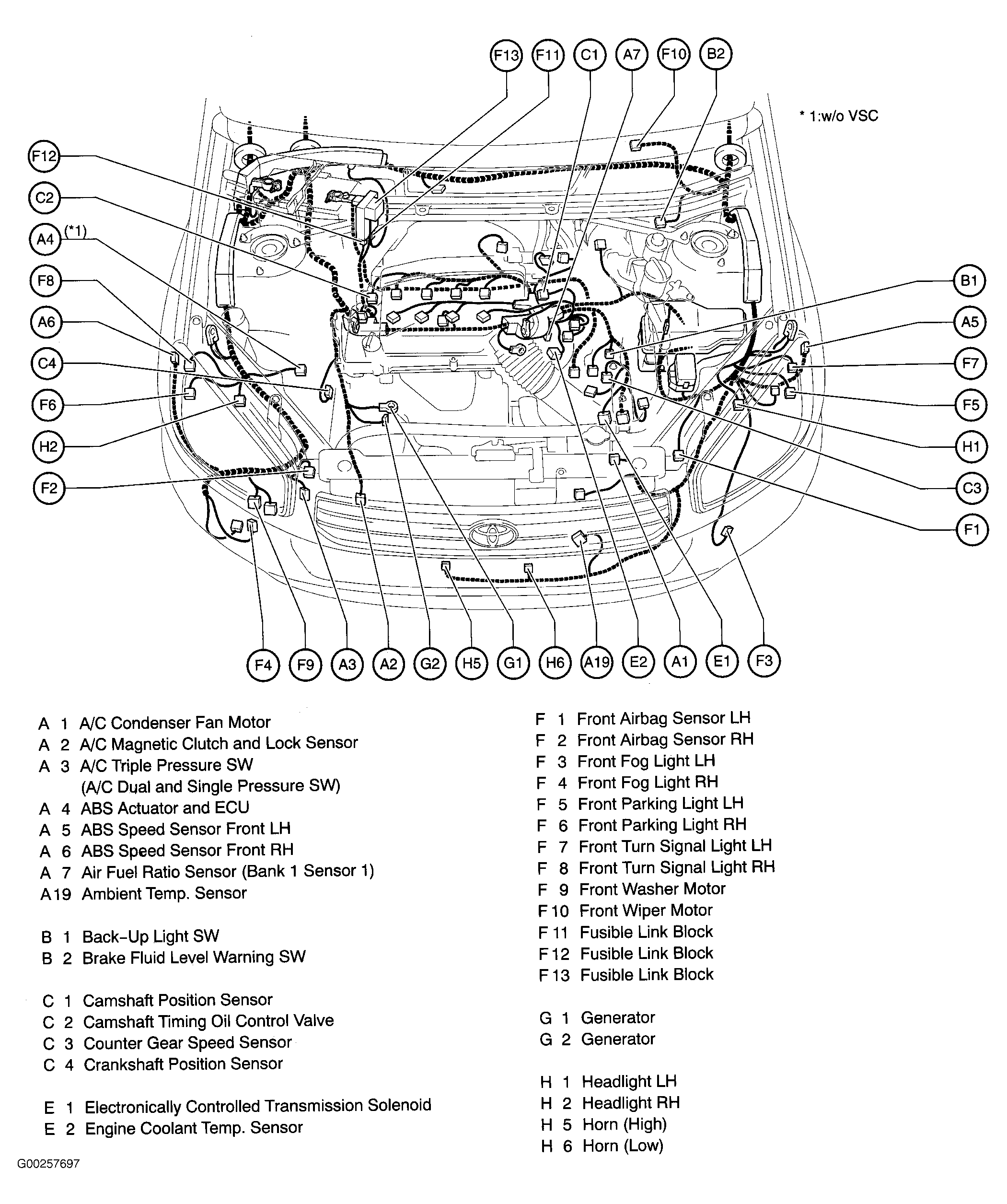

Fig 1: Engine Compartment
G00257697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

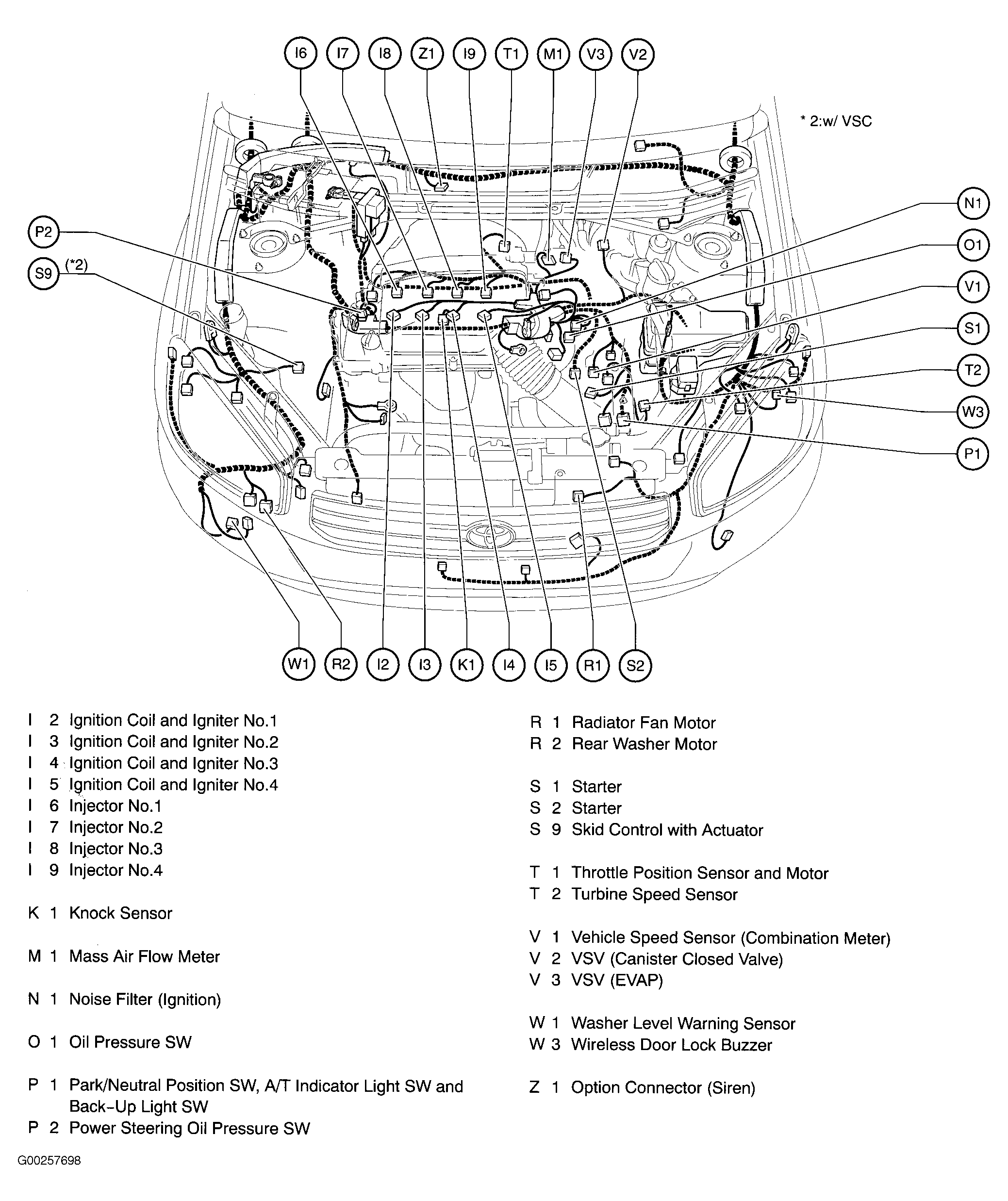

Fig 2: Engine
G00257698Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Dash & Center Console
G00257699Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

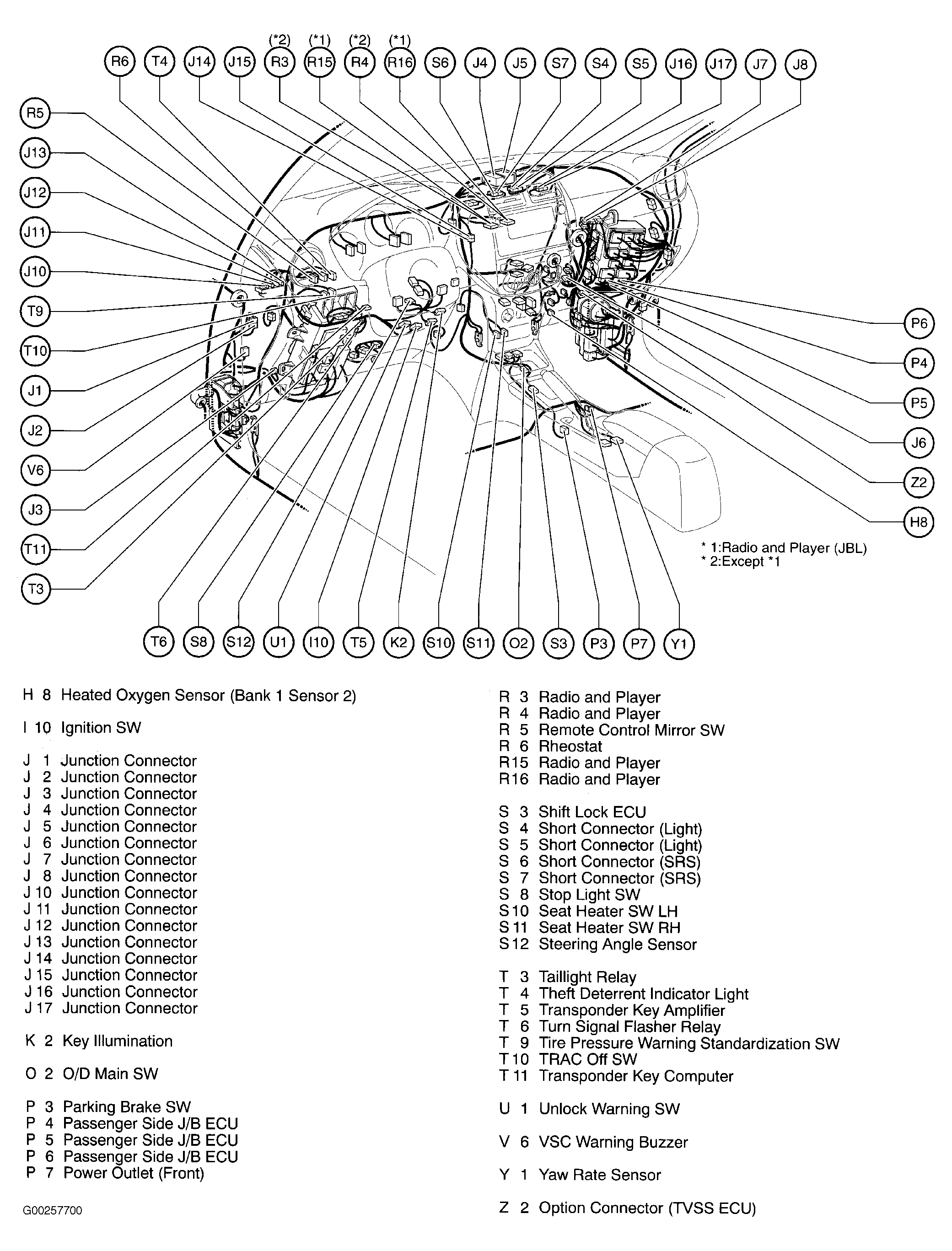

Fig 4: Dash & Center Console
G00257700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

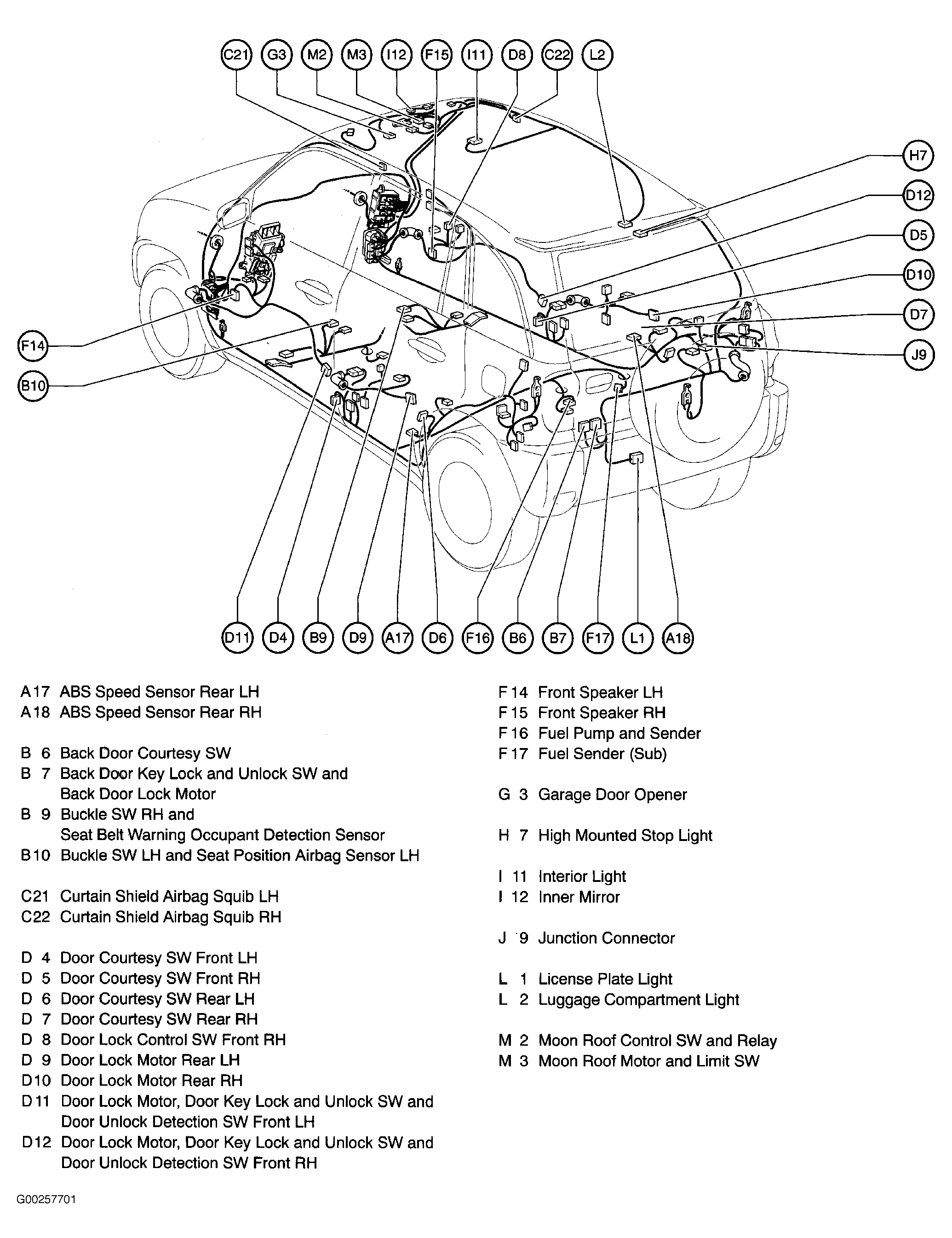

Fig 5: Vehicle Overview
G00257701Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

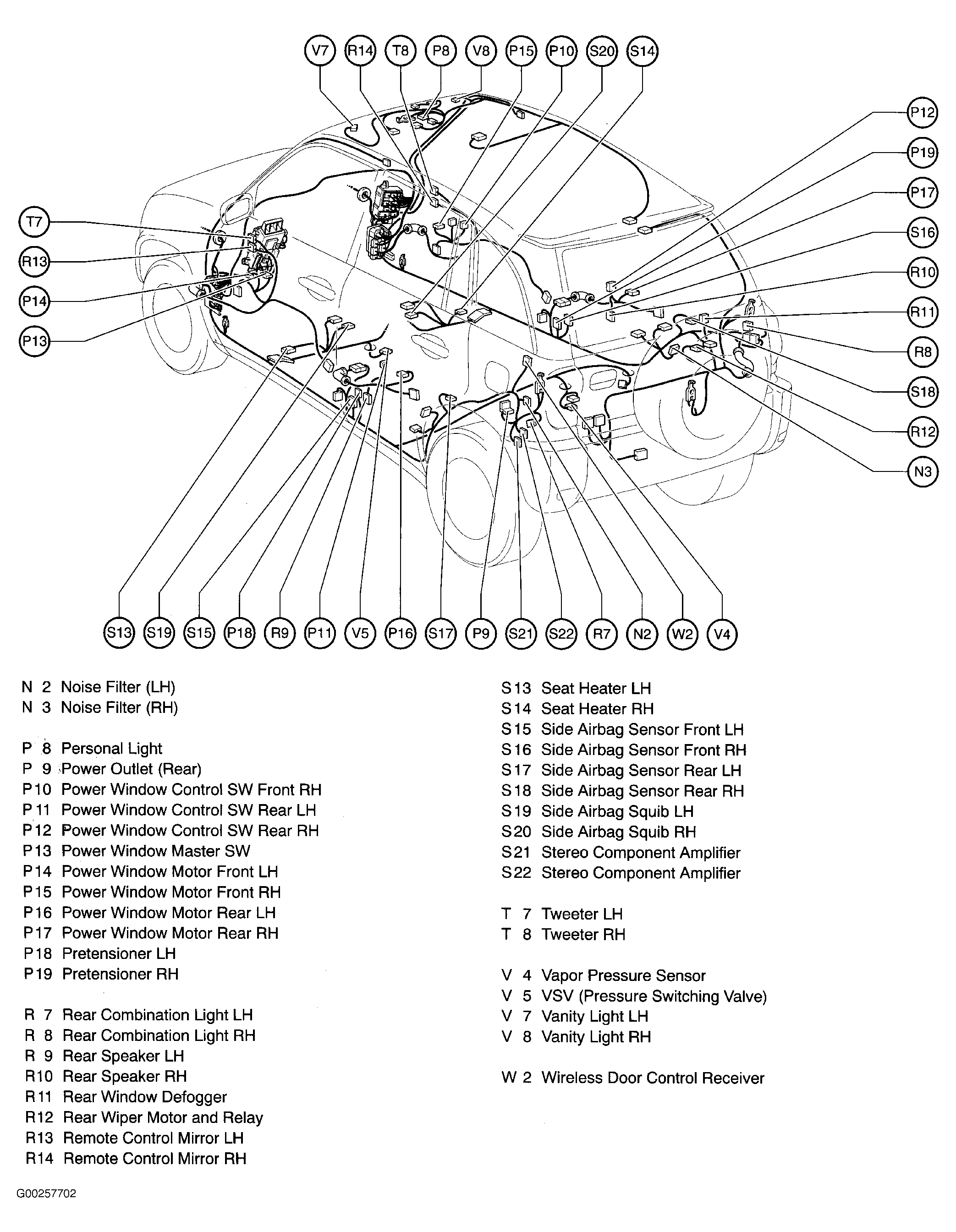

Fig 6: Vehicle Overview
G00257702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

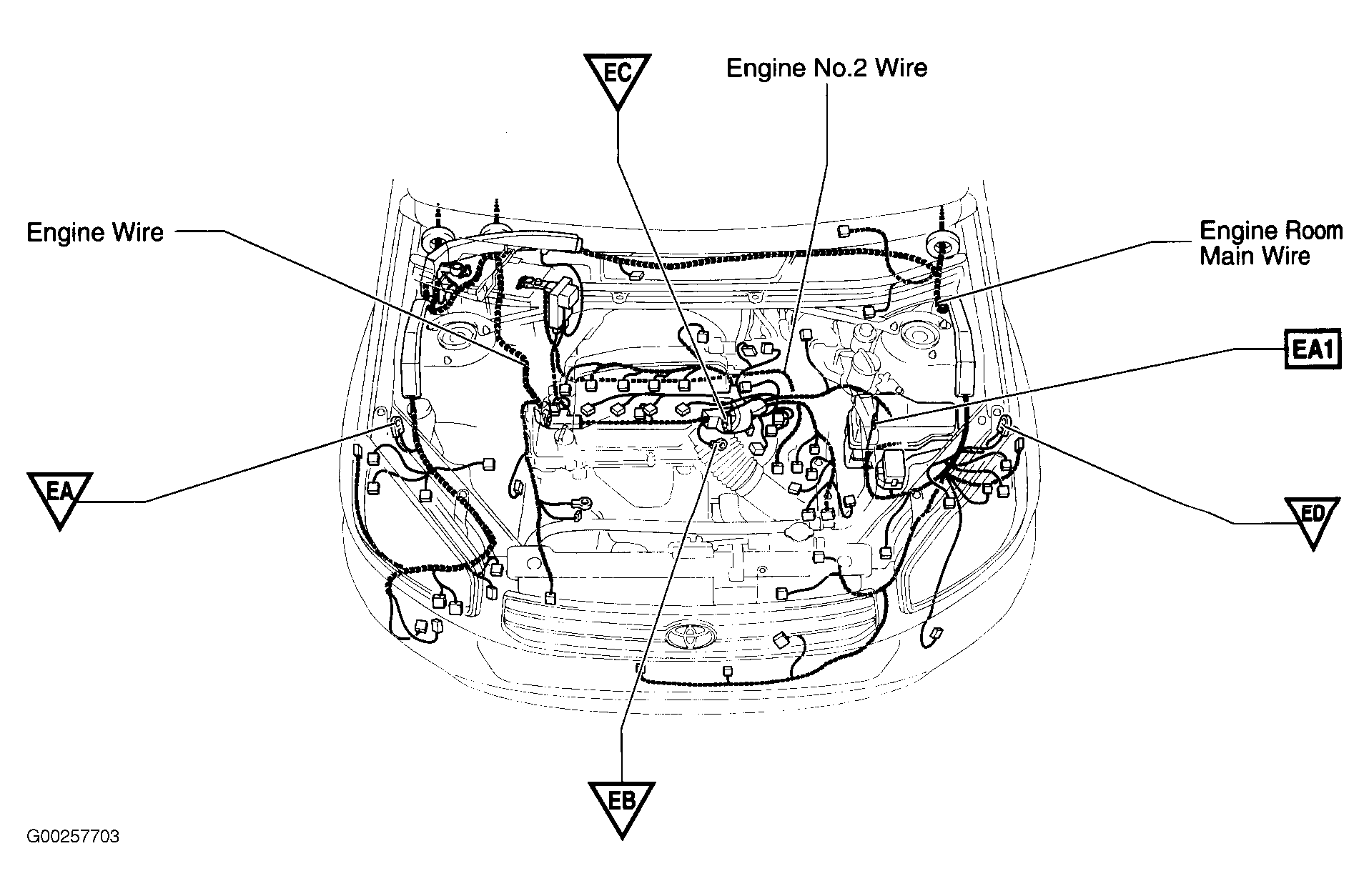

Fig 7: Engine Compartment
G00257703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

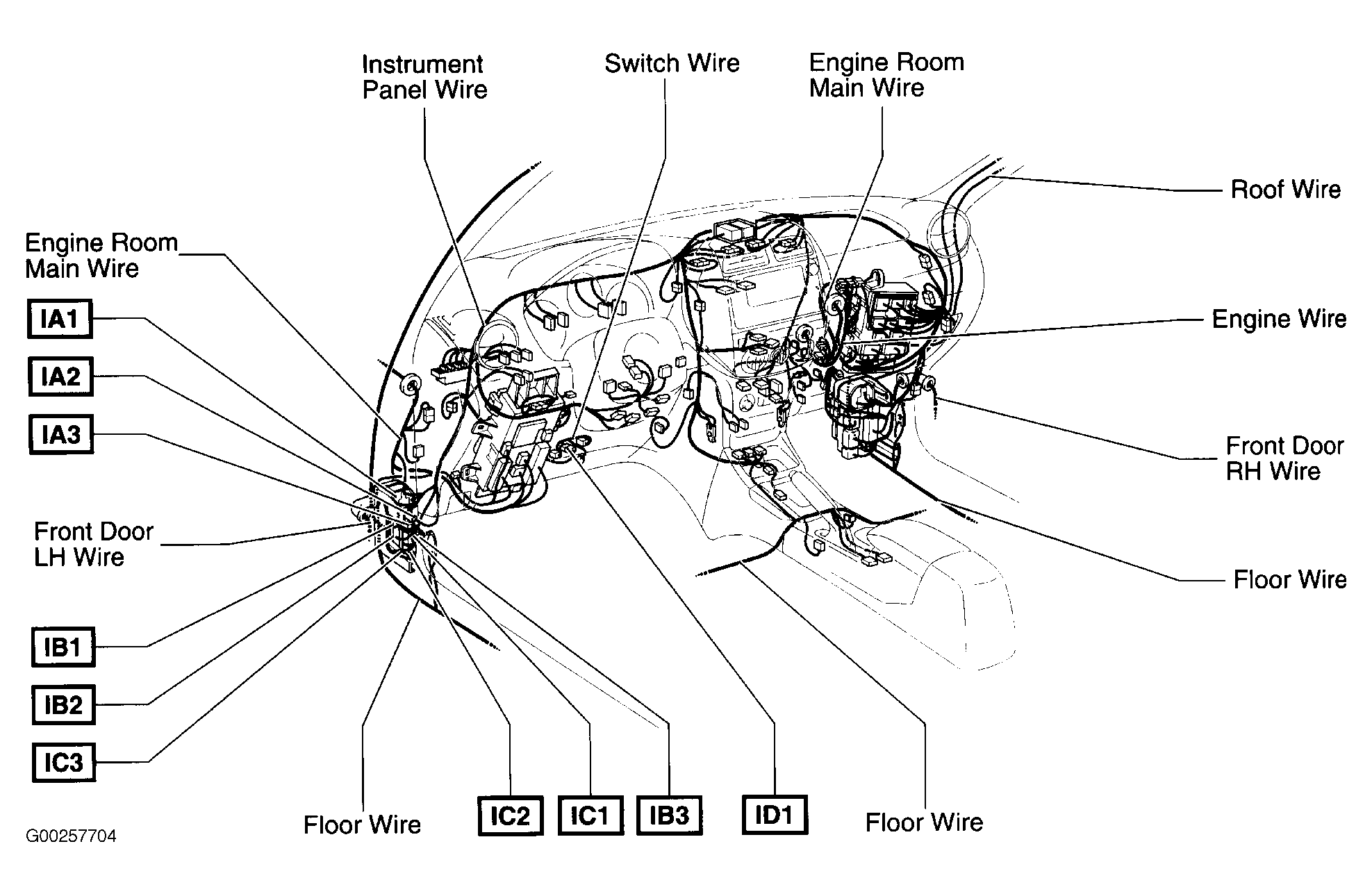

Fig 8: Dash
G00257704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

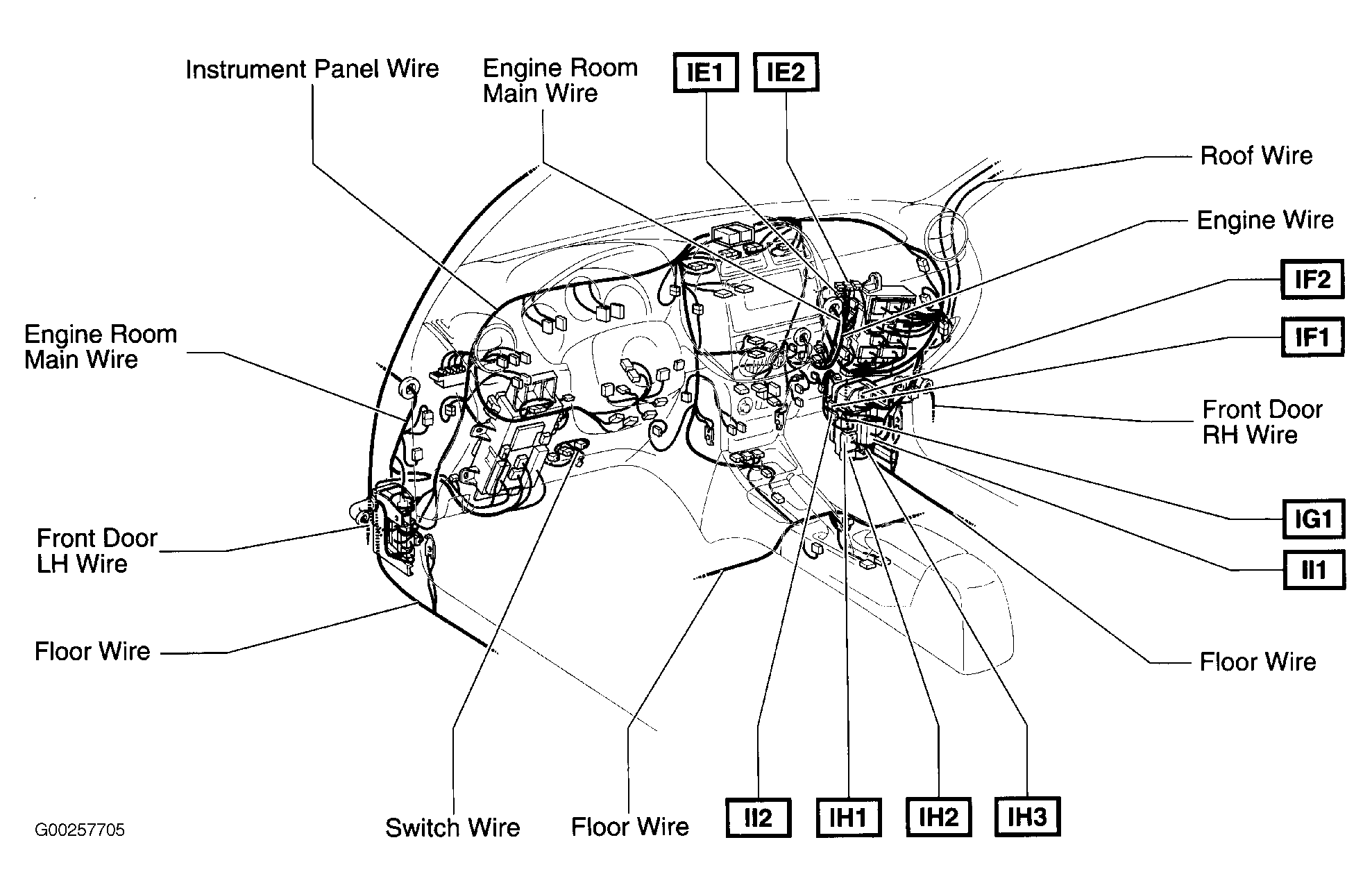

Fig 9: Dash
G00257705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

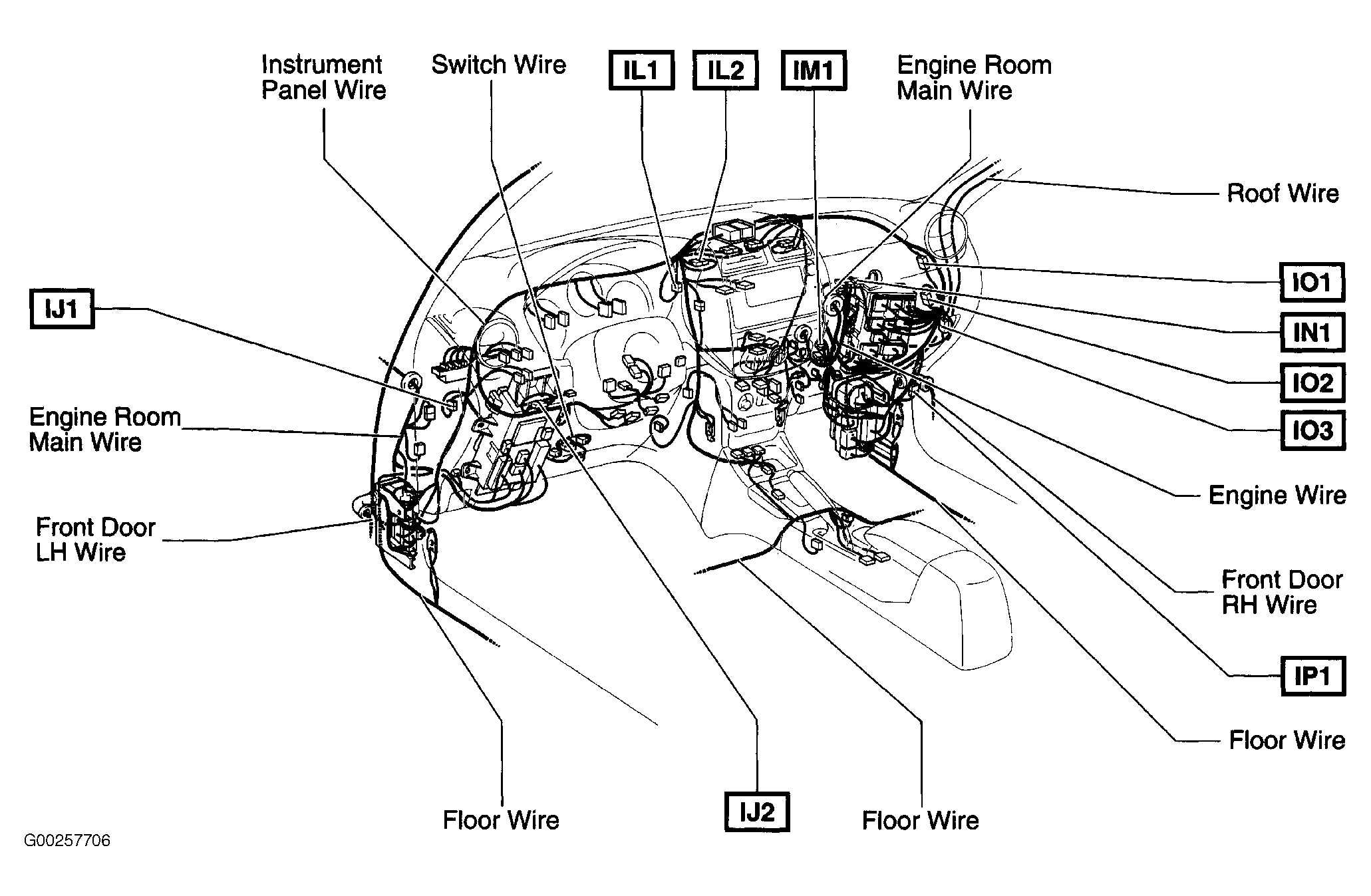

Fig 10: Dash
G00257706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

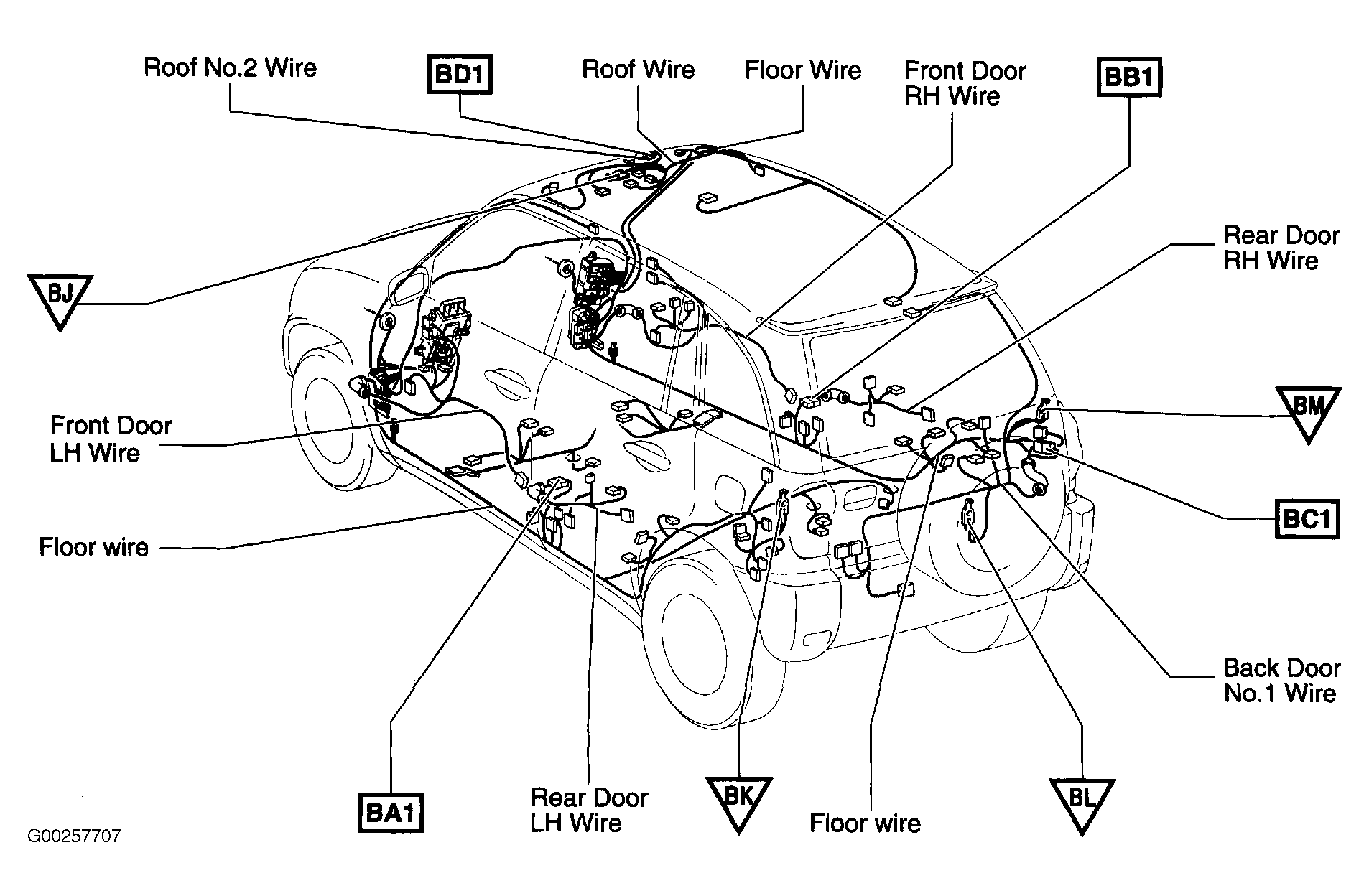

Fig 11: Vehicle Overview
G00257707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

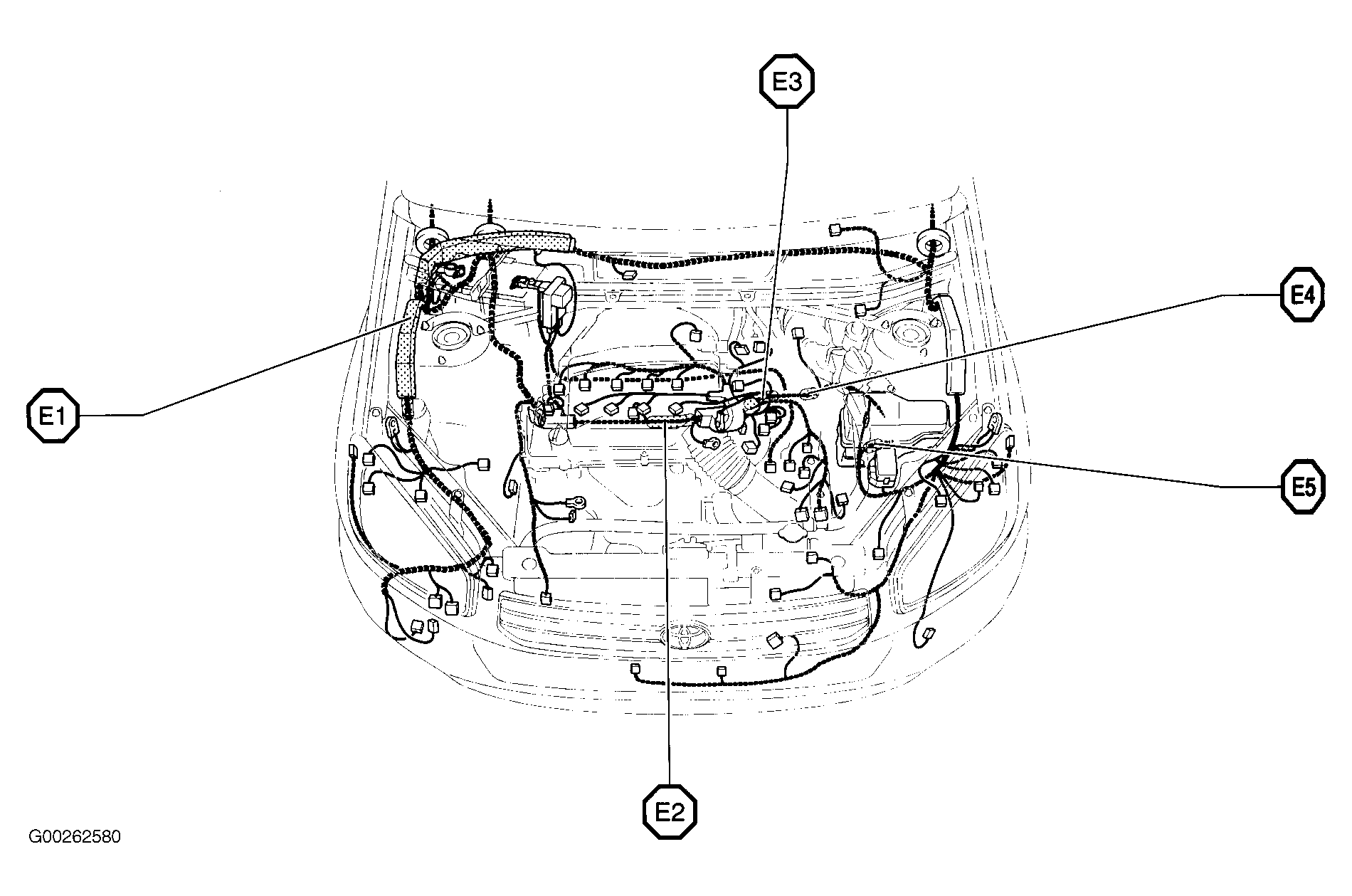

Fig 12: Engine Compartment
G00262580Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 13: Dash
G00262581Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

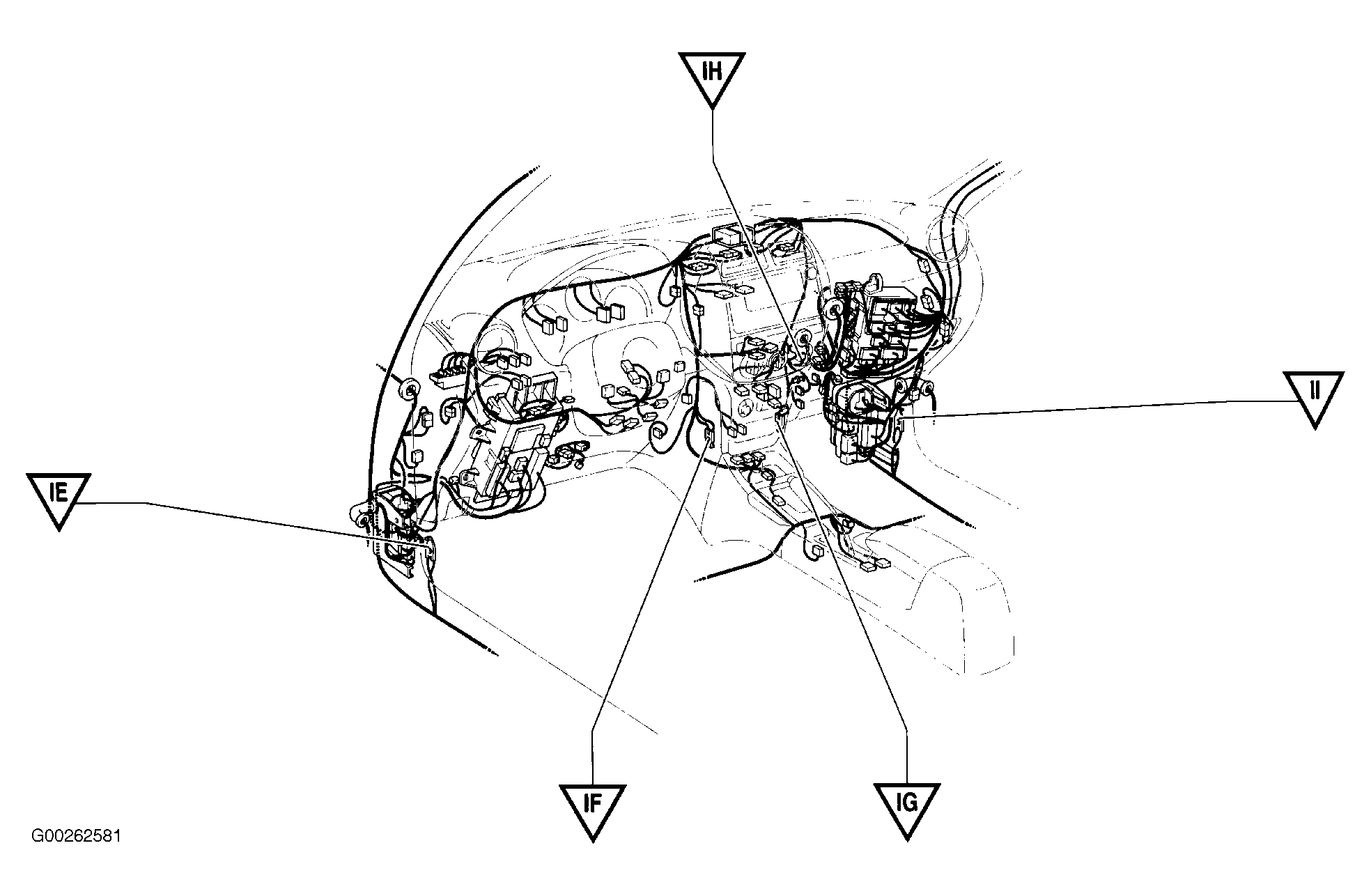

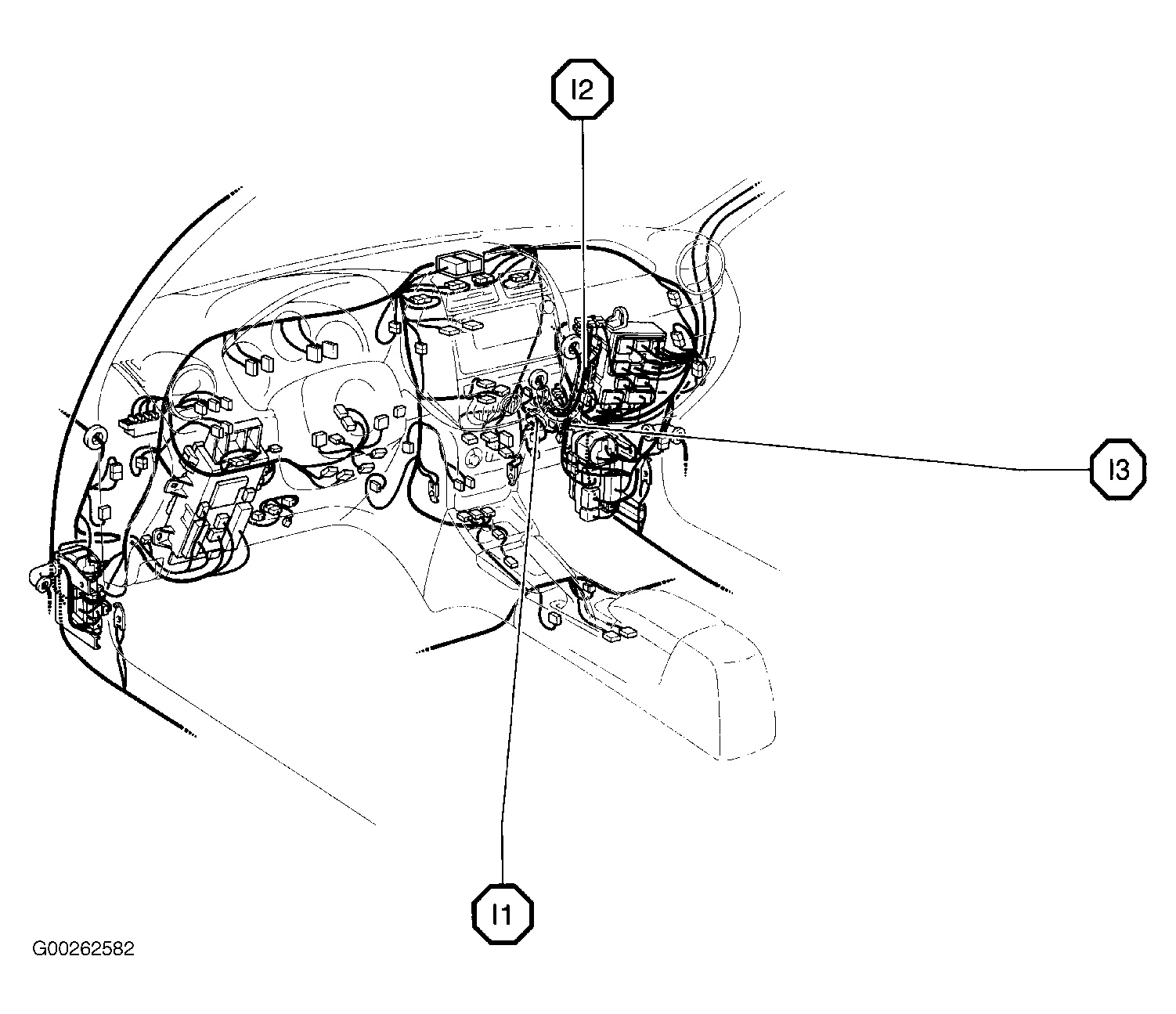

Fig 14: Dash
G00262582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

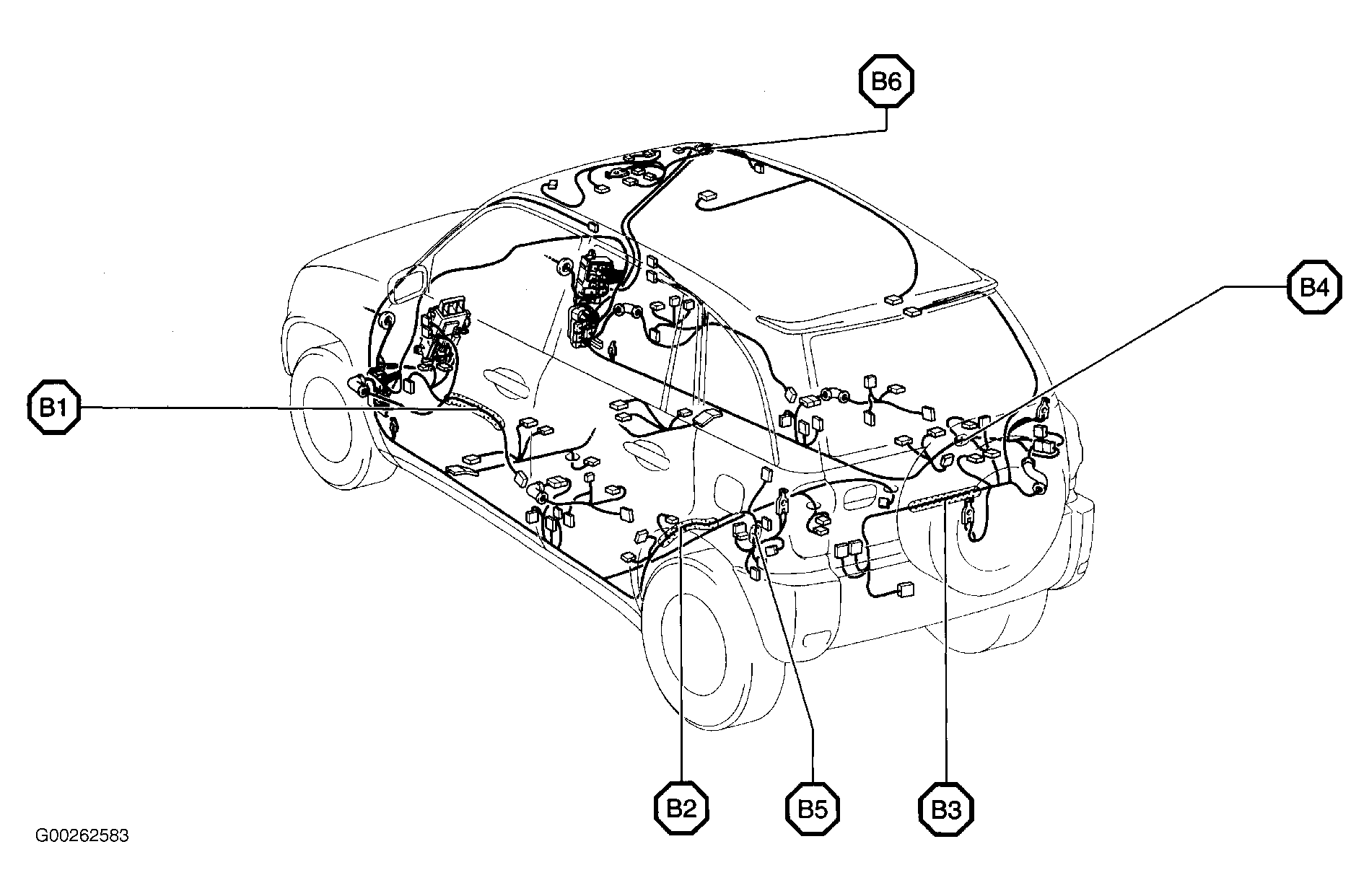

Fig 15: Vehicle Overview
G00262583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 16: Engine Compartment
G00262604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 17: Dash & Center Console
G00262605Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 18: Vehicle Overview
G00262606Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
VEHICLE OVERVIEW RELAY IDENTIFICATION

RELAY DESCRIPTION
Moon Roof Control SW and Relay
Rear Wiper Motor and Relay

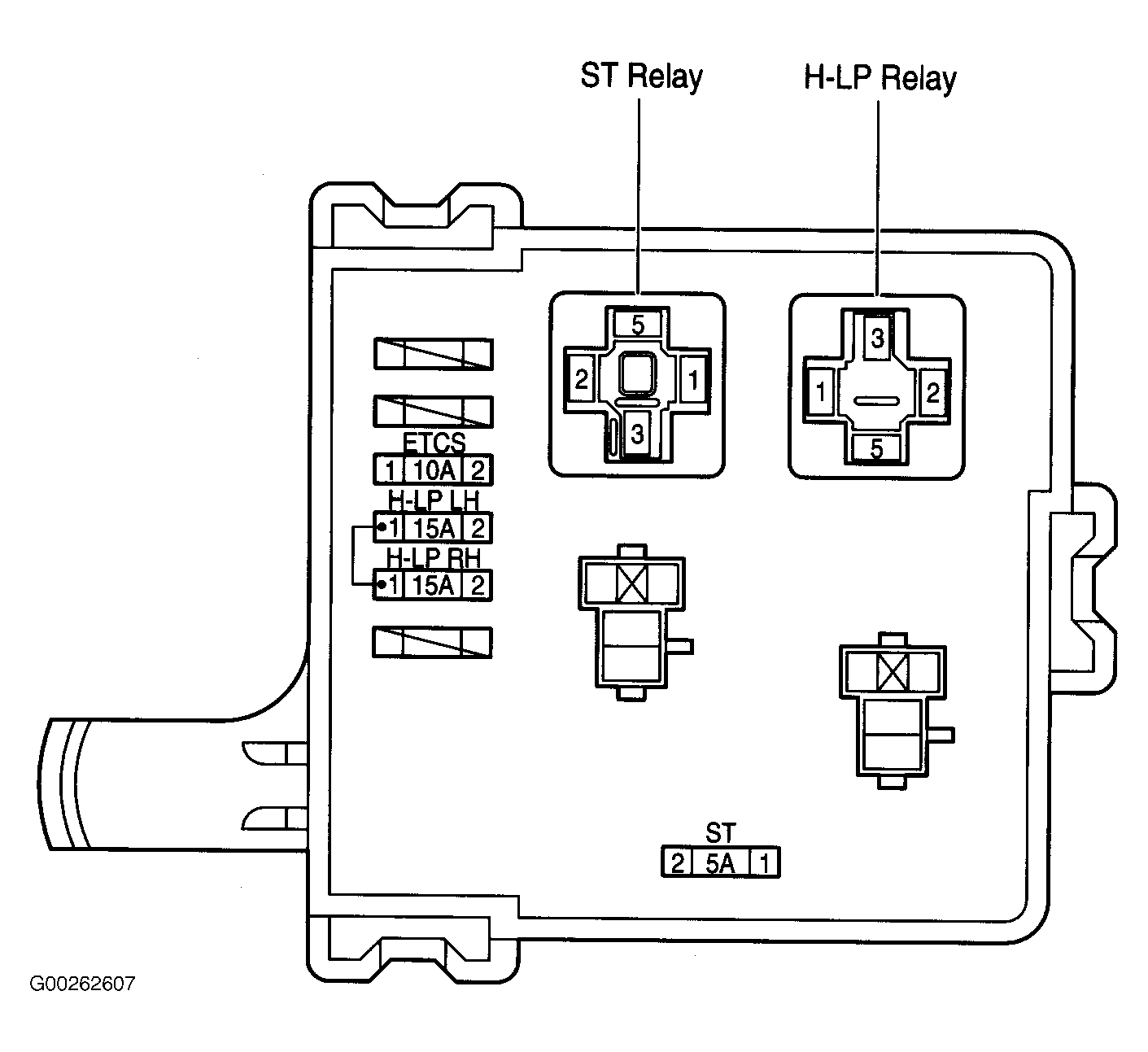

Fig 19: Engine R/B
G00262607Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ENGINE ROOM RELAY BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
ST Relay
H-LP Relay

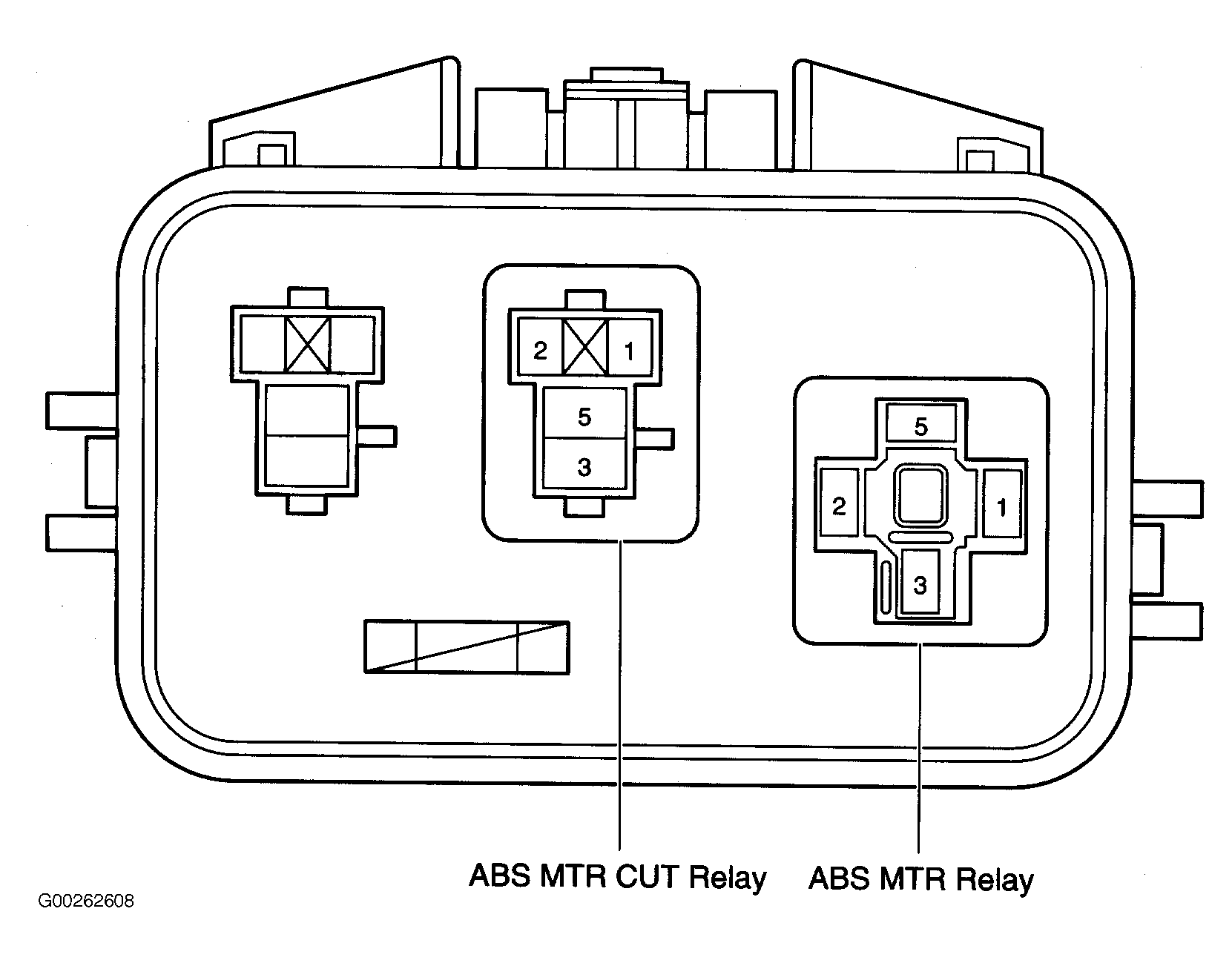

Fig 20: ABS R/B
G00262608Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ABS RELAY BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
ABS MTR Relay
ABS MTR CUT Relay

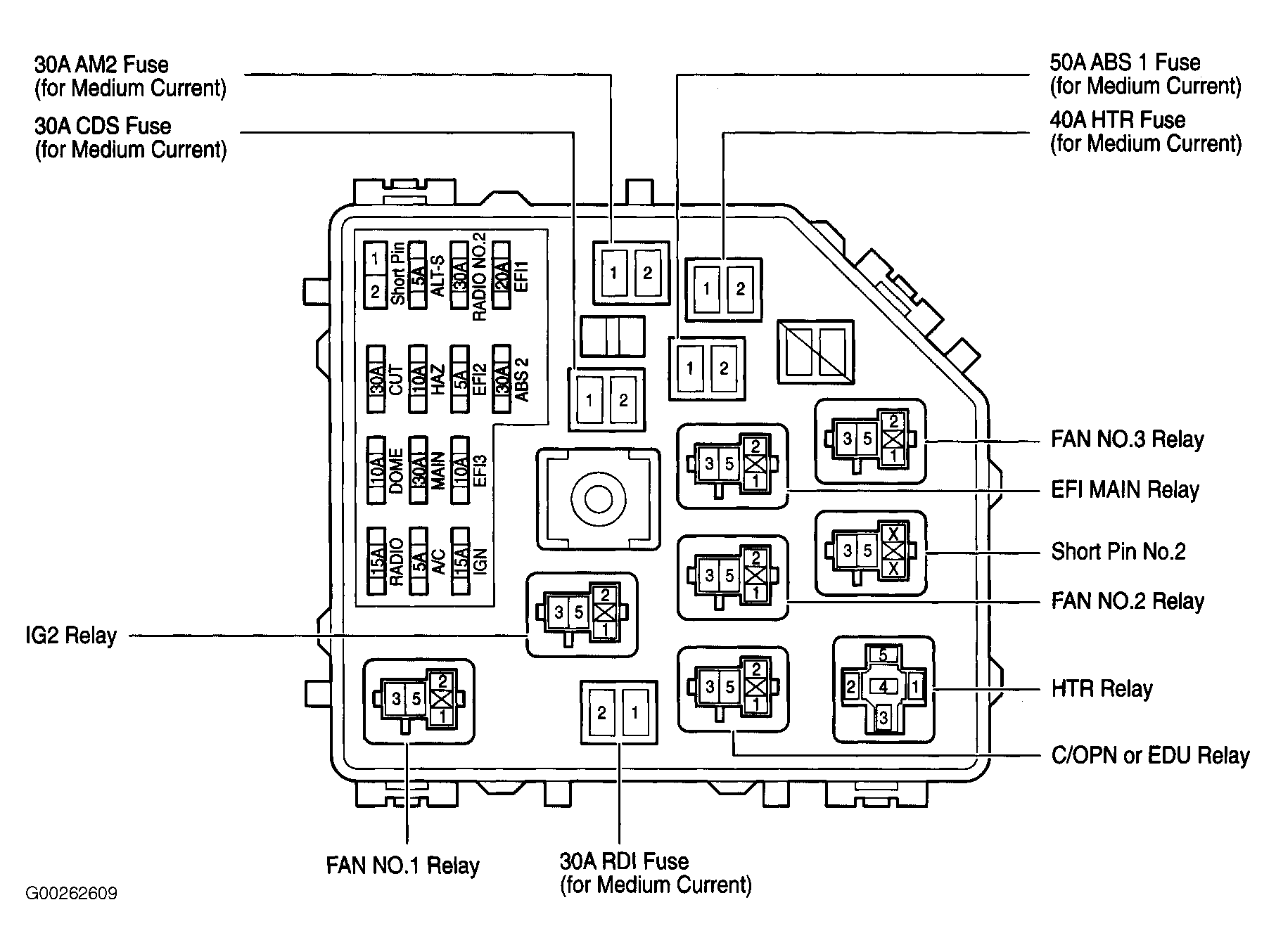

Fig 21: Engine Room J/B
G00262609Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ENGINE ROOM JUNCTION BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
IG2 Relay
Fan No.3 Relay
EFI Main Relay
Fan No.2 Relay
HTR Relay
C/OPN or EDU Relay
Fan No.1 Relay

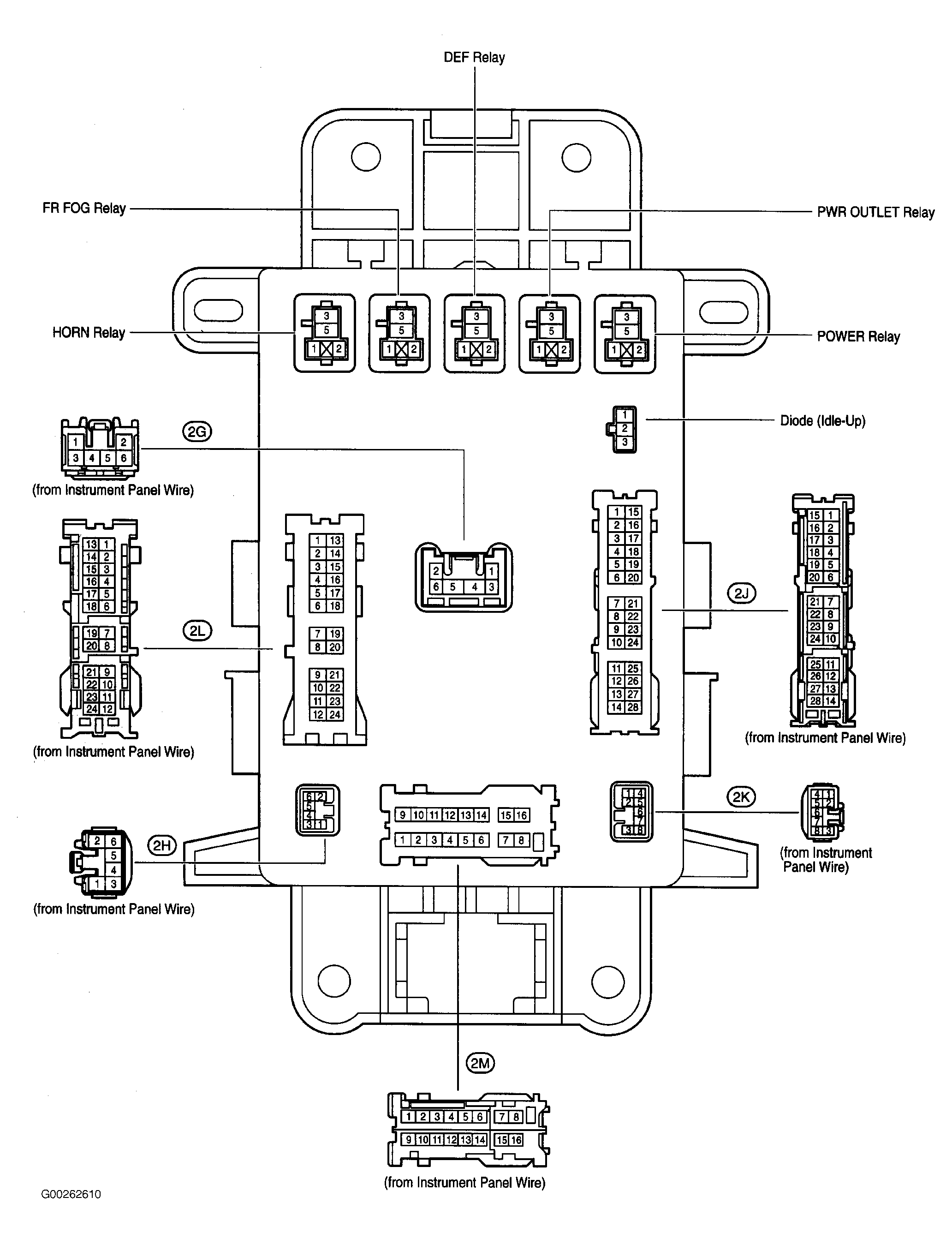

Fig 22: Driver Side J/B
G00262610Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
