Repair and Diagnosis: Electrical: Gauges: Clock: Troubleshooting: Notes

HINT:

Troubleshoot the clock according to TROUBLESHOOTING .

TROUBLESHOOTING

Troubleshooting	No.
Clock does not operate	1
Clock is too slow or too fast	2

+/- 1.5 seconds/day

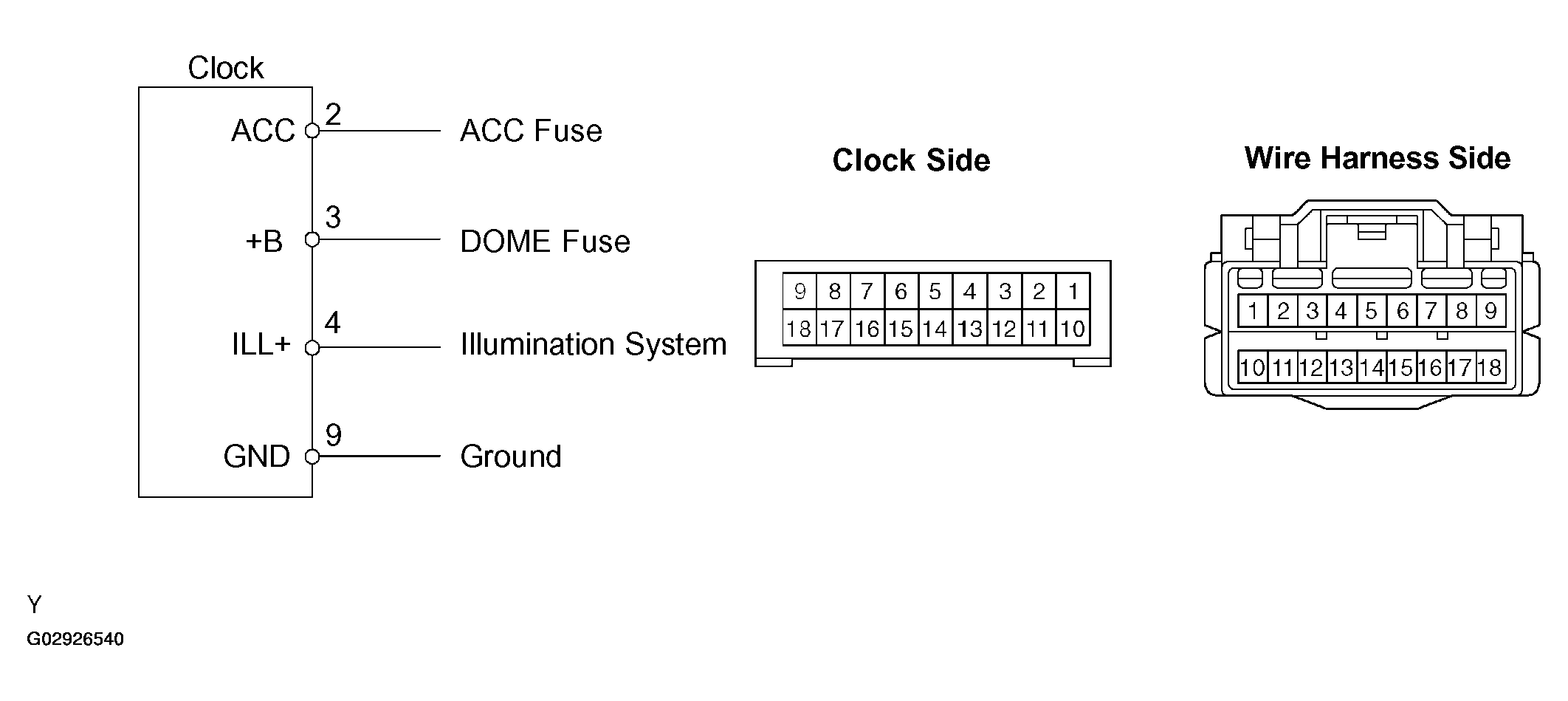

Fig 1: Identifying Clock Connections

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
