Instrument Panel: Components

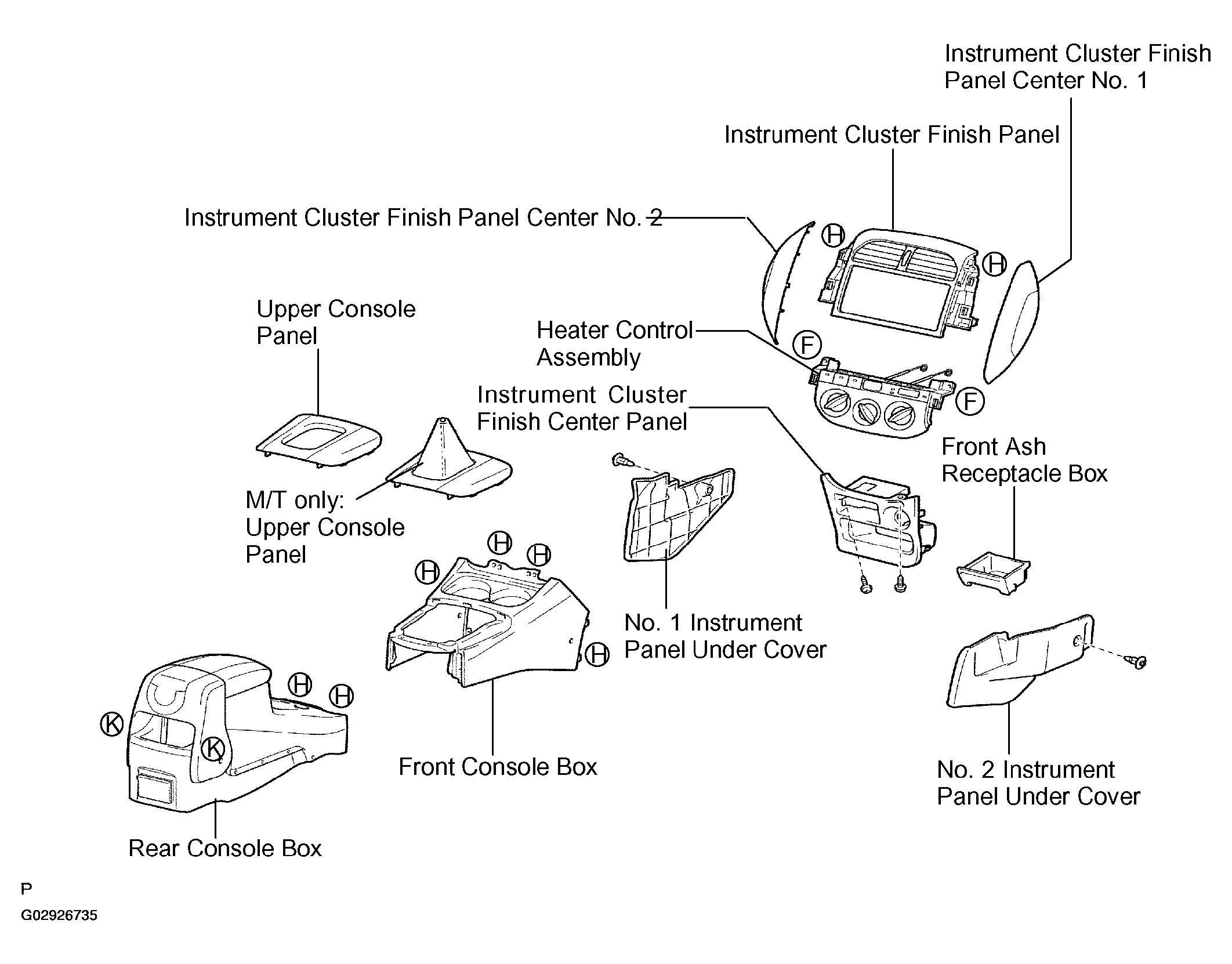

Fig 1: Locating Instrument Panel Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

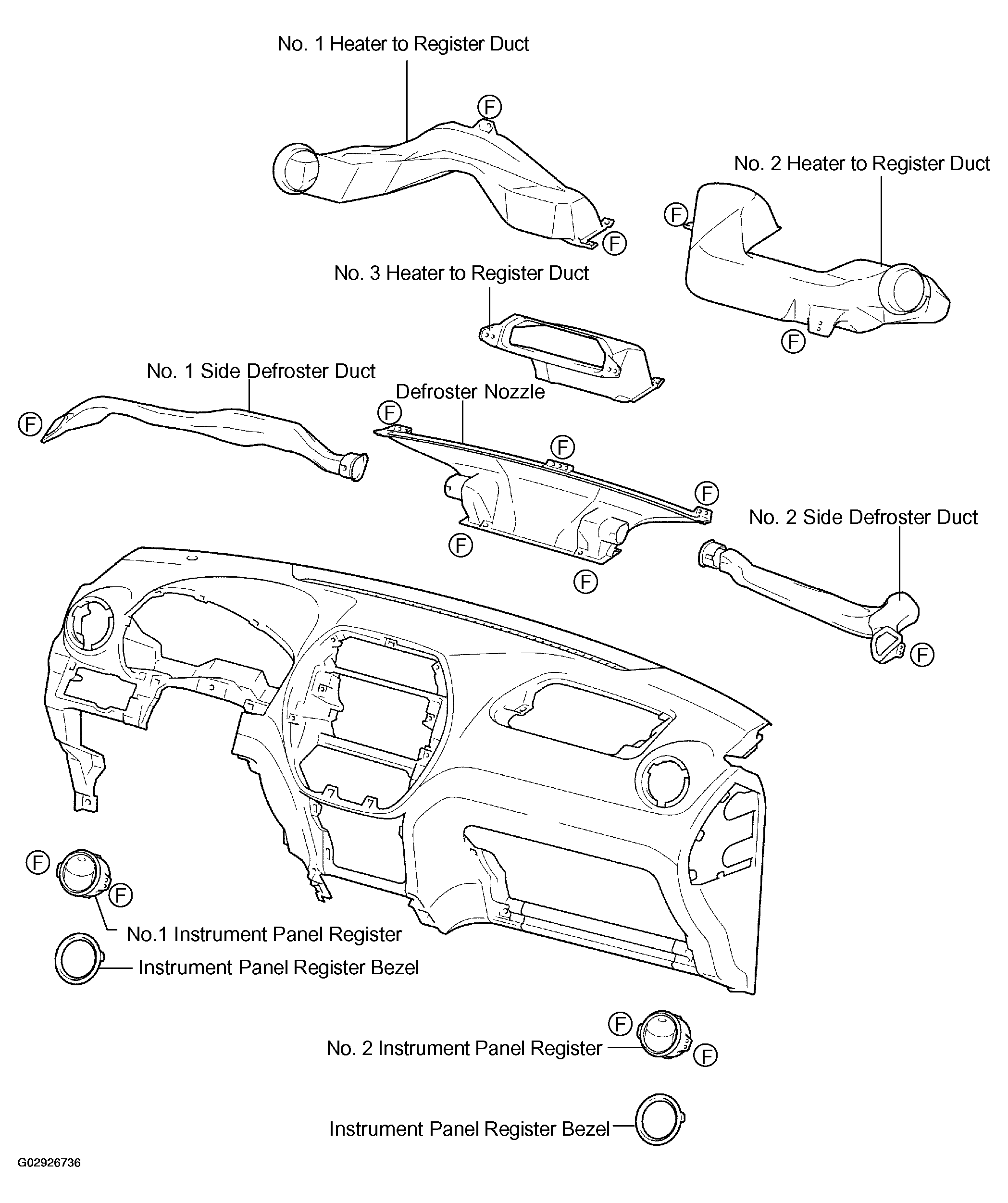

Fig 2: Locating Instrument Panel Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

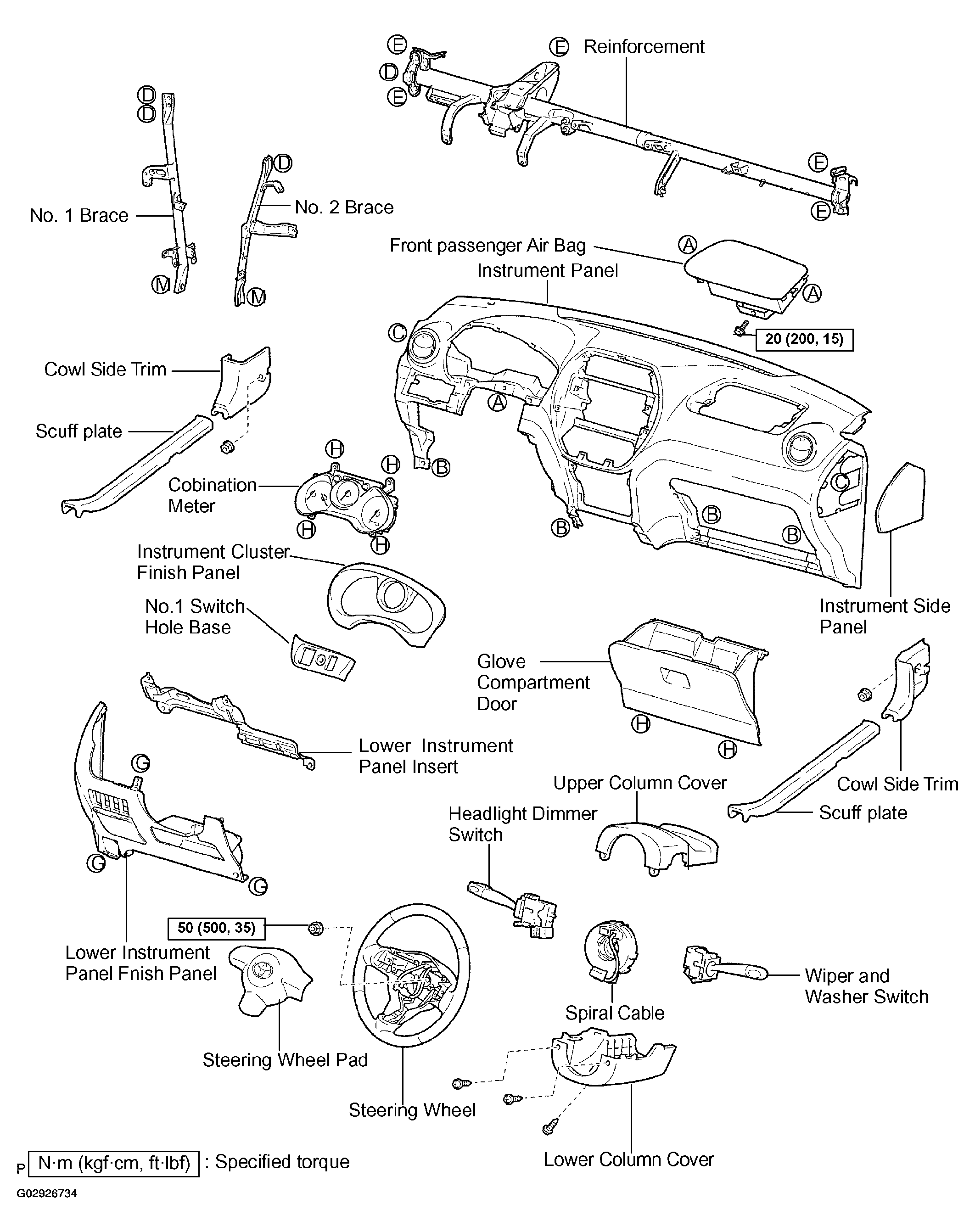

Fig 3: Locating Instrument Panel Components (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Screw shapes and sizes are indicated in the table below. The codes (A to M) correspond to those indicated in Fig 1, Fig 2 and Fig 3.

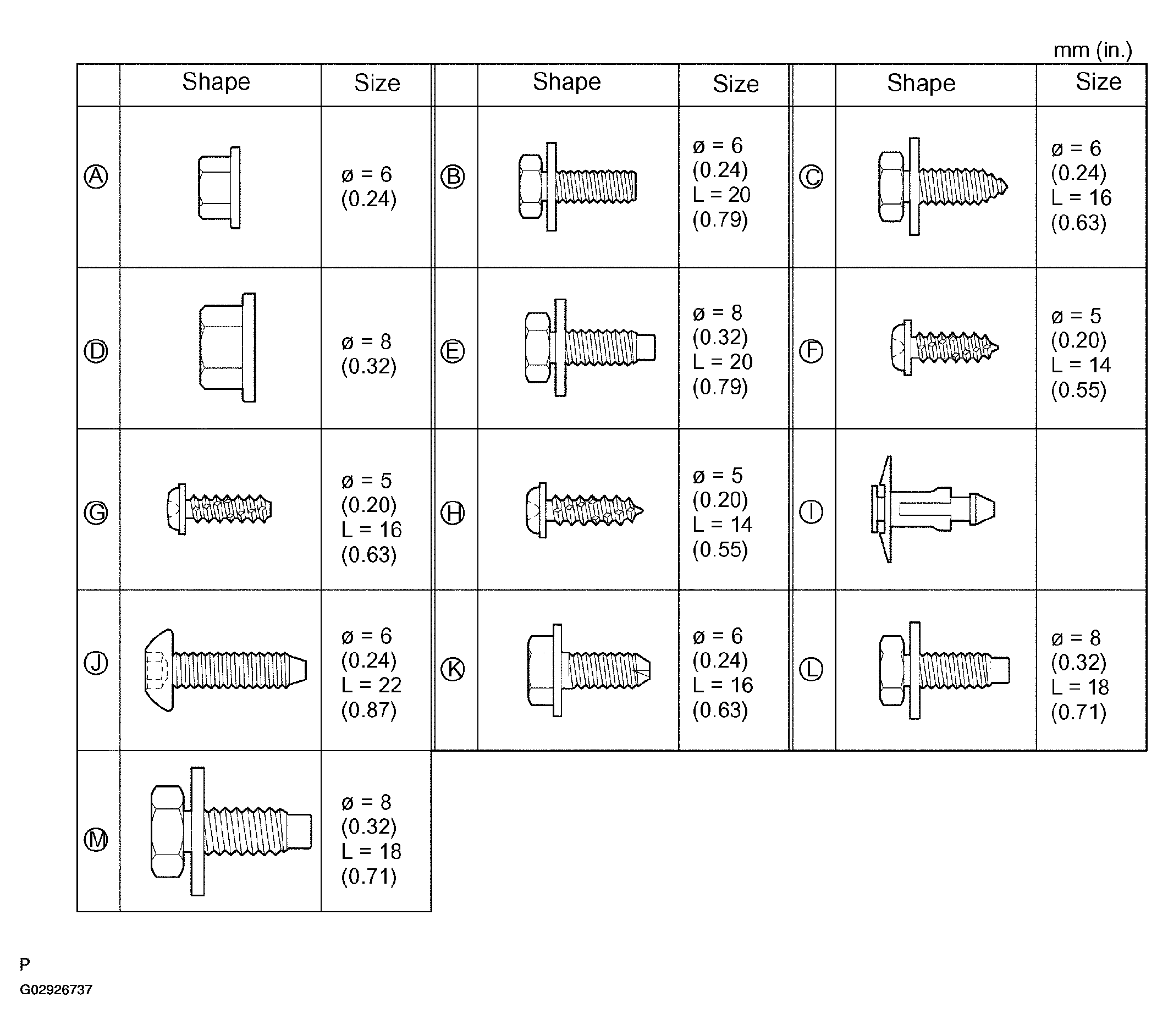

Fig 4: Identifying Nuts And Bolts Size Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
