Repair and Diagnosis: Electrical: Horns: Inspection

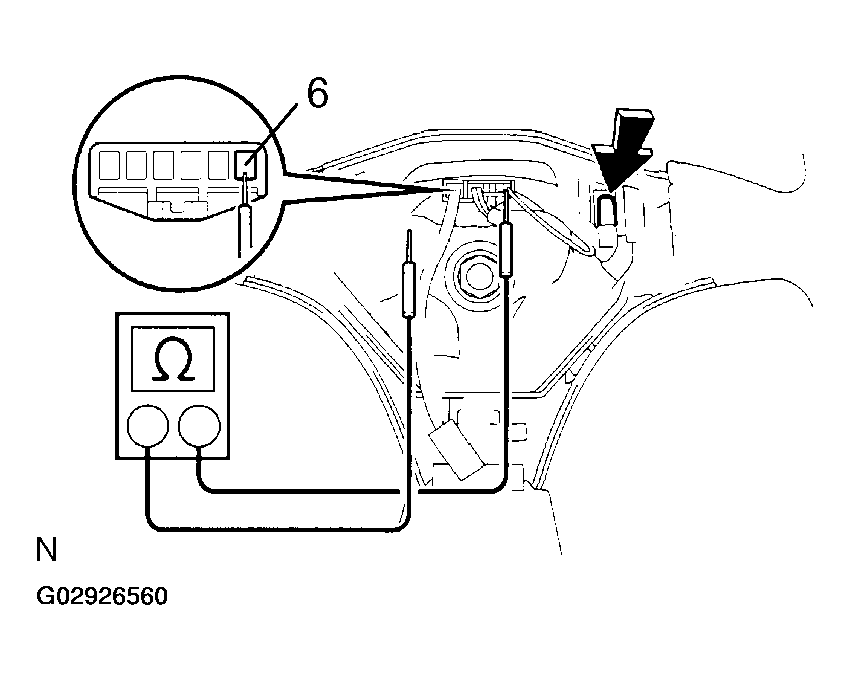

INSPECT HORN SWITCH
1. Check if no continuity exists between terminal 6 of the connector and body ground.
2. Check if continuity exists between terminal 6 of the connector and body ground when the horn contact plate is pressed against the steering wheel.
If the continuity is not as specified, repair or replace the steering wheel or wire harness as necessary.
INSPECT HORN OPERATION

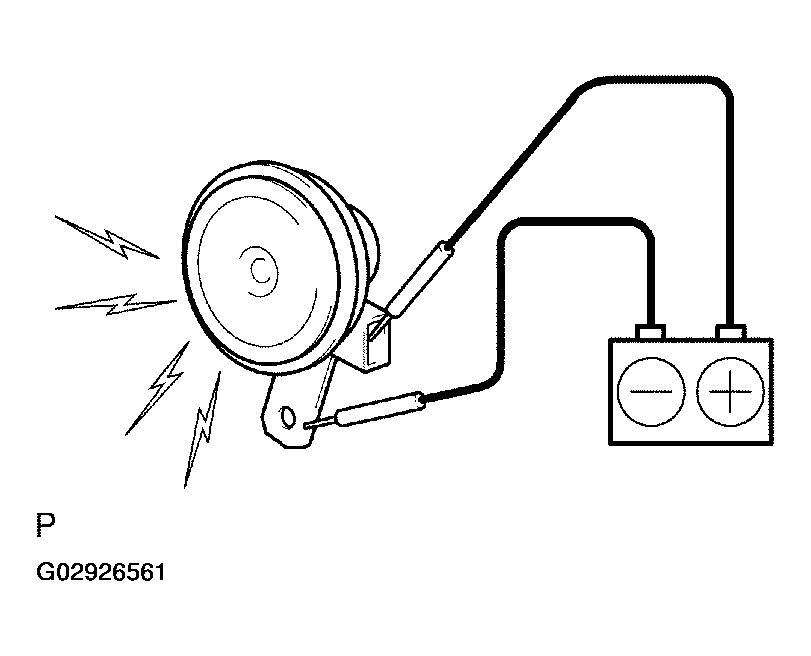

Connect the positive (+) lead from the battery to the terminal and negative (-) lead to the horn body, Check if the horn sounds.

Fig 2: Inspecting Horn Operation
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If operation is not as specified, replace the horn.

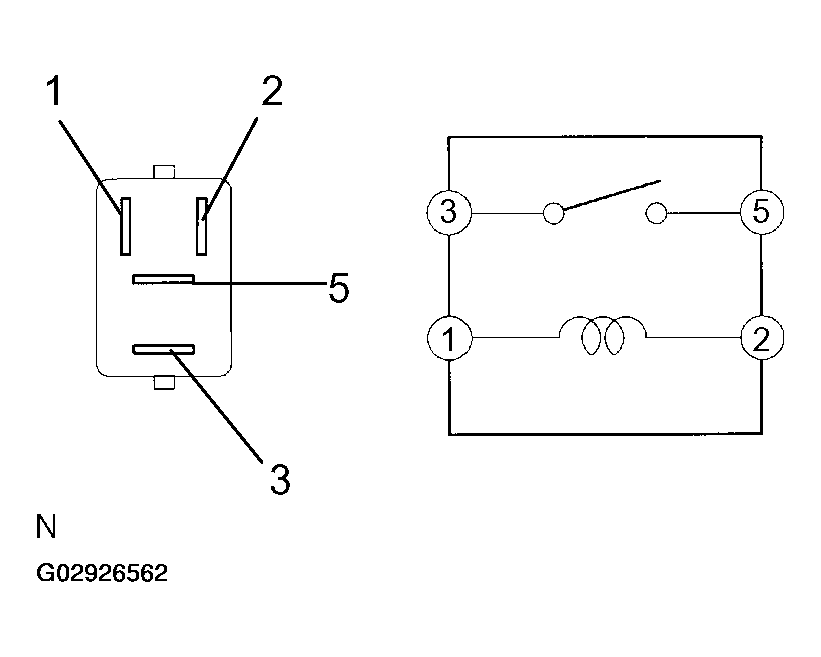

INSPECT HORN RELAY (Marking: HORN) CONTINUITY

Fig 3: Inspecting Horn Relay

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HORN RELAY CONTINUITY

Tester Connection	Specified Condition
3 - 5	No continuity
3 - 5	Continuity (When battery voltage is applied to terminals 1 and 2)

If the continuity is not as specified, replace the relay.
