Home >> Toyota >> 2004 >> RAV4 Base, FWD, Automatic >> Repair and Diagnosis >> Engine Mechanical >> Engine Exhaust Assembly >> Components

Engine Exhaust Assembly: Components

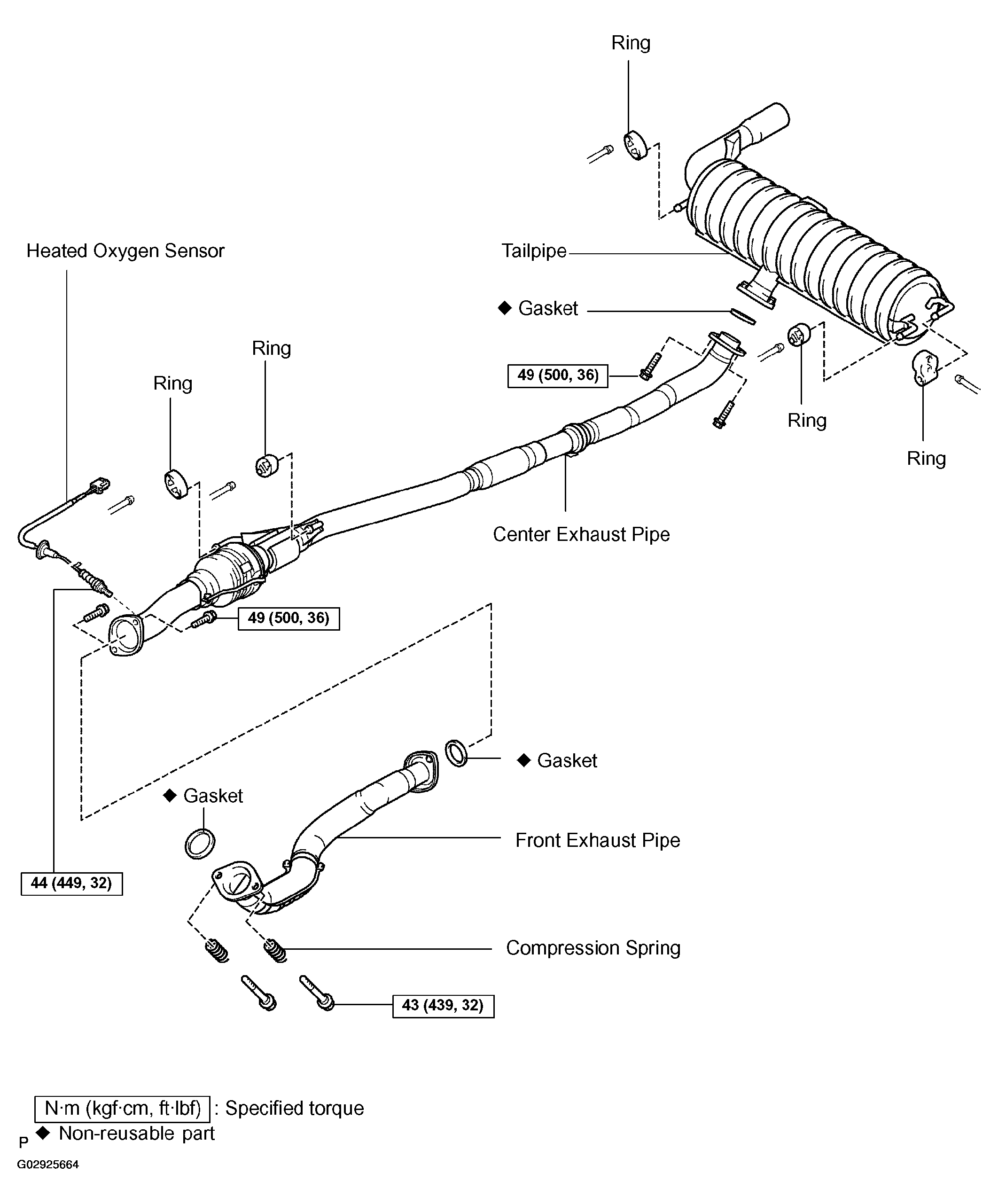

Fig 1: Identifying Exhaust System Components
G02925664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
