Home >> Toyota >> 2004 >> RAV4 Base, FWD, Automatic >> Repair and Diagnosis >> Engine Mechanical >> Lubrication System >> Engine Lubrication System >> Oil Pump >> Components

Oil Pump: Components

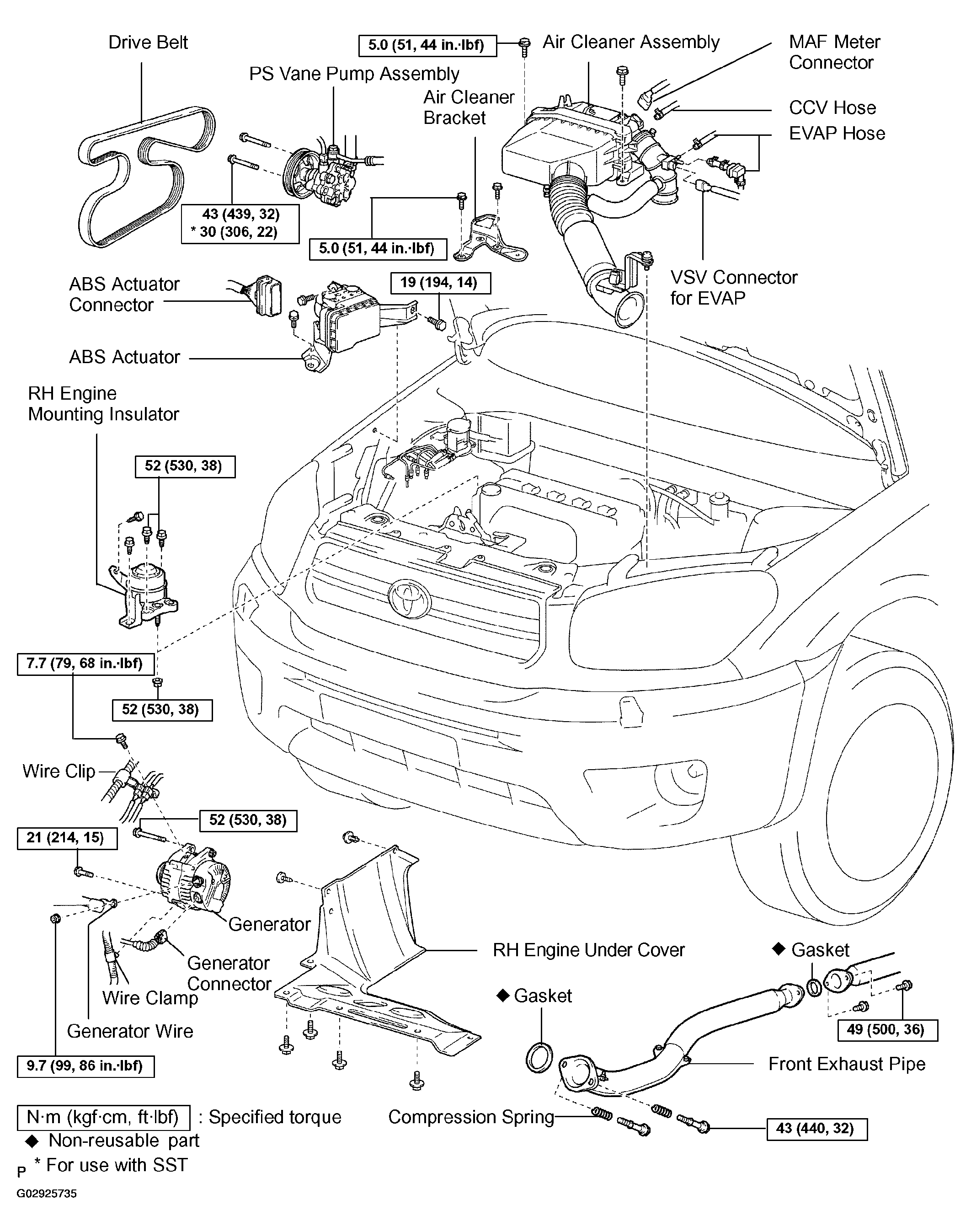

Fig 1: Oil Pump Components (1 Of 3)
G02925735Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

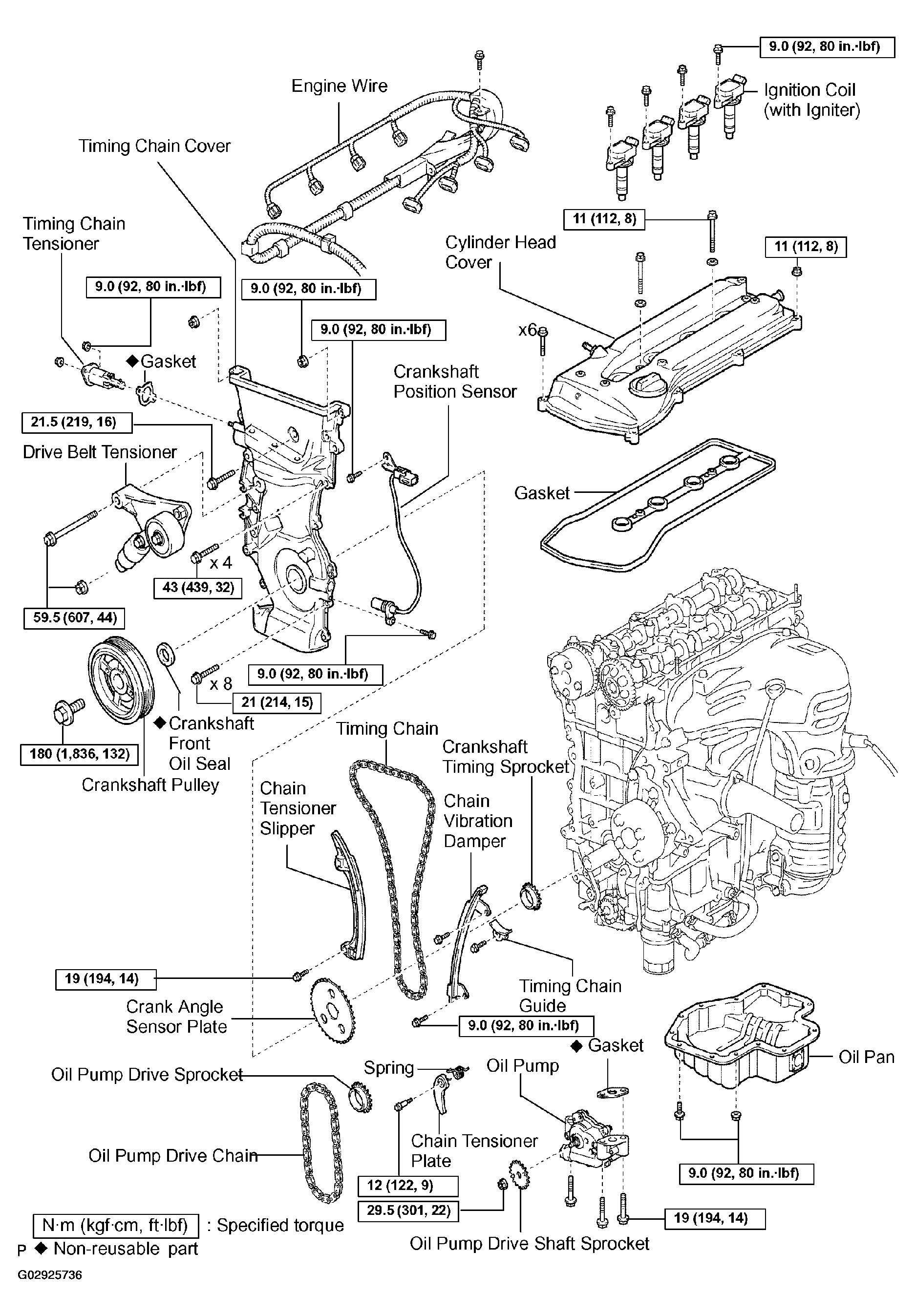

Fig 2: Oil Pump Components (2 Of 3)
G02925736Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

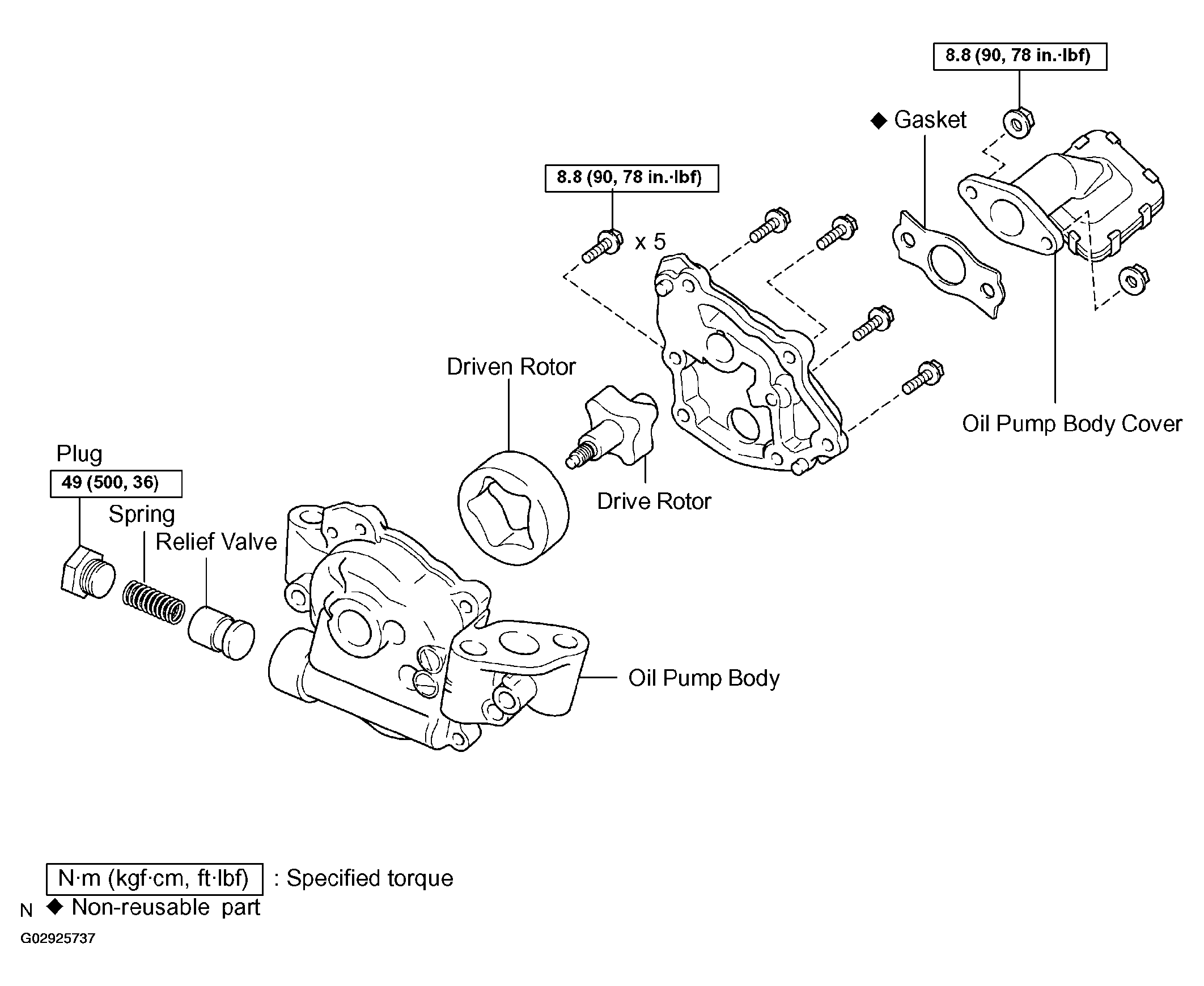

Fig 3: Oil Pump Components (3 Of 3)
G02925737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
