Back Door Power Window Control System: Inspection

INSPECT BACK DOOR POWER WINDOW SWITCH CONTINUITY

TESTER CONNECTION SPECIFIED CONDITION

Switch Position	Tester Connection	Specified Condition
UP	3 - 6	Continuity
OFF	-	No Continuity
DOWN	3 - 5	Continuity

If continuity is not as specified, replace the switch.

Fig 1: Identifying Back Door Power Window Switch Connector Terminals

G02928094

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT BACK DOOR CONTROL SWITCH CONTINUITY

TESTER CONNECTION SPECIFIED CONDITION

Switch Position	Tester Connection	Specified Condition
UP	1 - 3	Continuity
OFF	-	No Continuity
DOWN	2 - 3	Continuity

If continuity is not as specified, replace the switch.

Fig 2: Inspecting Back Door Control Switch Continuity Table

G02928095

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT WINDOW LIMIT SWITCH CONTINUITY

TESTER CONNECTION SPECIFIED CONDITION

Switch Position	Tester Connection	Specified Condition
Switch Lever Pushed (OFF Position)	-	No Continuity
Switch Lever Released (ON Position)	1 - 2	Continuity

If continuity is not as specified, replace the back door power window regulator assembly.

INSPECT BACK DOOR POWER WINDOW MOTOR OPERATION

Fig 3: Inspecting Window Limit Switch Continuity
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

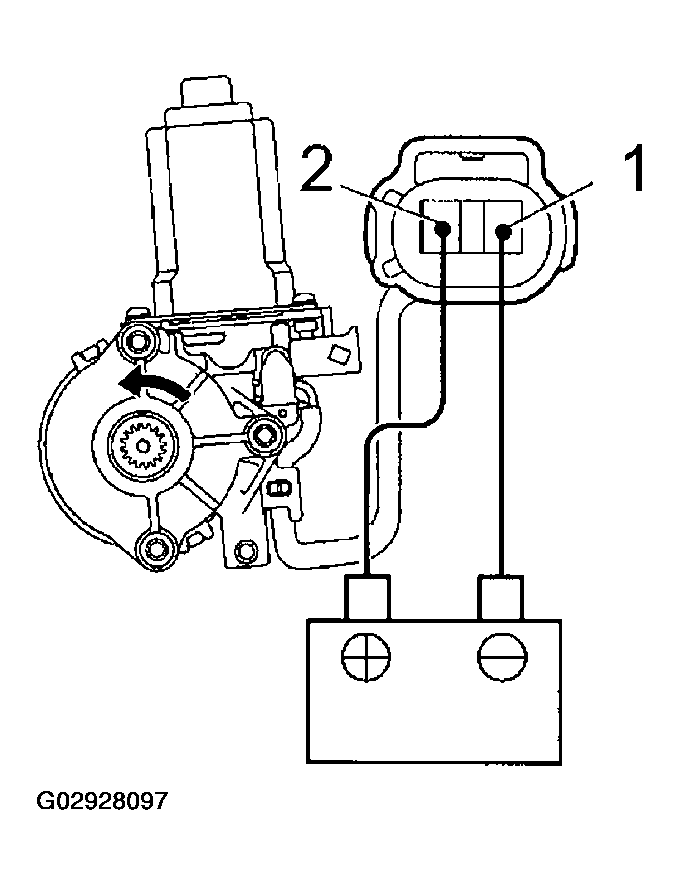

1. Connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 1 and check that the motor turns counterclockwise.

  Fig 4: Inspecting Back Door Power Window Motor Operation
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

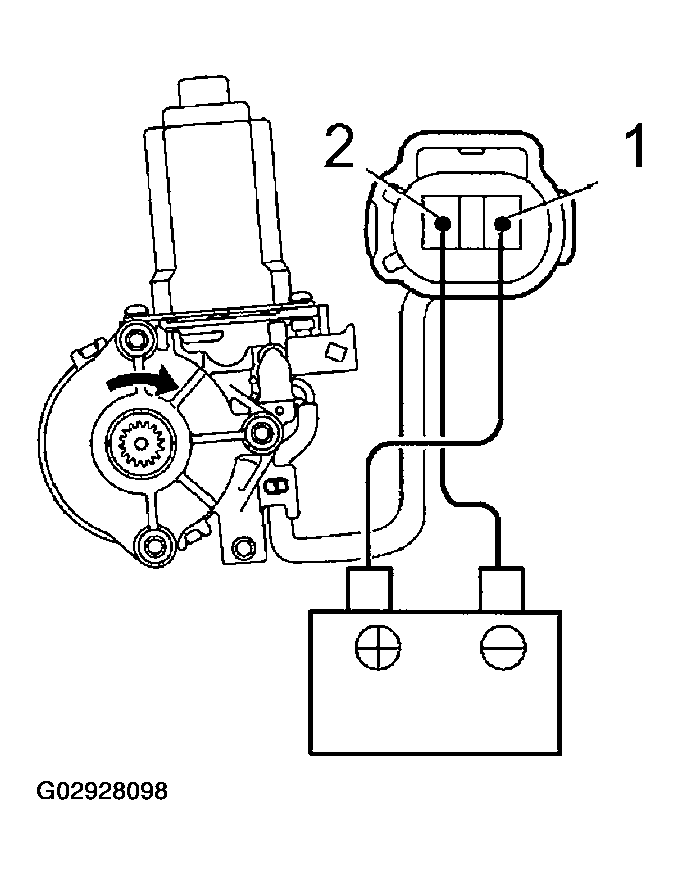

2. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2 and check that the motor turns clockwise.
If operation is not as specified, replace the back door power window motor.
