Ignition Timing: Inspection

Allow the engine to warm up to normal operating temperature.

1. Connect the hand-held tester or OBD II scan tool to the DLC3.

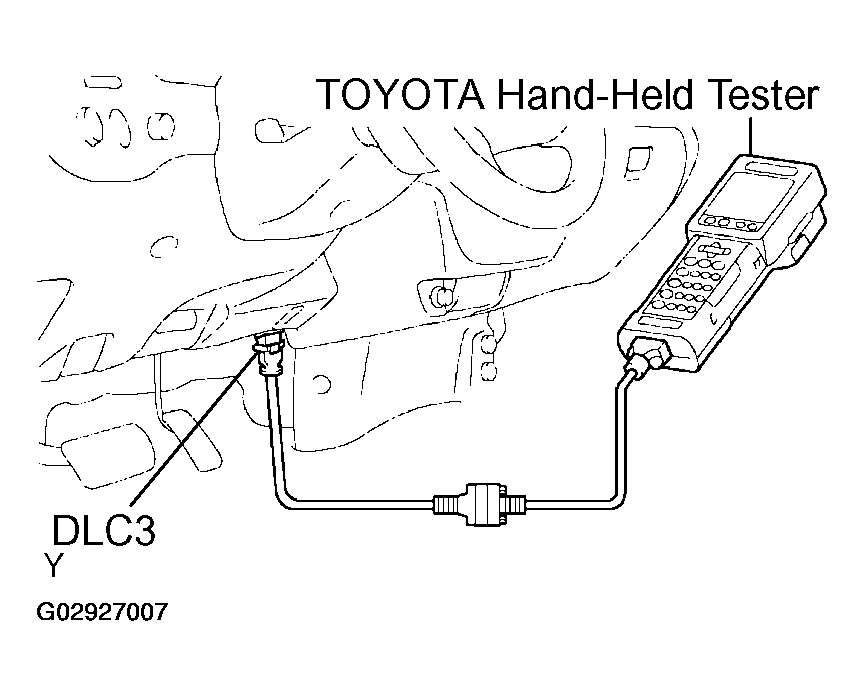

Fig 1: Connecting Hand-Held Tester To DLC3
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Please refer to the hand-held tester or OBD II scan tool operator's manual for further details.

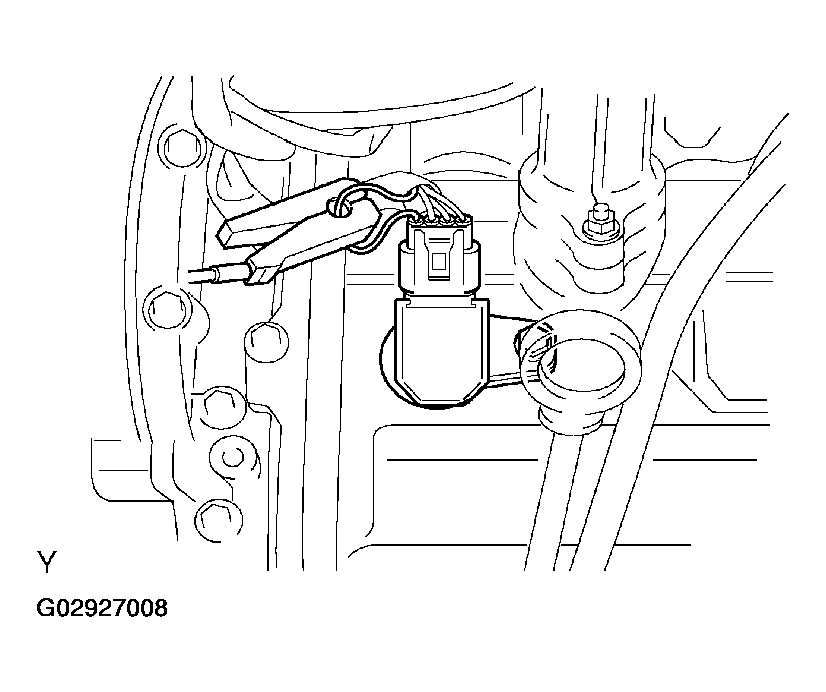

Connect the tester probe of a timing light to the wire of the ignition coil connector for No. 1 cylinder.

1. Race the engine speed at 2,500 RPM for approx. 90 seconds.
2. Check the idle speed.
   1. Idle speed: 700 +/- 50 RPM
   Fig 2: Checking Idle Speed

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

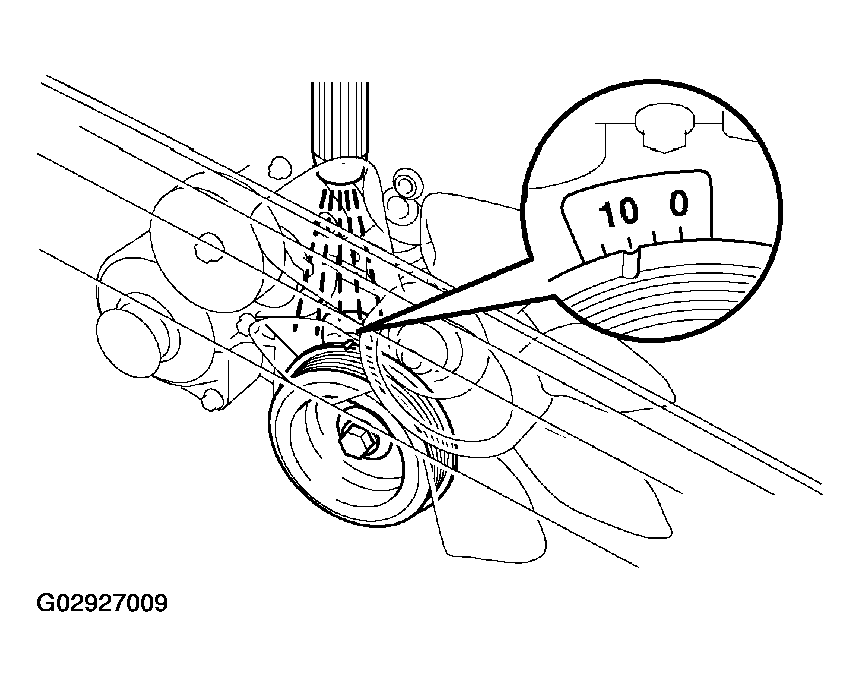

Using a timing light, check the ignition timing.

Fig 3: Checking Ignition Timing

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Ignition timing: 5-15° BTDC @ idle (Transmission in neutral position)
