Home >> Toyota >> 2004 >> Sequoia Limited, RWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> SFI System >> Engine Control Module (ECM) >> Components

Engine Control Module (ECM): Components

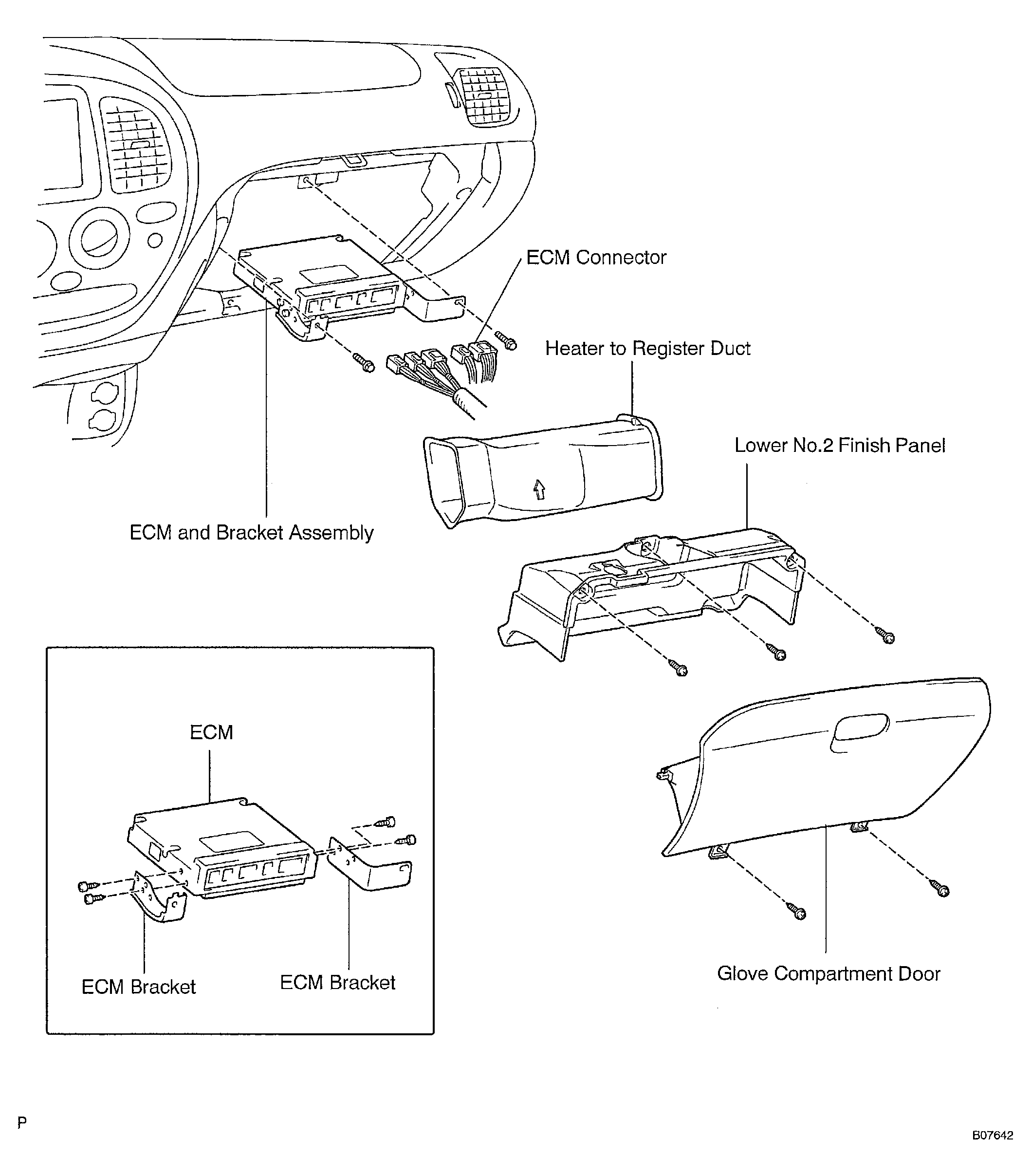

Fig 1: Identifying Engine Control Module Components

G04207910

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
