Fuel Pressure Regulator: Removal

REMOVE FUEL PRESSURE REGULATOR

1. Disconnect the vacuum hose from intake air resonator.
2. Disconnect the fuel return hose from the pressure regulator.
   CAUTION: Put a shop towel under the pressure regulator.

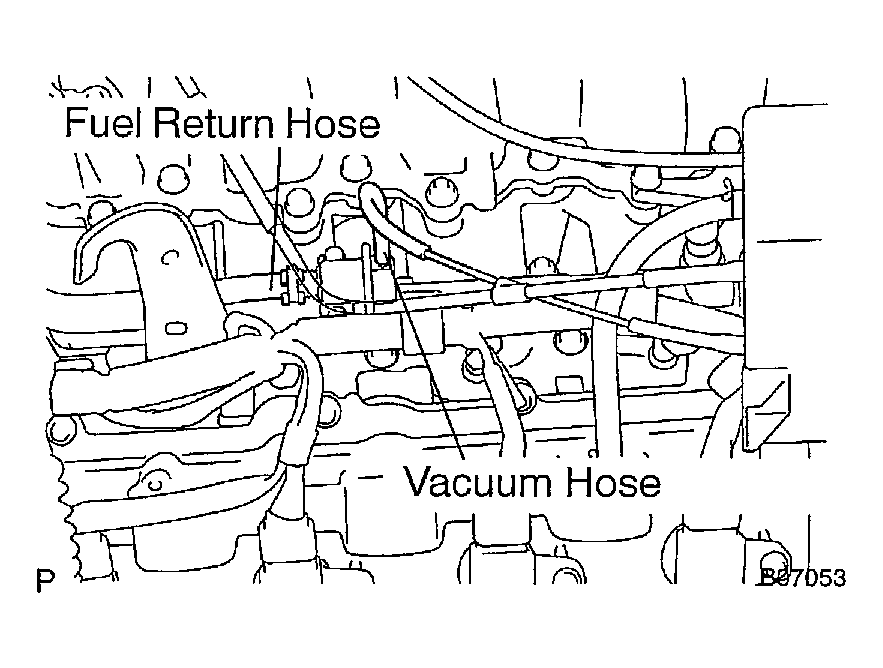

   Fig 1: Disconnecting Fuel Return Hose

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 2 bolts, and pull out the pressure regulator.
4. Remove the O-ring from the pressure regulator.

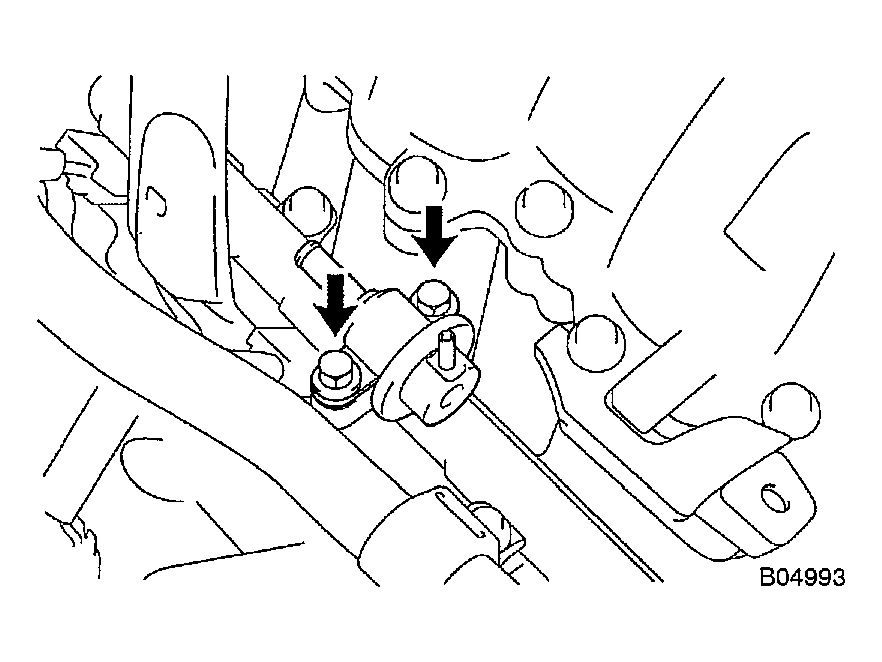

Fig 2: Removing Bolts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
