Fuel Pump: Installation

  1. INSTALL FUEL PUMP FILTER TO FUEL PUMP

    Install the pump filter with a new clip.

  2. INSTALL FUEL PUMP TO FUEL PUMP BRACKET
    1. Install the rubber cushion to the fuel pump.
    2. Connect the fuel hose to the outlet port of the fuel pump.

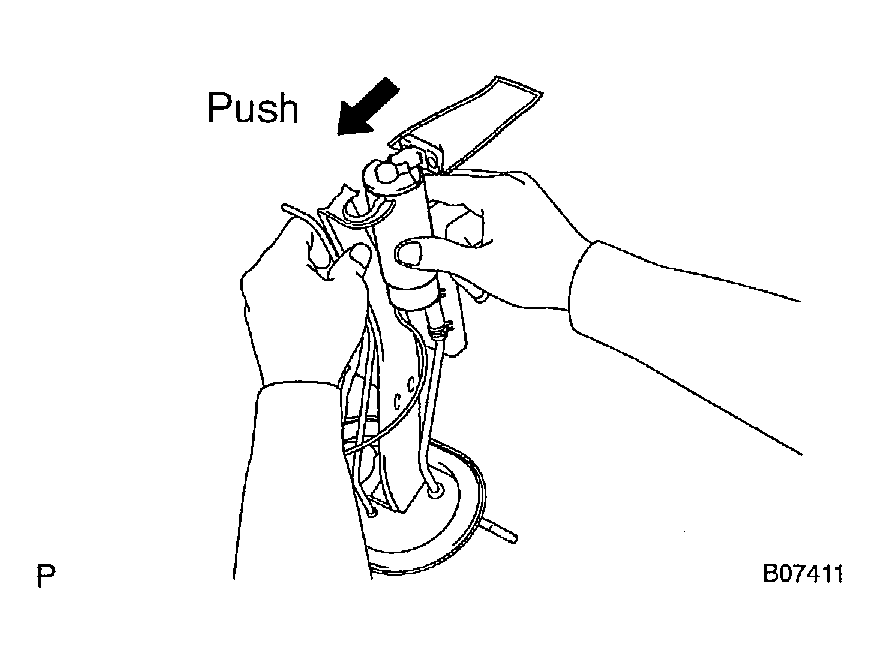

    3. Install the fuel pump by pushing the lower side of the fuel pump.
  3. INSTALL LEAD WIRE TO FUEL PUMP
    Fig 1: Installing Fuel Pump Filter To Fuel Pump
    G04207828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL FUEL PUMP AND SENDER GAUGE ASSEMBLY TO FUEL TANK
    1. Install a new gasket to the fuel suction plate.
    2. Insert the fuel pump and sender gauge assembly into the fuel tank.

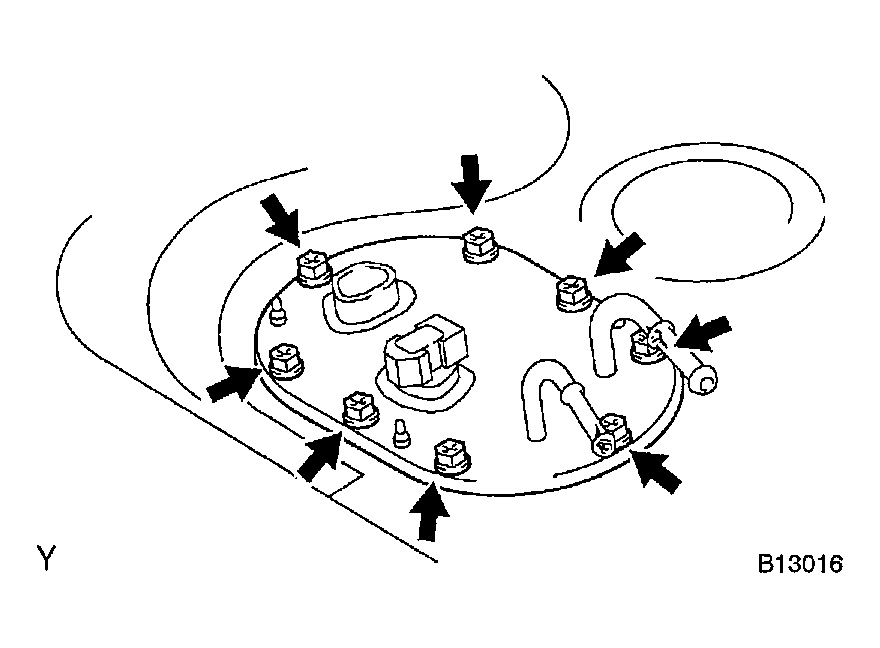

    3. Install the fuel pump and sender gauge to the fuel tank with the 8 bolts.

      Torque: 3.5 N.m (35 kgf.cm, 31 in.lbf)

  5. CONNECT FUEL MAIN TUBE AND RETURN TUBE TO FUEL PUMP AND SENDER GAUGE ASSEMBLY (See  PRECAUTION   )
  6. CONNECT VAPOR PRESSURE SENSOR CONNECTOR
  7. CONNECT FUEL PUMP & SENDER GAUGE CONNECTOR
  8. CHECK FOR FUEL LEAKS (See  PRECAUTION   )
  9. INSTALL FUEL TANK (See  FUEL TANK AND LINE   )
    Fig 2: Installing Bolts
    G04207829Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
