Throttle Body: Removal

  1. REMOVE THROTTLE BODY COVER
  2. DRAIN ENGINE COOLANT
  3. REMOVE INTAKE AIR CONNECTOR
  4. REMOVE THROTTLE BODY
    1. Disconnect the throttle control connector.
    2. Disconnect the PCV hose and water bypass hose from the throttle body.
    3. Remove the 2 bolts and 2 nuts, and disconnect the throttle body from the intake manifold.
      Fig 1: Disconnecting PCV Hose
      G04207867Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect the water bypass hose from the manifold thermostat on the throttle body, and remove the throttle body.
    5. Remove the gasket.

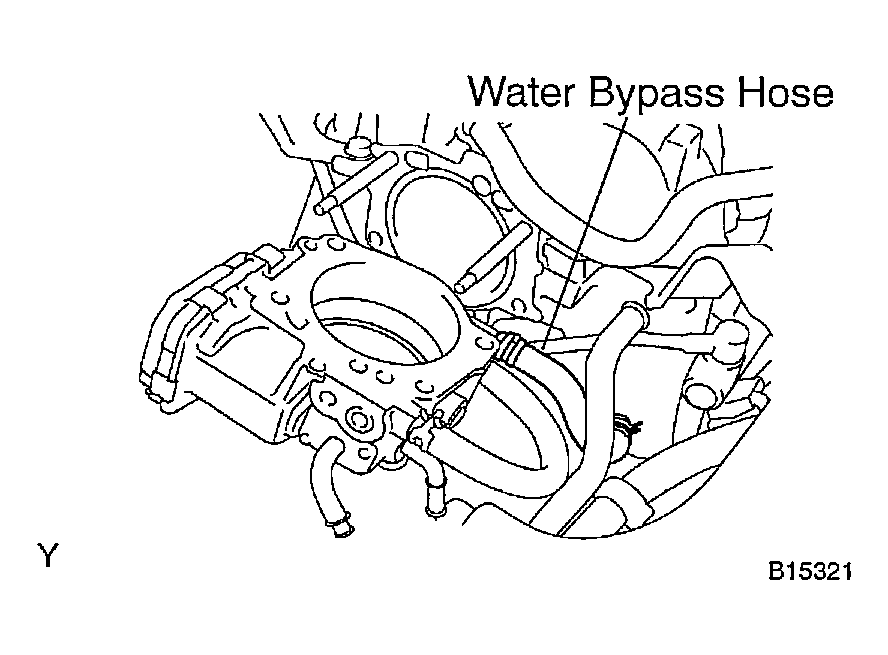

    Fig 2: Disconnecting Water Bypass Hose
    G04207868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
