Camshaft Position Sensor: Removal

1. DRAIN ENGINE COOLANT
2. REMOVE DRIVE BELT (  GENERATORS & REGULATORS  )
3. REMOVE LH NO. 3 TIMING BELT COVER (See  REMOVAL  )
4. REMOVE CAMSHAFT POSITION SENSOR

Remove the bolt, stud bolt and camshaft position sensor.

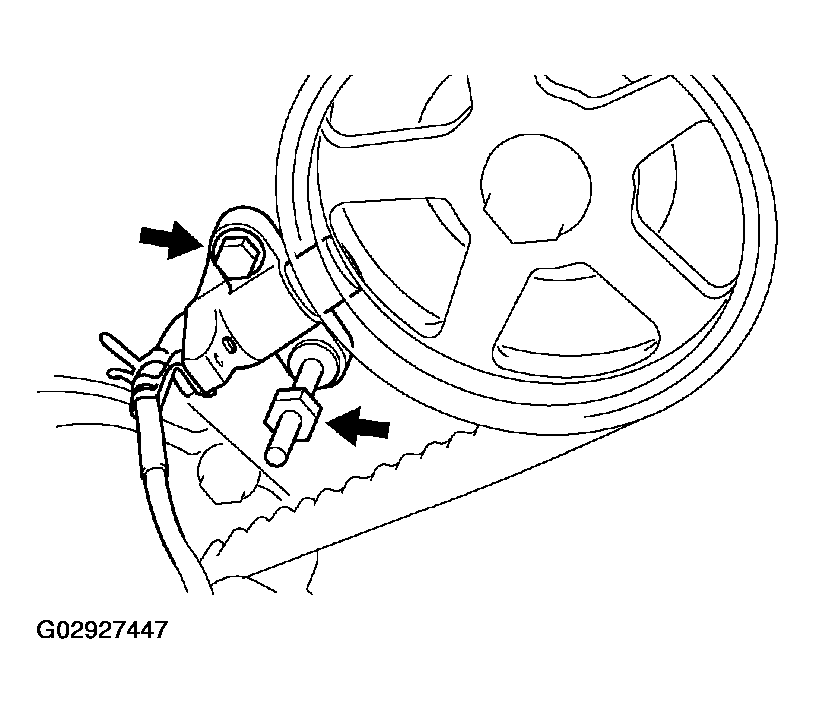

Fig 1: Removing Stud Bolt Camshaft Position Sensor

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
