Crankshaft Position Sensor: Inspection
NOTE:
"Cold" and "Hot" in these sentences express the temperature of the coils themselves. "Cold" is from -10°C (14°F) to 50°C (122°F) and "Hot" is from 50°C (122°F) to 100°C (212°F).
INSPECT CRANKSHAFT POSITION SENSOR

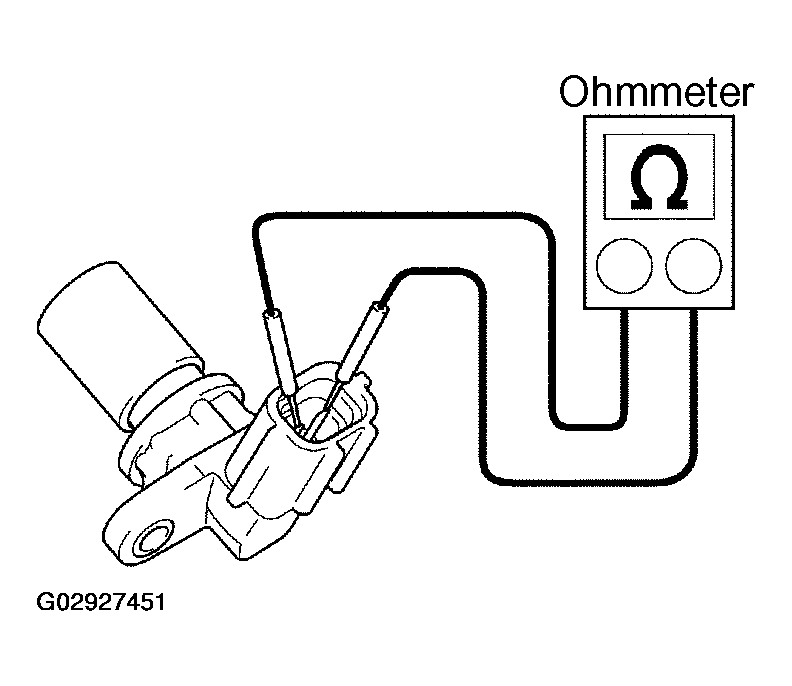

Using an ohmmeter, measure the resistance between the terminals.
Resistance:
MEASURING RESISTANCE
| Cold | 1,630 - 2,740 Ω |
| Hot | 2,065 - 3,225 Ω |
If the resistance is not as specified, replace the crankshaft position sensor.
