Crankshaft Position Sensor: Installation

1. INSTALL CRANKSHAFT POSITION SENSOR
   1. Install the crankshaft position sensor with the bolt.

      Torque: 6.5 N.m (65 kgf.cm, 58 in..lbf)

   2. Connect the crankshaft position sensor connector.
2. INSTALL ENGINE UNDER COVER

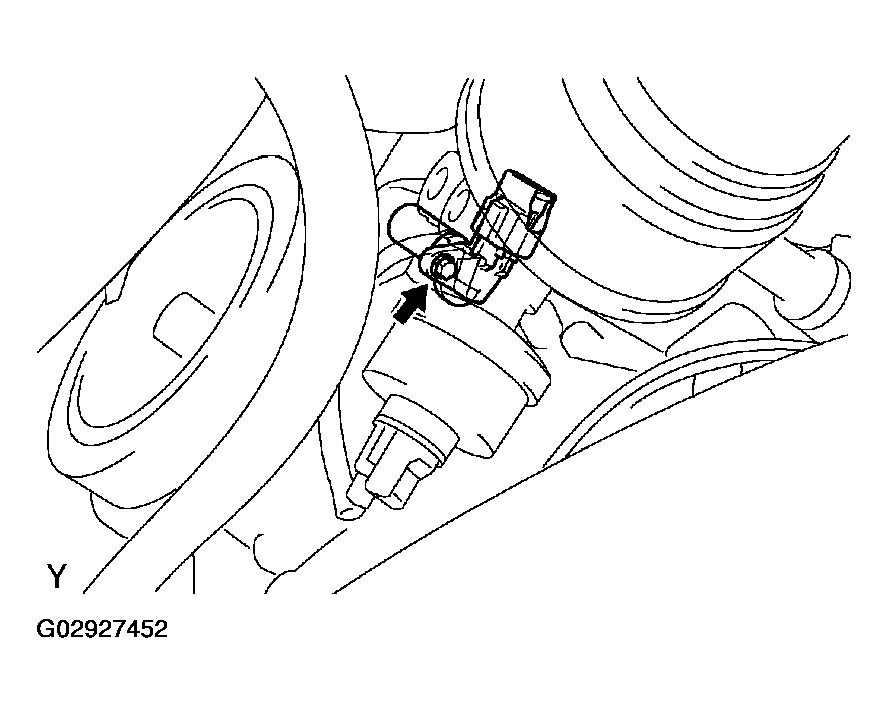

Fig 1: Installing Crankshaft Shaft Position Sensor With Bolt

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
