Crankshaft Position Sensor: Removal

1. REMOVE ENGINE UNDER COVER
2. REMOVE CRANKSHAFT POSITION SENSOR
   1. Disconnect the crankshaft position sensor connector.
   2. Remove the bolt and crankshaft position sensor.

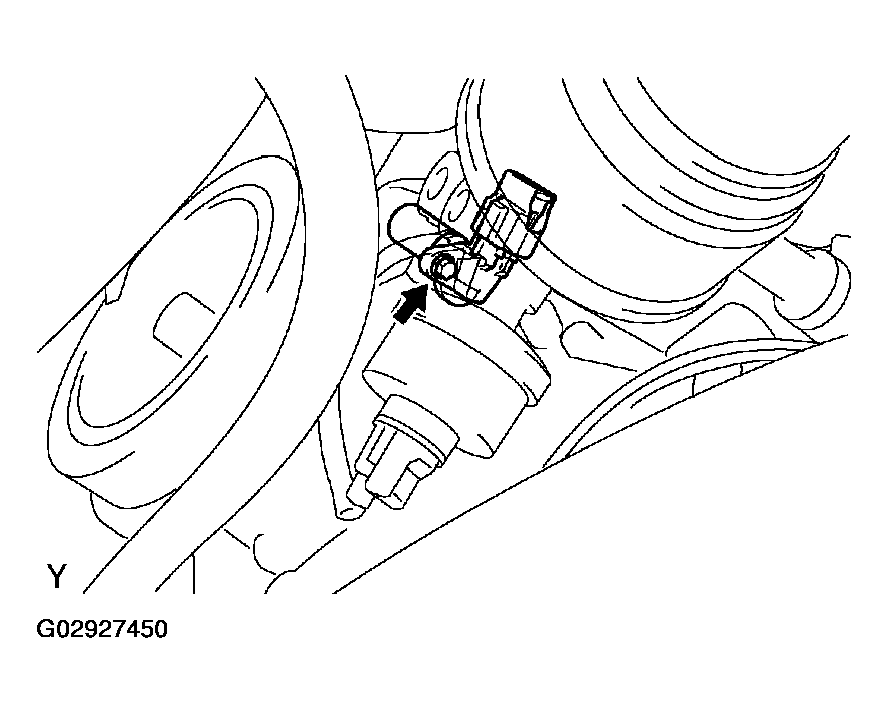

Fig 1: Removing Crankshaft Position Sensor

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
