Engine Ignition Coil: Removal

1. DISCONNECT IGNITION COIL (WITH IGNITER) CONNECTORS
2. REMOVE IGNITION COILS (WITH IGNITER) FROM SPARK PLUGS

Remove the bolt, and pull out the ignition coil (with igniter). Remove the 8 ignition coils (with igniter).

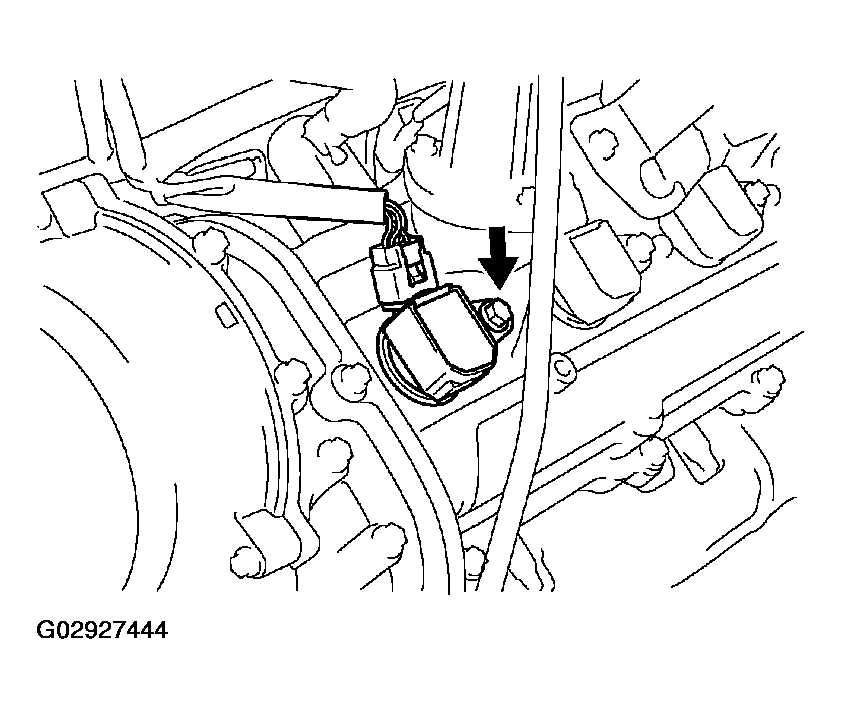

Fig 1: Removing Bolt Ignition Coil

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
