Home >> Toyota >> 2004 >> Sequoia Limited, RWD >> Repair and Diagnosis >> Engine Performance >> System >> Emission Control System >> Parts Layout And Schematic Drawing >> Drawing

Parts Layout And Schematic Drawing: Drawing

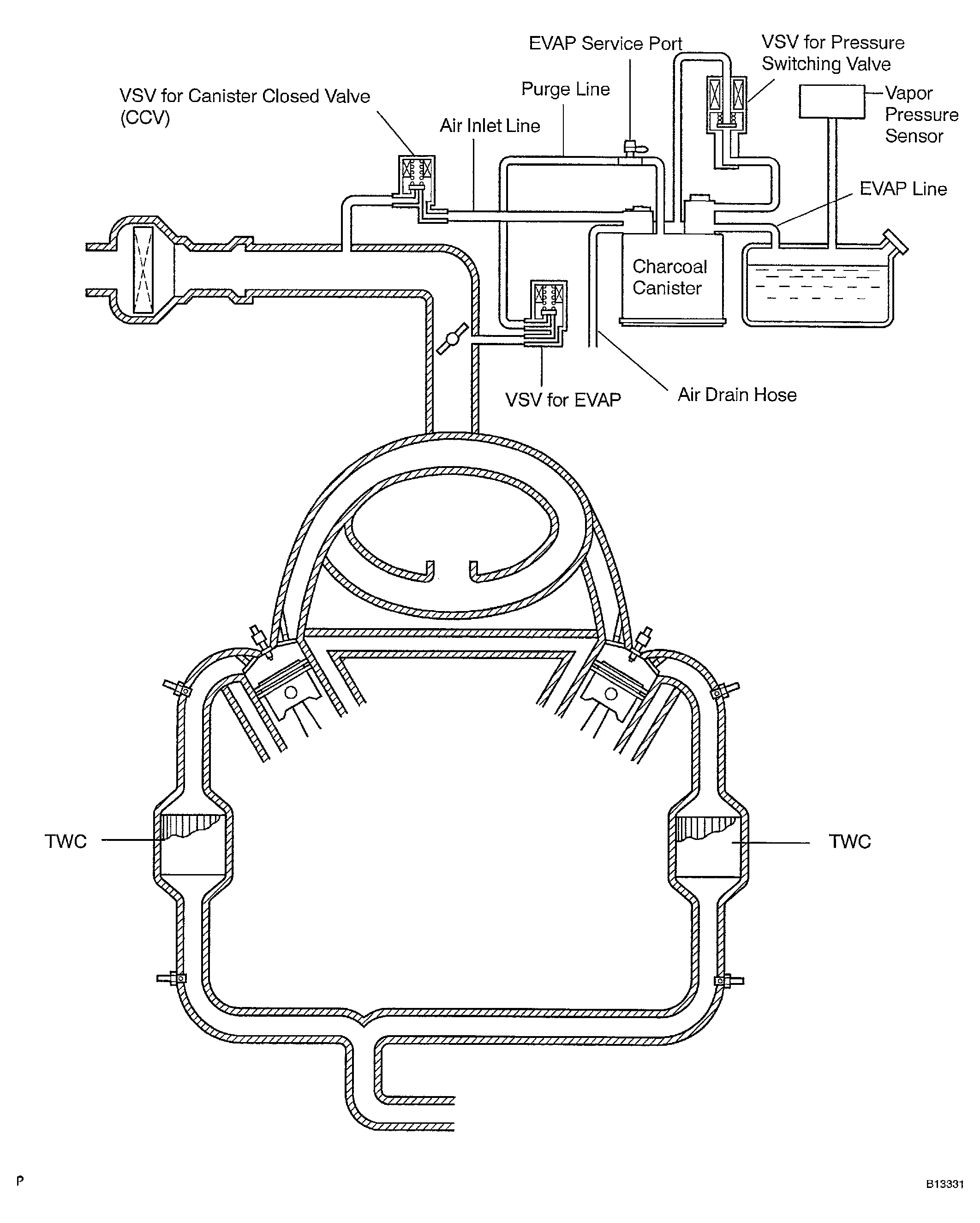

Fig 1: Identifying Emission Control Drawing
G04207914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
