How To Proceed With Troubleshooting

Troubleshoot in accordance with the procedures in Fig 1.

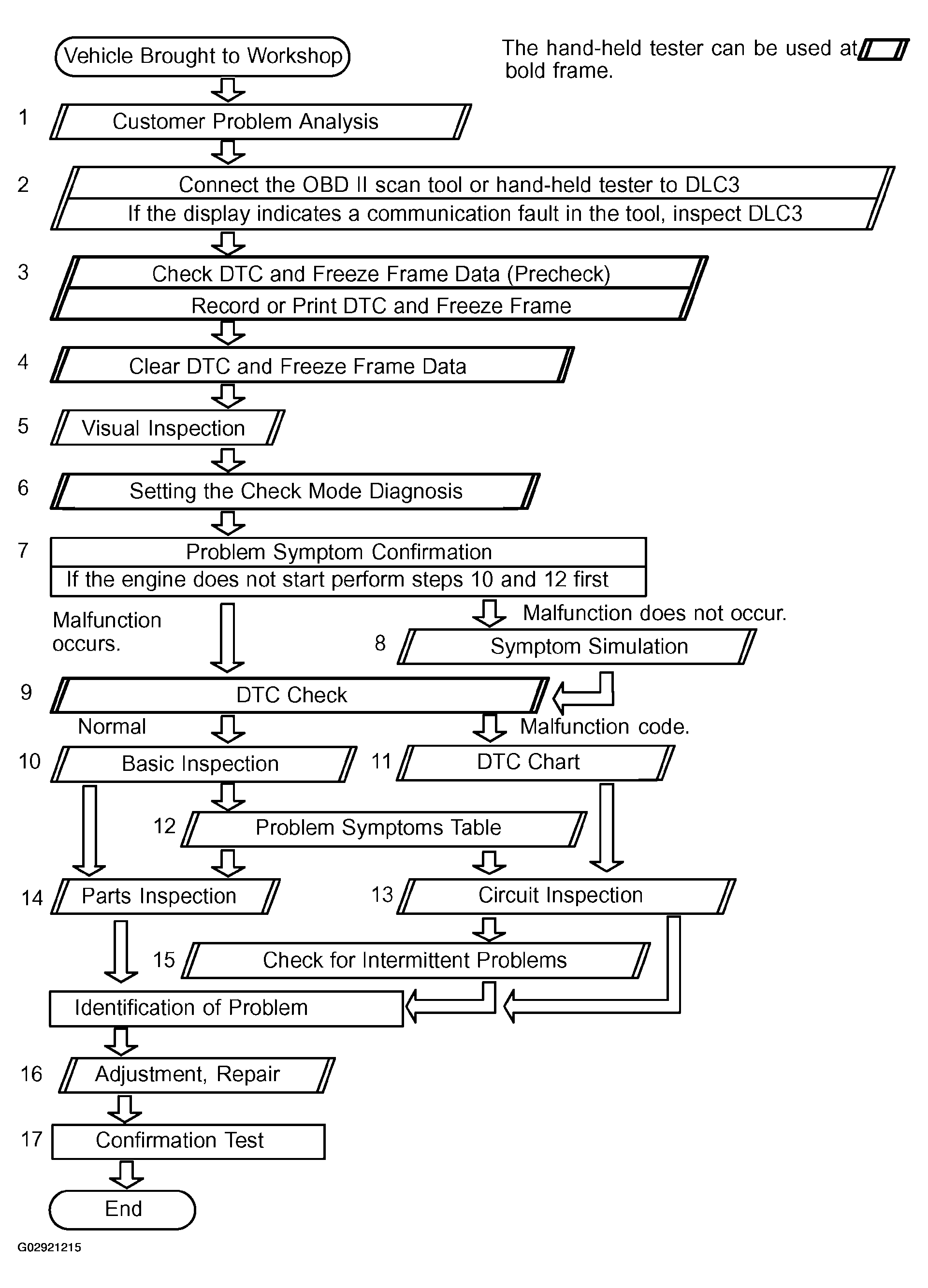

Fig 1: Engine Troubleshooting Chart

G02921215

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
