Automatic Transmission Unit: Installation

CHECK TORQUE CONVERTER CLUTCH INSTALLATION
Using calipers and a straight edge, measure the distance from the installed surface of the transmission housing to the installed surface of the torque converter clutch.

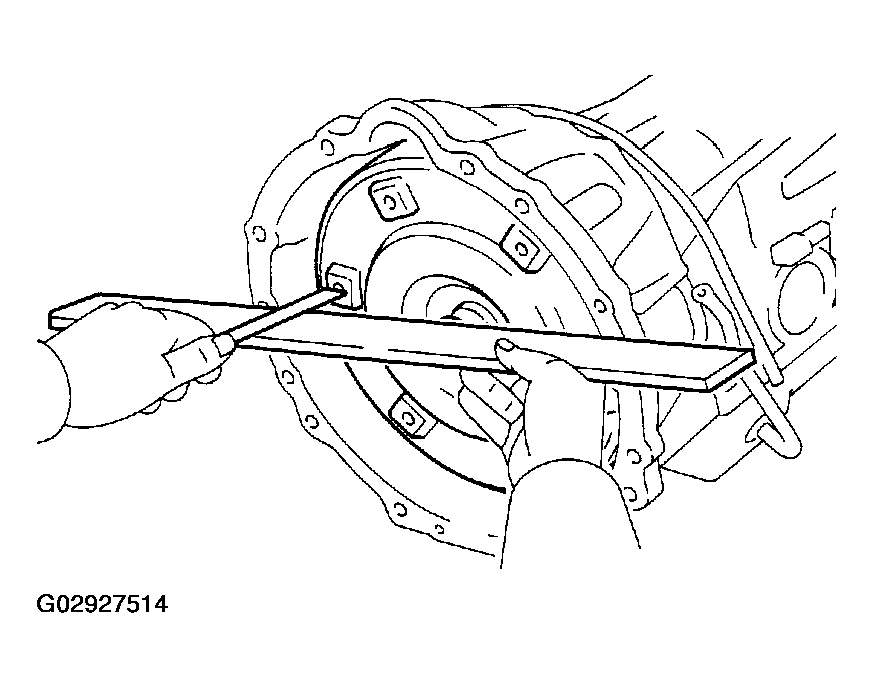

Fig 1: Measuring Distance From Installed Surface Of Transmission Housing
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Correct distance: More than 17.1 mm (0.673 in.)
TRANSMISSION INSTALLATION
Installation is in the reverse order of removal (See REMOVAL ).
NOTE:
- After installation, adjust the shift lever position (See PRE-CHECK ).
- Fill ATF and check the fluid level (See PRE-CHECK ).
- Conduct the road test of the vehicle (See PRE-CHECK ).
