Ignition Switch/Steering Lock: Inspection

INSPECT IGNITION OR STARTER SWITCH ASSY
1. Inspect the switch resistance.
  Standard:

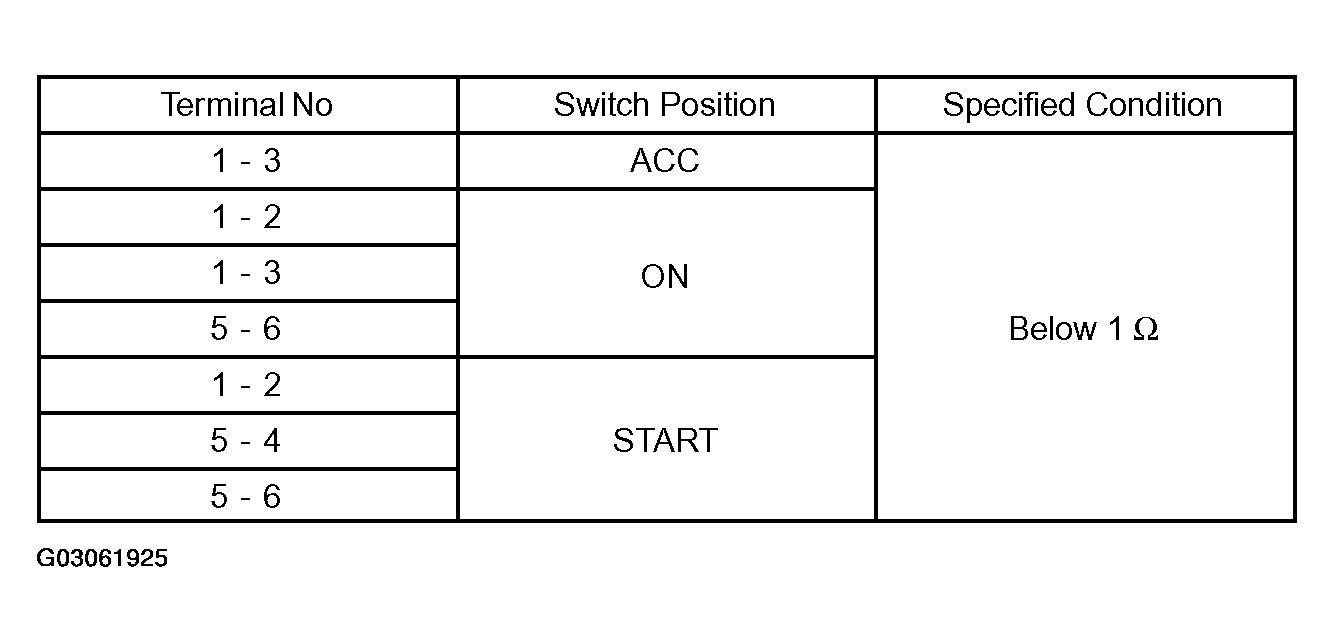

  Fig 1: Ignition Switch Terminals Continuity Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

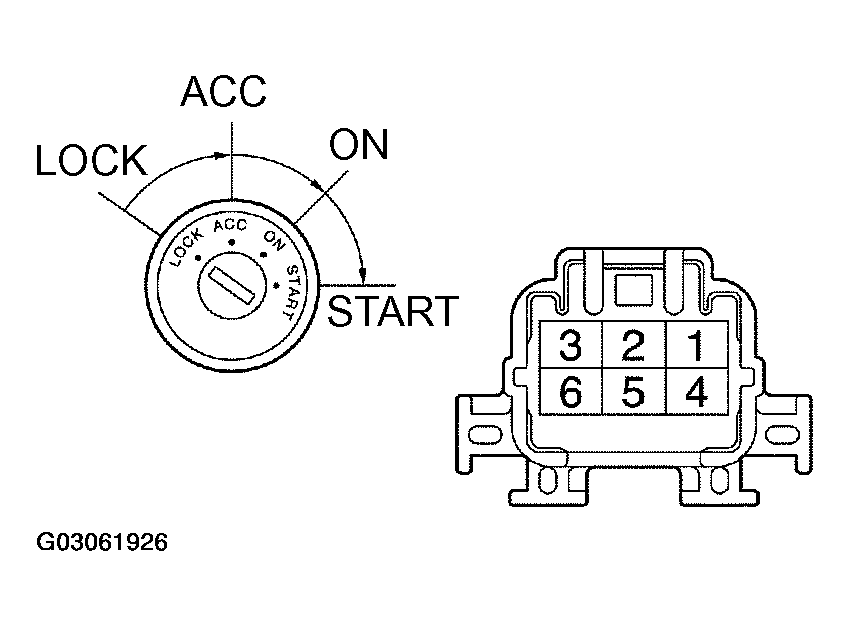

  Fig 2: Identifying Ignition Switch Terminals And Ignition Switch Position
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the result is not as specified, replace the switch assy.
