Generator ASSY: Components

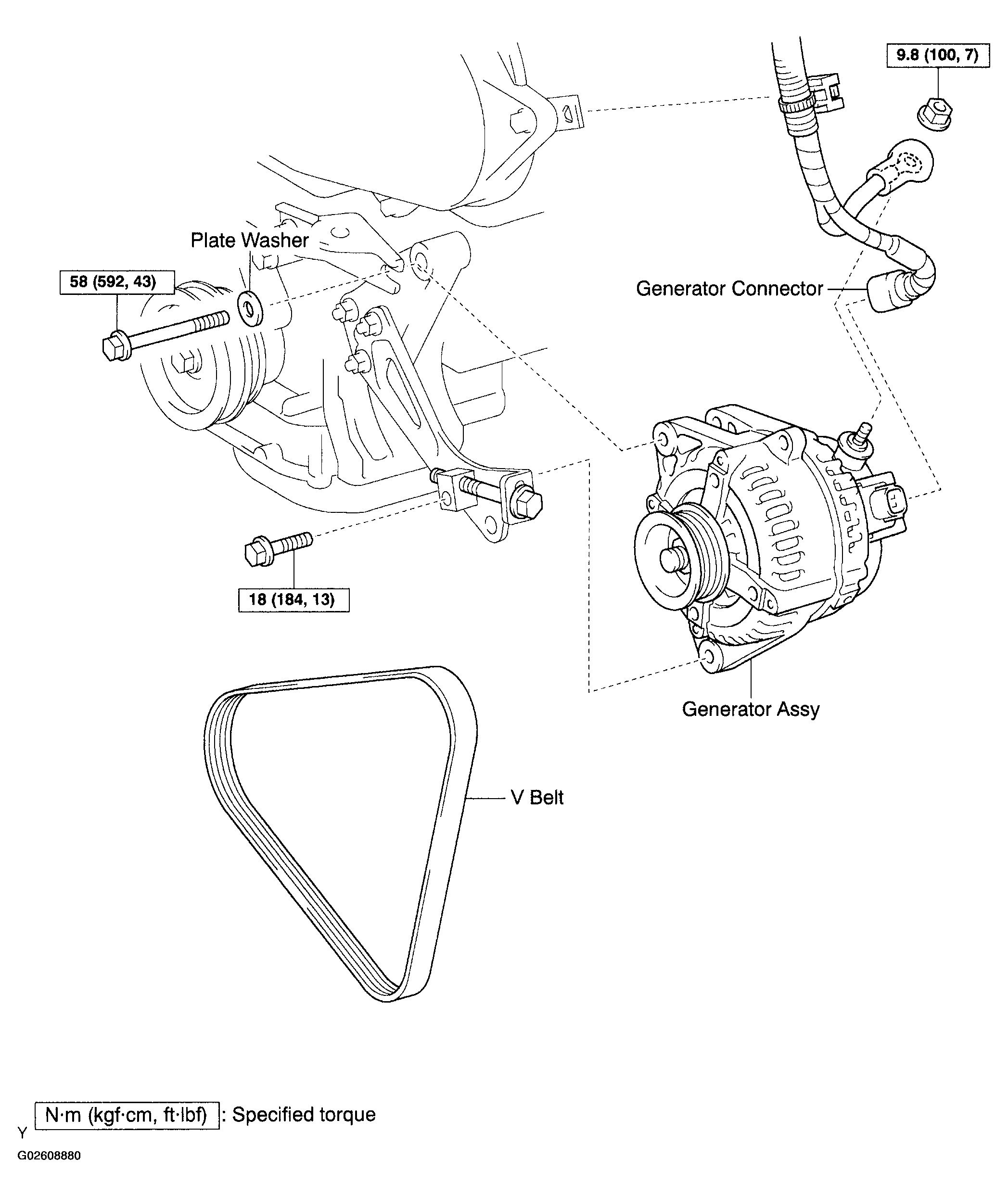

Fig 1: Identifying Generator Assy Components (1 Of 2)
G02608880Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

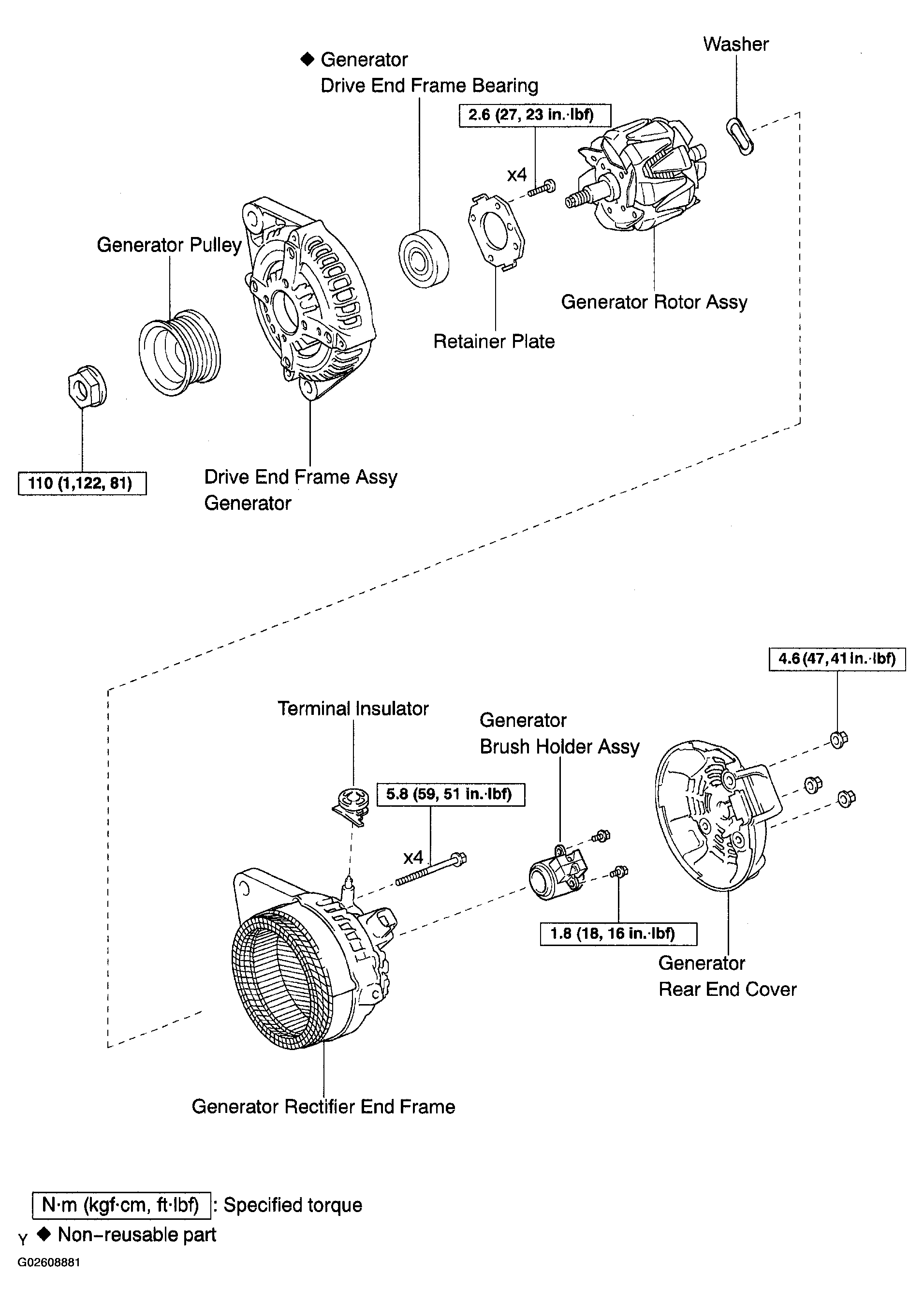

Fig 2: Identifying Generator Assy Components (2 Of 2)
G02608881Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
