Generator ASSY: Replacement

REMOVE GENERATOR ASSY
1. Remove the wire harness clamp.
2. Disconnect the generator connector.
3. Open the terminal cap and remove the nut and the generator wire.

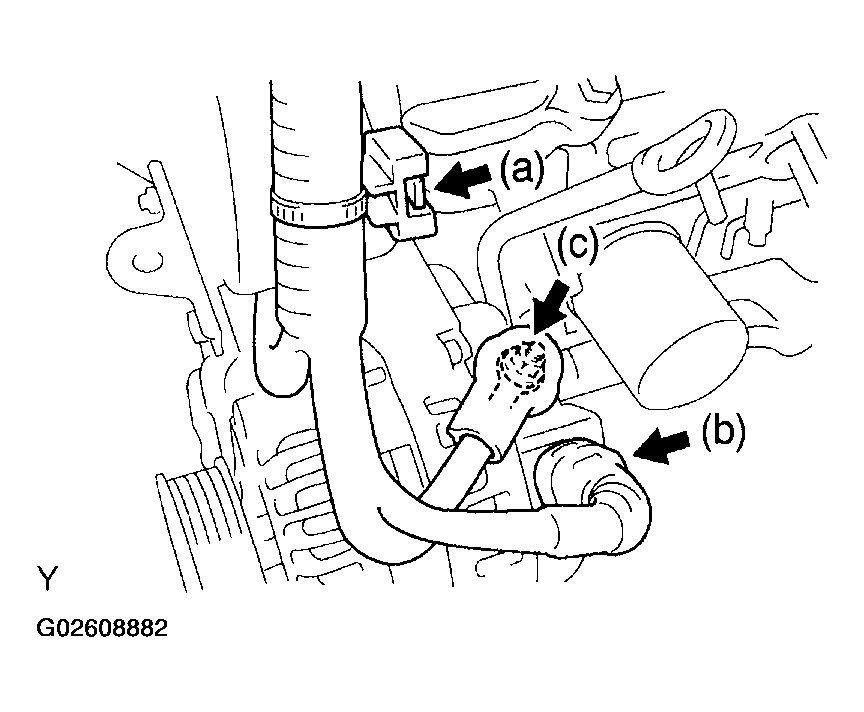

  Fig 1: Disconnecting Generator Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Loosen bolts A and B.
5. Loosen bolt C to lessen the tension of the V belt No. 1.

  Fig 2: Loosening Bolt C
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Remove bolts A, B and the generator.

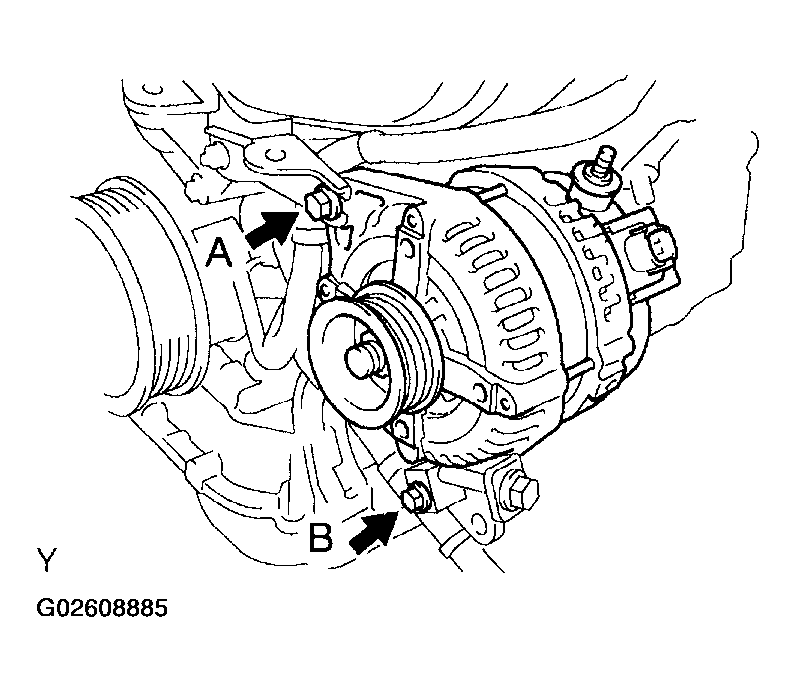

Fig 3: Removing Bolts A, B And Generator
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL GENERATOR ASSY
1. Temporarily install generator with bolts A and B.

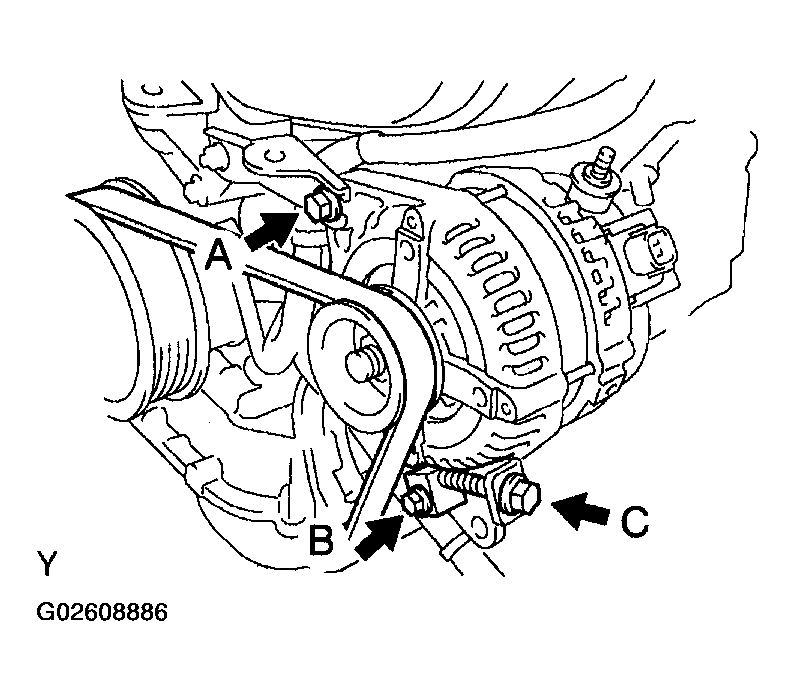

  Fig 4: Installing Generator With Bolts A & B
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Adjust the V belt No. 1 tension by tightening bolt C. (See INSPECTION )

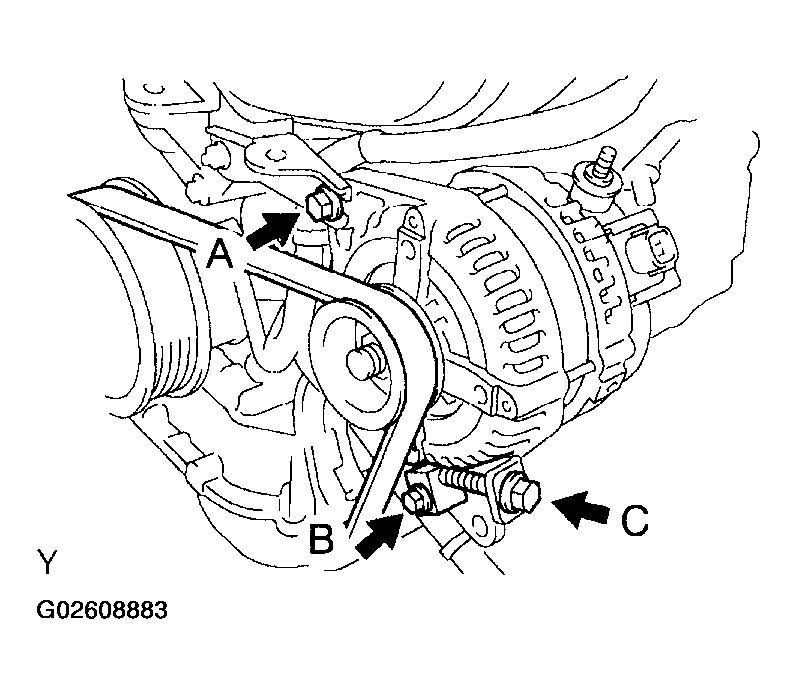

  Fig 5: Adjusting V Belt No. 1 Tension
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Tighten bolts A and B.
  Torque:

  58 N.m (592 kgf.cm, 43 ft.lbf) for bolt A

  18 N.m (184 kgf.cm, 13 ft.lbf) for bolt B
4. Install the generator wire with the nut.
  Torque: 9.8 N.m (100 kgf.cm, 7 ft.lbf)
5. Connect the generator connector.
6. Install the wire harness clamp.
INSPECT DRIVE BELT (See INSPECTION )
