Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

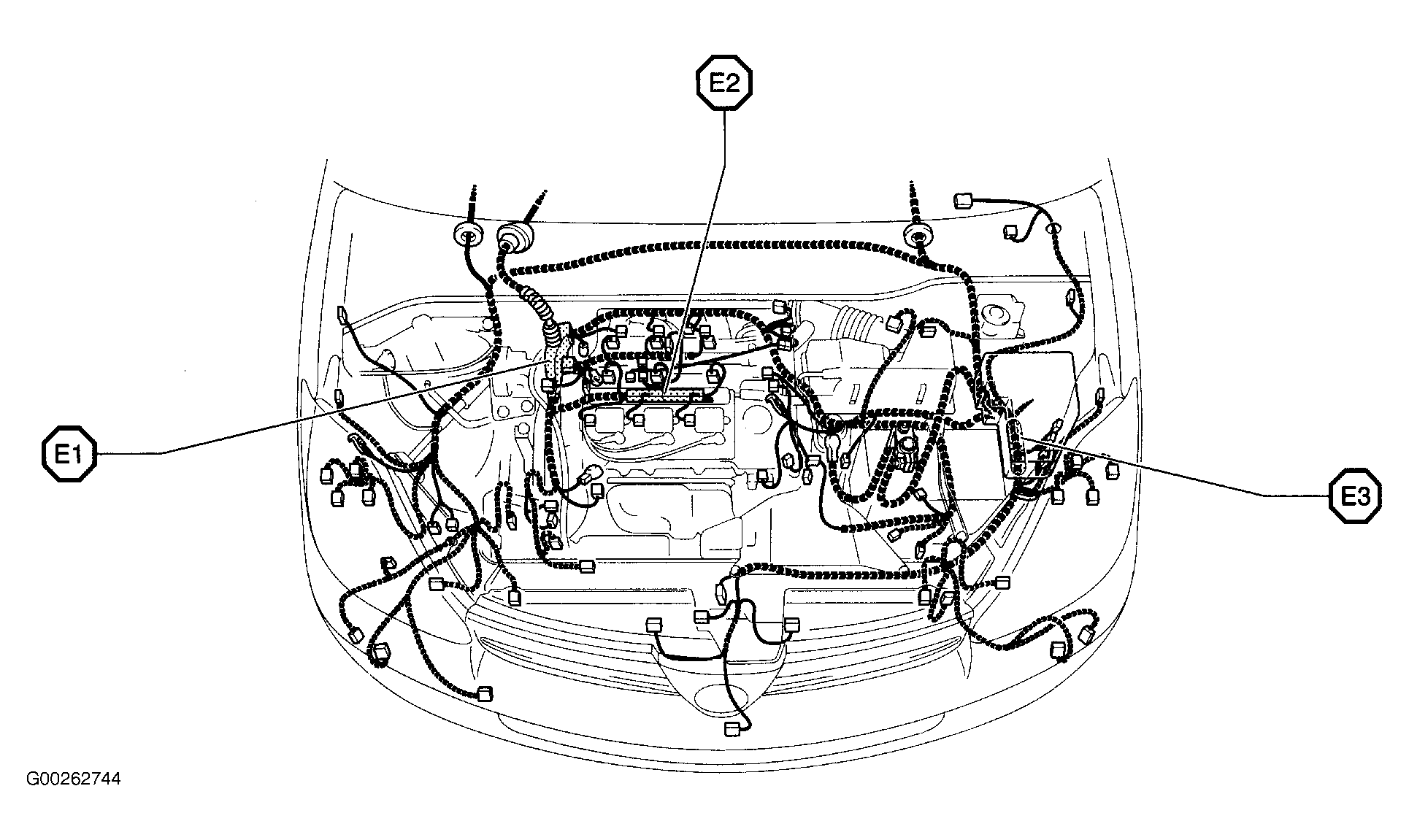

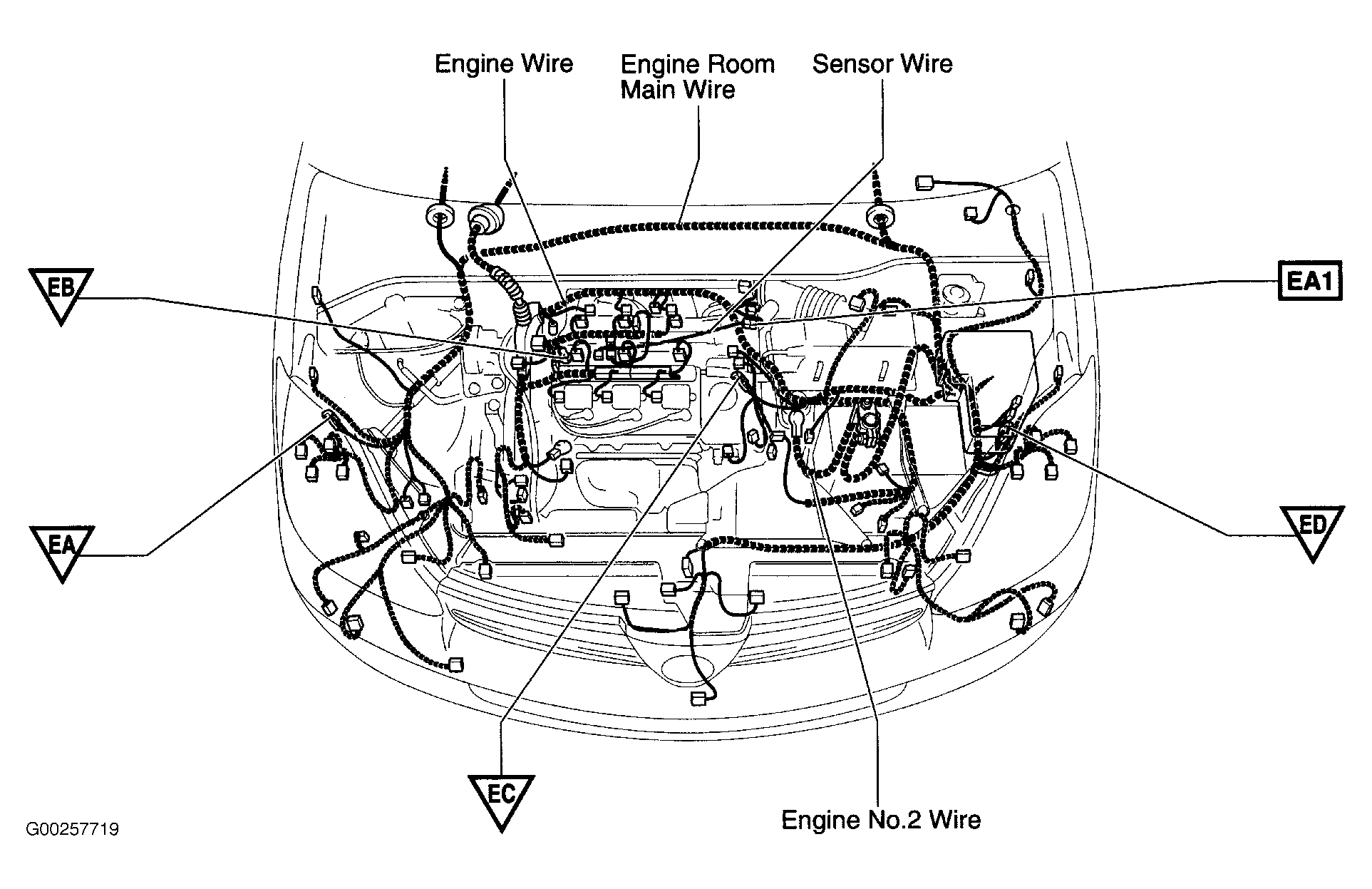

Fig 1: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

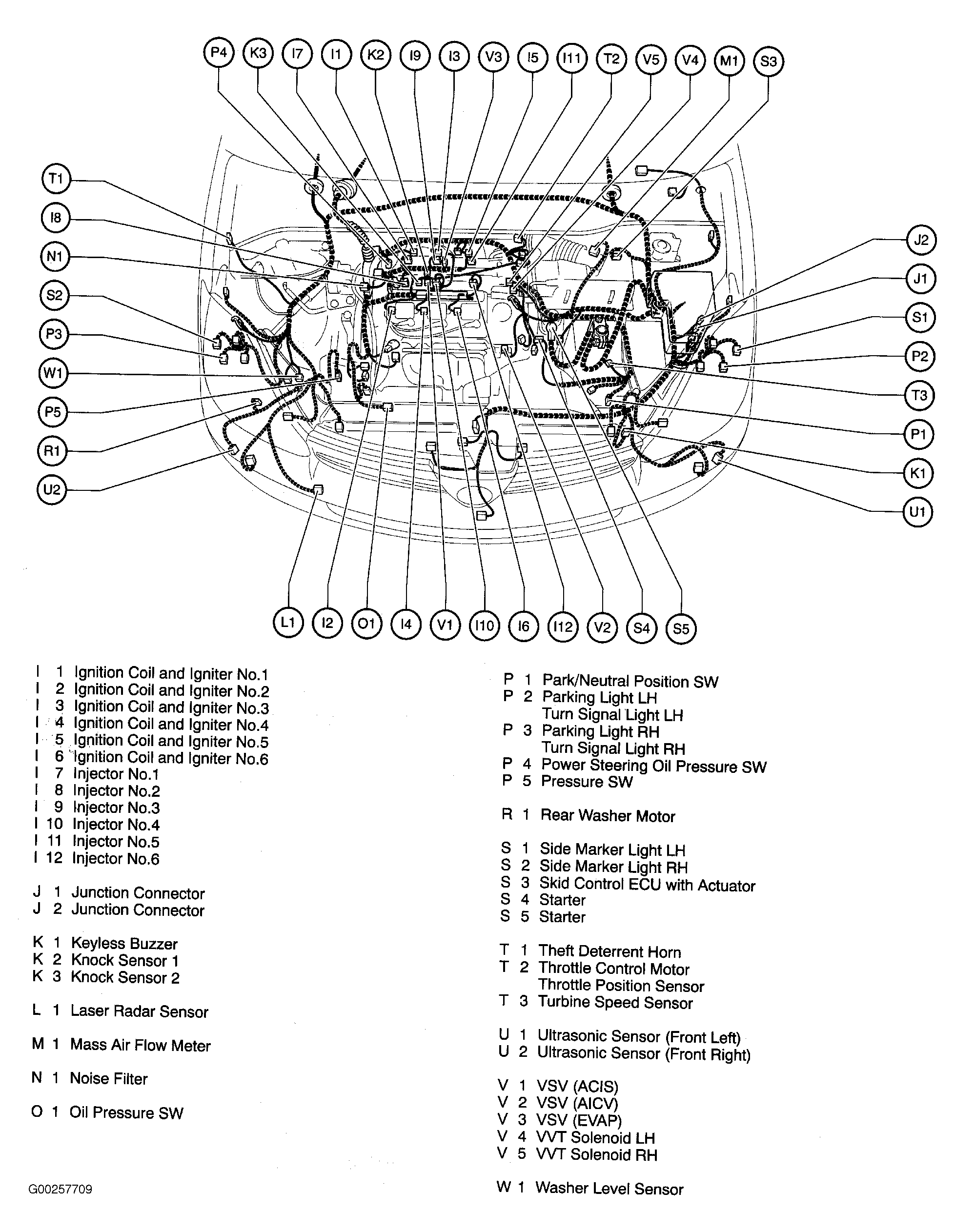

Fig 2: Engine

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

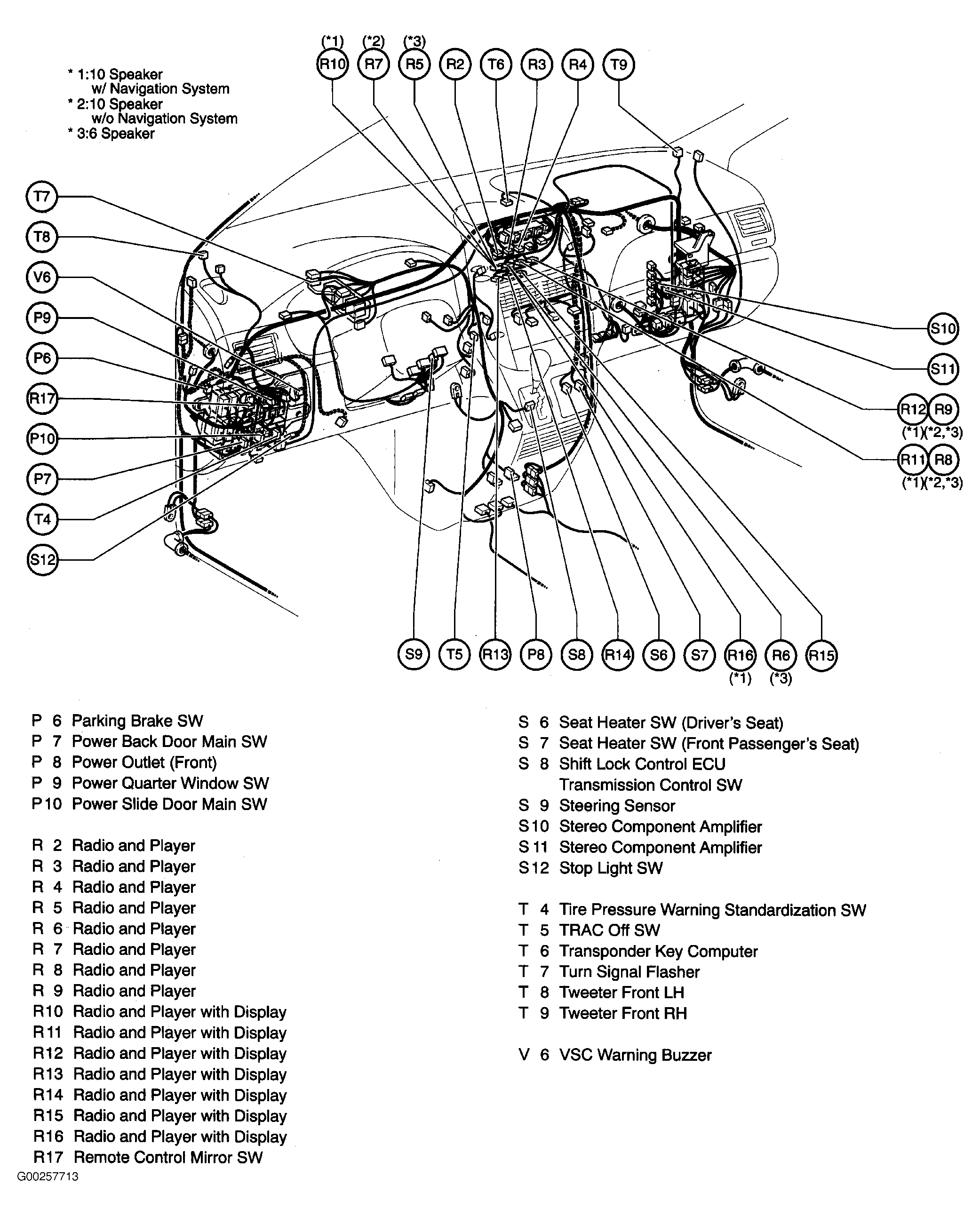

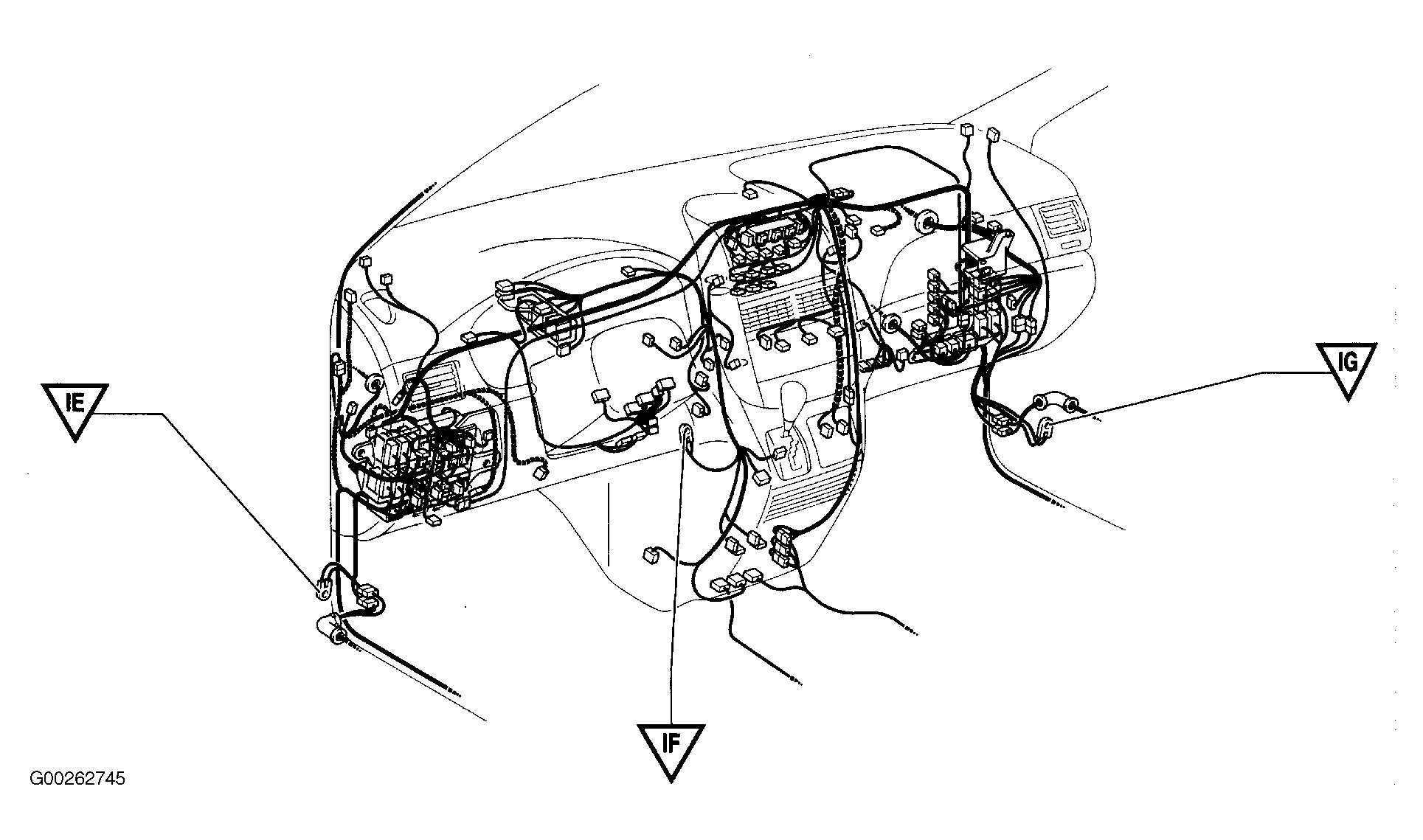

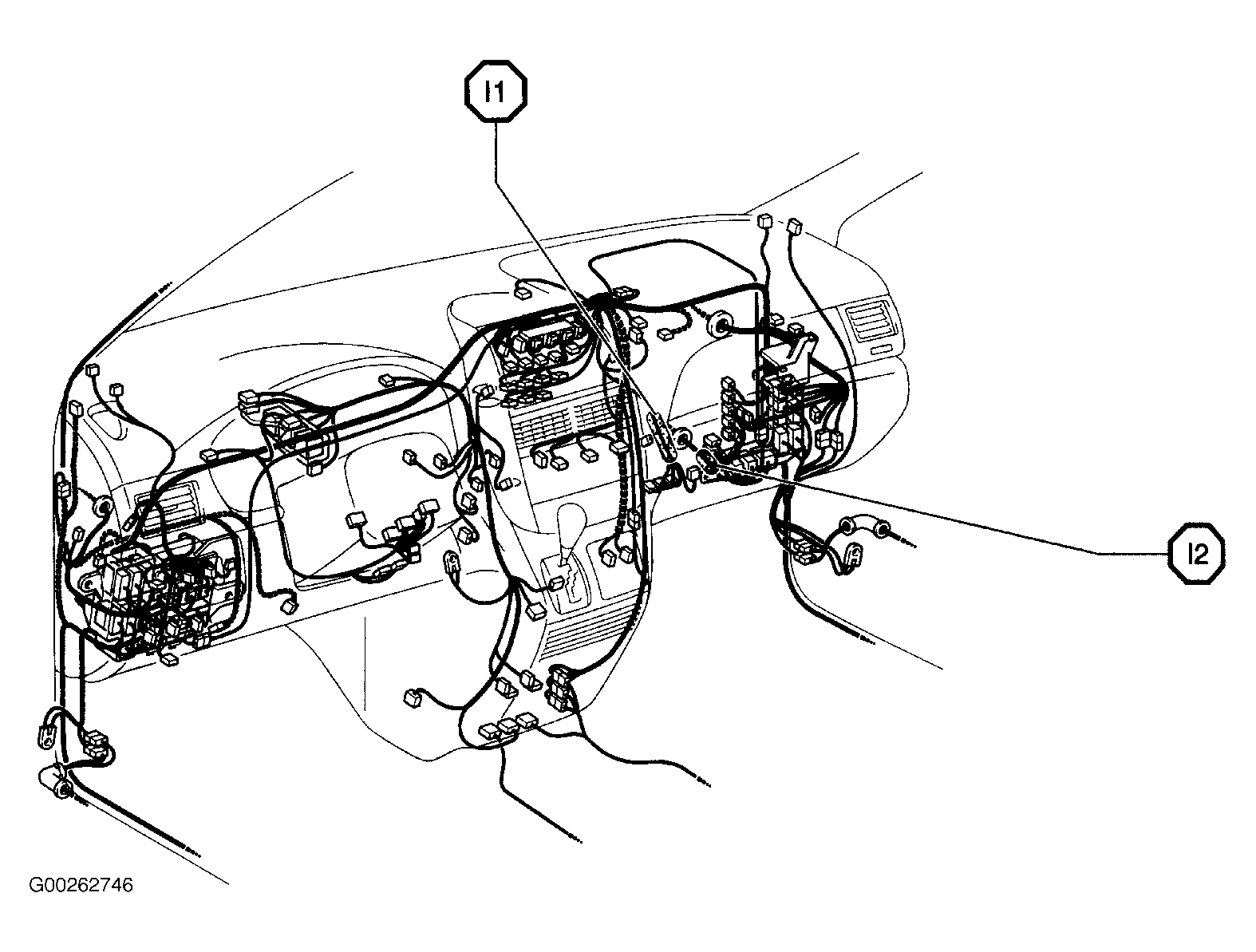

Fig 3: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

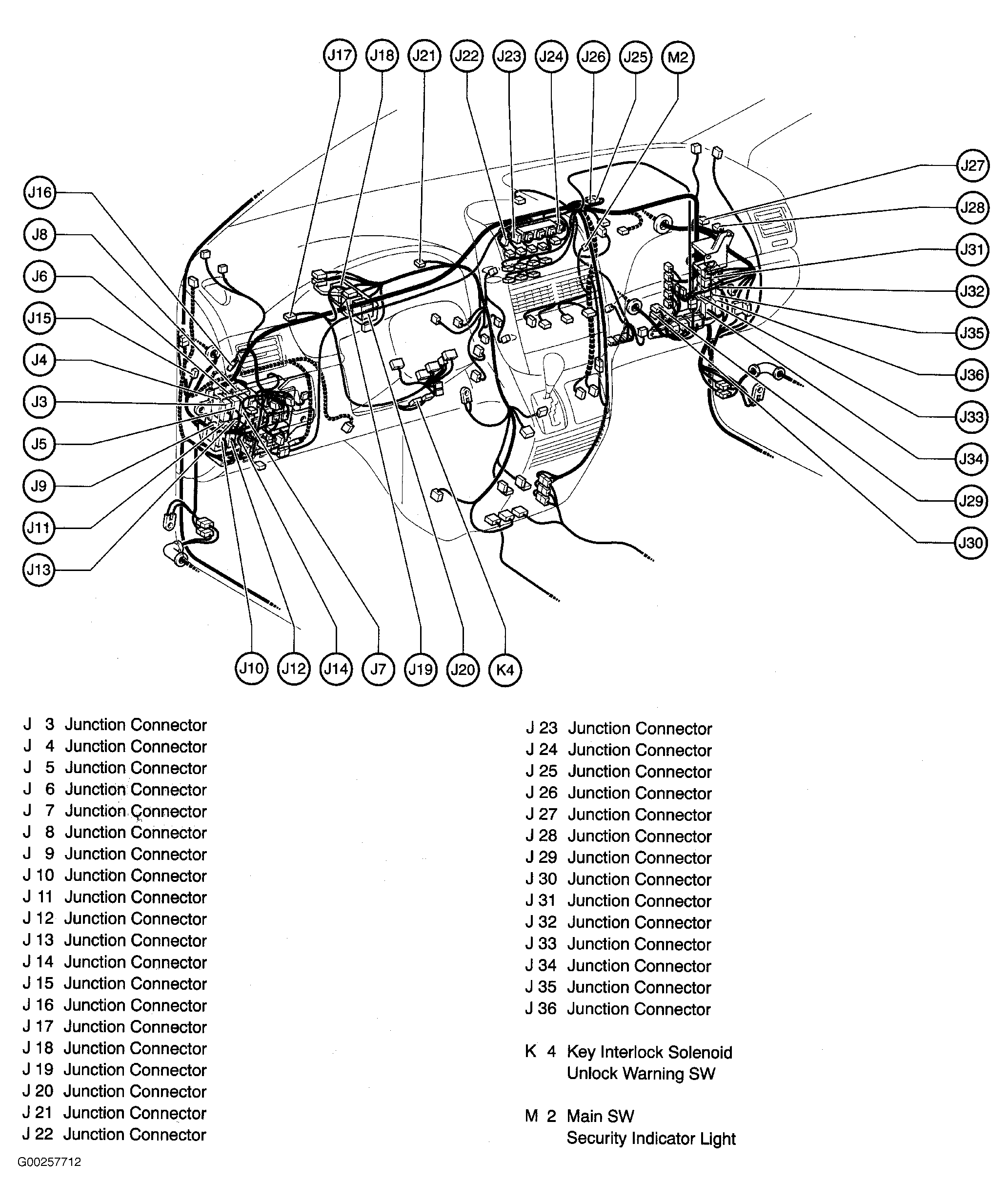

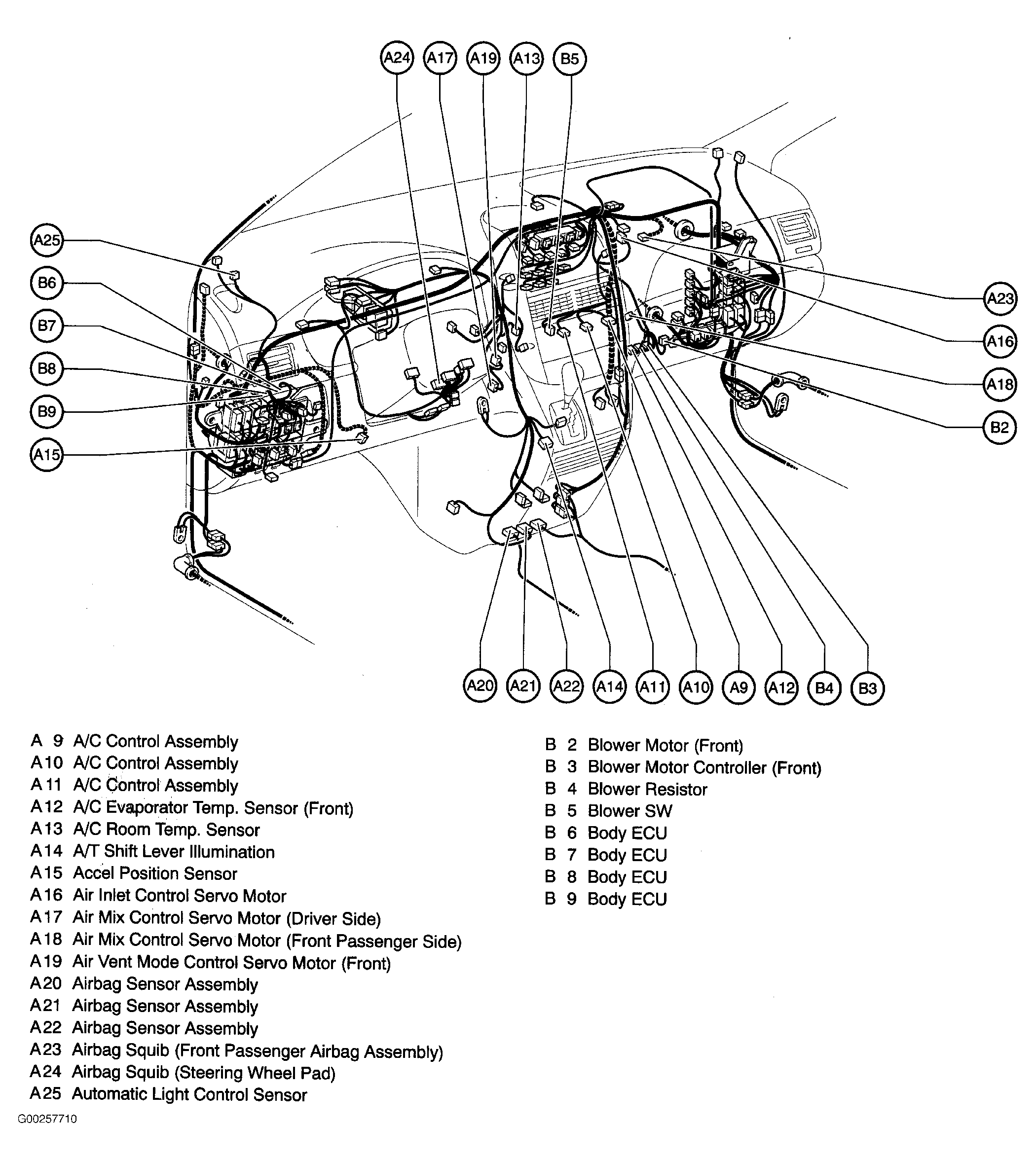

Fig 4: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

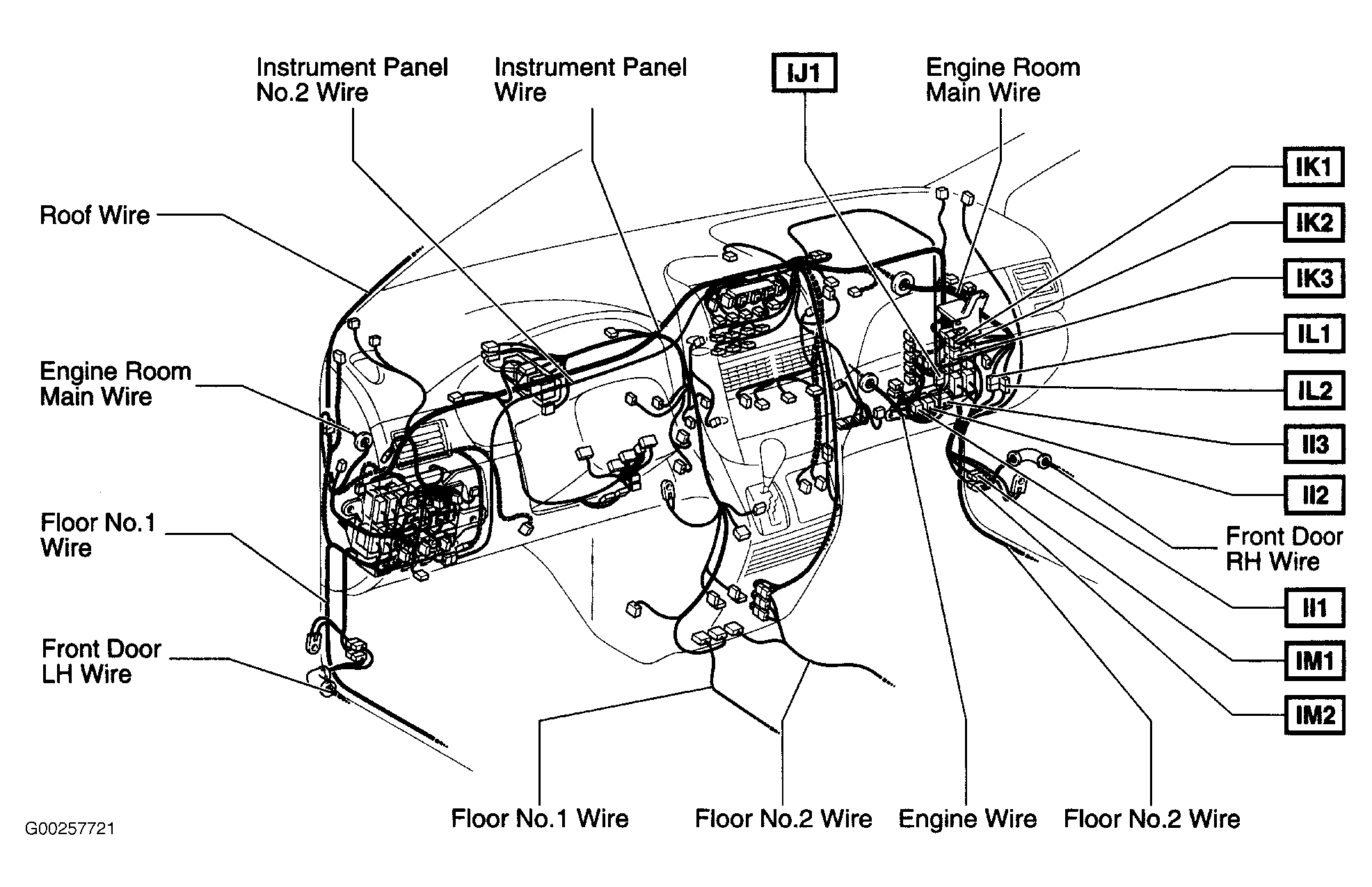

Fig 5: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

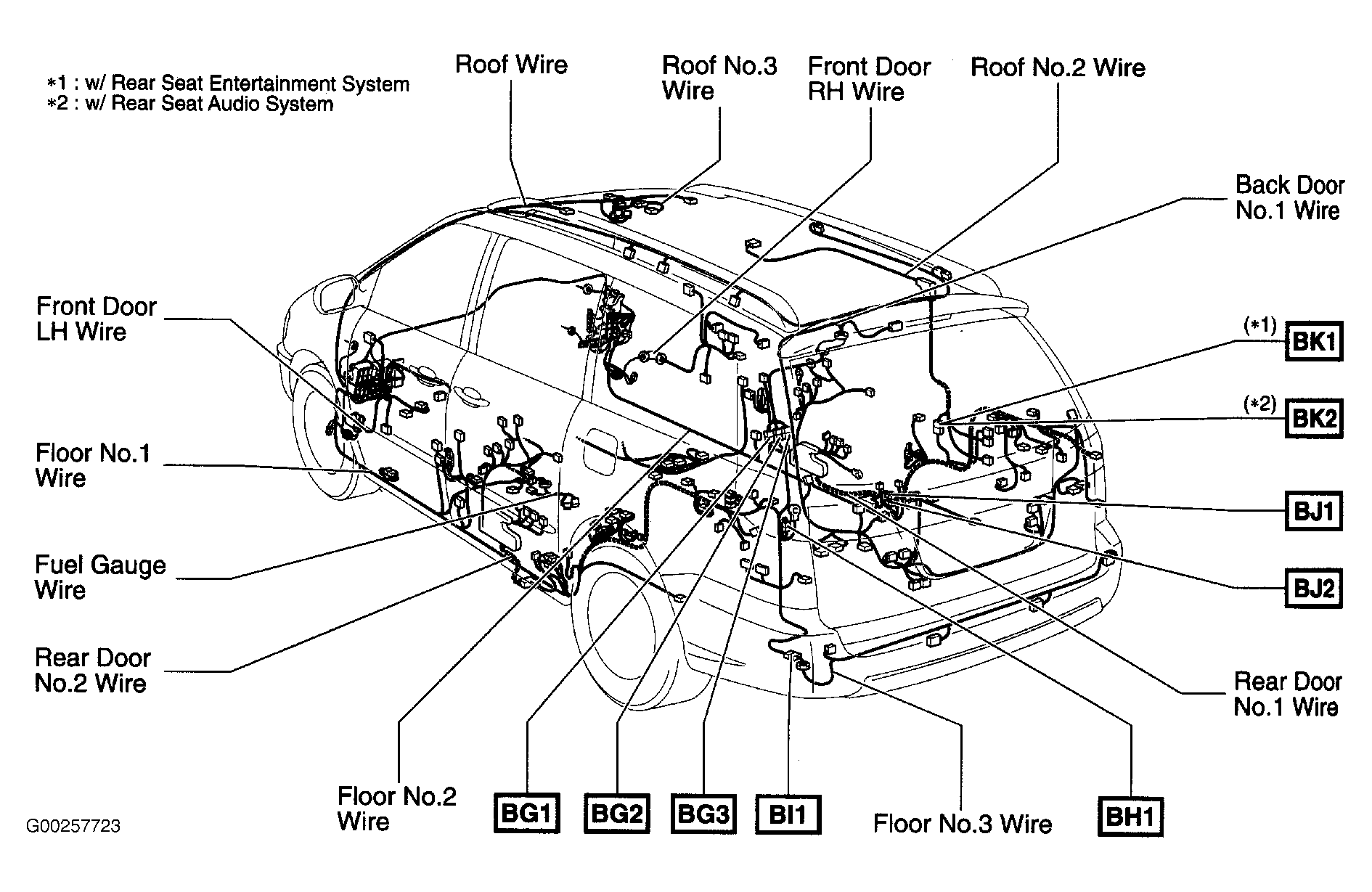

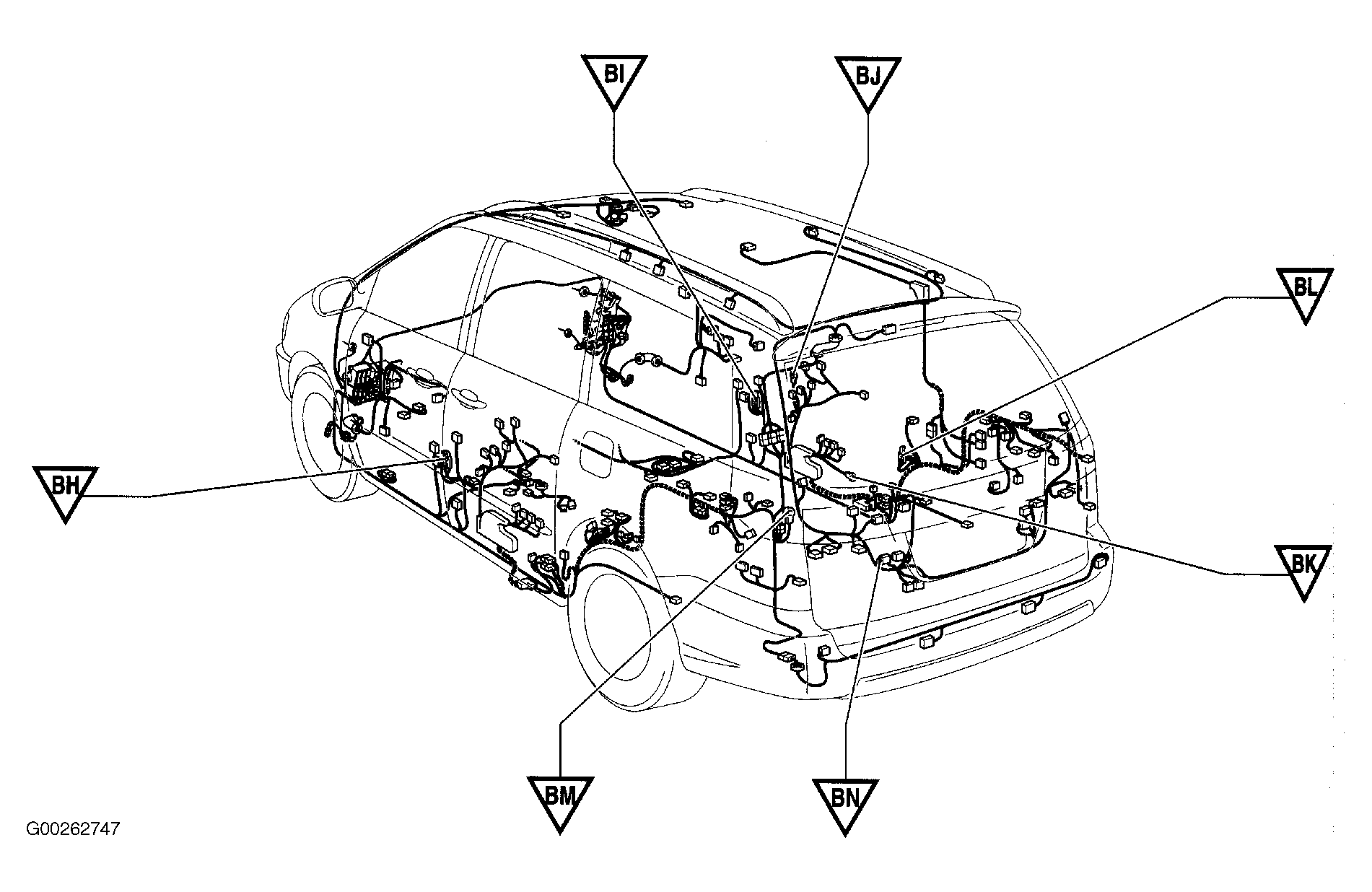

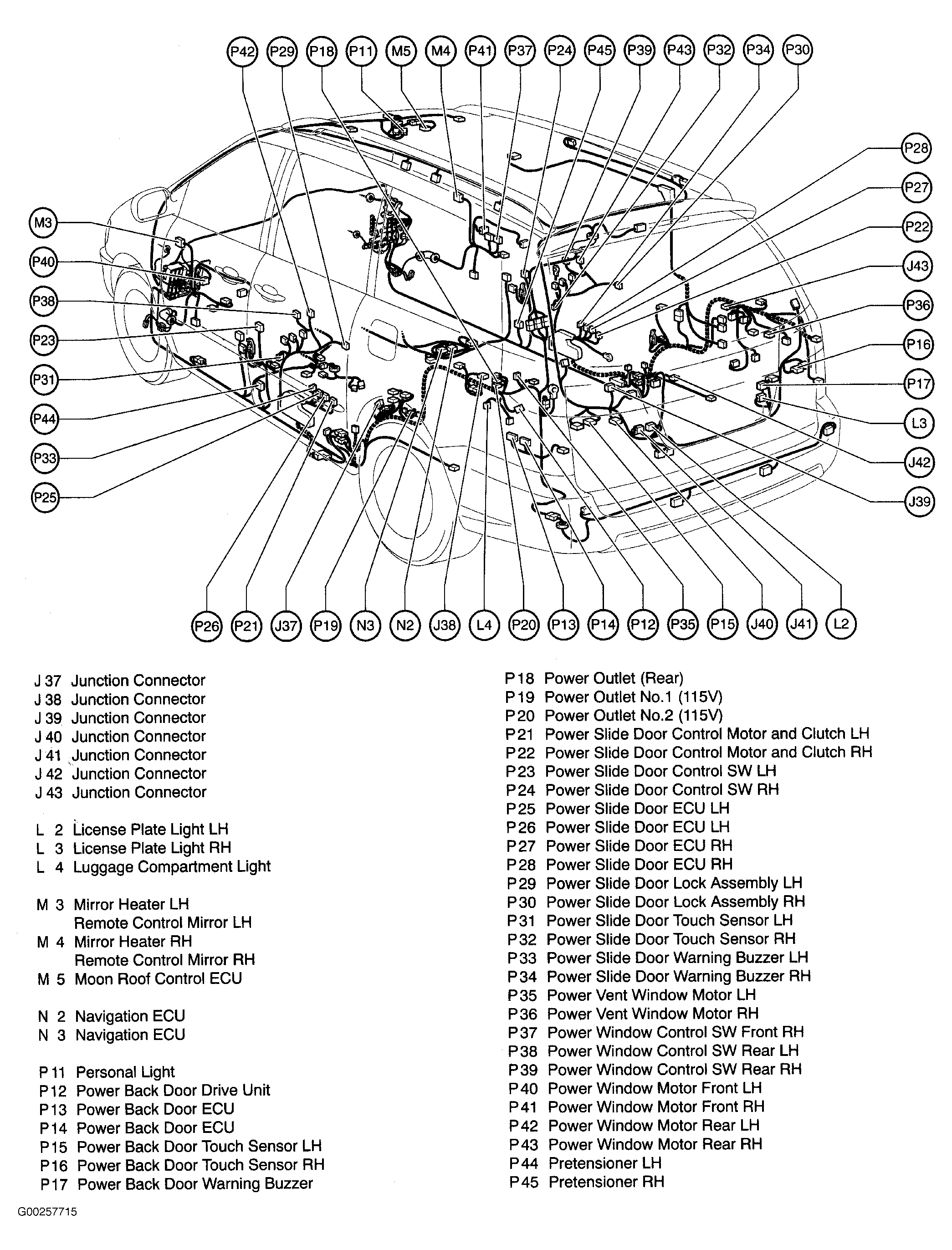

Fig 7: Vehicle Overview

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

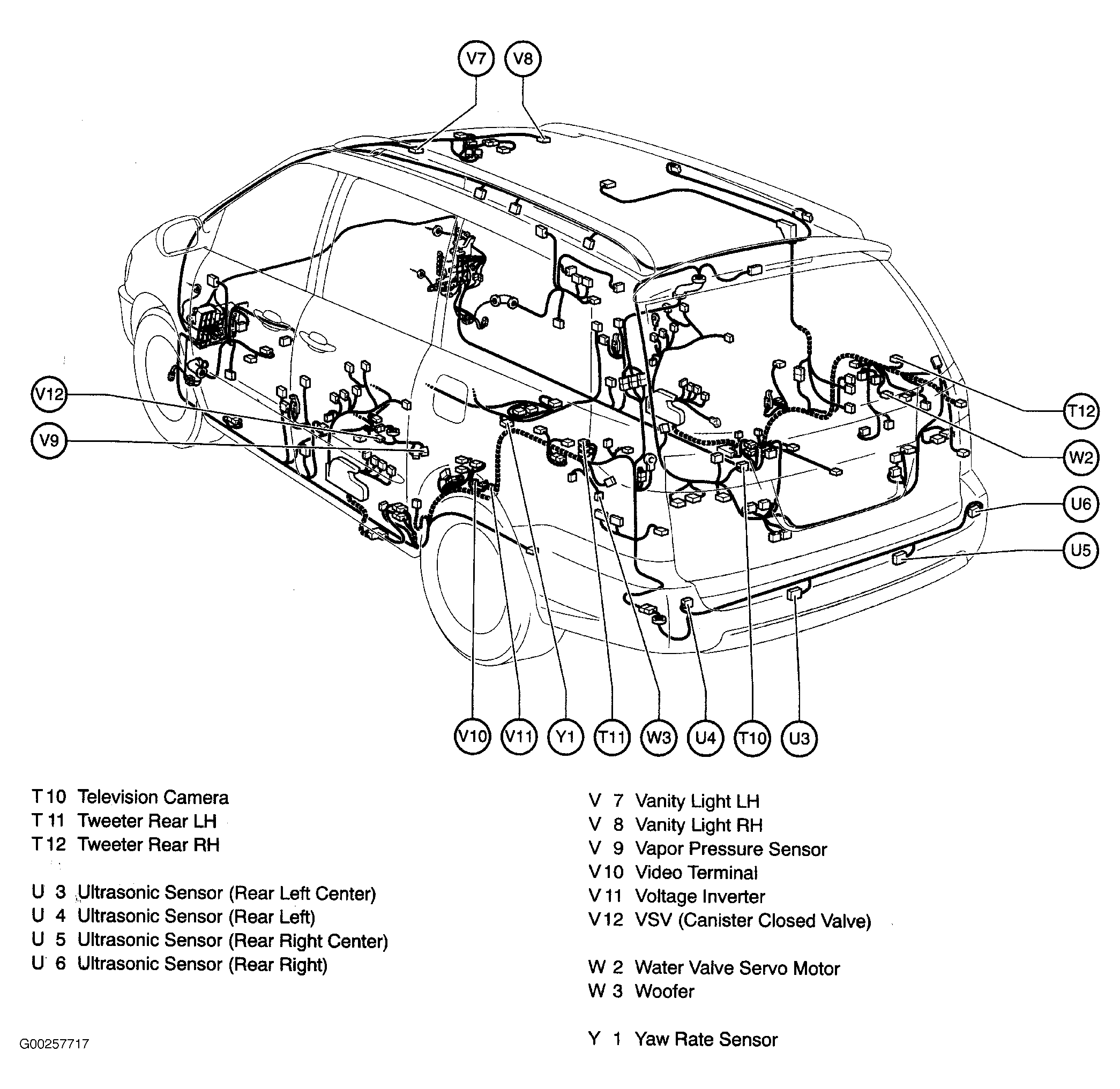

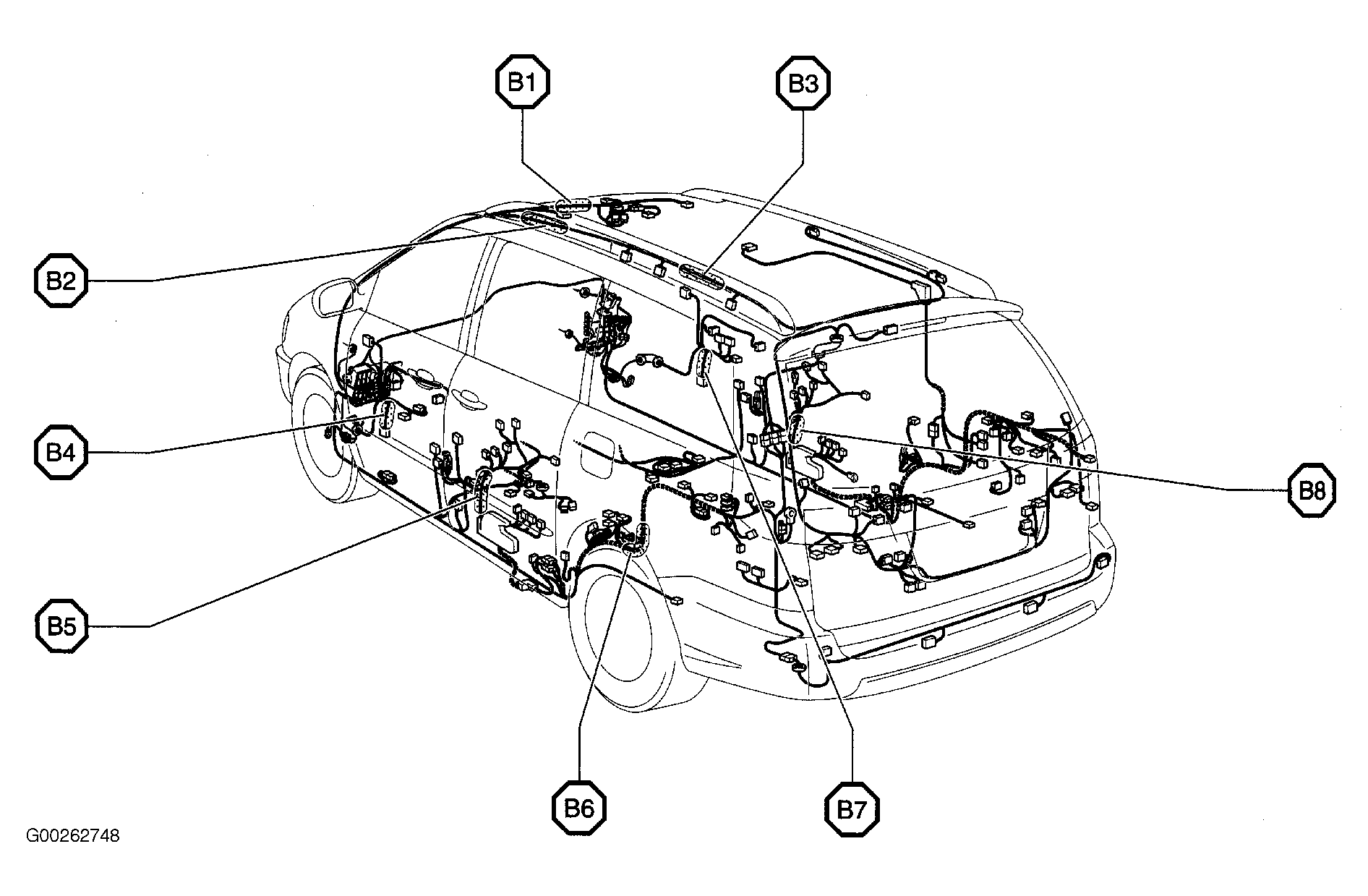

Fig 8: Vehicle Overview

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

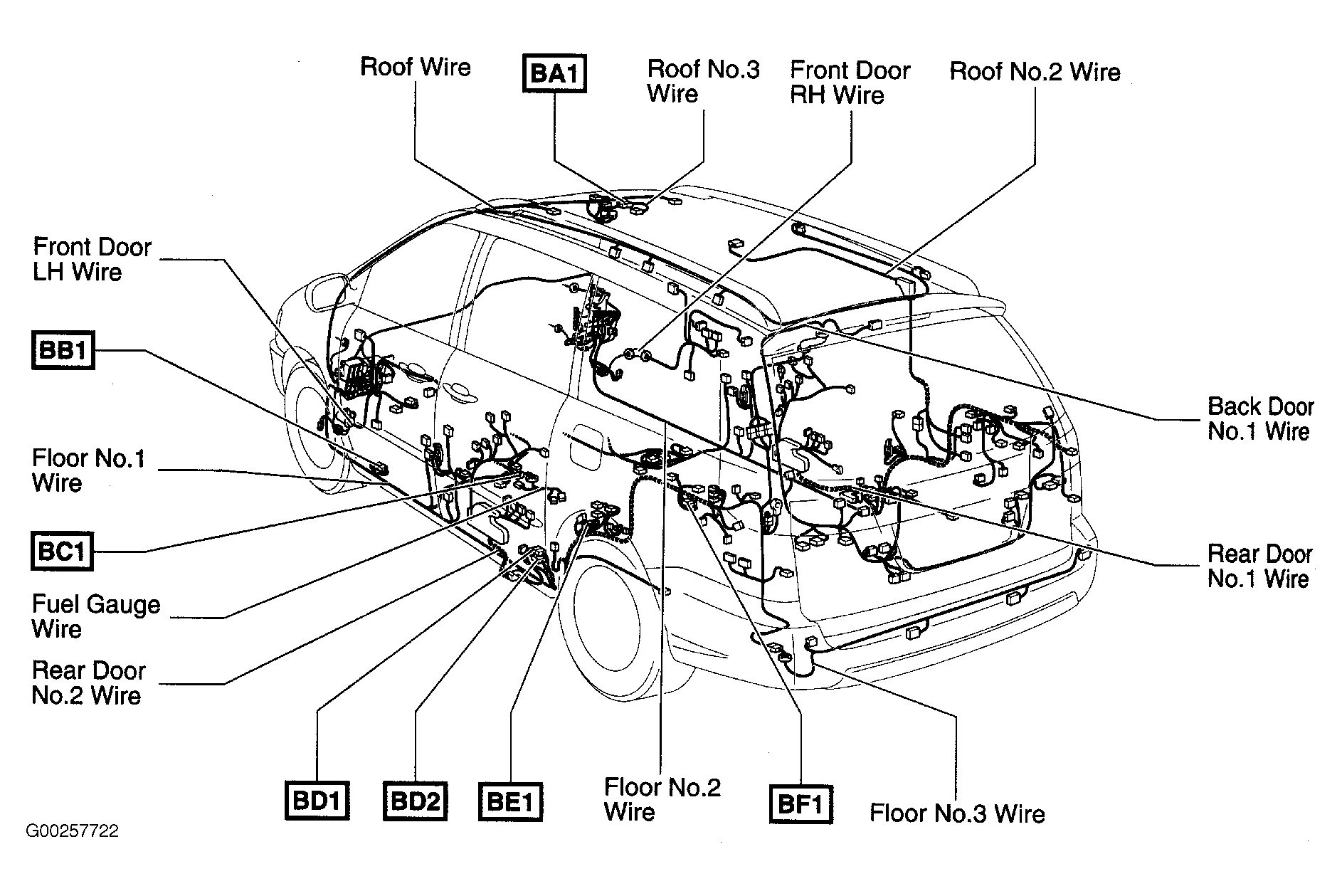

Fig 9: Vehicle Overview

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Vehicle Overview

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

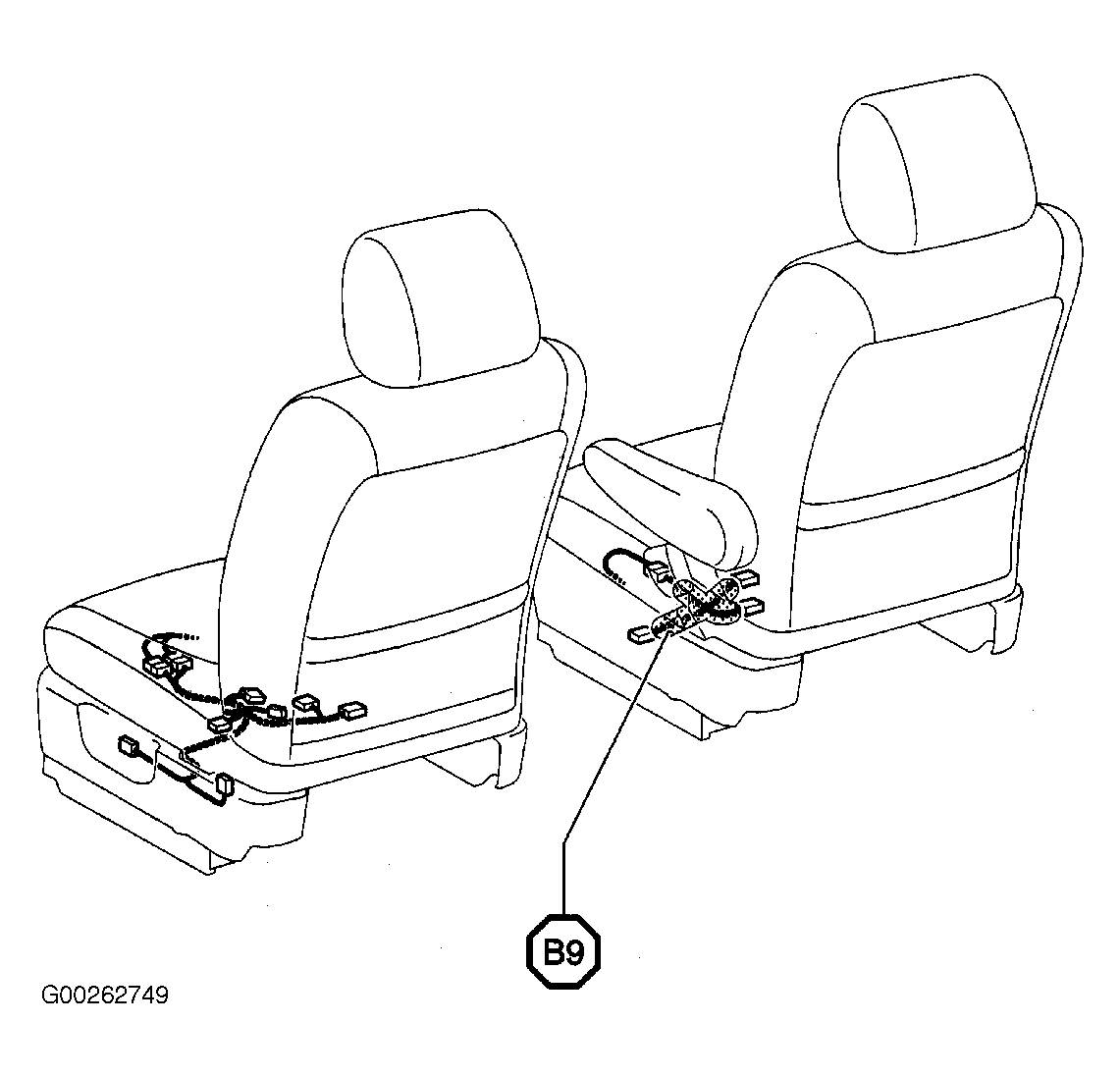

Fig 11: Front Seats

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

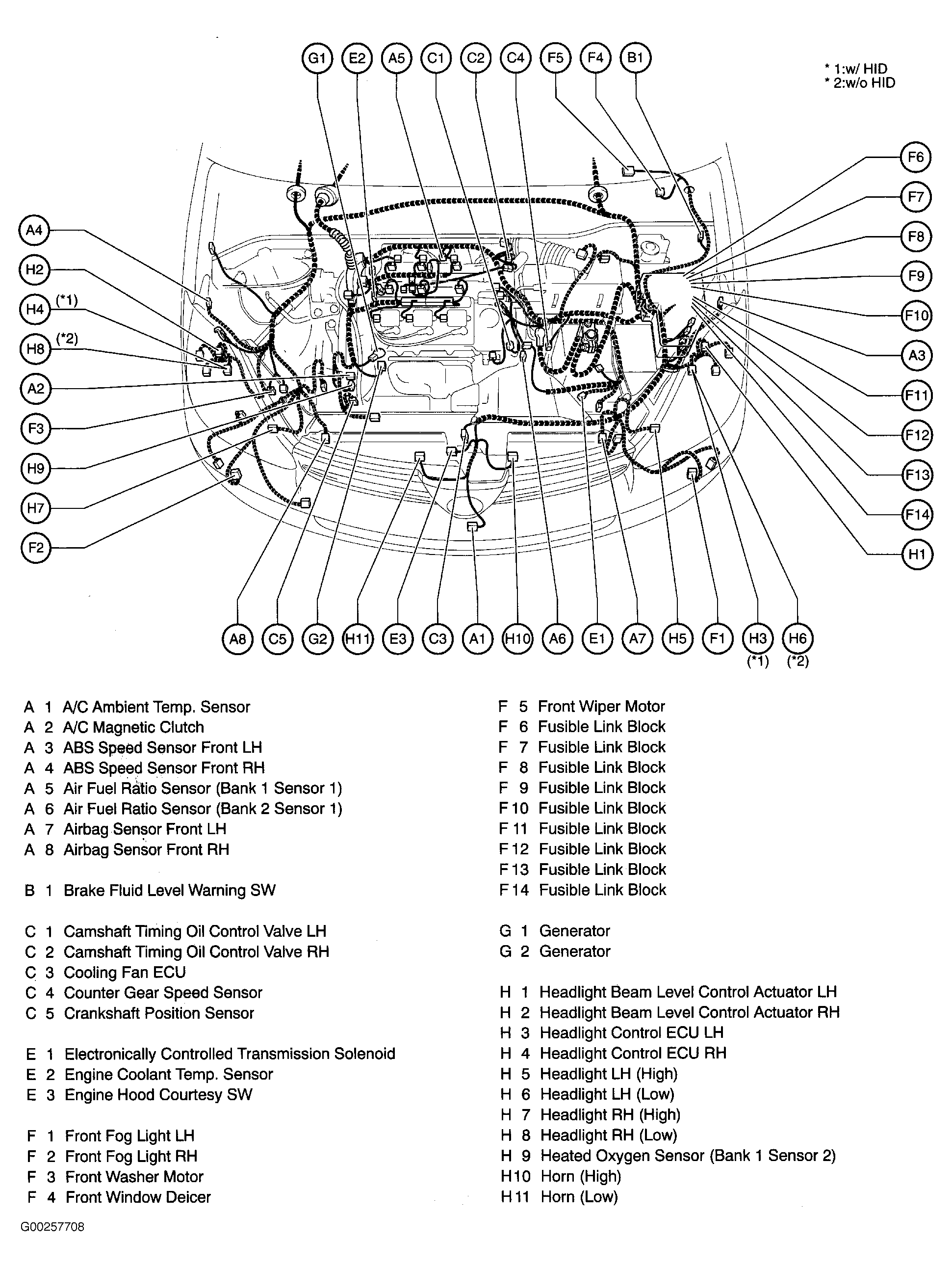

Fig 12: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

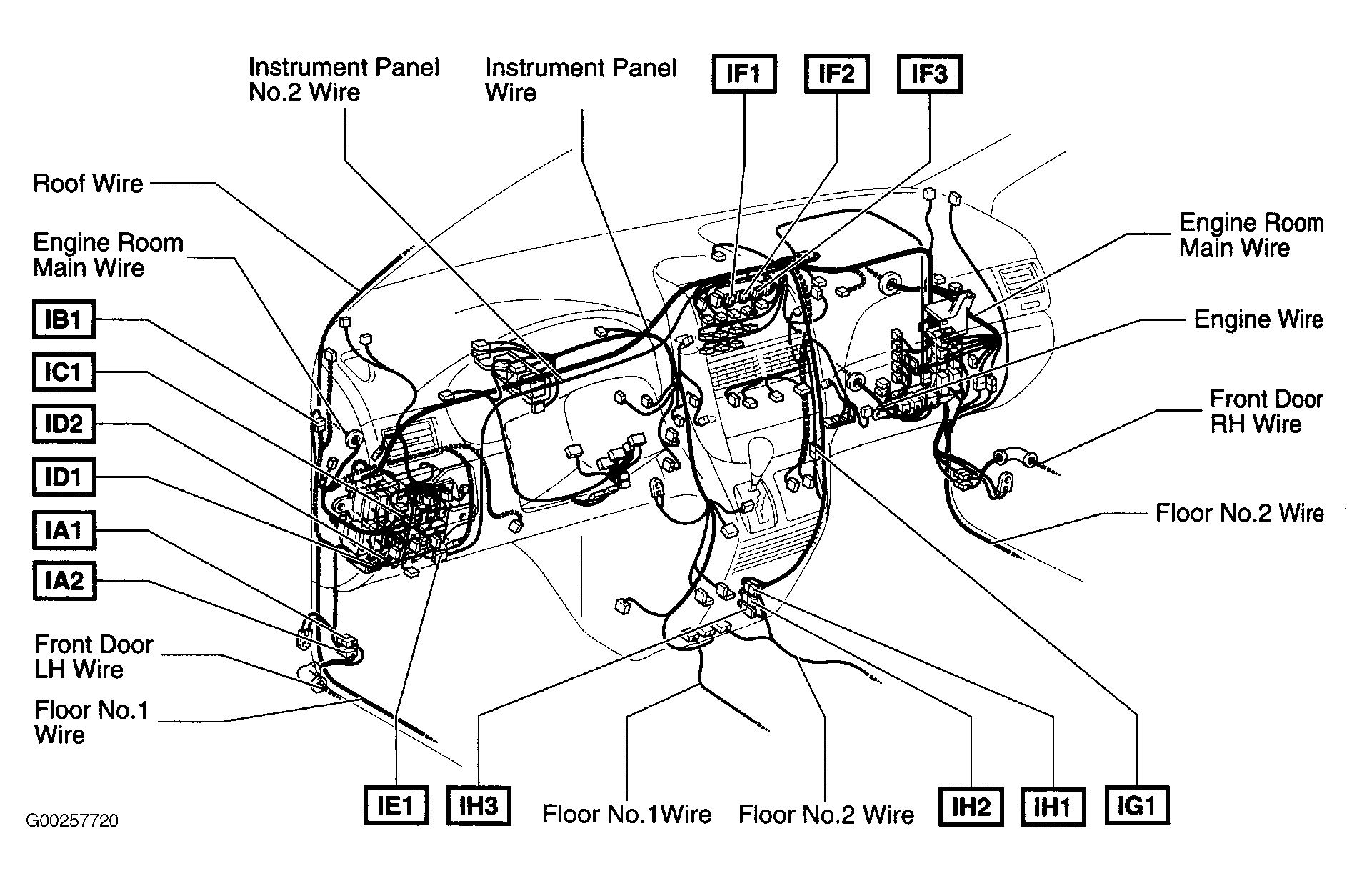

Fig 13: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 14: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 15: Vehicle Overview

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 16: Vehicle Overview

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 17: Front Seats

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 18: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 19: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTRUMENT PANEL RELAY IDENTIFICATION

RELAY DESCRIPTION
Front Window Deicer Relay
Dome Cut Relay
Inverter Relay

Fig 20: Vehicle Overview

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REAR WIPER RELAY IDENTIFICATION

RELAY DESCRIPTION
Rear Wiper Motor and Relay

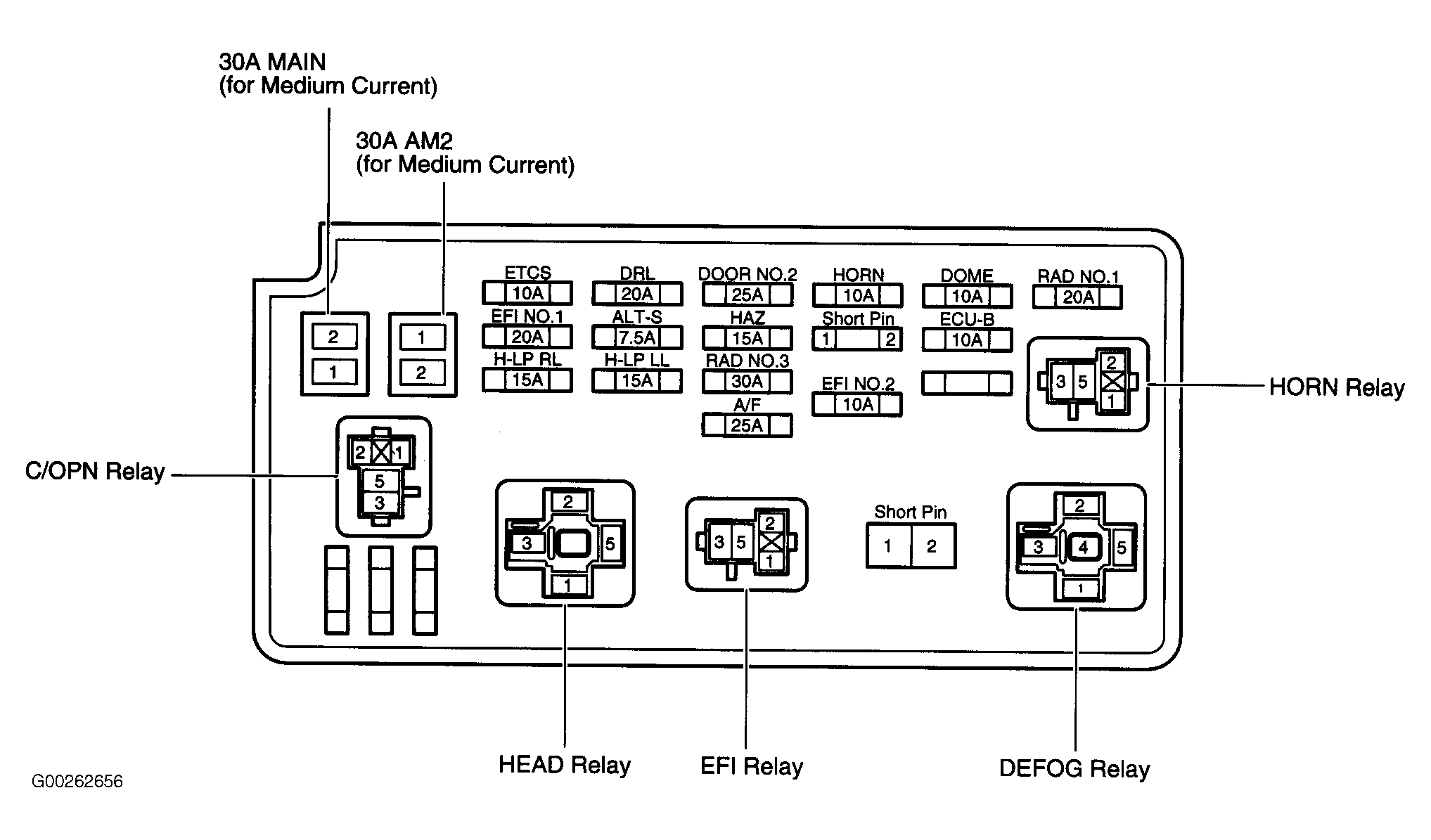

Fig 21: Engine Room J/B

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE COMPARTMENT JUNCTION BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
C/OPN Relay
Horn Relay
Defog Relay
EFI Relay
Head Relay

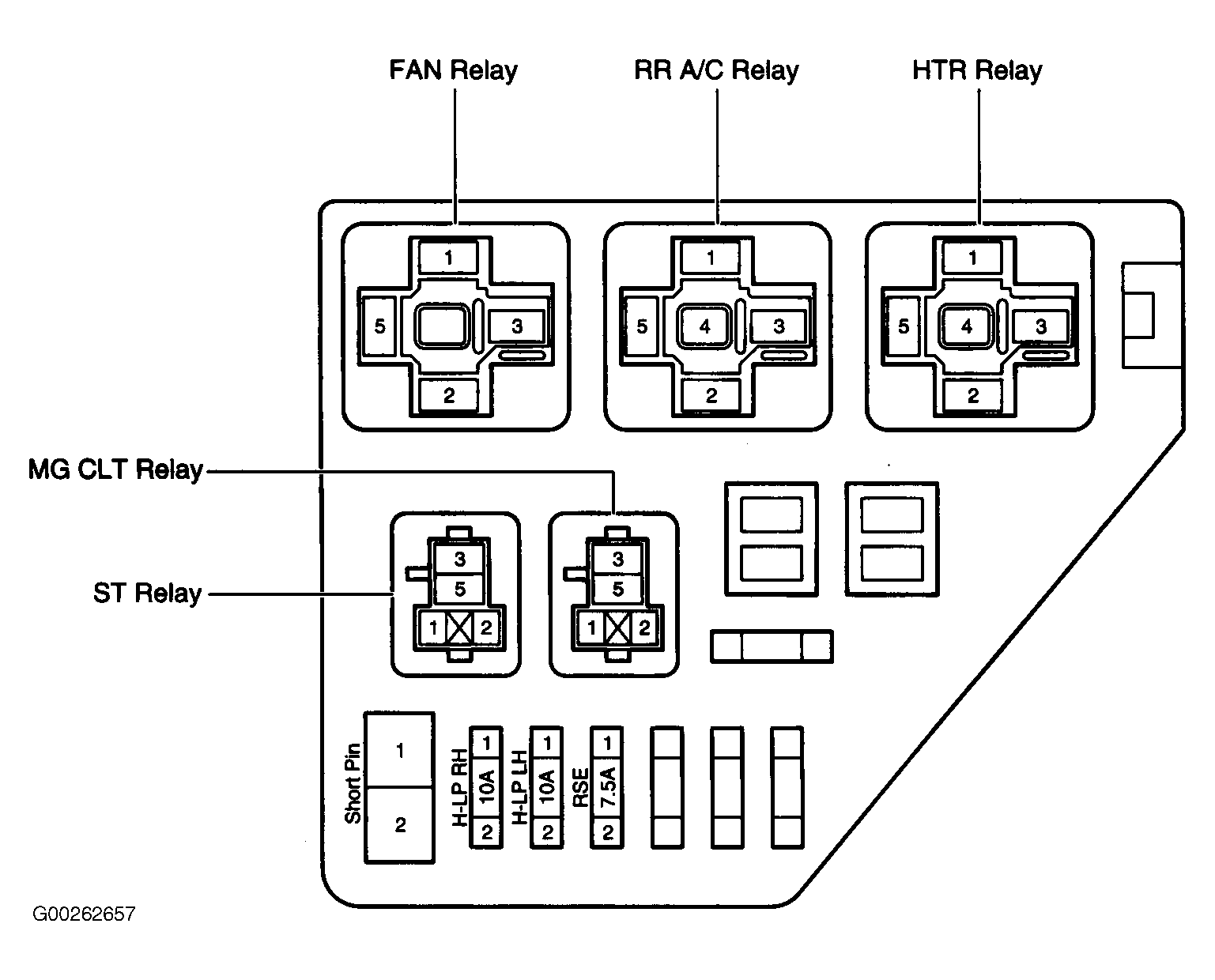

Fig 22: R/B No. 3

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE COMPARTMENT RELAY BLOCK NO. 3 RELAY IDENTIFICATION

RELAY DESCRIPTION
ST Relay
MG CLT Relay
Fan Relay
RR A/C Relay
HTR Relay

Fig 23: R/B No. 4

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE COMPARTMENT RELAY BLOCK NO. 4 RELAY IDENTIFICATION

RELAY DESCRIPTION

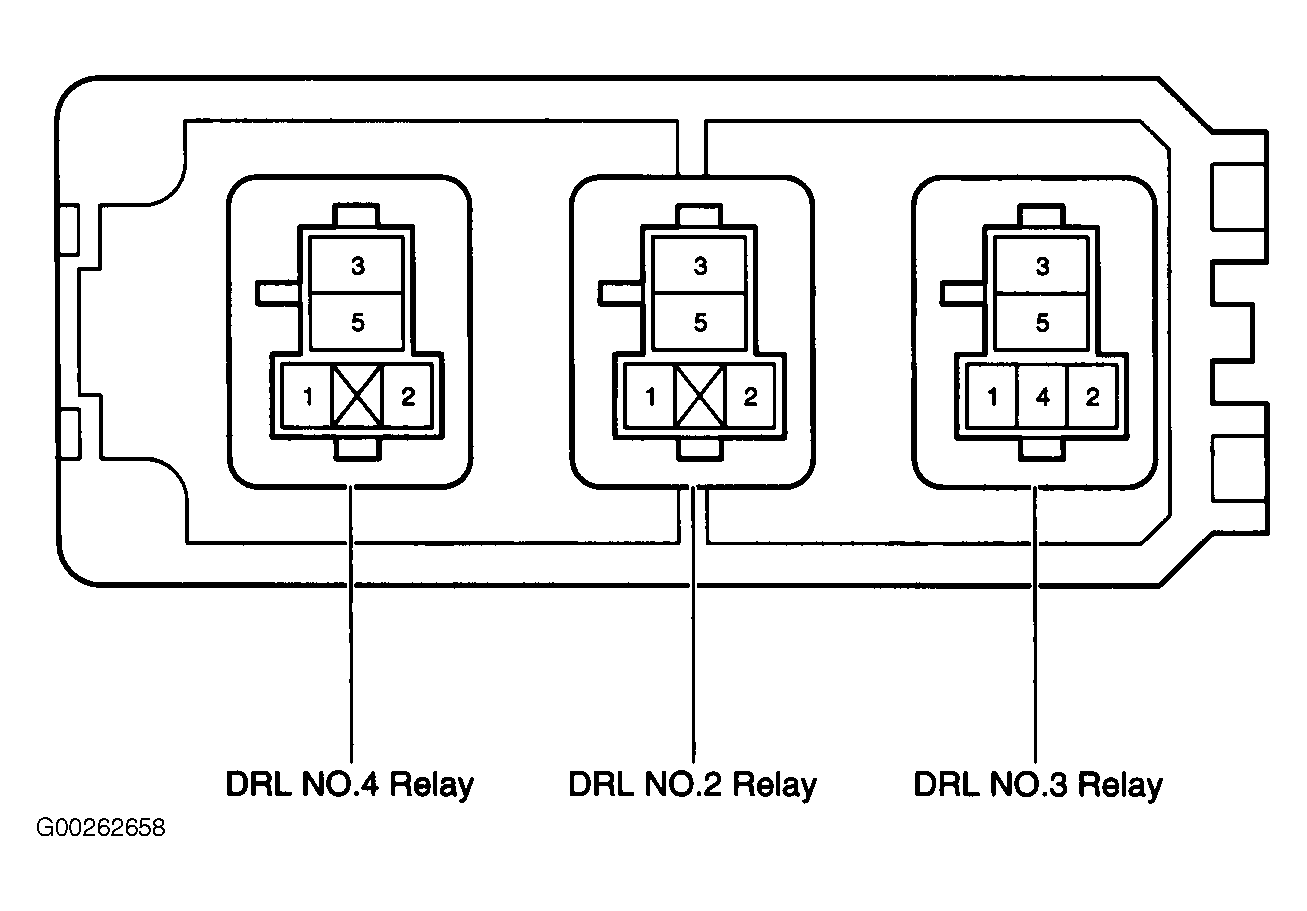

DRL No.3 Relay
DRL No.2 Relay
DRL No.4 Relay

Fig 24: R/B No. 5

ENGINE COMPARTMENT RELAY BLOCK NO. 5 RELAY IDENTIFICATION

RELAY DESCRIPTION

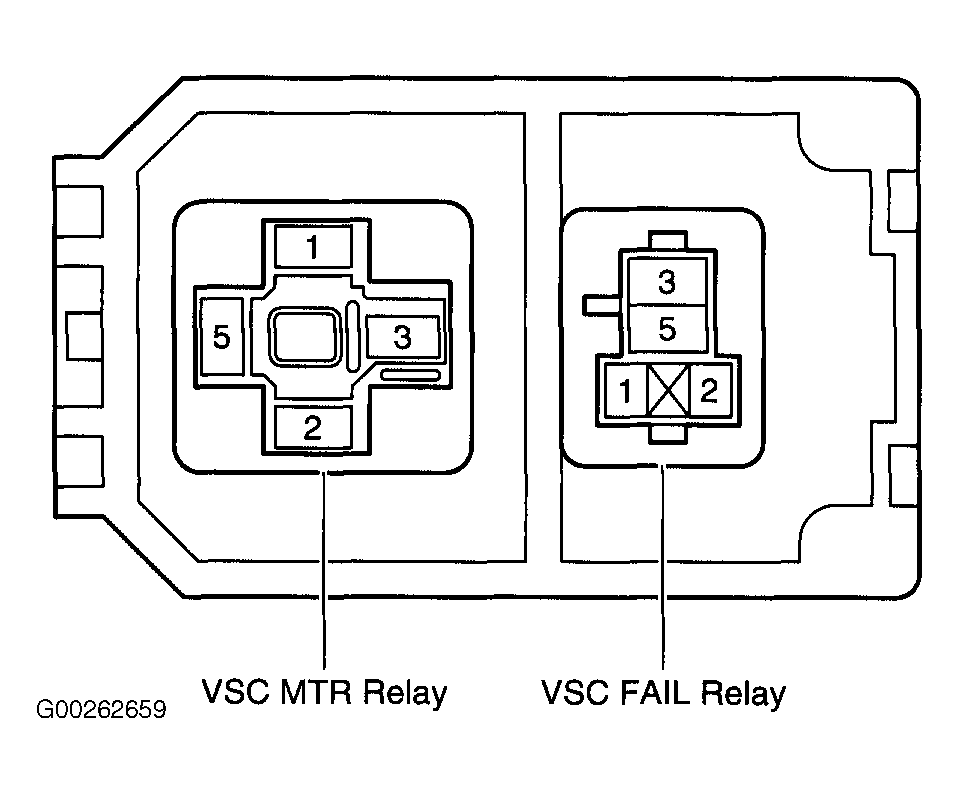

VSC Fail Relay
VSC MTR Relay

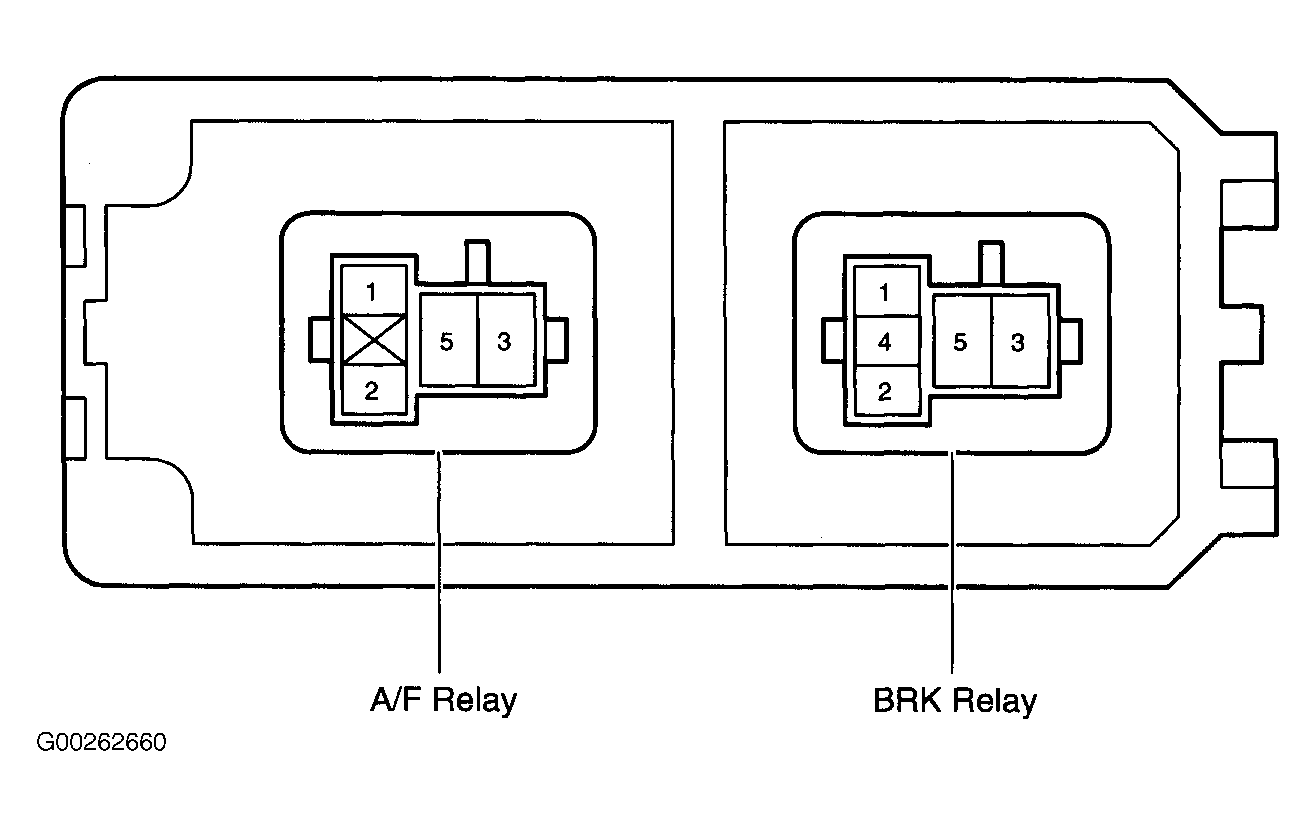

Fig 25: R/B No. 6

ENGINE COMPARTMENT RELAY BLOCK NO. 6 RELAY IDENTIFICATION

RELAY DESCRIPTION
BRK Relay
A/F Relay

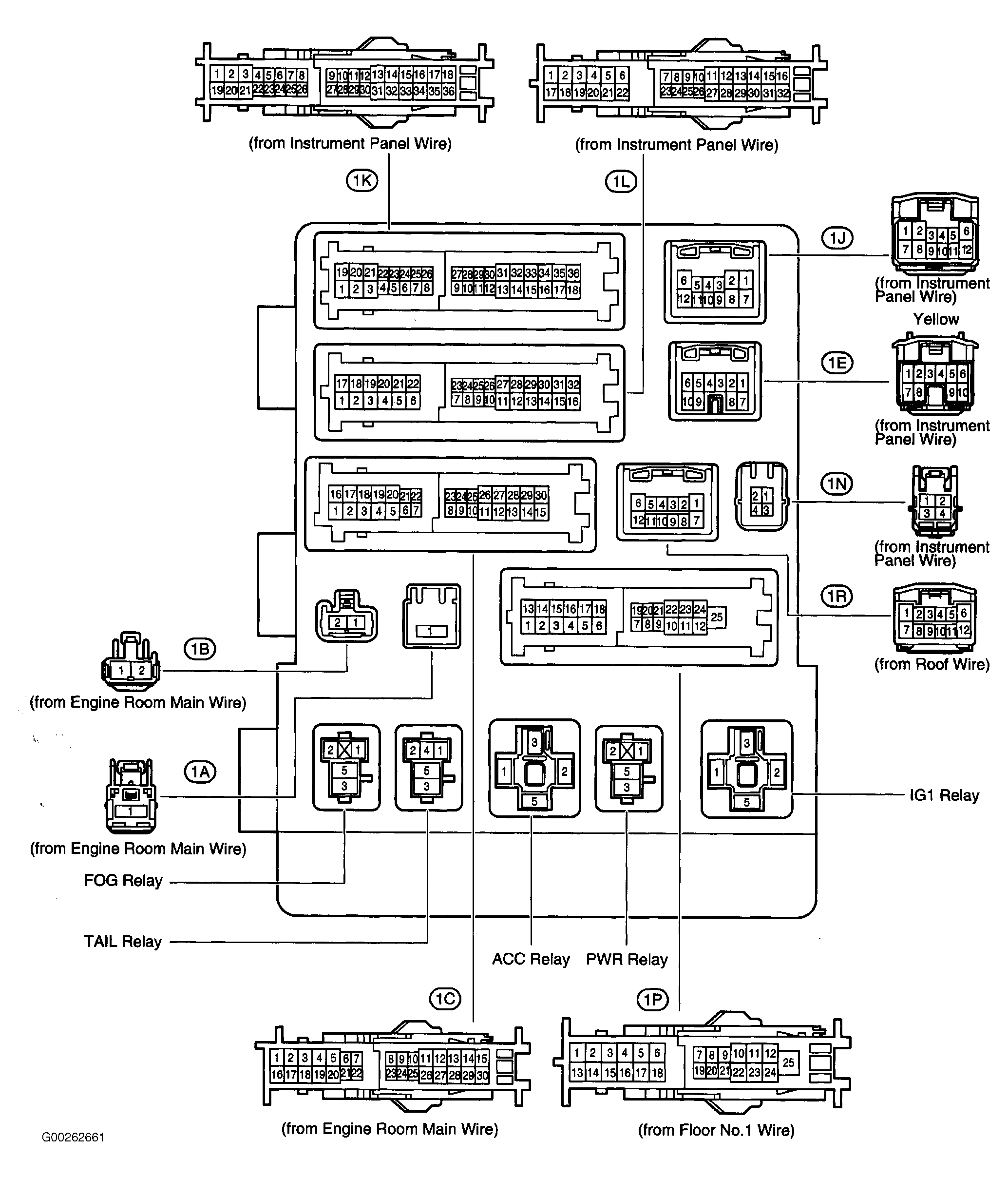

Fig 26: Driver Side J/B

DRIVER'S SIDE JUNCTION BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
Tail Relay
Fog Relay
IG1 Relay
PWR Relay
ACC Relay

Fig 27: Engine Compartment

Fig 28: Dash

Fig 29: Dash

Fig 30: Vehicle Overview

Fig 31: Vehicle Overview

Fig 32: Front Seats
