Home >> Toyota >> 2004 >> Sienna CE >> Repair and Diagnosis >> Electrical >> Starter >> Starting System >> Starter ASSY >> Components

Starter ASSY: Components

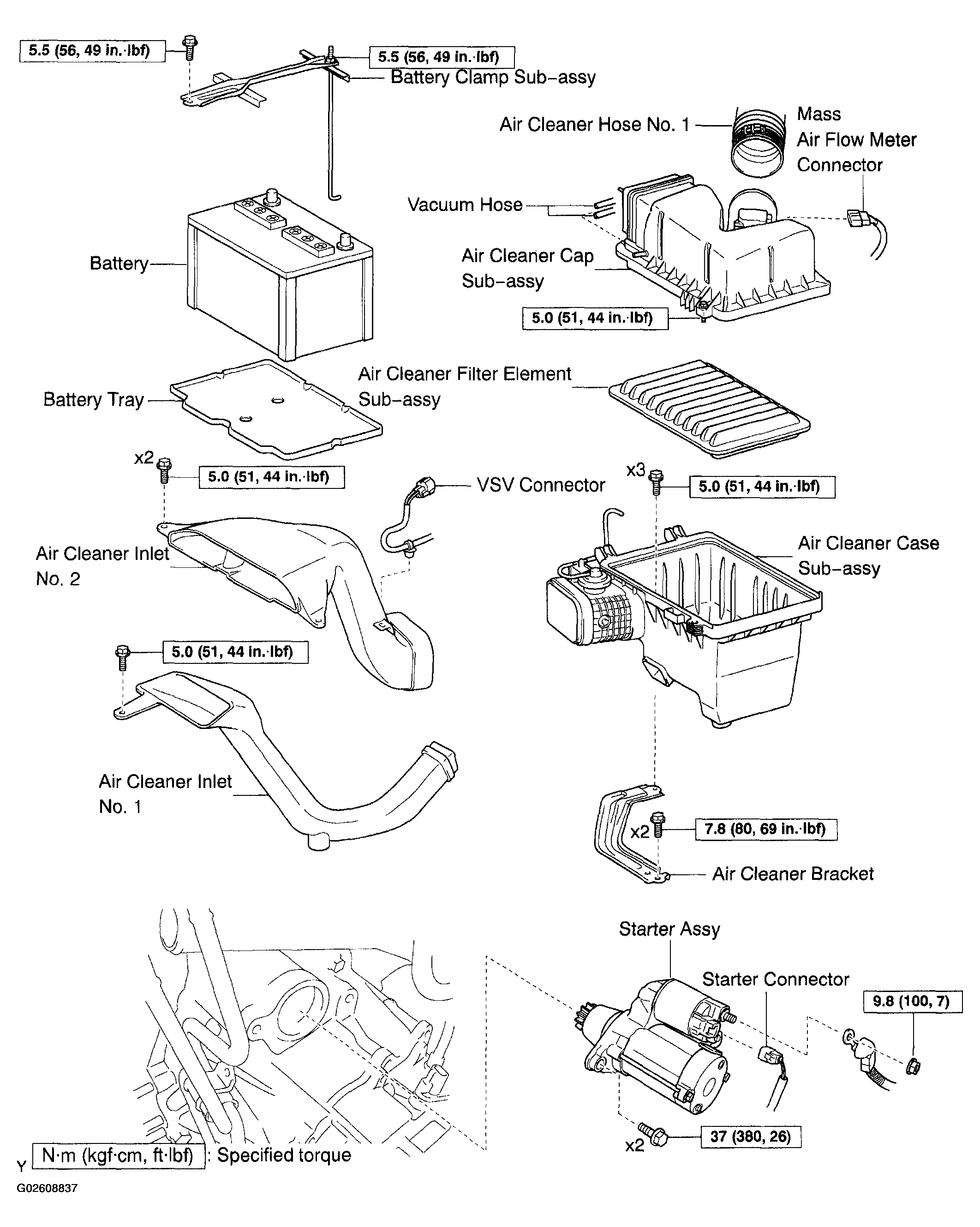

Fig 1: Identifying Air Cleaner Box & Starter Assy Components
G02608837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

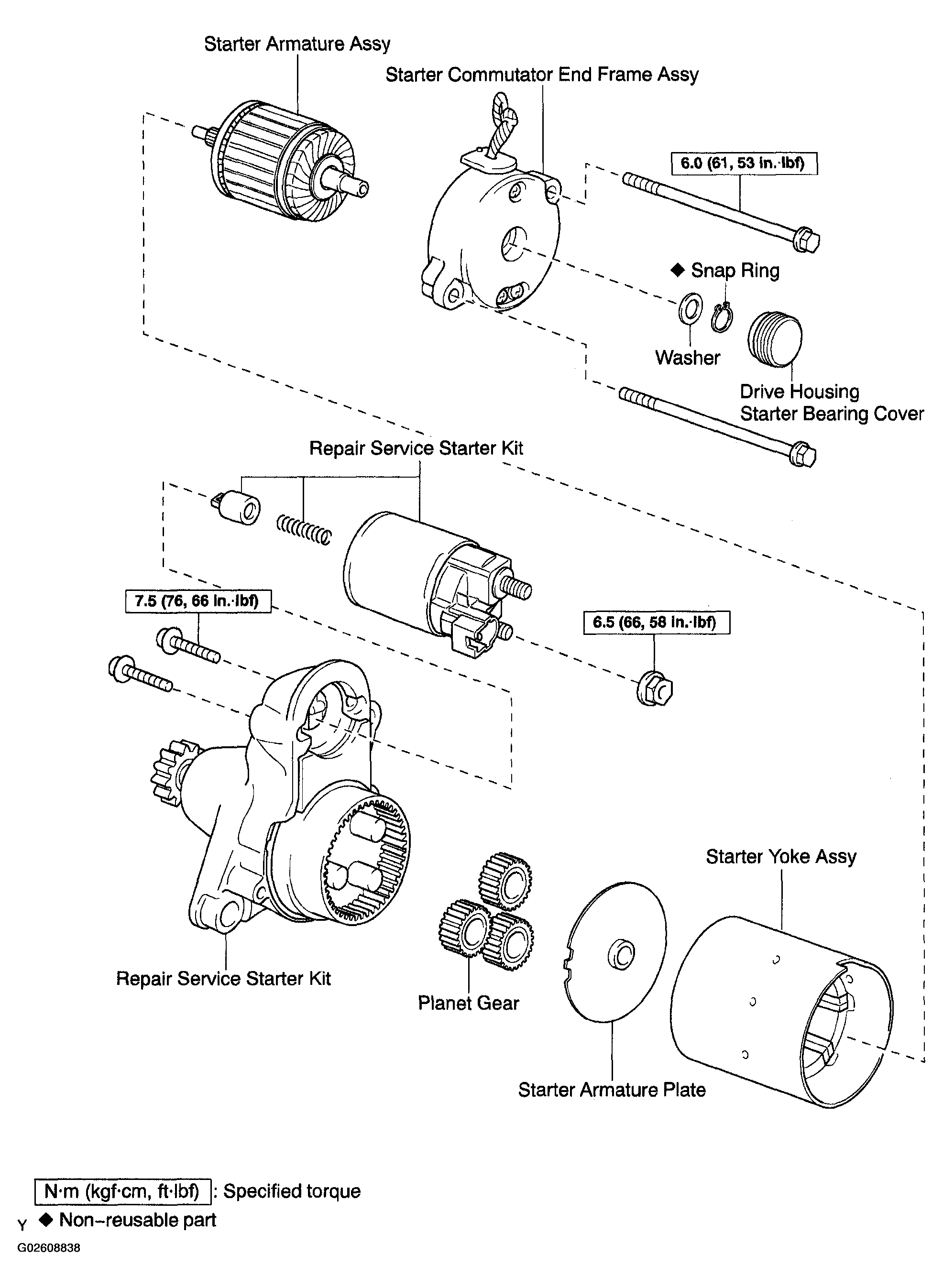

Fig 2: Identifying Starter Assy Components
G02608838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
