Fuel Injector Assembly: Components

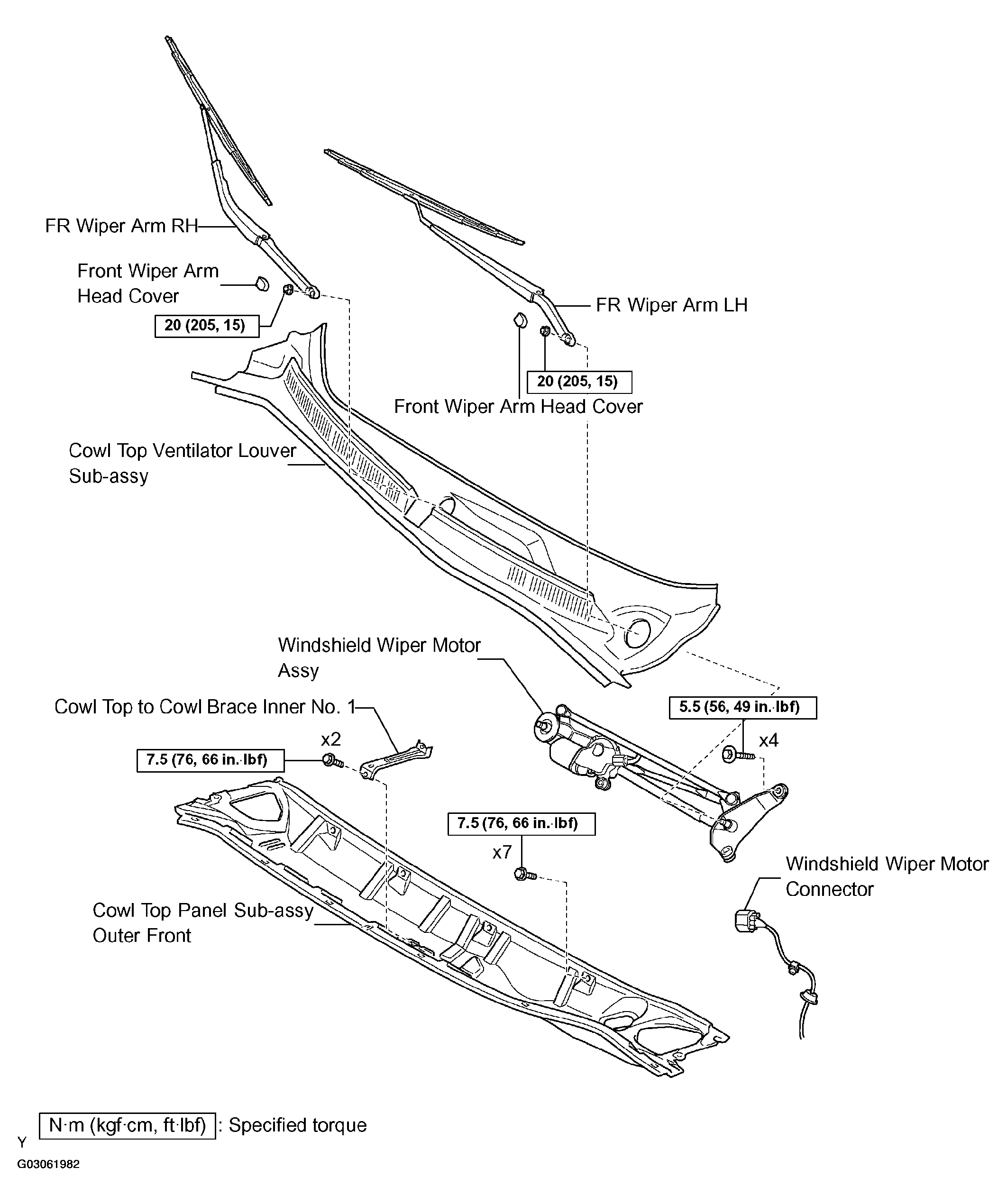

Fig 1: Exploded View Of Fuel Injector Assembly (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

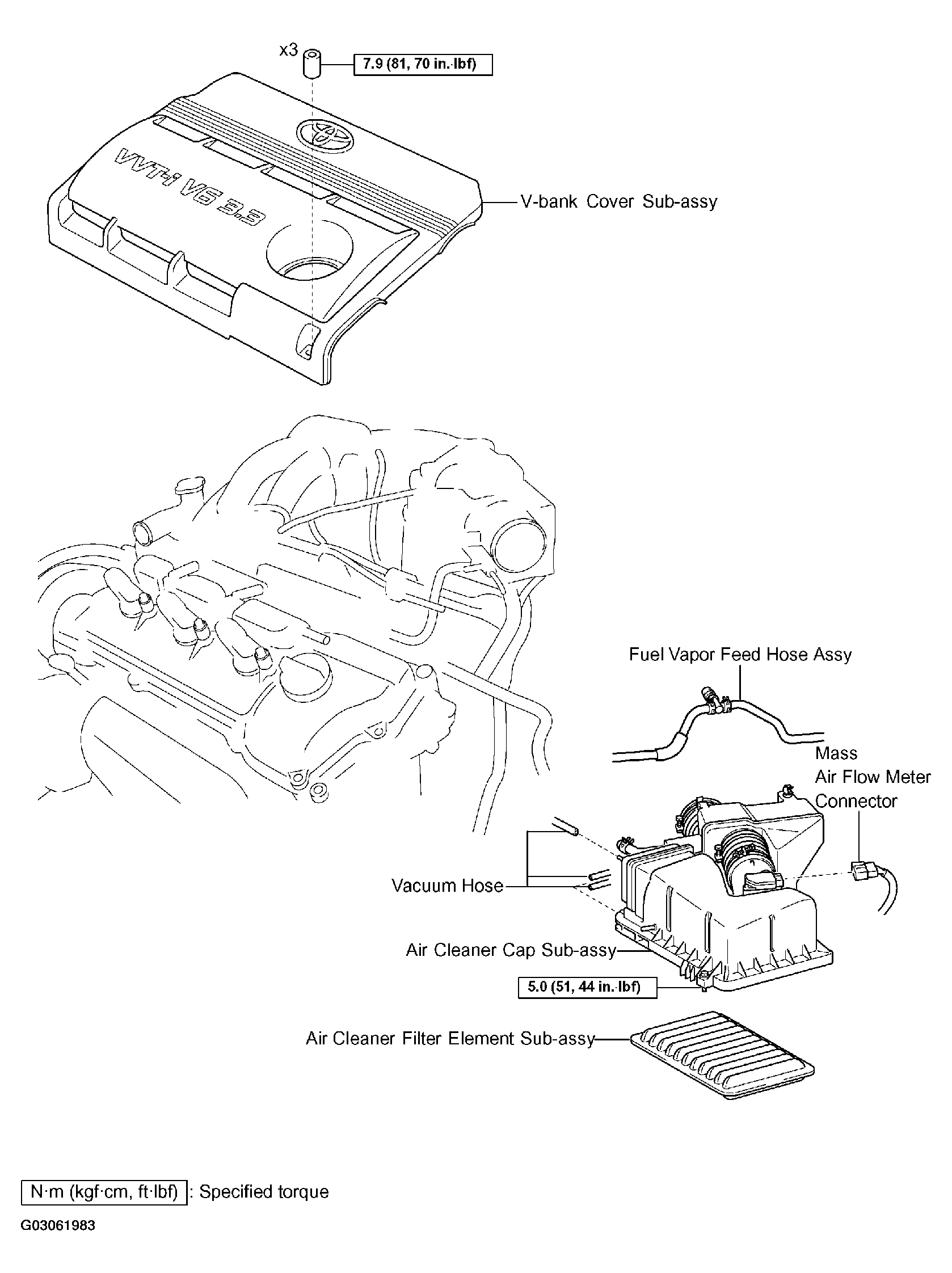

Fig 2: Exploded View Of Fuel Injector Assembly (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

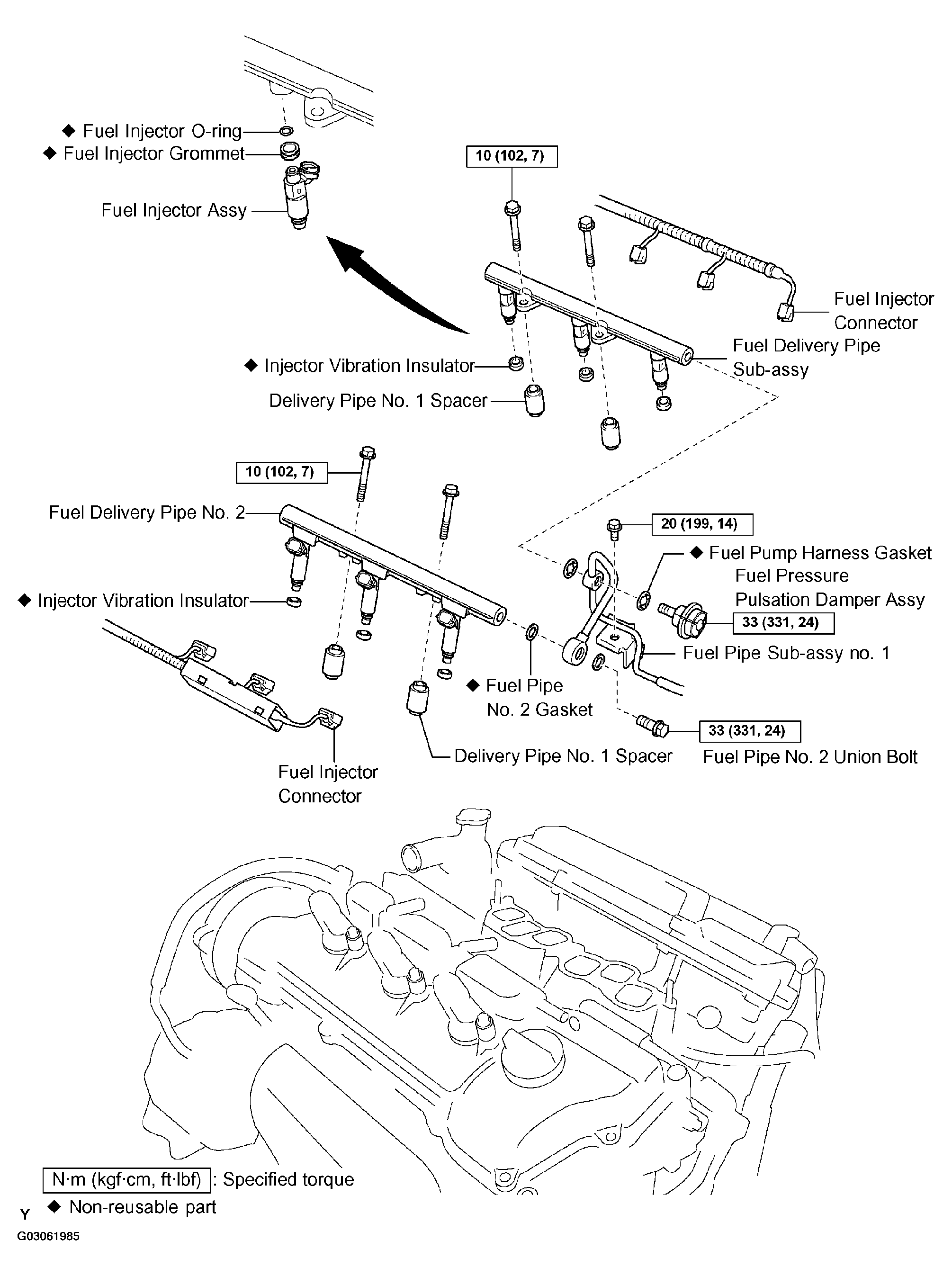

Fig 3: Exploded View Of Fuel Injector Assembly (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Exploded View Of Fuel Injector Assembly (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
