Home >> Toyota >> 2004 >> Sienna CE >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission Assembly >> Components

Automatic Transmission Assembly: Components

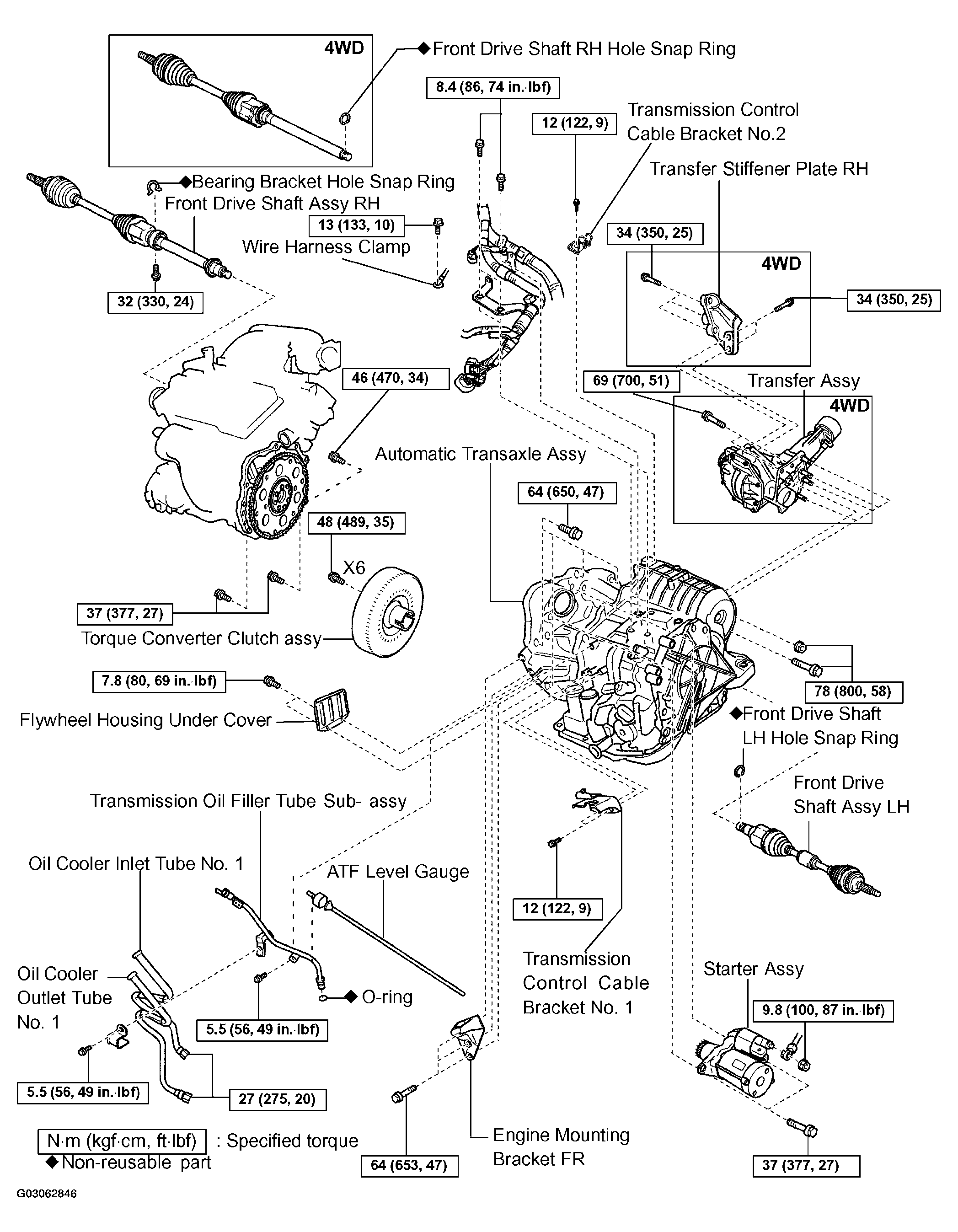

Fig 1: Locating Automatic Transaxle Assembly Components (U151E/U151F)
G03062846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
