Knock Sensor: Components

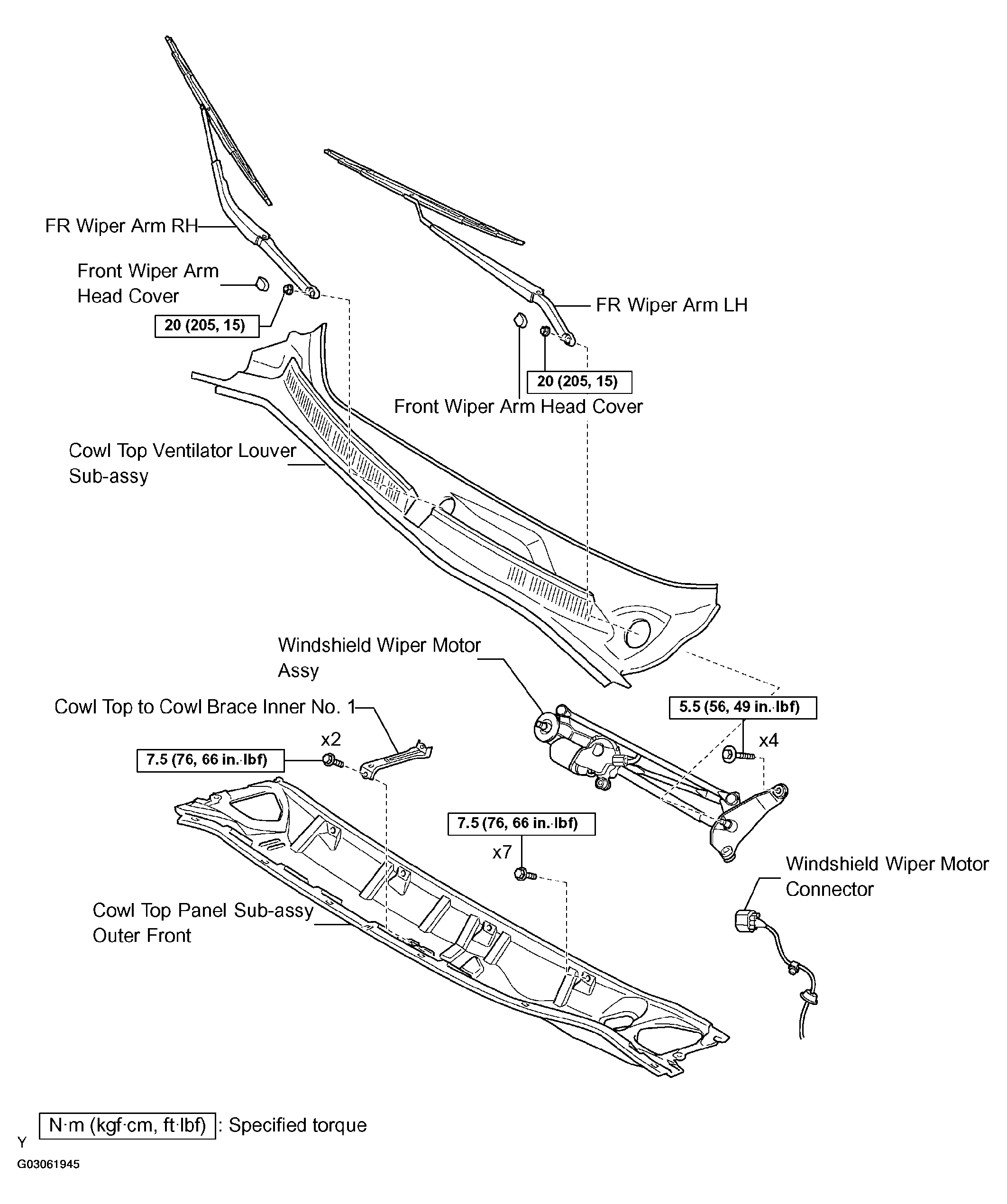

Fig 1: Identifying Components For Removal To Access Knock Sensors (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

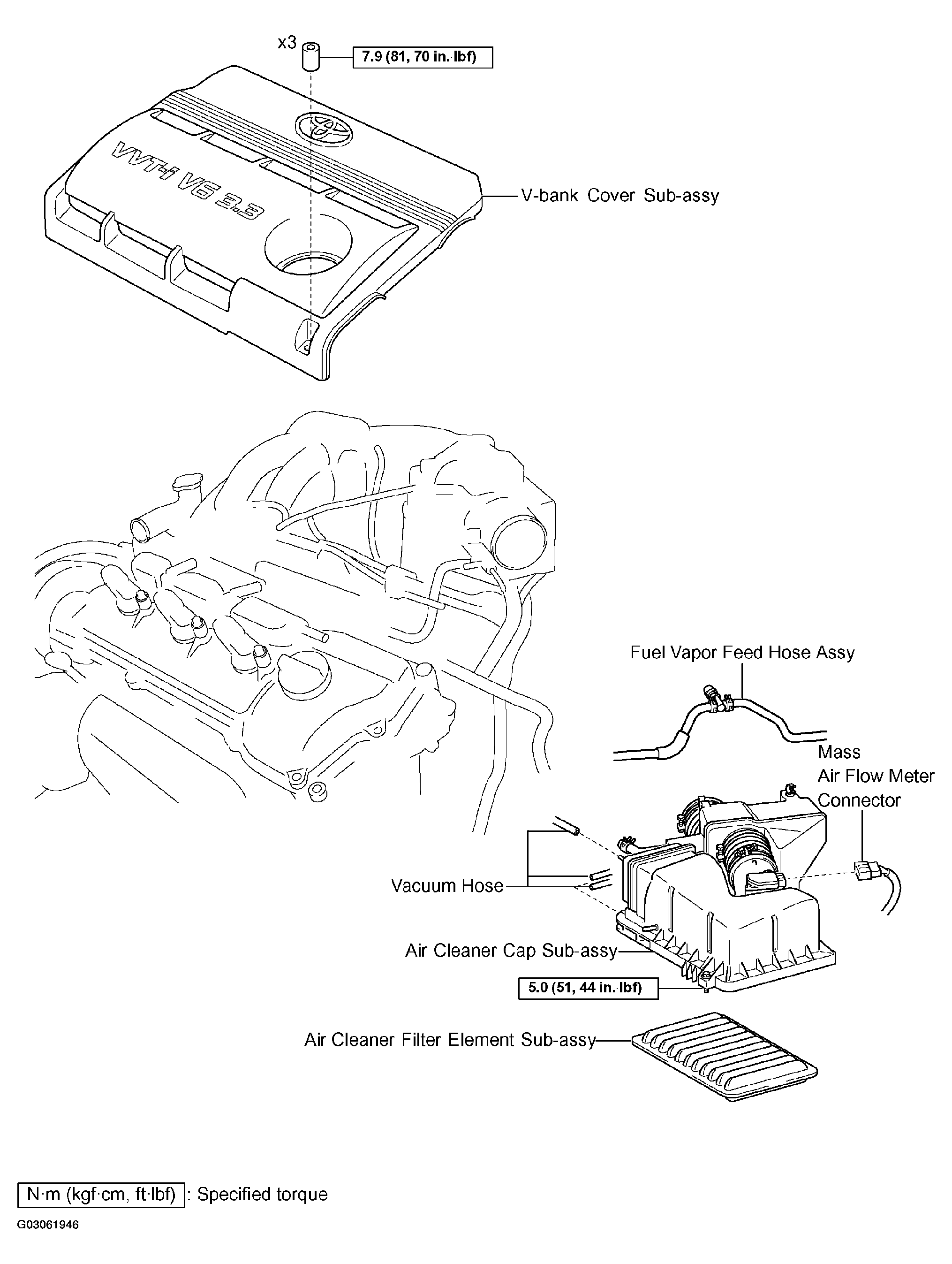

Fig 2: Identifying Components For Removal To Access Knock Sensors (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

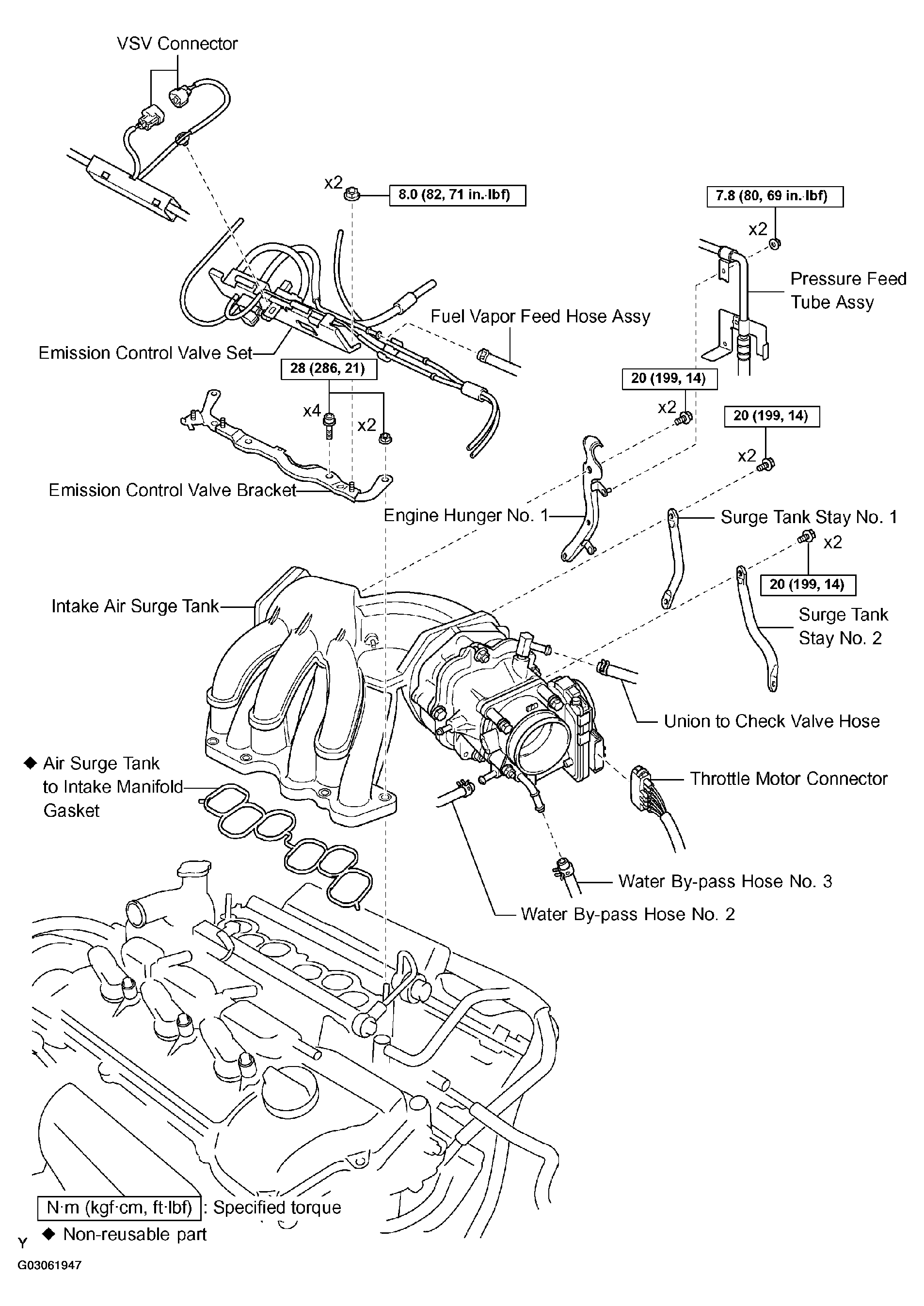

Fig 3: Identifying Components For Removal To Access Knock Sensors (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

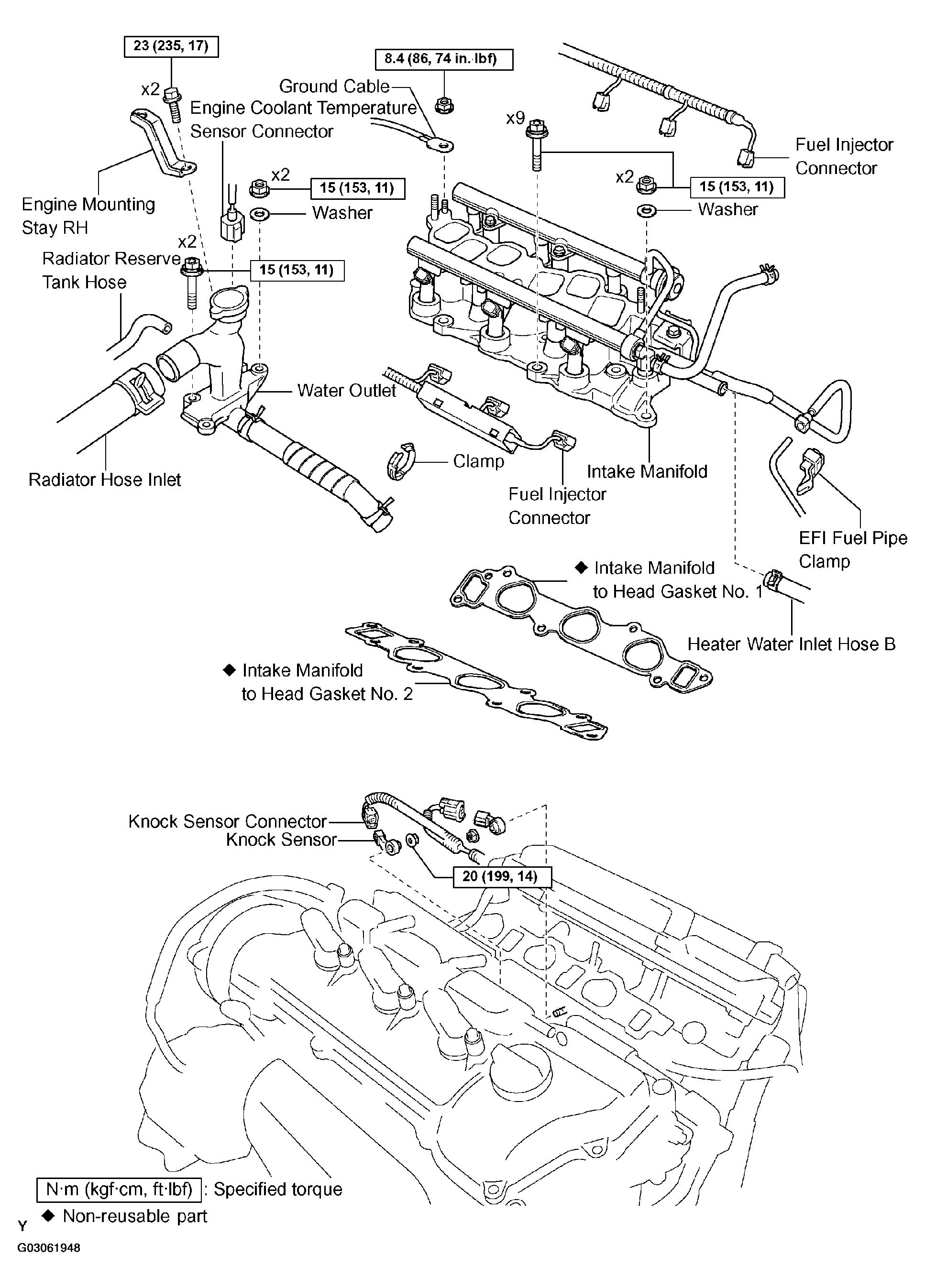

Fig 4: Identifying Components For Removal To Access Knock Sensors (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
