Back Window Glass: Installation

  1. Fix type, Slide type, Power slide type: CLEAN AND SHAPE CONTACT SURFACE OF BODY
    1. Using a knife, cut away any rough adhesive on the contact surface of the body to shape the surface.

      HINT:

      Leave as much of the adhesive on the body as possible.

    2. Clean the contact surface of the body with a piece of shop rag saturated with cleaner.

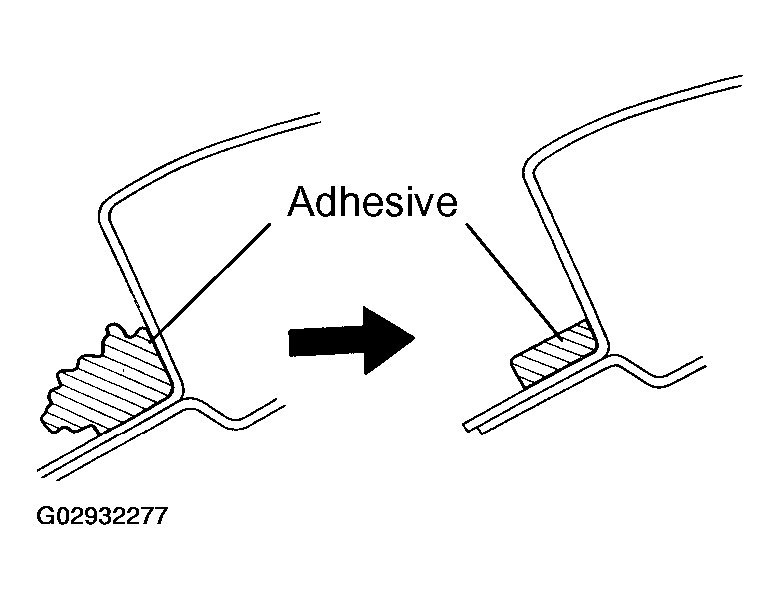

      Fig 1: Cutting Away Any Rough Adhesive On Contact Surface Of Body To Shape Surface
      G02932277Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Fix type, Slide type, Power slide type: POSITION GLASS
    1. Place the glass in the correct position.
    2. Check that the whole contact surface of the glass rim is perfectly even.
    3. Place reference marks on the glass and body.
    4. Remove the glass.
      Fig 2: Aligning Glass
      G02932278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

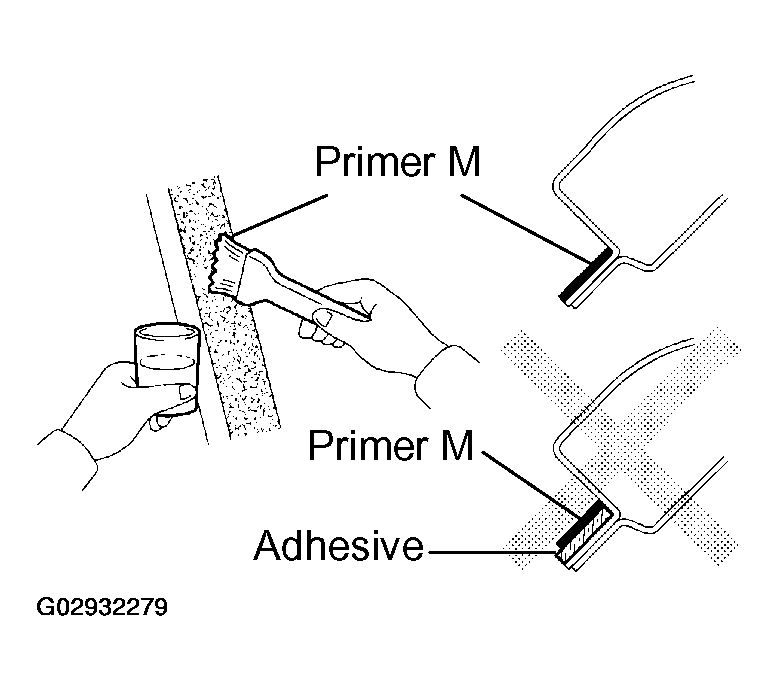

  3. Fix type, Slide type, Power slide type: COAT CONTACT SURFACE OF BODY WITH PRIMER M

    Using a brush, coat the exposed part of the body with Primer M.

    NOTE:
    • Allow the primer coating to dry for 3 minutes or more.
    • Do not apply too much Primer M.
    • Throw away any leftover Primer M.
    Fig 3: Coating Exposed Part Of Body With Primer M
    G02932279Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. Fixed type: COAT CONTACT SURFACE OF GLASS WITH PRIMER G

    Using a brush or sponge, coat the edge of the glass and the contact surface with Primer G as shown in the illustration.

    HINT:

    If the area other than that specified is coated by accident, wipe off the primer with a clean shop rag before it dries.

    NOTE:
    • Allow the primer coating for 3 minutes or more.
    • Throw away leftover Primer G.

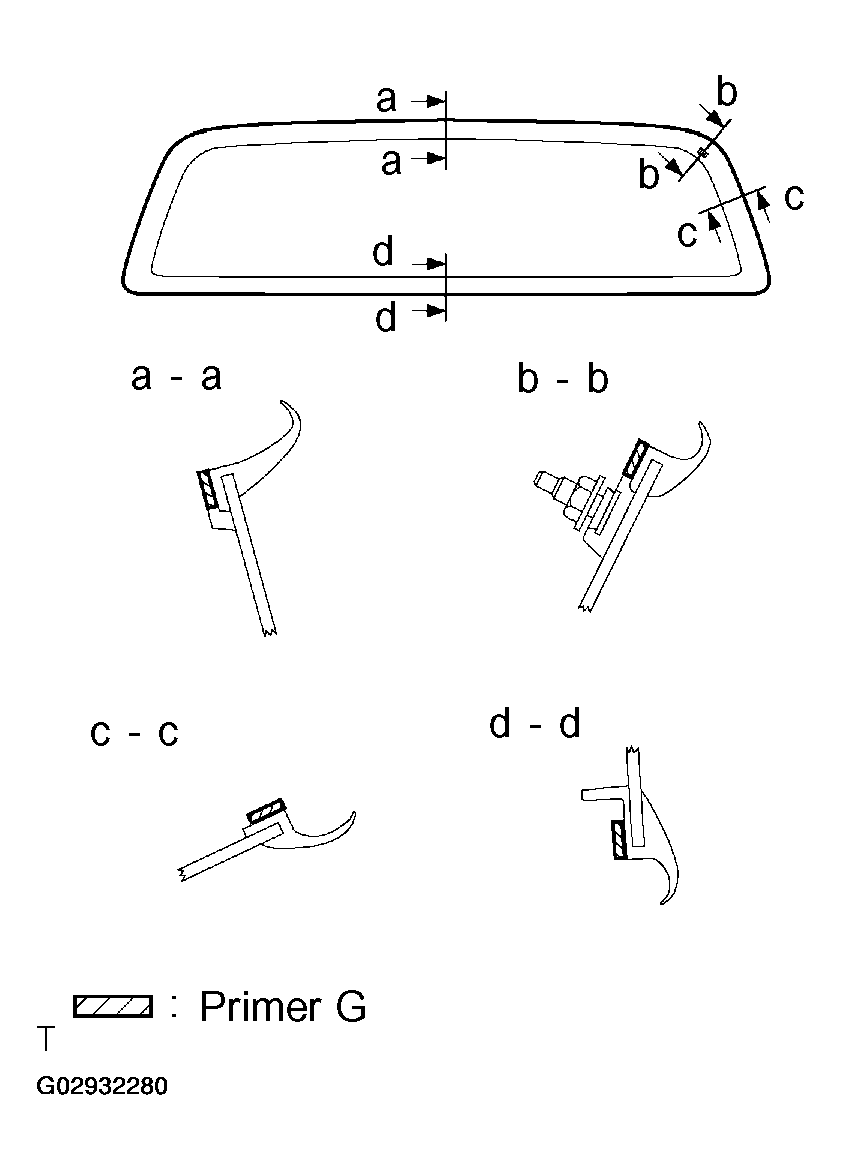

    Fig 4: Coating Contact Surface Of Glass with Primer G (Fixed Type)
    G02932280Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. Slide type, Power slide type: COAT CONTACT SURFACE OF GLASS WITH PRIMER G

    Using a brush or sponge, coat the edge of the glass and the contact surface with Primer G as shown in the illustration.

    HINT: If the area other than that specified is coated by accident, wipe off the primer with a clean shop rag before it dries.

    NOTE:
    • Allow the primer coating for 3 minutes or more.
    • Throw away leftover Primer G.

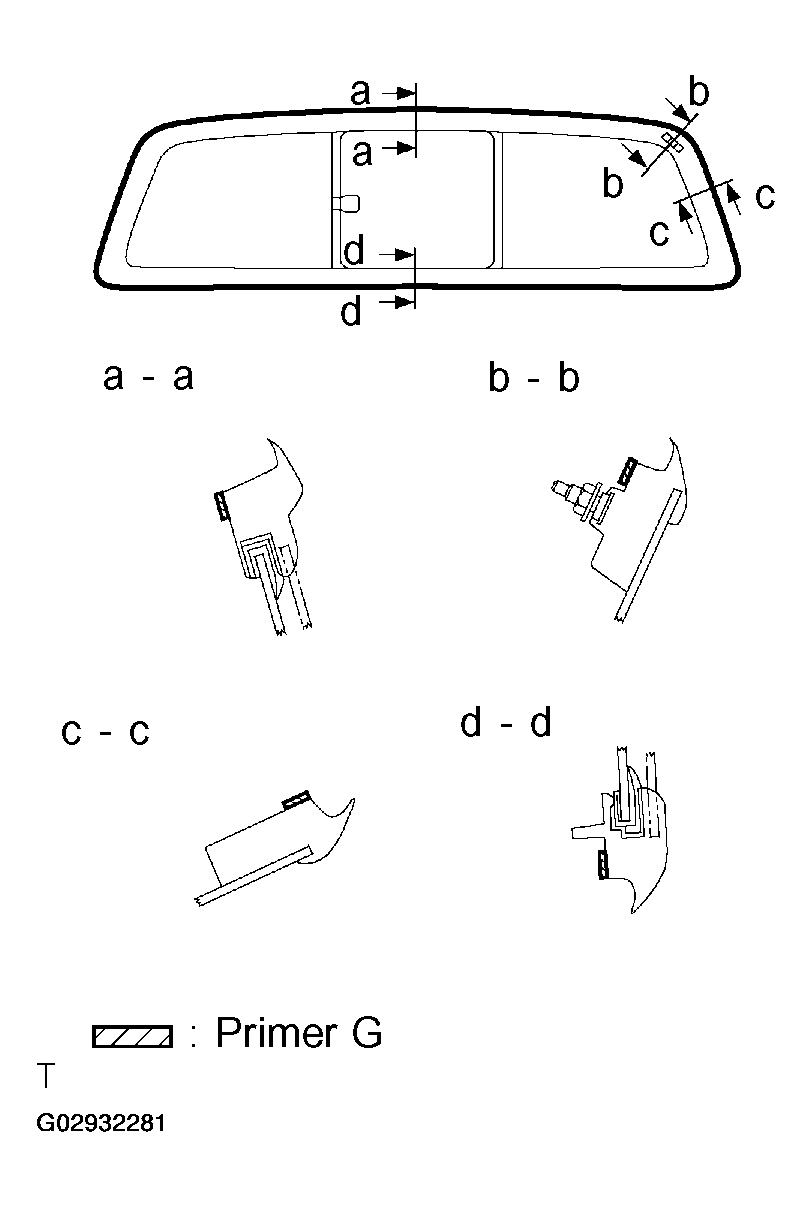

    Fig 5: Coating Contact Surface Of Glass with Primer (Slide Type, Power Slide Type)
    G02932281Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. Fixed type: APPLY ADHESIVE
    1. Cut off the tip of the cartridge nozzle.

      Adhesive: Part No. 08850-00801 or equivalent

      HINT:

      After cutting off the tip, use all adhesive within the time described in the table below.

      Usage timeframe:

      USAGE TIMEFRAME

      Temperature Usage Timeframe
      35°C (95°F) 15 minutes
      20°C (68°F) 100 minutes
      5°C (41°F) 8 hours
    2. Load the cartridge into a sealer gun.
    3. Coat the glass with adhesive, as shown in the illustration.

      Specification:

      SPECIFICATION

      Area Measurement
      A 8.0 mm (0.314 in.)
      B 12.0 mm (0.472 in.)

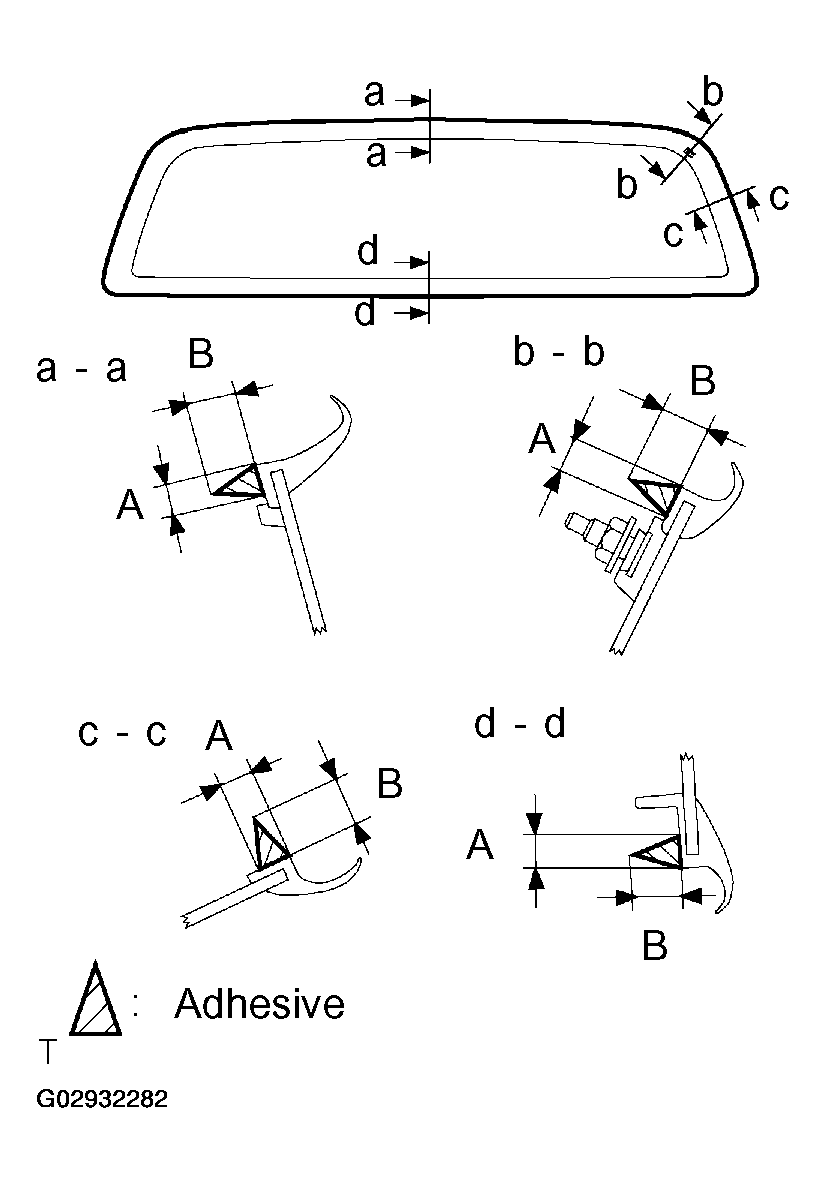

      Fig 6: Coating Glass with Adhesive (Fixed Type)
      G02932282Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

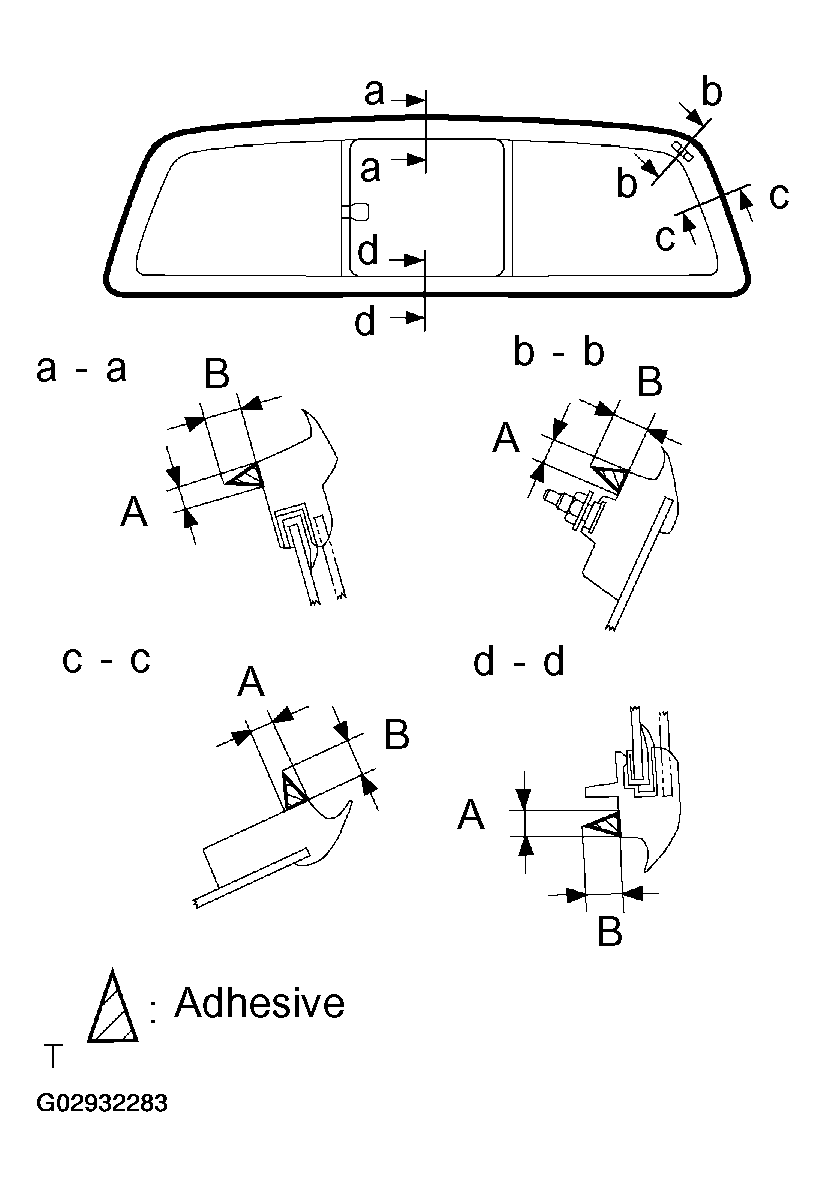

  7. Slide type, Power slide type: APPLY ADHESIVE
    1. Cut off the tip of the cartridge nozzle.

      Part No. 08850-00801 or equivalent

      HINT:

      After cutting off the tip, use all adhesive within the time described in the table below.

      Usage timeframe:

      USAGE TIMEFRAME

      Temperature Usage Timeframe
      35°C (95°F) 15 minutes
      20°C (68°F) 100 minutes
      5°C (41°F) 8 hours
    2. Load the cartridge into a sealer gun.
    3. Coat the glass with adhesive, as shown in the illustration.

      Specification:

      SPECIFICATION

      Area Measurement
      A 8.0 mm (0.314 in.)
      B 12.0 mm (0.472 in.)
      Fig 7: Coating Glass Adhesive (Slide Type, Power Slide Type)
      G02932283Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. Fix type, Slide type, Power slide type: INSTALL BACK WINDOW GLASS
    1. Position the glass so that the reference marks are aligned, and press it in gently along the rim.
    2. Using a spatula, apply adhesive on the glass rim.
    3. Use a scraper to remove any excess or protruding adhesive.

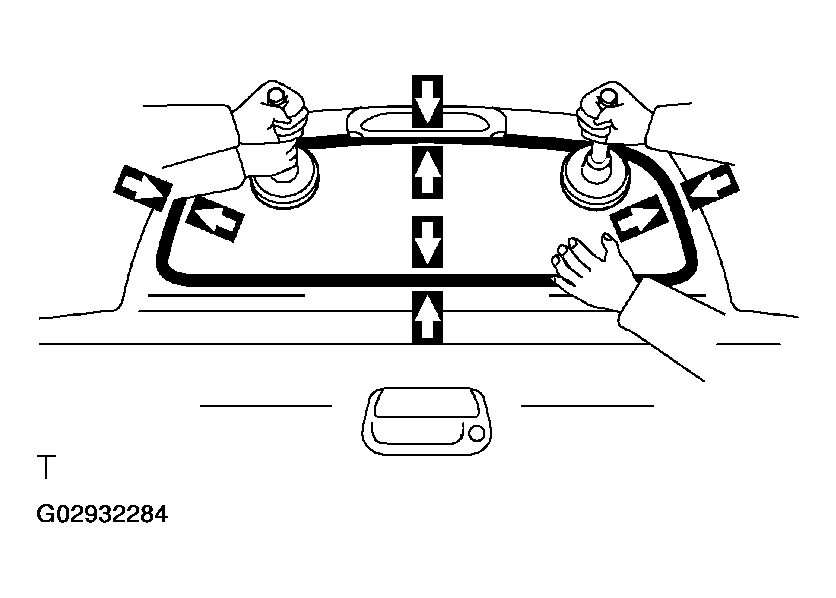

      Fig 8: Positioning Glass
      G02932284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

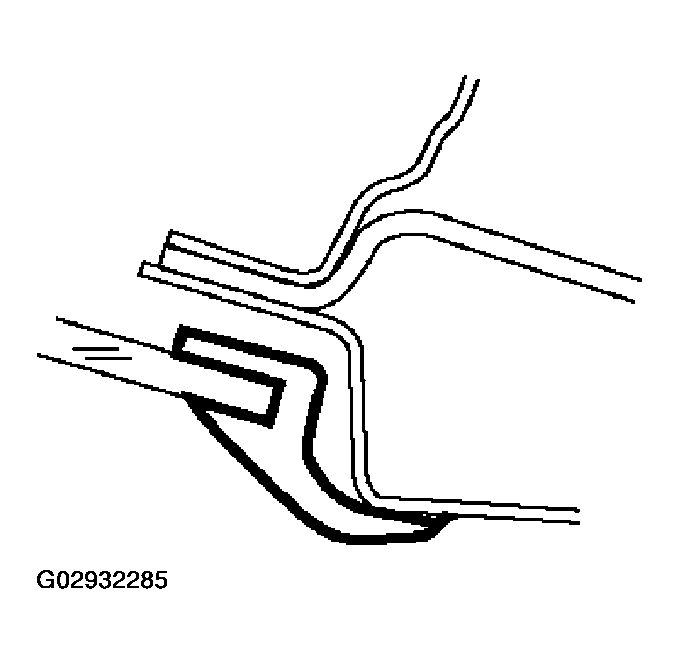

      HINT:

      Confirm that the moulding is attached to the body panel as shown in the illustration.

    4. Hold the back window glass in place securely with a protective tape or equivalent until the adhesive hardens.
      NOTE: Take care not to drive the vehicle during the time described in the table below.

      Usage timeframe:

      USAGE TIMEFRAME

      Temperature Usage Timeframe
      35 °C (95 °F) 1.5 hours
      20 °C (68 °F) 5 hours
      5 °C (41 °F) 24 hours
      Fig 9: Confirming Moulding Placed Securely With Protective Tape
      G02932285Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSPECT FOR LEAK AND REPAIR
    NOTE: Conduct a leak test after the adhesive has completely hardened.

    Adhesive: Part No. 08833-00030 or equivalent

  10. Power vertical type: INSTALL BACK WINDOW MOULDING
    1. Using a hand riveter or an air riveter, install the rivets.

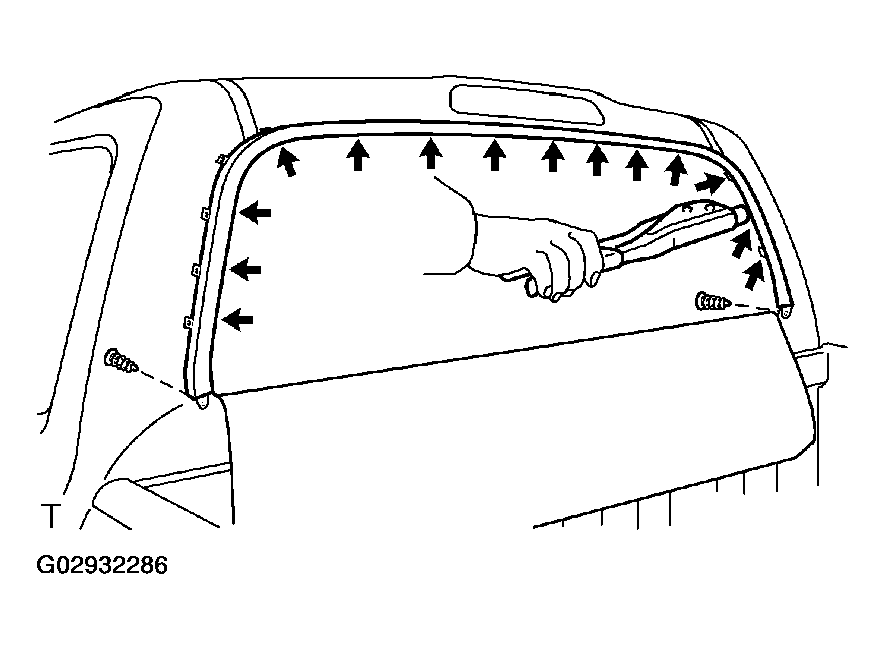

      Fig 10: Installing Rivets
      G02932286Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: Do not prize the riveter. The riveter will be damaged and the mandrel will bend.
      • Do not tilt the riveter when fastening the rivet to the item(s) as this will cause the rivet to be loose.
      • Do not have any space between the rivet head and the item(s). The rivet head must be completely flat against the item(s).

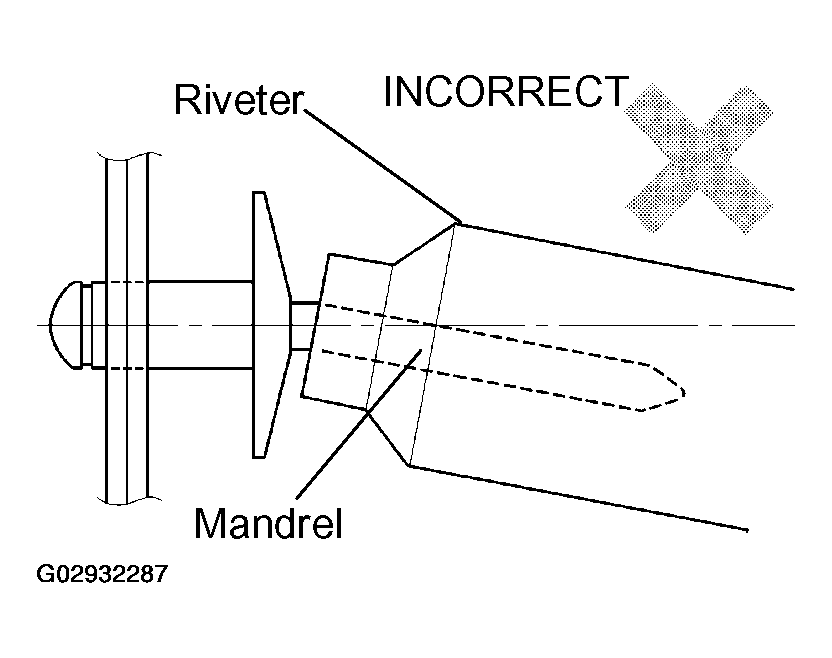

        Fig 11: Rivet Cautions (1 Of 3)
        G02932287Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

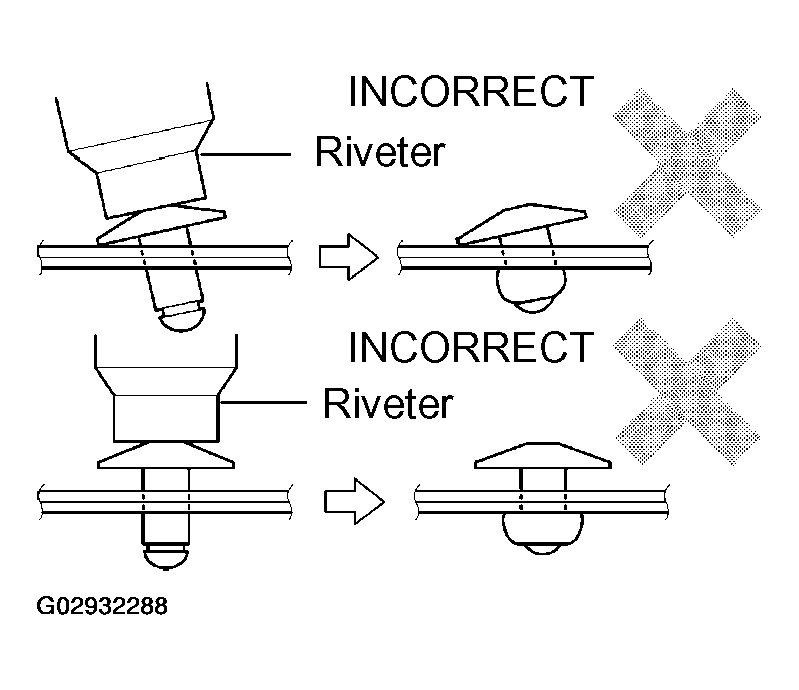

        Fig 12: Rivet Cautions (2 Of 3)
        G02932288Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Do not have any space between the items. Firmly hold together the two items while installing the rivet.

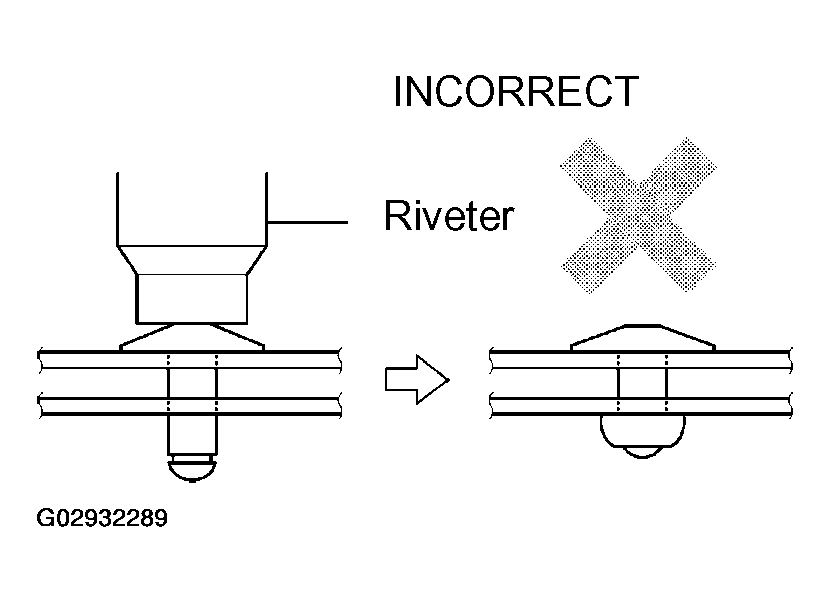

        Fig 13: Rivet Cautions (3 Of 3)
        G02932289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 2 clips.
    3. Install the bracket LH and RH with the 8 bolts.

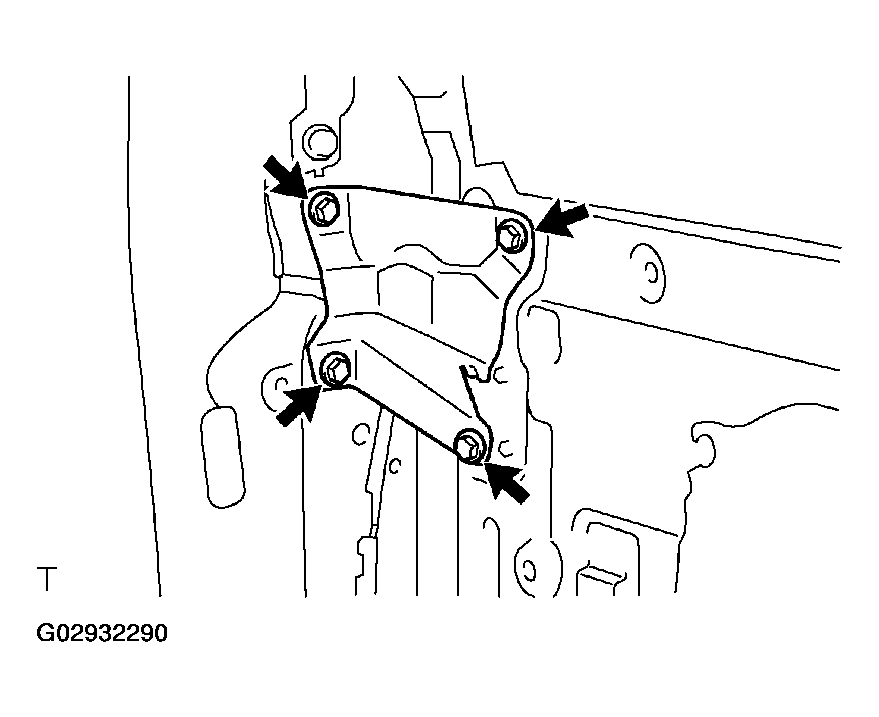

      Fig 14: Installing Brackets
      G02932290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. Power vertical type: INSTALL BACK DOOR WINDOW REGULATOR ASSEMBLY
    1. Apply MP grease to the sliding and rotating parts of the window regulator assembly.
      NOTE: Do not apply grease to the spring of the window regulator assembly.

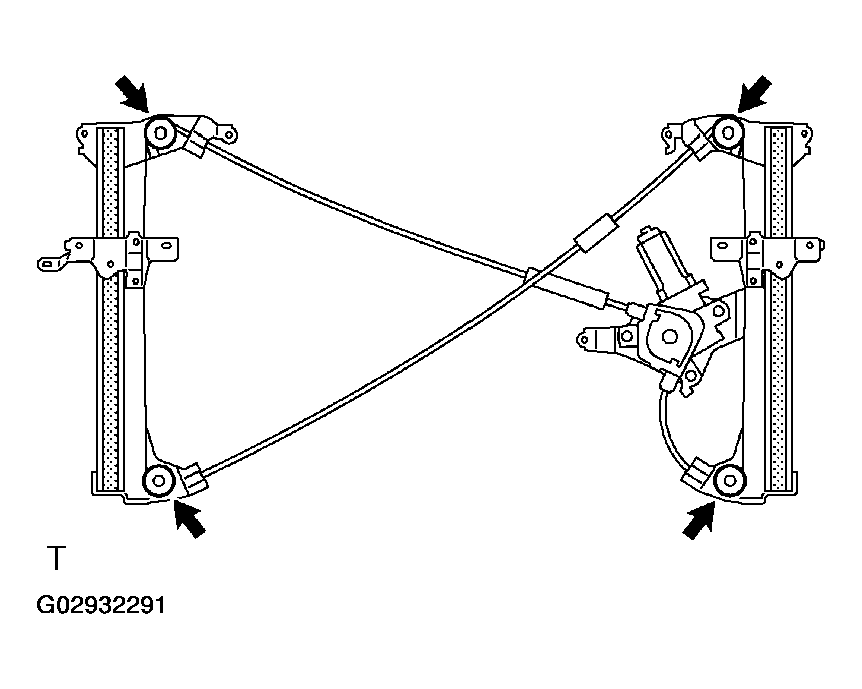

      Fig 15: Applying MP Grease To Window Regulator Assembly
      G02932291Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

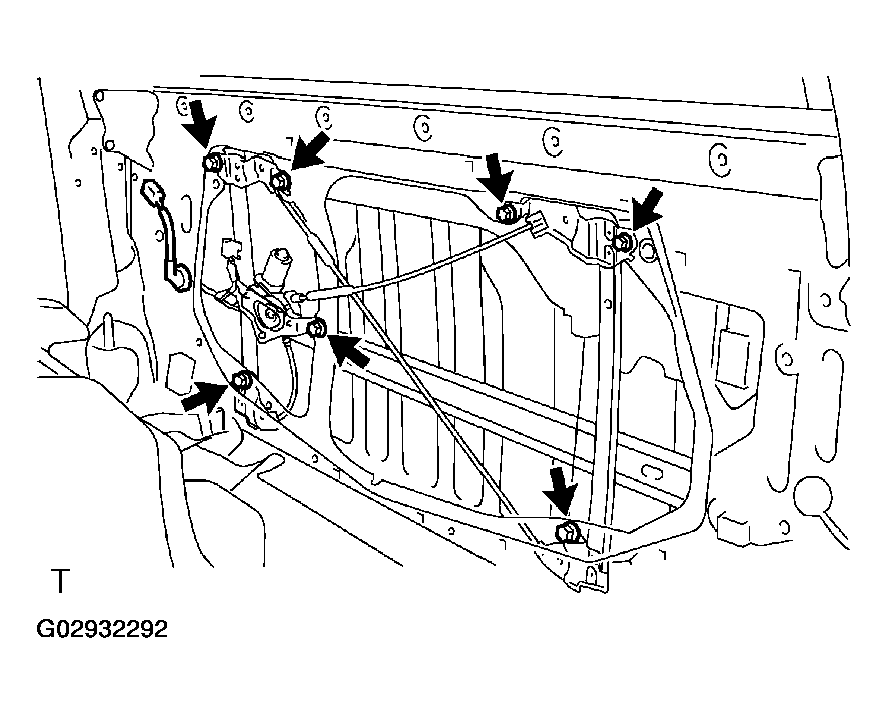

    2. Install the window regulator assembly with the 7 bolts.

      Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

    3. Connect the window regulator connector.
      NOTE: Be careful not to drop and deform the window regulator assembly.
      Fig 16: Installing Window Regulator Assembly
      G02932292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. Power vertical type: INSTALL BACK WINDOW GLASS
    1. Install the back window glass to the window regulator assembly with the 4 bolts..

      Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

      NOTE: Do not damage the back window glass sub-assy.

      HINT:

      Insert a shop rag inside the door panel to prevent the back window glass from being scratched.

    2. Connect the defogger connector.

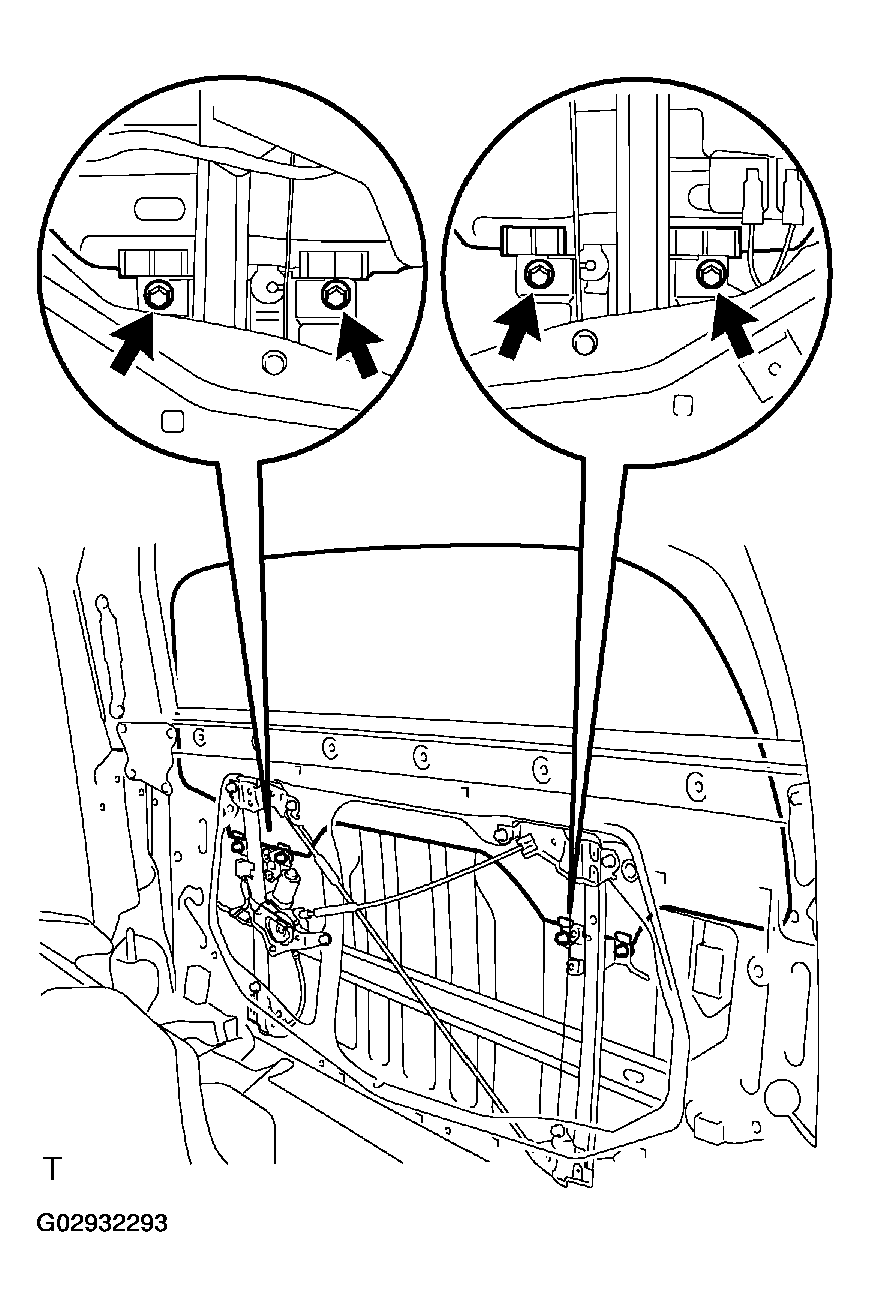

      Fig 17: Installing Back Window Glass To Window Regulator Assembly
      G02932293Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. Power vertical type: INSTALL WEATHERSTRIP INNER

    Install the back window glass to the window regulator assembly.

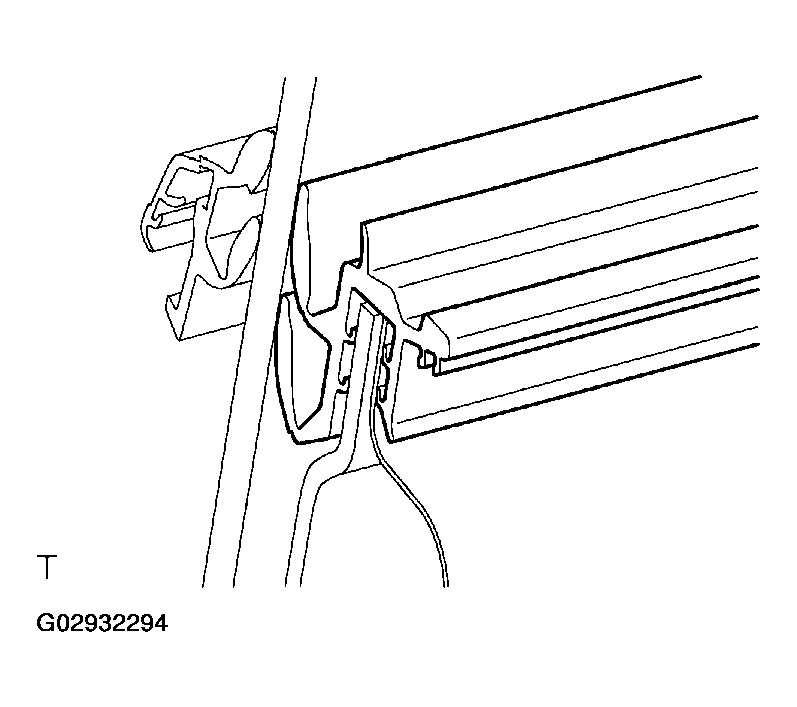

    Fig 18: Installing Weatherstrip Inner
    G02932294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. Power vertical type: INSTALL WEATHERSTRIP OUTER

    Install the weatherstrip as shown in the illustration.

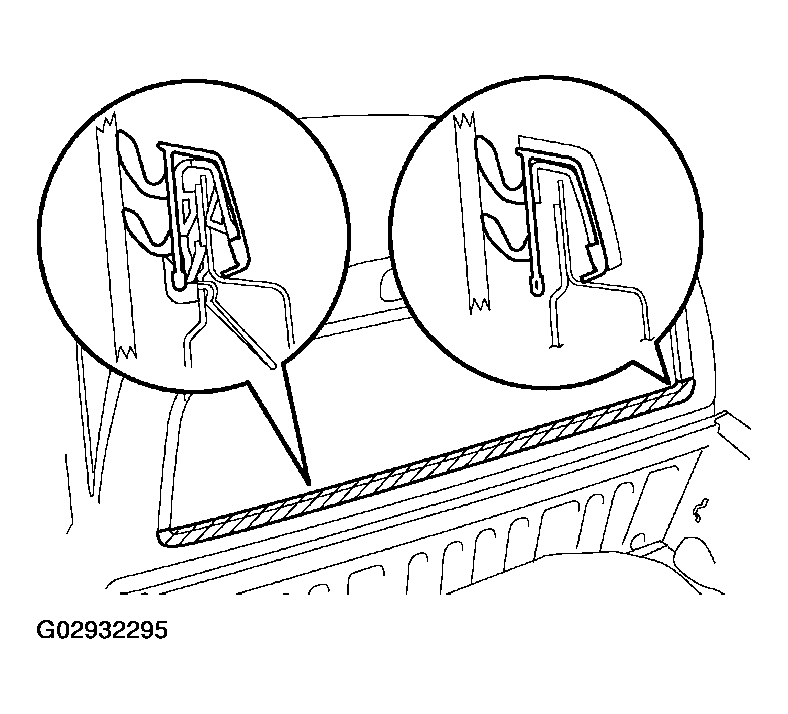

    Fig 19: Installing Weatherstrip Outer
    G02932295Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

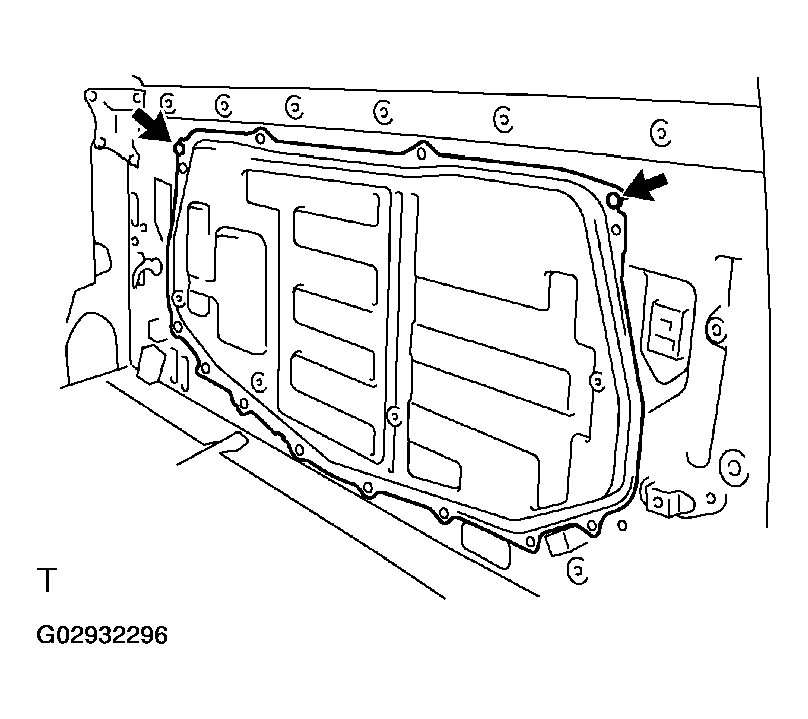

  15. Power vertical type: INSTALL SERVICE HOLE COVER
    1. Install the cover with the 2 clips.
      NOTE: Be careful not to drop and deform the cover as this may cause deformation.
    2. Install the cover to the body.
      Fig 20: Installing Cover With Clips
      G02932296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

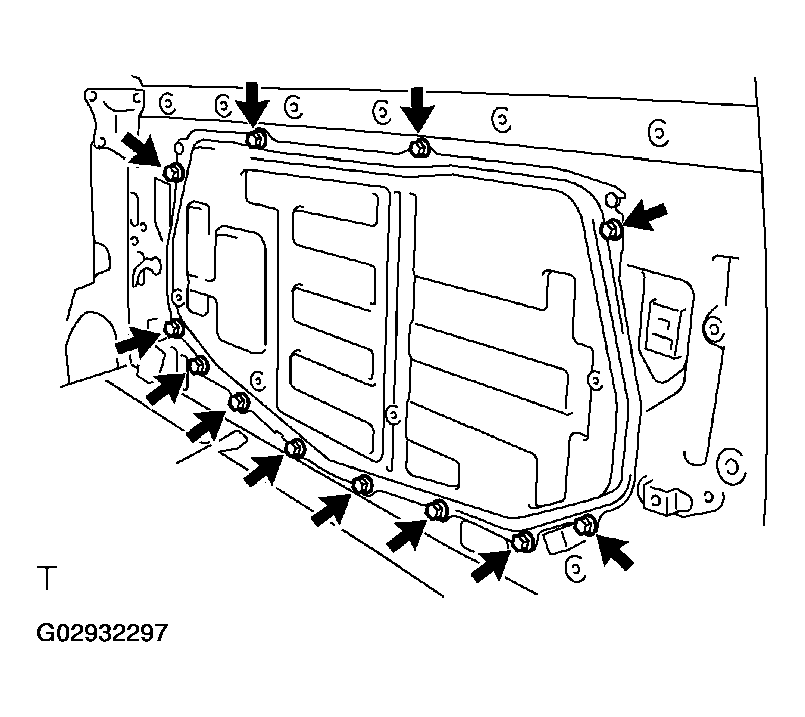

    3. Install the 12 bolts.

      Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

      Fig 21: Installing Bolts
      G02932297Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. Power slide type: INSTALL BACK WINDOW REGULATOR ASSEMBLY
    1. Install the back window regulator assembly with the 7 nuts.

      Torque: 5.5 N.m (54 kgf.cm, 49 in.lbf)

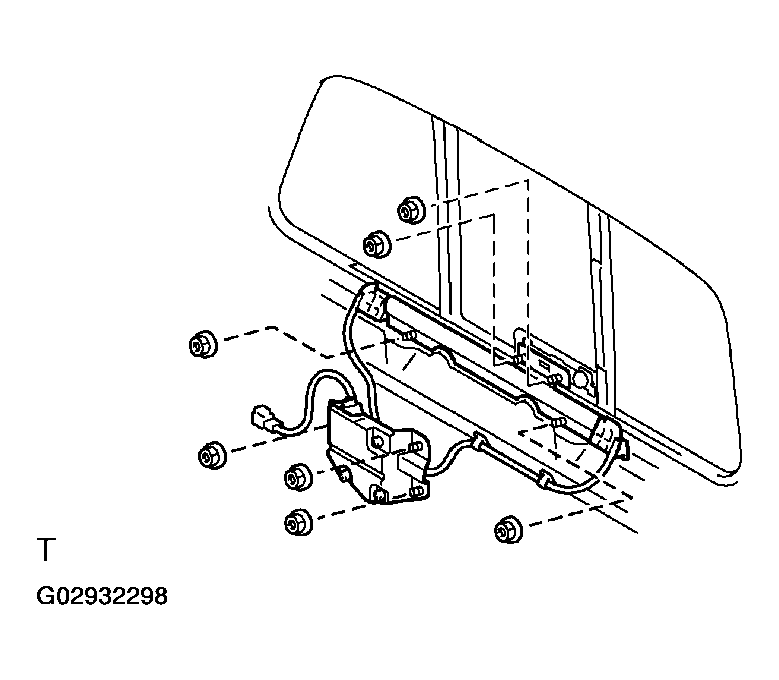

      Fig 22: Installing Back Window Regulator Assembly
      G02932298Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

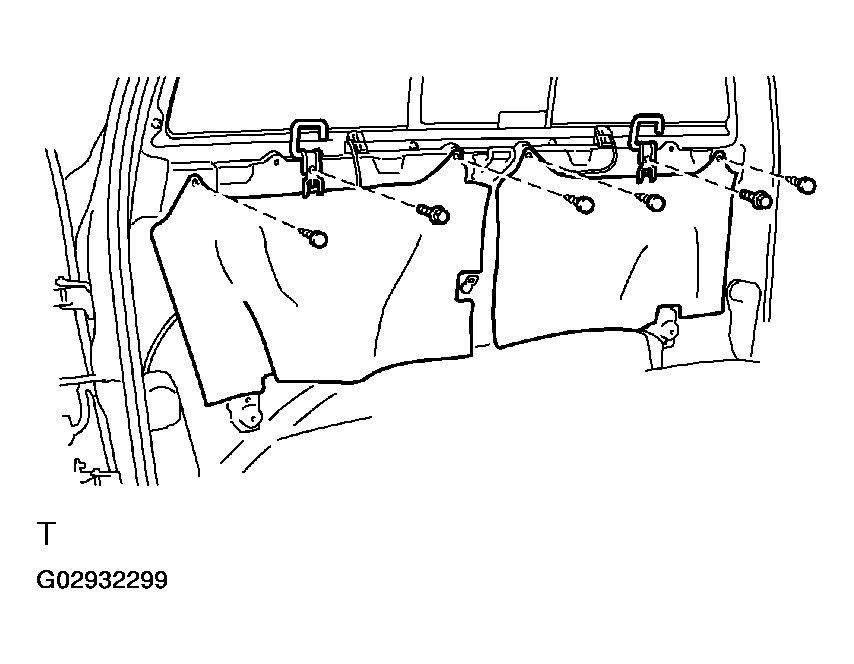

    2. Install the back door glass channel cover.
    3. Install the 4 clips and 2 back panel silencer pads.
      4. Fig 23: Installing Back Panel Silencer Pads
      G02932299Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the tether anchor brackets with the 2 bolts.

      Torque: 20 N.m (200 kgf.cm, 15 ft.lbf)

  17. Standard cab:Access cab (Standard body type): Access cab (Wide body type): INSTALL REAR PART OF ROOF HEADLINING
    1. Standard cab: Install the rear part of the roof headlining with the 2 clips.
    2. Access cab: Install the rear part of the roof headlining with the 3 clips.
  18. Double cab: INSTALL QUARTER TRIMS UPPER (See  INSTALLATION  )
  19. Double cab: INSTALL QUARTER TRIMS LOWER (See  INSTALLATION  )
  20. INSTALL QUARTER TRIMS (See  INSTALLATION  )
  21. Standard cab: INSTALL BACK PANEL UPPER GARNISH (See  INSTALLATION  )
  22. Standard cab: INSTALL COAT HOOK (See  INSTALLATION  )
  23. INSTALL ROOM LIGHT (See  INSTALLATION  )
  24. Access cab (Standard body type): Access cab (Wide body type): INSTALL ROOF SIDE RAIL GARNISHES (See  INSTALLATION  )
  25. Standard cab: INSTALL FRONT PILLAR GARNISHES (See  INSTALLATION  )
  26. INSTALL ASSIST GRIPS (See  INSTALLATION  )
  27. Double cab: INSTALL BACK PANEL TRIM (See  INSTALLATION  )
  28. Access cab (Standard body type), Access cab (Wide body type): INSTALL ACCESS DOOR SCUFF PLATES (See  INSTALLATION  )
  29. Standard cab: INSTALL FRONT DOOR SCUFF PLATES (See  INSTALLATION  )
  30. Access cab (Standard body type), Access cab (Wide body type): INSTALL REAR SEAT (See  INSTALLATION  )
  31. Double cab: UNFOLD REAR SEAT
    CAUTION: When returning the seat, make sure the seat is securely locked by pushing forward and rearward on the top of the seatback or by trying to pull up the edge of the bottom cushion. Failure to do so will cause the seat belt from operating improperly.
