Front Brake Speed Sensor: Removal

Torque: 113 N.m (1,150 kgf.cm, 83 ft.lbf)

1. Remove the clips and 3 clamp bolts holding the sensor harness from the frame, upper arm and steering knuckle.

   Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

2. Remove the bolt and speed sensor from the steering knuckle.

   Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

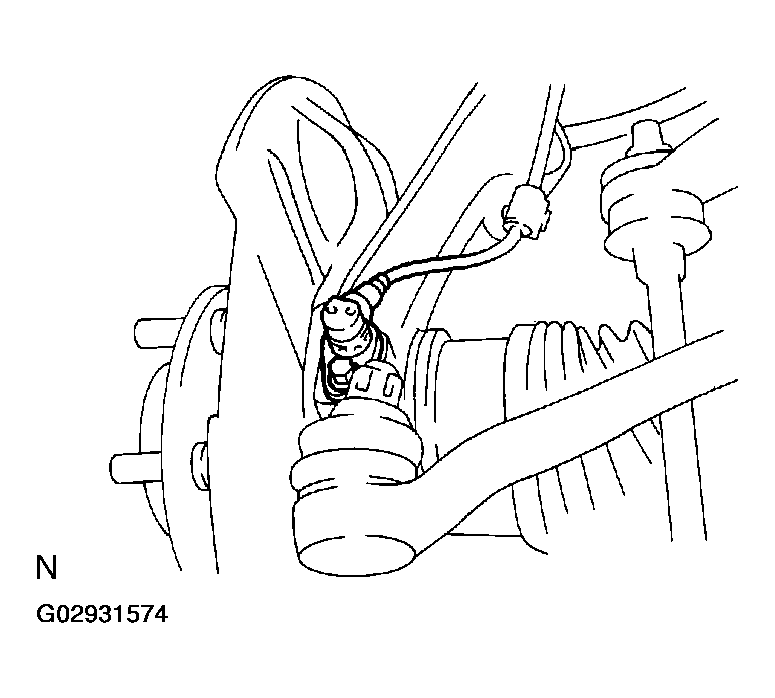

   Fig 1: Identifying Front Speed Sensor

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
