Accessory Power Socket: Inspection

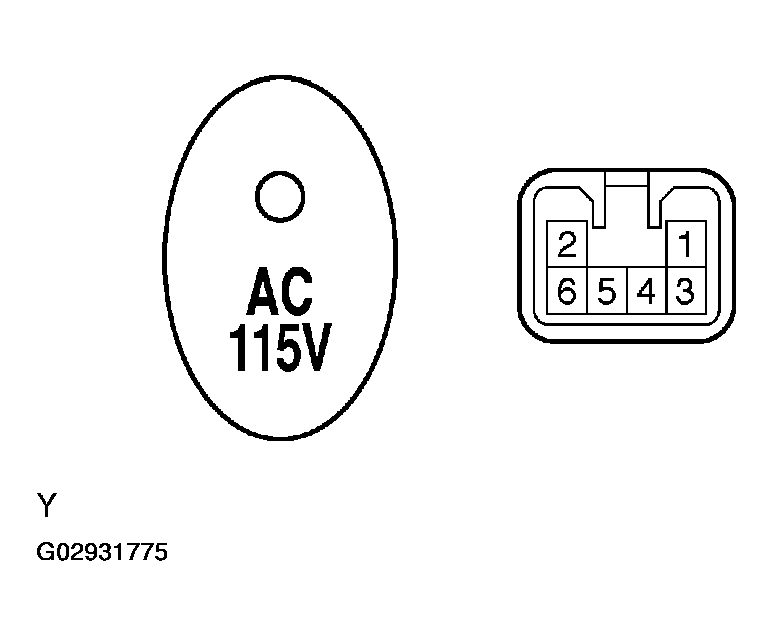

- Double cab (115 V):INSPECT MAIN SWITCH CONTINUITY TESTER CONNECTION SPECIFIED CONDITION
Switch Position Tester Connection Specified Condition ON 3 - 6 Continuity OFF 3 - 6 No continuity If the continuity is not as specified, replace the switch.

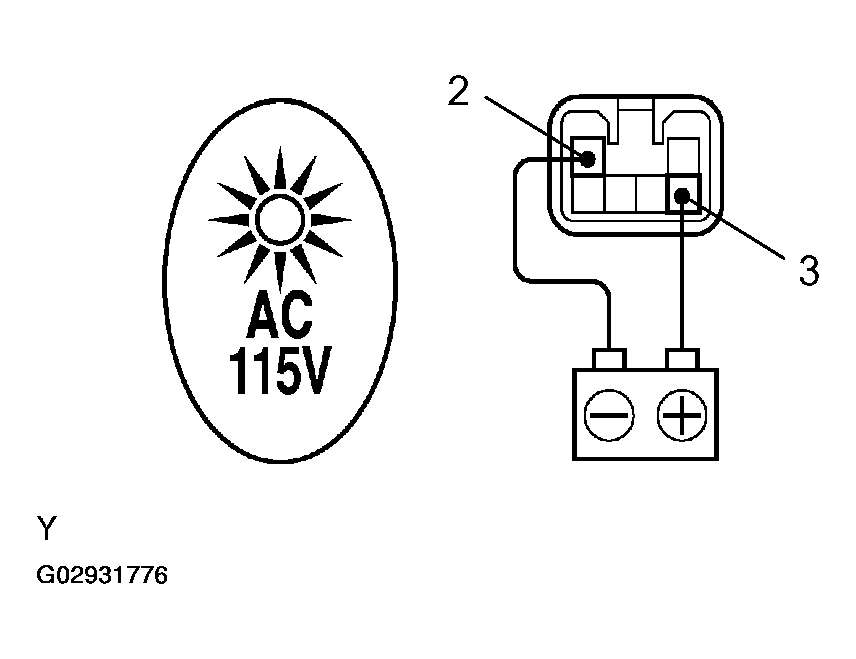

- Double cab (115 V):INSPECT MAIN SWITCH INDICATOR LIGHT OPERATION
- Connect the positive (+) lead from the battery to terminal 3 and the negative (-) lead to terminal 2.
- Push the main switch and check that the indicator light turns on.
If operation is not as specified, replace the switch.
- Double cab (115 V):INSPECT INVERTER RELAY CONTINUITY INVERTER RELAY - DOUBLE CAB (115 V)
Tester Connection Specified Condition 3 - 5 No continuity 3 - 5 Continuity (When battery voltage is applied to terminals 1 and 2) If the continuity is not as specified, replace the switch.
- Double cab (12 V):INSPECT ACC RELAY AND ACC CUT RELAY CONTINUITY ACC RELAY AND ACC CUT RELAY - DOUBLE CAB (12 V)
Tester Connection Specified Condition 3 - 5 No continuity 3 - 5 Continuity (When battery voltage is applied to terminals 1 and 2) If the continuity is not as specified, replace the switch.
- Except double cab:INSPECT POWER OUTLET RELAY (Marking: PWR OUTLET) CONTINUITY POWER OUTLET RELAY - EXCEPT DOUBLE CAB
Tester Connection Specified Condition 3 - 5 No continuity 3 - 5 Continuity (When battery voltage is applied to terminals 1 and 2) If the continuity is not as specified, replace the switch.
- Double cab (115 V):INSPECT VOLTAGE INVERTER CIRCUIT

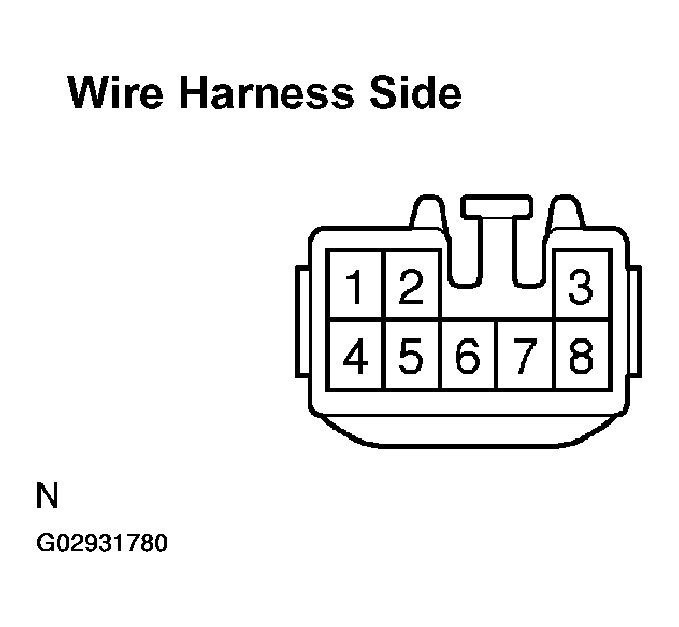

Disconnect the connector from the voltage inverter and check the connector on the wire harness side, as shown in the table.
VOLTAGE INVERTER CIRCUIT - DOUBLE CAB (115 V)Main Switch Position Tester Connection Specified Condition ON 1 - 4 10 - 14V OFF 1 - 4 No continuity If the result is not as specified, replace the inverter.
